TSDZ8 Mid Motor Set 48 V 750 W Carrier Battery 48 V 18.2 Ah 873.6 Wh Mini DZ40 Display 1.68" Brake Sensor Black For Electric Bicycle
You already have the maximum available quantity in your cart.
This set for converting a traditional bicycle into an electric bicycle includes a mid motor Tongsheng TSDZ8 48 V 750 W, a rear carrier battery, a compact Mini DZ40 display, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive electric kit. Power is provided by a 48 V 18.2 Ah battery with an energy capacity of 873.6 Wh, which is mounted on the rear carrier of the bike. Riding data is displayed on the Mini DZ40 display with a diagonal of 1.68", which takes up minimal space on the handlebars. The battery is available in black and is charged using a 54.6 V 4 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle frame.
- Battery Capacity – the battery operates at a voltage of 48 V and a capacity of 18.2 Ah, corresponding to a total energy of 873.6 Wh.
- Battery Cells – the battery is composed of cylindrical EVE 18650 cells.
- BMS Protection – the 30 A battery management system (BMS) monitors the battery operation during riding and charging.
- Lifetime – the battery is designed for 1000 charging cycles.
- Dimensions and Weight – the battery measures 476 x 165 x 89 mm and weighs 6 kg.

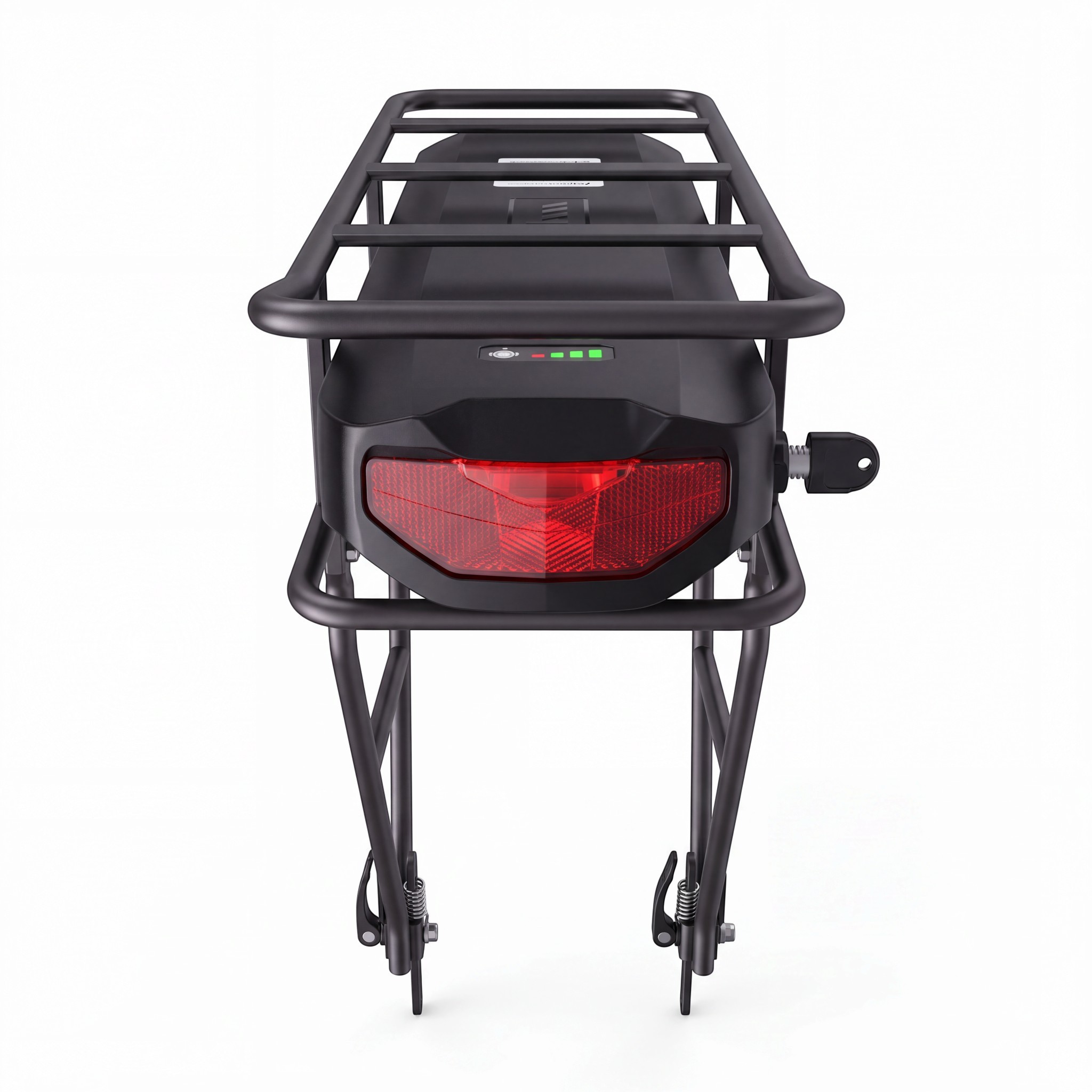

- Placement – the carrier battery is mounted on the rear carrier of the bike, keeping the frame free.
- Durability – the battery casing has an IP65 rating and is protected against damage from falls.
- USB Output – the battery is equipped with a 5 V 1 A USB output for charging small electronics, such as a phone.
- Connection – the power cable ends with an XT60 (male) connector for connecting to the motor control electronics.
- Charger – output voltage of 54.6 V and charging current of 4 A, with the mains plug included in the cable.
- Display – Mini DZ40 model with a diagonal of 1.68" for displaying riding data on the handlebars.
- Brake Sensor – used to interrupt the motor operation when the brake lever is pressed.

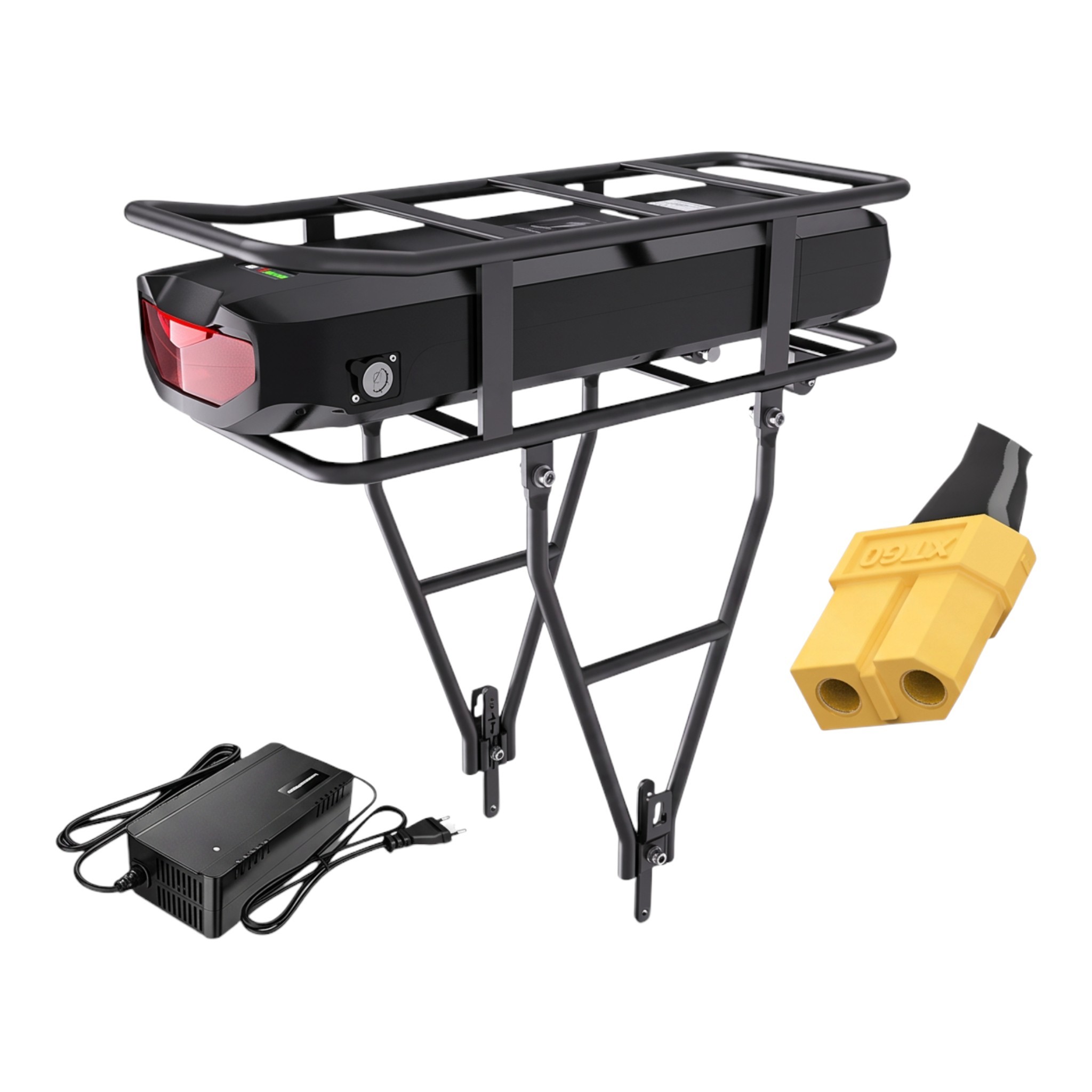

Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W Mid Motor
- 1x 48 V 18.2 Ah 873.6 Wh Rear Carrier Battery
- 1x Rear Carrier
- 1x 54.6 V 4 A Charger
- 1x Mini DZ40 1.68" Display
- 1x Brake Sensor
This electric kit is designed for converting a bicycle into an electric bicycle with a 750 W mid-drive. The battery, measuring 476 x 165 x 89 mm and weighing 6 kg, is mounted on the rear carrier and connects to the motor via an XT60 connector. The battery with 18650 cells offers an energy capacity of 873.6 Wh and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, and the 5 V 1 A USB output allows for charging a phone while riding. The compact Mini DZ40 display and brake sensor complete the kit, providing an overview of riding data and cutting off the drive when braking.
