TSDZ8 Mid Motor Kit 48 V 750 W Frame Battery 52 V 25 Ah 1300 Wh Mini DZ40 Display 1.68" Brake Sensor Black For Electric Bicycle
You already have the maximum available quantity in your cart.
This kit for converting a traditional bicycle into an electric bike includes a Tongsheng TSDZ8 48 V 750 W mid motor, a frame-mounted battery, a compact Mini DZ40 display, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive electric kit. Power is provided by a 52 V 25 Ah battery with an energy capacity of 1300 Wh designed to be mounted on the down tube. Riding data is displayed on the Mini DZ40 display with a diagonal of 1.68", which takes up minimal space on the handlebars. The battery comes in a black finish and is charged using a 58.8 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle.
- Battery Capacity – the battery operates at a voltage of 52 V and a capacity of 25 Ah, corresponding to a total energy of 1300 Wh.
- Battery Cells – the battery is assembled from cylindrical LG 21700 cells with a capacity of 5000 mAh.
- BMS Protection – the electronic battery management system BMS 40 A monitors the battery's operation during riding and charging.
- Life Span – the battery is designed for 1000 charging cycles.
- Dimensions and Weight – the battery measures 36.8 x 9.5 x 15.6 cm and weighs 5.9 kg.
- Placement – downtube type battery is mounted on the down tube of the bicycle.
- Durability – the battery casing has an IP65 rating and is protected against damage from falls.

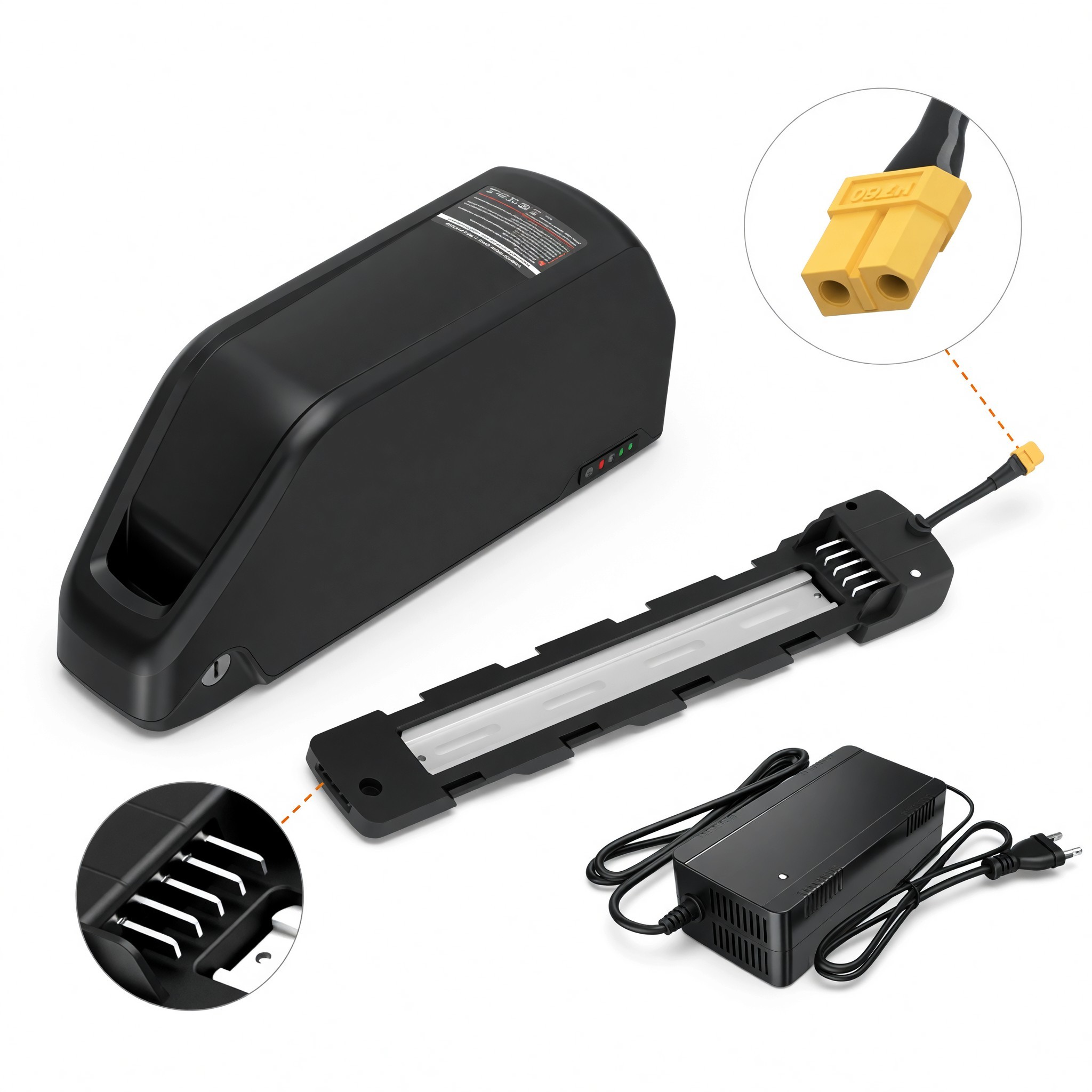

- Connection – the battery holder with 5 pins is equipped with a cable ending in an XT60 (male) connector for connection to the motor control electronics.
- Charger – output voltage of 58.8 V and charging current of 3 A, the mains plug is included in the cable.
- Display – Mini DZ40 model with a diagonal of 1.68" for displaying riding data on the handlebars.
- Brake Sensor – used to interrupt the motor operation when the brake lever is pressed.
- USB – the battery is not equipped with a USB output for charging other devices.
Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W mid motor
- 1x 52 V 25 Ah 1300 Wh battery
- 1x battery holder with 5 pins
- 1x 58.8 V 3 A charger
- 1x Mini DZ40 1.68" display
- 1x brake sensor
This electric kit is designed for converting a bicycle into an electric bike with a mid-drive power of 750 W. The battery, measuring 36.8 x 9.5 x 15.6 cm and weighing 5.9 kg, is secured to the down tube in a holder with 5 pins and connects with an XT60 connector. The battery with LG 21700 cells offers an energy capacity of 1300 Wh and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, making it suitable for riding in wet conditions. The compact Mini DZ40 display and brake sensor complete the kit, providing an overview of riding data and cutting off the drive when braking.
