TSDZ8 Mid Motor Kit 48 V 750 W Frame Battery 52 V 25 Ah 1300 Wh Bluetooth Display EKD01 2.4" Brake Sensor Black For Electric Bicycle
You already have the maximum available quantity in your cart.

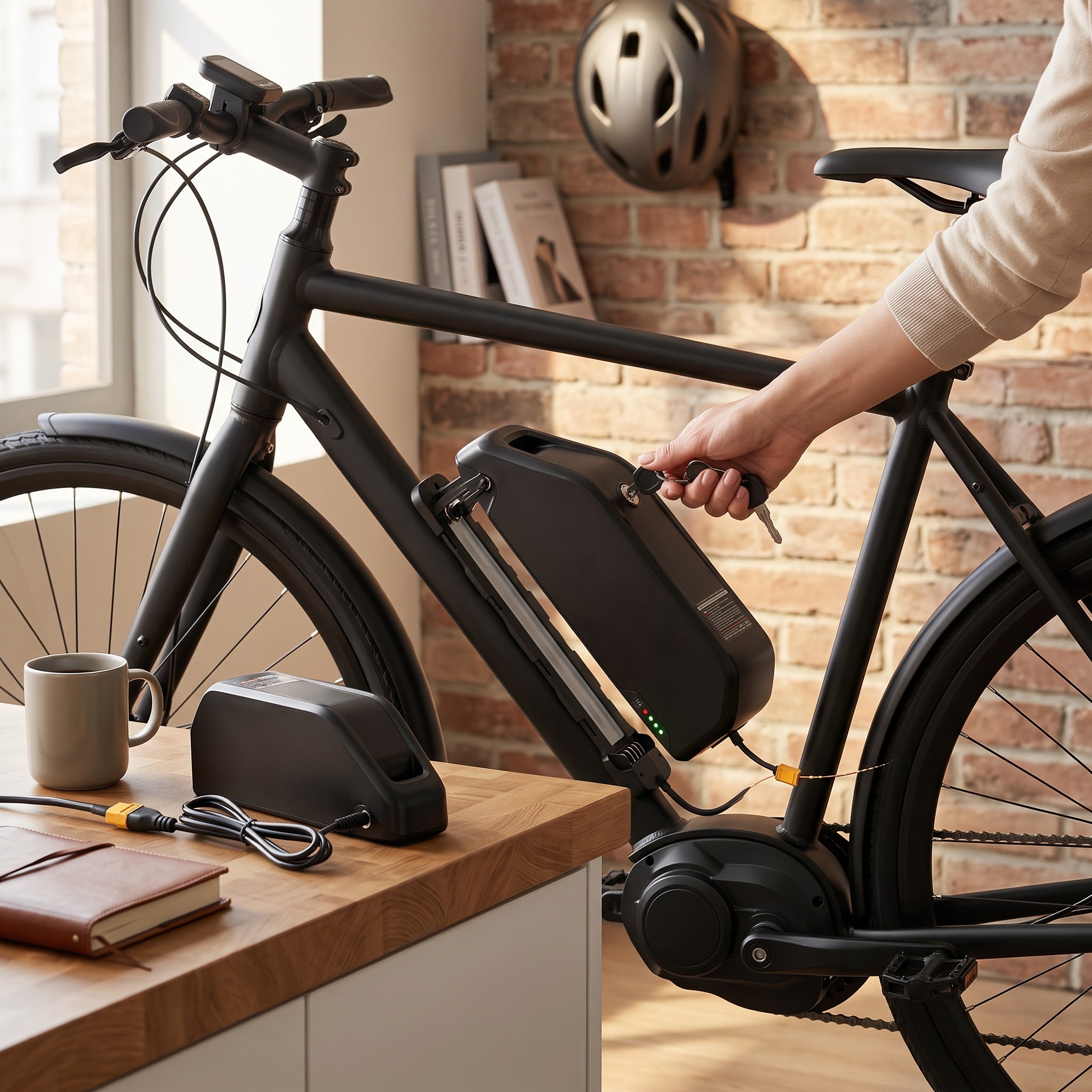

This kit for converting a traditional bicycle into an electric bike includes a mid motor Tongsheng TSDZ8 48 V 750 W, a frame-mounted battery, Bluetooth display EKD01, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive electric kit. Power is provided by a 52 V 25 Ah battery with an energy capacity of 1300 Wh designed to be mounted on the down tube. Riding data is displayed on the EKD01 display with a diagonal of 2.4" and wireless Bluetooth connectivity. The battery comes in black and is charged using a 58.8 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle.
- Battery Capacity – the battery operates at a voltage of 52 V and a capacity of 25 Ah, corresponding to a total energy of 1300 Wh.
- Battery Cells – the battery is made up of cylindrical cells LG 21700 with a capacity of 5000 mAh.
- BMS Protection – the 40 A battery management system monitors the operation of the battery during riding and charging.
- Longevity – the battery is designed for 1000 charging cycles.
- Dimensions and Weight – the battery measures 36.8 x 9.5 x 15.6 cm and weighs 5.9 kg.
- Placement – the downtube battery is mounted on the down tube of the bicycle.
- Durability – the battery casing has an IP65 rating and is protected against damage from falls.

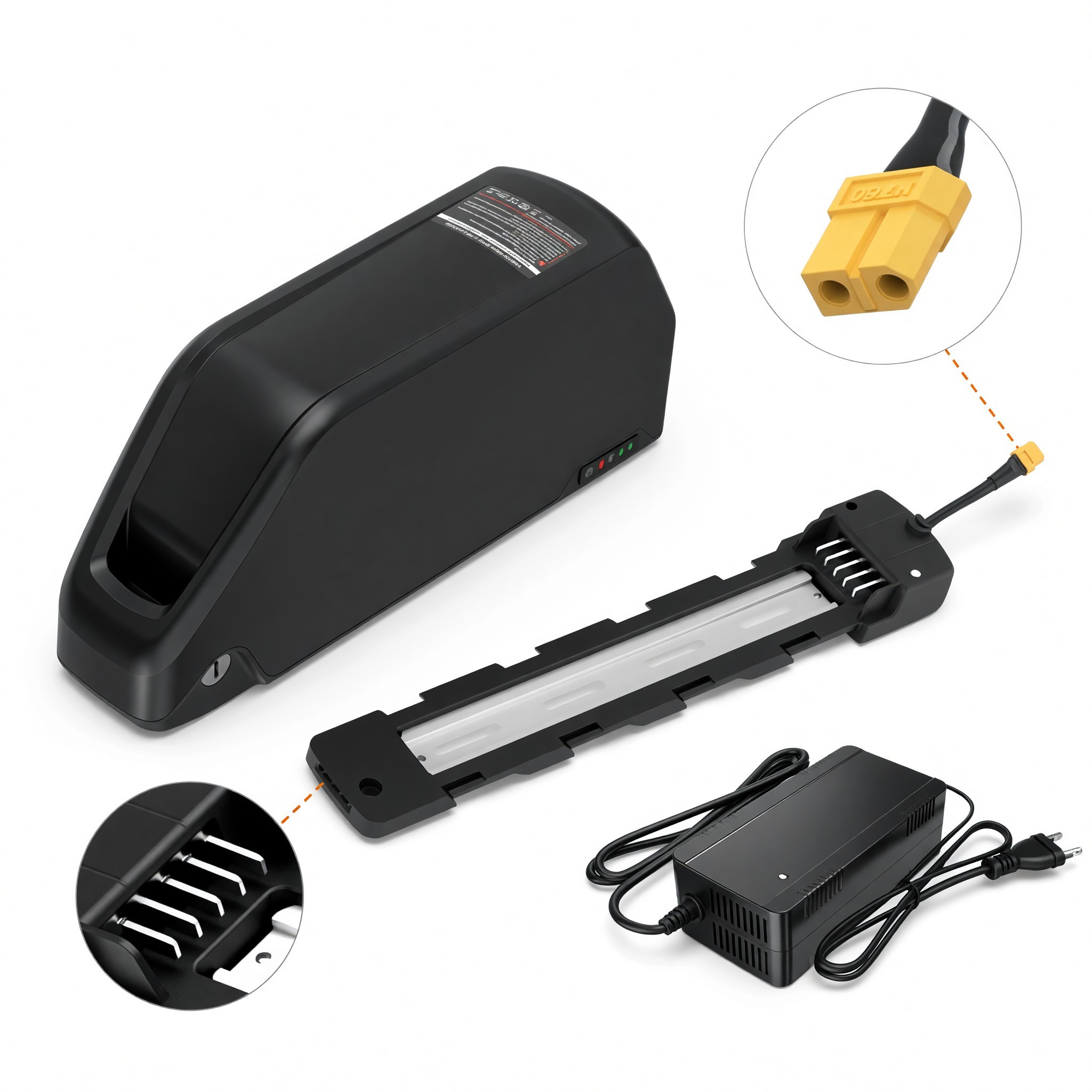

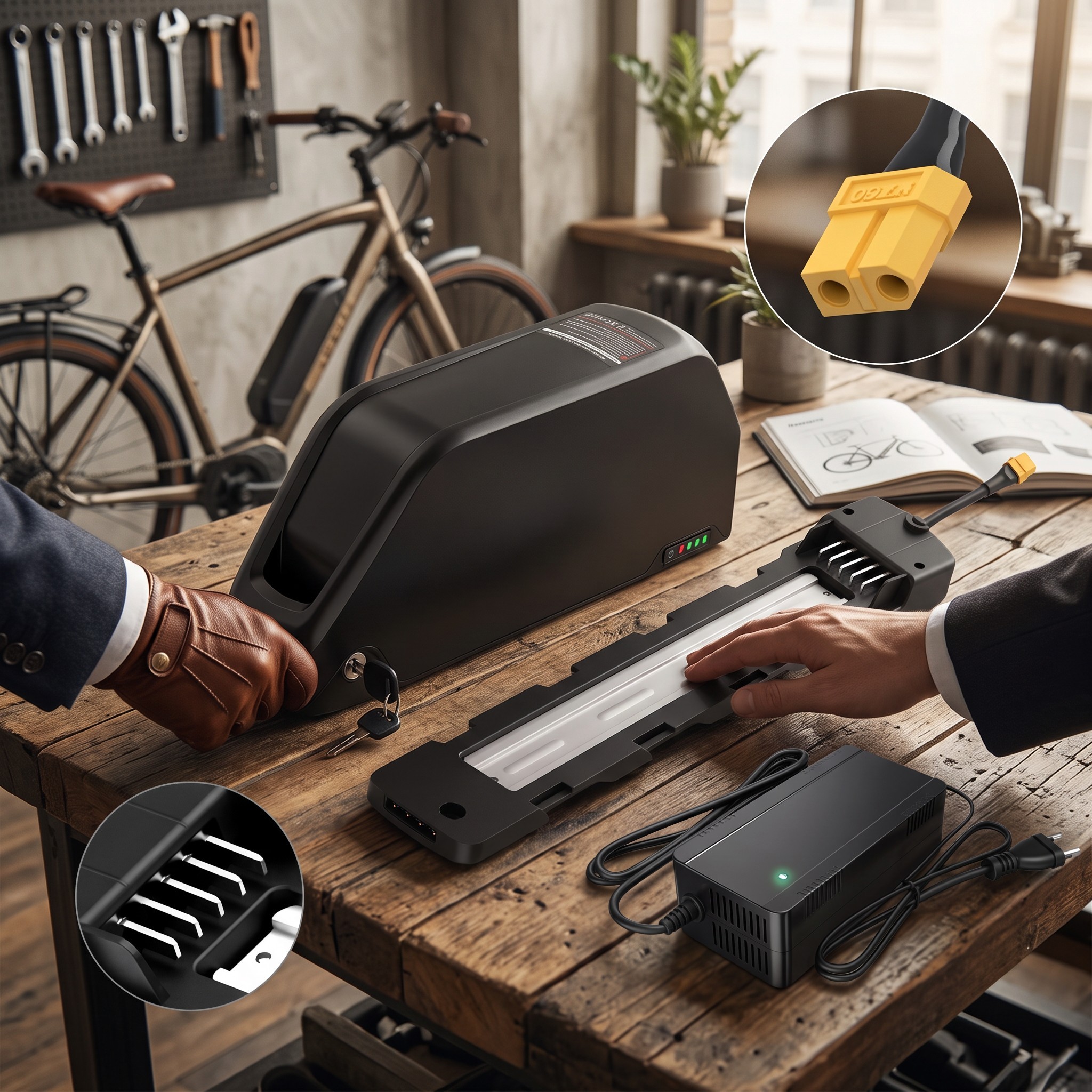

- Connection – the battery holder with 5 pins is equipped with a cable ending in an XT60 (male) connector for connecting to the motor's control electronics.
- Charger – output voltage of 58.8 V and charging current of 3 A, the mains plug is included with the cable.
- Display – model EKD01 with a diagonal of 2.4" and wireless Bluetooth connectivity for displaying riding data on the handlebars.
- Brake Sensor – serves to interrupt the motor operation when the brake lever is pressed.
- USB – the battery is not equipped with a USB output for charging other devices.
Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W mid motor
- 1x 52 V 25 Ah 1300 Wh battery
- 1x battery holder with 5 pins
- 1x 58.8 V 3 A charger
- 1x Bluetooth display EKD01 2.4"
- 1x brake sensor
This electric kit is designed for converting a bicycle into an electric bike with a 750 W mid drive. The battery, measuring 36.8 x 9.5 x 15.6 cm and weighing 5.9 kg, is secured to the down tube in a holder with 5 pins and connects with an XT60 connector. The battery with LG 21700 cells provides 1300 Wh of energy and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, making it suitable for use in wet conditions. The EKD01 Bluetooth display and brake sensor enhance the kit by providing an overview of riding data and shutting off the drive when braking.
