TSDZ8 Mid Motor Kit 48 V 750 W Frame Battery 52 V 20 Ah 1040 Wh Touch Display VD18MT 1.45" Brake Sensor Black For Electric Bicycle
You already have the maximum available quantity in your cart.
This kit for converting a traditional bicycle into an electric bicycle includes a mid motor Tongsheng TSDZ8 48 V 750 W, a frame-mounted battery, touch display VD18MT, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive electric kit. Power is provided by a 52 V 20 Ah battery with an energy capacity of 1040 Wh, designed to be mounted on the down tube. Riding data is displayed on the touch screen VD18MT with a diagonal of 1.45", which is operated directly by touch. The battery is in black and is charged using a 58.8 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle.
- Battery Capacity – the battery operates at a voltage of 52 V and a capacity of 20 Ah, corresponding to a total energy of 1040 Wh.
- Battery Cells – the battery is composed of cylindrical Samsung 21700 format cells.
- BMS Protection – the 30 A battery management system (BMS) monitors the battery's operation during riding and charging.
- Life Span – the battery is rated for 1000 charge cycles.

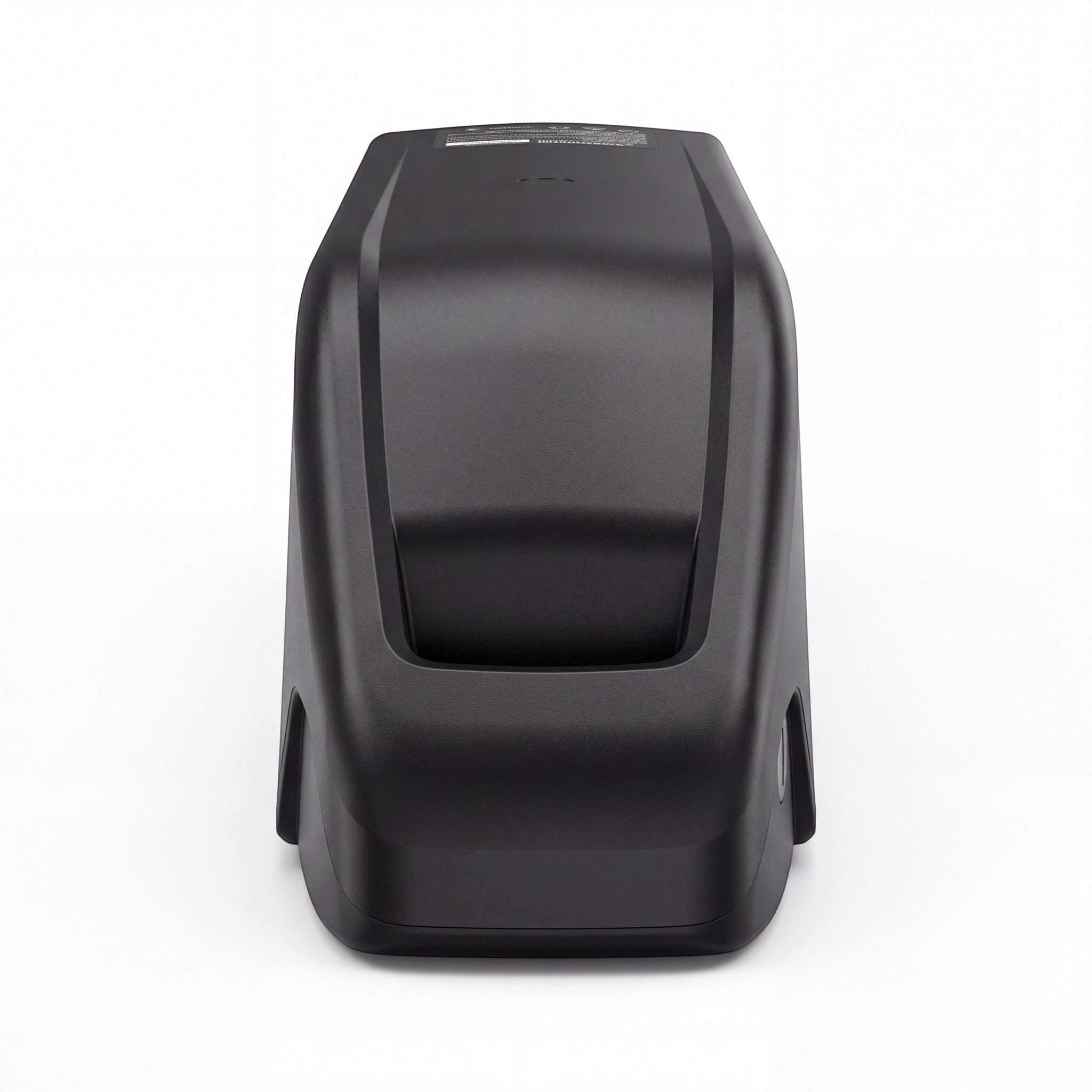

- Dimensions and Weight – the battery measures 36.8 x 9.5 x 12.5 cm and weighs 5 kg.

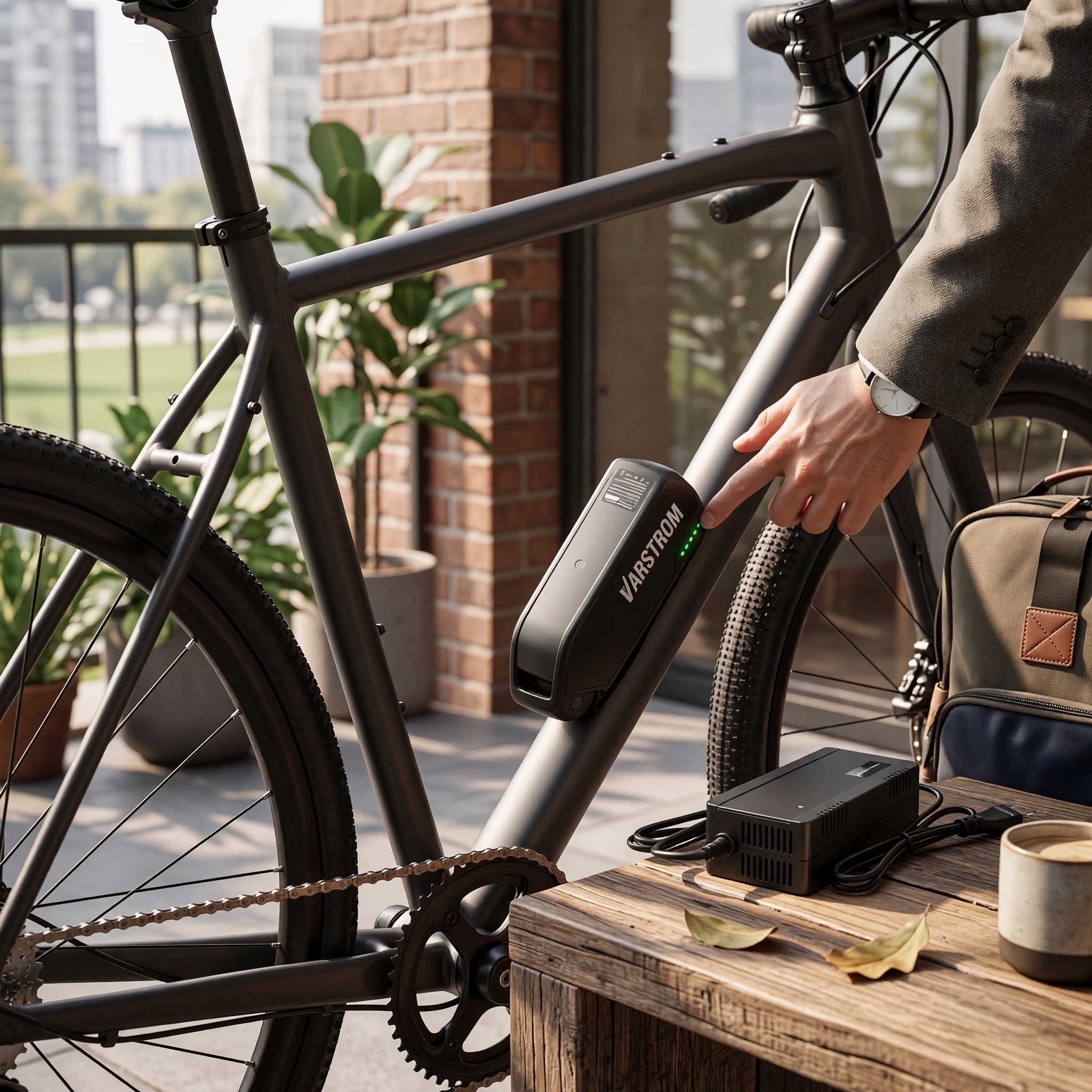

- Placement – downtube type battery in Polly design is mounted on the down tube of the bike.
- Durability – the battery casing has an IP65 rating and is protected against damage from falls.

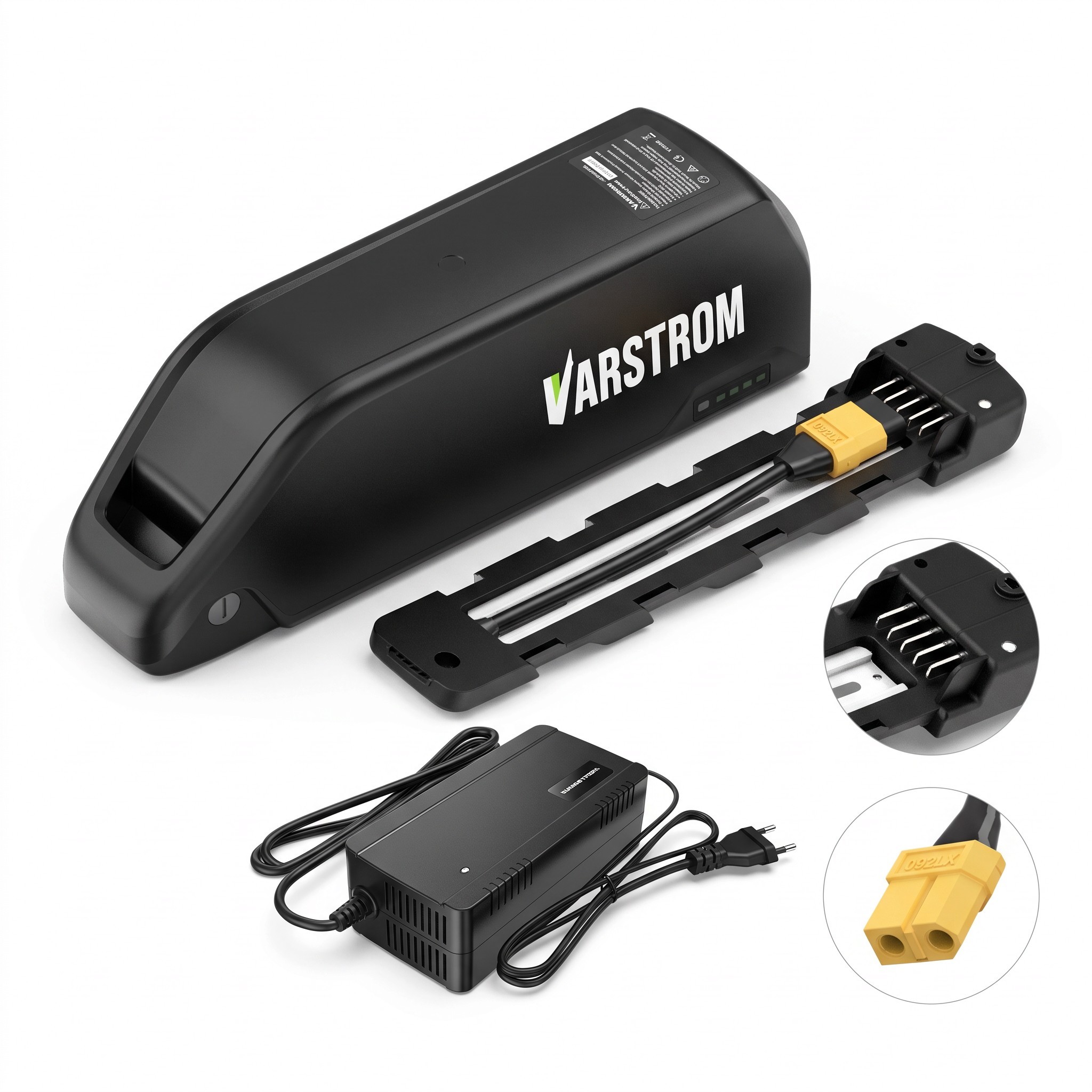

- Connection – the battery holder with 6 pins is equipped with a cable ending in an XT60 (male) connector for connection to the motor control electronics.
- Charger – output voltage of 58.8 V and charging current of 3 A, the mains plug is part of the cable.
- Display – touch screen VD18MT with a diagonal of 1.45" for displaying riding data on the handlebars.
- Brake Sensor – serves to interrupt the motor operation when the brake lever is pressed.
- USB – the battery is not equipped with a USB output for charging other devices.
Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W mid motor
- 1x 52 V 20 Ah 1040 Wh battery
- 1x battery holder with 6 pins
- 1x 58.8 V 3 A charger
- 1x touch display VD18MT 1.45"
- 1x brake sensor
This electric kit is designed for converting a bicycle into an electric bicycle with a mid-drive motor of 750 W. The battery with dimensions 36.8 x 9.5 x 12.5 cm and a weight of 5 kg is mounted on the down tube into a holder with 6 pins and connects with an XT60 connector. The battery with Samsung 21700 cells provides energy of 1040 Wh and is rated for 1000 charge cycles. With an IP65 rating, the battery is protected against dust and splashing water, making it suitable for riding in wet conditions. The touch display VD18MT and brake sensor complement the kit with an overview of riding data and motor shutdown during braking.
