TSDZ8 Mid Motor Kit 48 V 750 W Frame Battery 48 V 30 Ah 1440 Wh Mini DZ40 Display 1.68" Brake Sensor Black For Electric Bicycle
You already have the maximum available quantity in your cart.

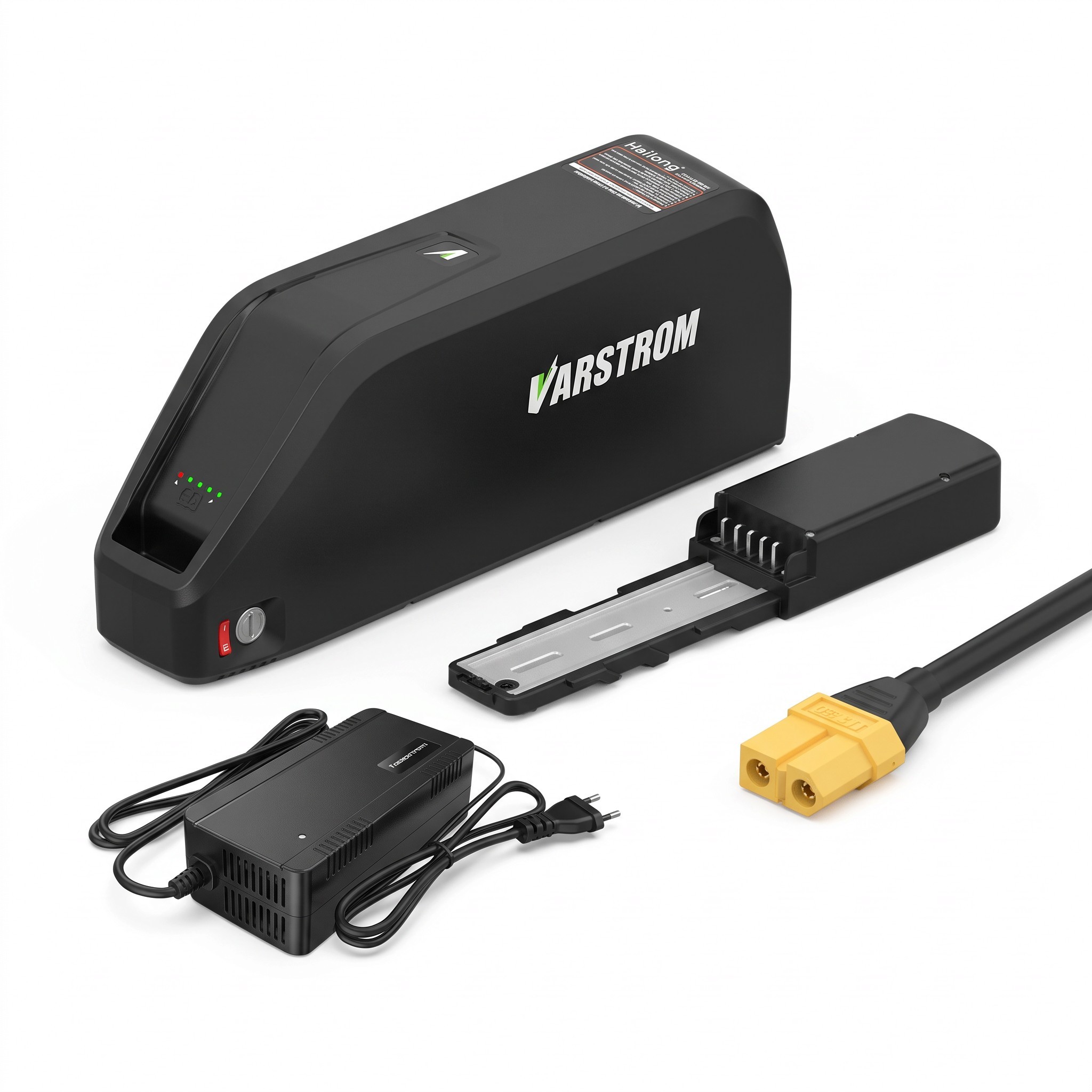

This kit for converting a traditional bicycle into an electric bike includes a mid motor Tongsheng TSDZ8 48 V 750 W, a frame-mounted battery, a compact Mini DZ40 display, and a brake sensor. The motor is mounted in the bottom bracket of the frame, making it a mid-drive electric kit. Power is supplied by a 48 V 30 Ah battery with an energy capacity of 1440 Wh designed to be mounted on the down tube. Riding data is displayed on the Mini DZ40 display with a diagonal of 1.68", which takes up minimal space on the handlebars. The battery comes in black and is charged using a 54.6 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle.
- Battery Capacity – the battery operates at a voltage of 48 V and a capacity of 30 Ah, corresponding to a total energy of 1440 Wh.
- Battery Cells – the battery is composed of cylindrical cells LG 21700 with a capacity of 5000 mAh.
- BMS Protection – the electronic battery management system BMS 40 A monitors the operation of the battery during riding and charging.
- Life Span – the battery is designed for 1000 charging cycles.
- Dimensions and Weight – the battery measures 39.5 x 9.5 x 15.6 cm and weighs 6.9 kg.
- Placement – downtube battery is mounted on the down tube of the bike.
- Durability – the battery casing has an IP65 rating and is protected against damage from falls.

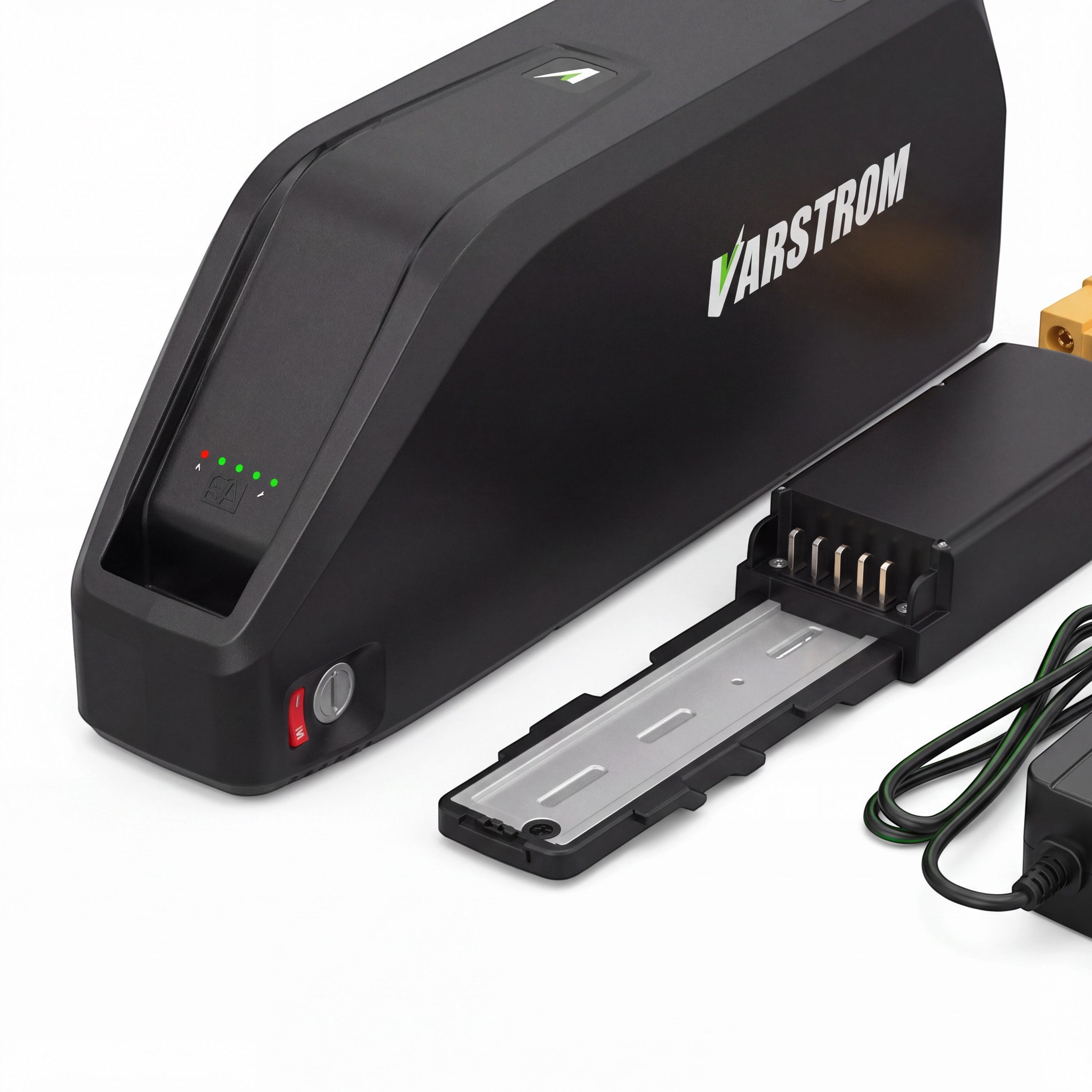

- Connection – the battery holder with 5 pins is equipped with a cable ending in an XT60 (male) connector for connection to the motor control electronics.
- Charger – output voltage 54.6 V and charging current 3 A, the mains plug is part of the cable.
- Display – Mini DZ40 model with a diagonal of 1.68" for displaying riding data on the handlebars.
- Brake Sensor – serves to interrupt the motor operation when the brake lever is pulled.
- USB – the battery is not equipped with a USB output for charging other devices.
Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W mid motor
- 1x 48 V 30 Ah 1440 Wh battery
- 1x battery holder with 5 pins
- 1x 54.6 V 3 A charger
- 1x Mini DZ40 1.68" display
- 1x brake sensor
This electric kit is designed for converting a bicycle into an electric bike with a mid-drive motor of 750 W. The battery with dimensions 39.5 x 9.5 x 15.6 cm and a weight of 6.9 kg is secured to the down tube in a holder with 5 pins and connects with an XT60 connector. The battery with LG 21700 cells offers an energy capacity of 1440 Wh and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, making it suitable for riding in wet conditions. The compact Mini DZ40 display and brake sensor complement the kit by providing an overview of riding data and cutting off the drive when braking.
