TSDZ8 Mid Motor Kit 48 V 750 W Frame Battery 48 V 25 Ah 1200 Wh Mini DZ40 Display 1.68" Brake Sensor Black For E-Bike
You already have the maximum available quantity in your cart.
This kit for converting a traditional bicycle into an e-bike includes a mid motor Tongsheng TSDZ8 48 V 750 W, a frame-mounted battery, a compact Mini DZ40 display, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive e-bike kit. Power is provided by a 48 V 25 Ah battery with an energy capacity of 1200 Wh designed to be mounted on the down tube. Riding data is displayed on the Mini DZ40 display with a diagonal of 1.68", which takes up minimal space on the handlebars. The battery is finished in black and is charged using a 54.6 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle.
- Battery Capacity – the battery operates at a voltage of 48 V and a capacity of 25 Ah, corresponding to a total energy of 1200 Wh.
- Battery Cells – the battery is assembled from cylindrical EVE 21700 cells with a capacity of 5000 mAh.
- BMS Protection – the 40 A battery management system monitors the operation of the battery during both riding and charging.
- Lifetime – the battery is designed for 1000 charging cycles.
- Dimensions and Weight – the battery measures 36.8 x 9.5 x 15.6 cm and weighs 5.9 kg.
- Mounting Location – downtube battery is mounted on the down tube of the bike.
- Durability – the battery casing has an IP65 rating and is protected against damage from falls.
- Connection – the battery holder with 5 pins is equipped with a cable ending in an XT60 (male) connector for connection to the motor control electronics.
- Charger – output voltage of 54.6 V and charging current of 3 A, the mains plug is included in the cable.
- Display – Mini DZ40 model with a diagonal of 1.68" for displaying riding data on the handlebars.
- Brake Sensor – serves to interrupt the motor operation when the brake lever is pressed.
- USB – the battery is not equipped with a USB output for charging other devices.

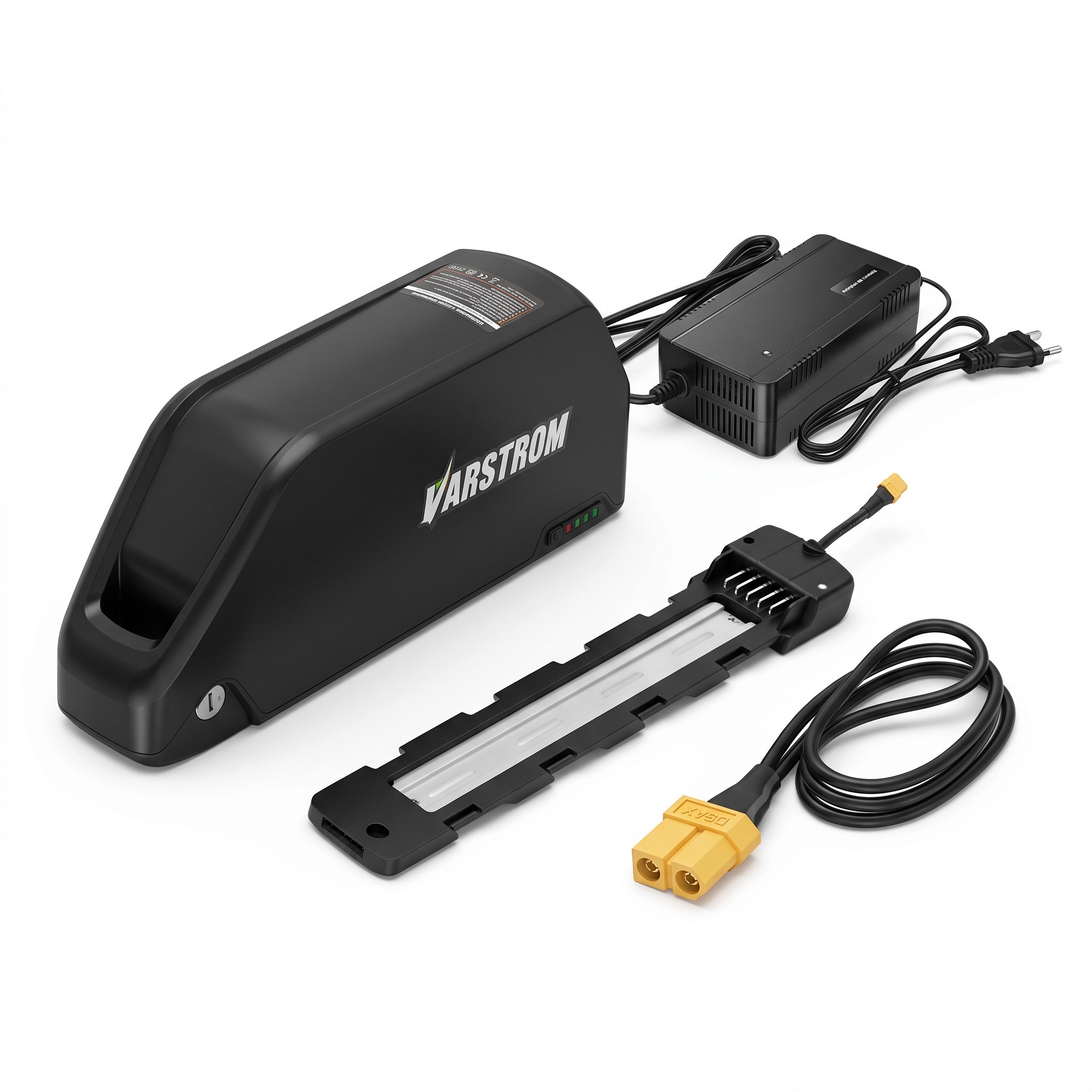

Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W mid motor
- 1x 48 V 25 Ah 1200 Wh battery
- 1x battery holder with 5 pins
- 1x 54.6 V 3 A charger
- 1x Mini DZ40 1.68" display
- 1x brake sensor
This e-bike kit is designed for converting a bicycle into an e-bike with a mid-drive motor of 750 W. The battery with dimensions 36.8 x 9.5 x 15.6 cm and a weight of 5.9 kg is secured to the down tube in a holder with 5 pins and connects with an XT60 connector. The battery with 21700 cells offers an energy capacity of 1200 Wh and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, making it suitable for riding in wet conditions. The compact Mini DZ40 display and brake sensor complete the kit by providing an overview of riding data and cutting off the drive when braking.
