TSDZ8 Mid Motor Kit 48 V 750 W Frame Battery 48 V 25 Ah 1200 Wh Bluetooth Display EKD01 2.4" Brake Sensor Black For Electric Bicycle
You already have the maximum available quantity in your cart.
This kit for converting a traditional bicycle into an electric bicycle includes a mid motor Tongsheng TSDZ8 48 V 750 W, a frame-mounted battery, Bluetooth display EKD01, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive electric kit. Power is supplied by a 48 V 25 Ah battery with an energy capacity of 1200 Wh designed to be mounted on the down tube. Riding data is displayed on the EKD01 display with a diagonal of 2.4" and wireless Bluetooth connectivity. The battery is in black and is charged using a 54.6 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power output of 750 W is installed in the bottom bracket of the bicycle.
- Battery Capacity – The battery operates at a voltage of 48 V and a capacity of 25 Ah, corresponding to a total energy of 1200 Wh.
- Battery Cells – The battery is composed of cylindrical cells EVE 21700 with a capacity of 5000 mAh.
- BMS Protection – The 40 A battery management system (BMS) monitors the battery's operation during riding and charging.
- Longevity – The battery is designed for 1000 charging cycles.
- Dimensions and Weight – The battery measures 36.8 x 9.5 x 15.6 cm and weighs 5.9 kg.
- Placement – The downtube battery is mounted on the down tube of the bicycle.
- Durability – The battery casing has an IP65 rating and is protected against damage from falls.

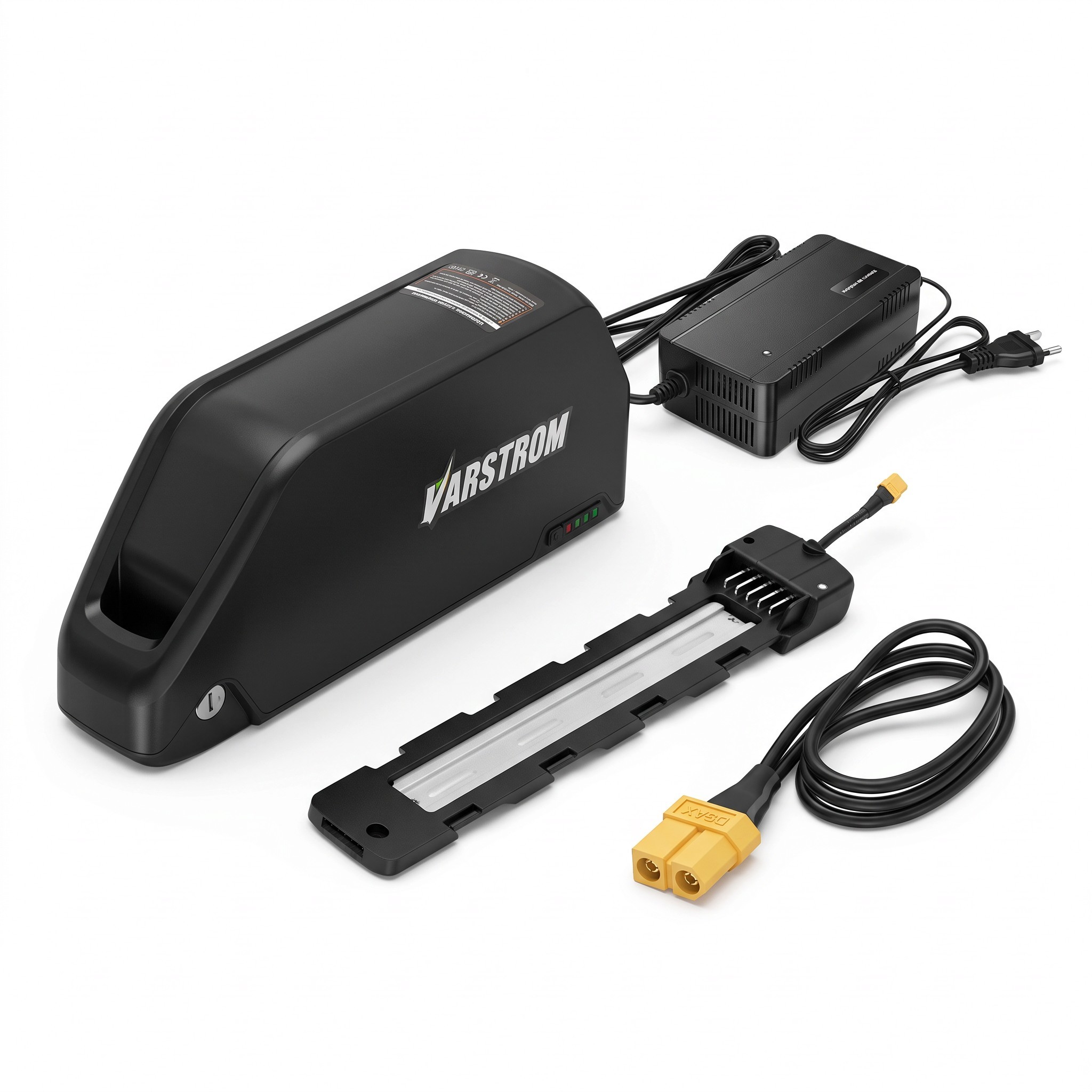

- Connection – The battery holder with 5 pins is equipped with a cable ending in an XT60 (male) connector for connection to the motor's control electronics.
- Charger – Output voltage of 54.6 V and charging current of 3 A, the mains plug is part of the cable.
- Display – Model EKD01 with a diagonal of 2.4" and wireless Bluetooth connectivity for displaying riding data on the handlebars.
- Brake Sensor – Used to interrupt the motor operation when the brake lever is pressed.
- USB – The battery is not equipped with a USB output for charging other devices.
Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W Mid Motor
- 1x 48 V 25 Ah 1200 Wh Battery
- 1x Battery Holder with 5 Pins
- 1x 54.6 V 3 A Charger
- 1x Bluetooth Display EKD01 2.4"
- 1x Brake Sensor
This electric kit is designed for converting a bicycle into an electric bicycle with a mid-drive motor of 750 W. The battery, measuring 36.8 x 9.5 x 15.6 cm and weighing 5.9 kg, is mounted on the down tube into a holder with 5 pins and connects with an XT60 connector. The battery with 21700 cells offers an energy capacity of 1200 Wh and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, making it suitable for riding in wet weather. The Bluetooth display EKD01 and brake sensor complement the kit by providing an overview of riding data and cutting off power during braking.
