TSDZ8 Mid Motor Kit 48 V 750 W Frame Battery 48 V 16 Ah 768 Wh Mini DZ40 Display 1.68" Brake Sensor Black For Electric Bike
You already have the maximum available quantity in your cart.

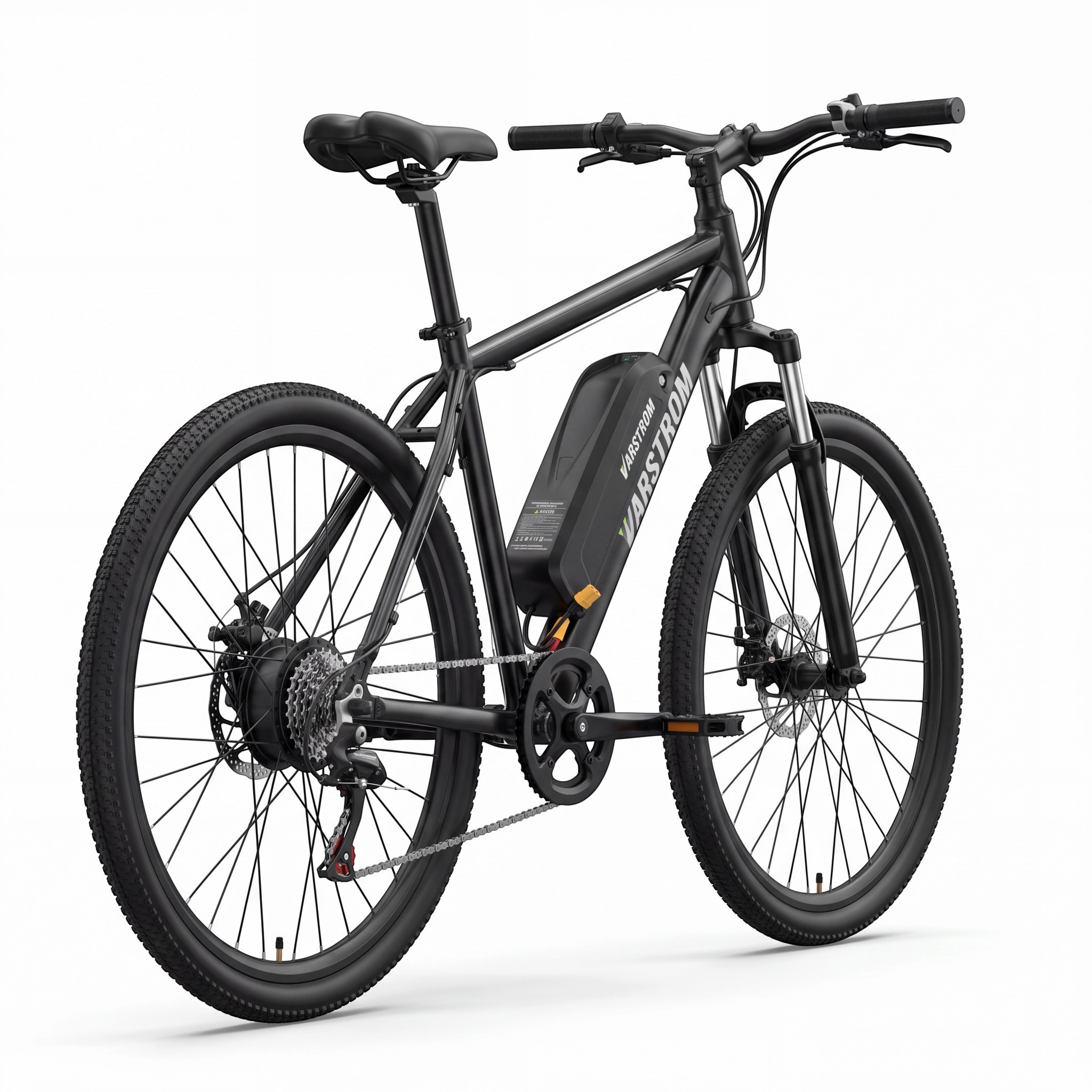

This kit for converting a traditional bicycle into an electric bike includes the Tongsheng TSDZ8 48 V 750 W mid motor, a frame-mounted battery, a compact Mini DZ40 display, and a brake sensor. The motor is installed in the bicycle's bottom bracket, making it a mid-drive electric kit. Power is provided by a 48 V 16 Ah battery with an energy capacity of 768 Wh designed to attach to the down tube. Riding data is displayed on the Mini DZ40 display with a diagonal of 1.68", which takes up minimal space on the handlebars. The battery is black, features a USB output, and is charged using a 54.6 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and power of 750 W is installed in the bicycle's bottom bracket.
- Battery Capacity – The battery operates at 48 V with a capacity of 16 Ah, corresponding to a total energy of 768 Wh.
- Battery Cells – The battery is assembled from cylindrical 18650 cells.
- BMS Protection – The 30 A battery management system (BMS) monitors the battery's operation during riding and charging.
- Battery Life – The battery is designed for 1000 charging cycles.
- Dimensions and Weight – The battery measures 36.8 x 9 x 11 cm and weighs 4.23 kg.
- Placement – The downtube battery is mounted on the bicycle's down tube.
- Durability – The battery casing has an IP65 rating and is protected against damage from falls.
- USB Output – The battery is equipped with a 5 V 1 A USB output for charging small electronics, such as a phone.

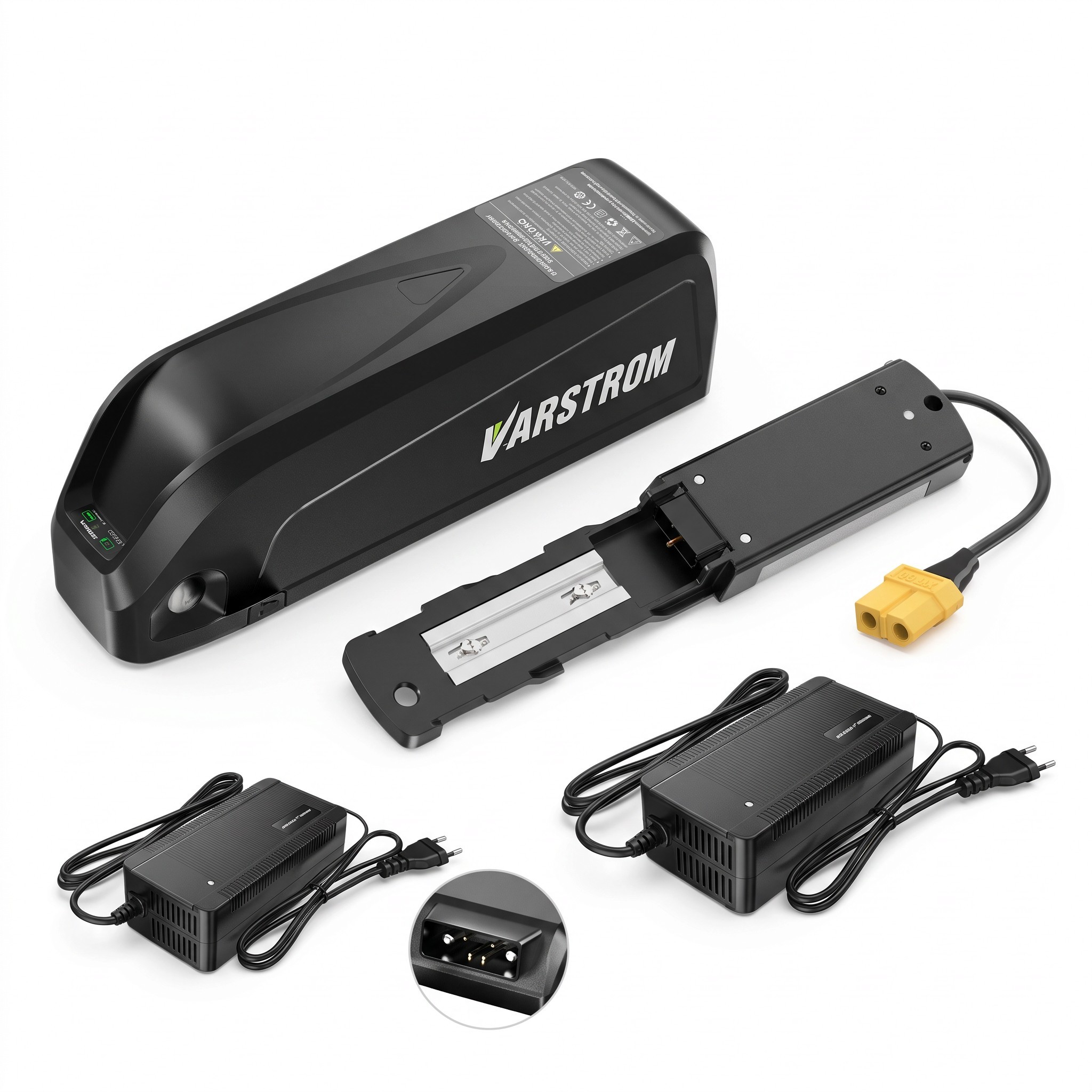

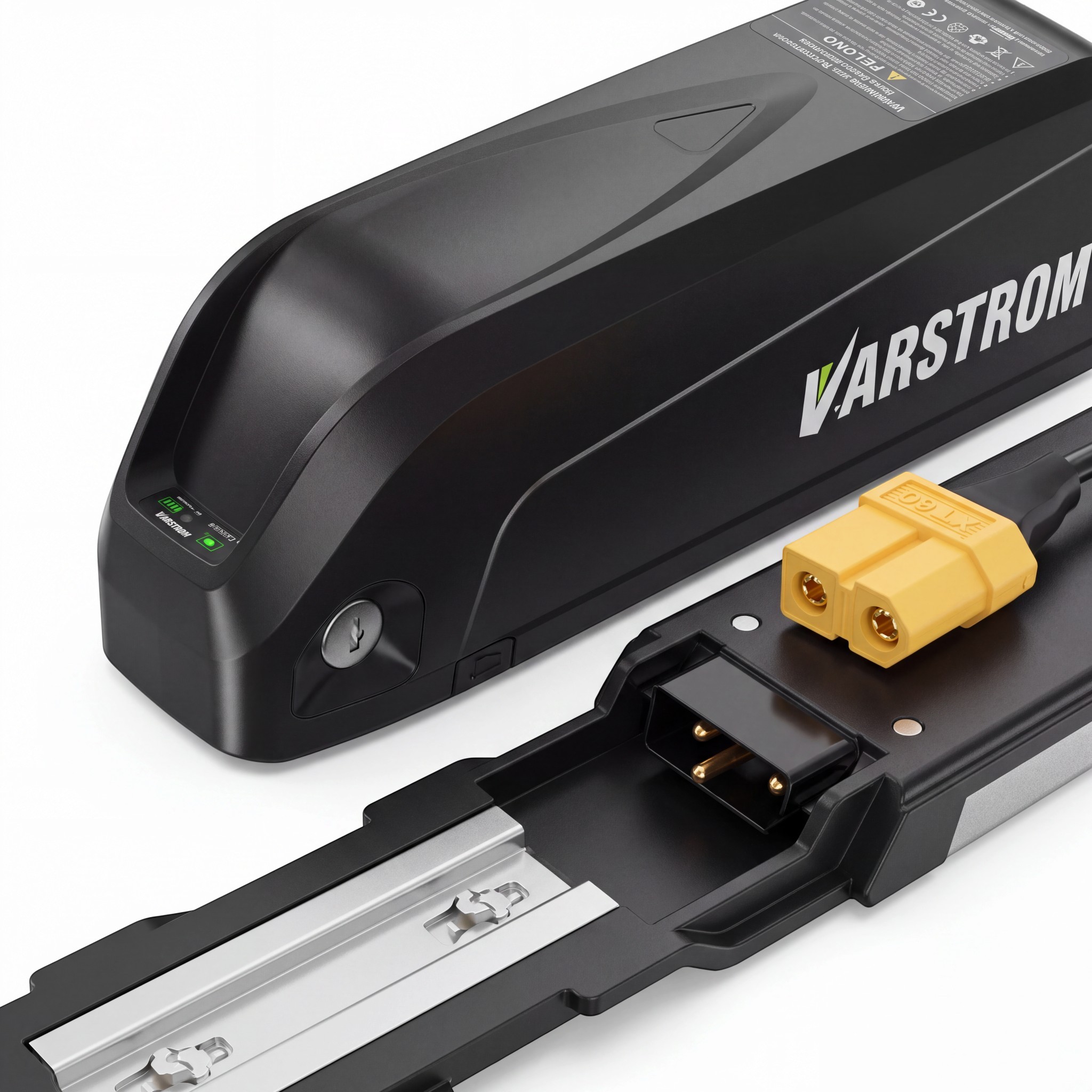

- Connection – The battery holder with 6 pins is equipped with a cable ending in an XT60 (male) connector for connecting to the motor's control electronics.
- Charger – Output voltage of 54.6 V and charging current of 3 A, with the mains plug included in the cable.
- Display – Mini DZ40 model with a diagonal of 1.68" for displaying riding data on the handlebars.
- Brake Sensor – Used to interrupt the motor's operation when the brake lever is pressed.
Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W mid motor
- 1x 48 V 16 Ah 768 Wh battery
- 1x battery holder with 6 pins
- 1x 54.6 V 3 A charger
- 1x Mini DZ40 1.68" display
- 1x brake sensor
This electric kit is designed for converting a bicycle into an electric bike with a 750 W mid-drive system. The battery, measuring 36.8 x 9 x 11 cm and weighing 4.23 kg, is secured to the down tube in a holder with 6 pins and connects to the motor via an XT60 connector. The battery, using 18650 cells, offers an energy capacity of 768 Wh, is protected by a BMS system, and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, and the USB output allows for phone charging while riding. The compact Mini DZ40 display and brake sensor complete the kit by providing an overview of riding data and cutting off the drive when braking.
