TSDZ8 Mid Motor Kit 48 V 750 W Frame Battery 48 V 16 Ah 768 Wh Bluetooth Display EKD01 2.4" Brake Sensor Black For Electric Bicycle
You already have the maximum available quantity in your cart.
This kit for converting a traditional bicycle into an electric bicycle includes a mid motor Tongsheng TSDZ8 48 V 750 W, a frame-mounted battery, Bluetooth display EKD01, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive electric kit. Power is provided by a 48 V 16 Ah battery with an energy capacity of 768 Wh designed to be mounted on the down tube. Riding data is displayed on the EKD01 display with a diagonal of 2.4" and wireless Bluetooth connectivity. The battery comes in black, features a USB output, and is charged using a 54.6 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle.
- Battery Capacity – the battery operates at a voltage of 48 V and a capacity of 16 Ah, corresponding to a total energy of 768 Wh.
- Battery Cells – the battery is composed of cylindrical 18650 cells.
- BMS Protection – the 30 A battery management system (BMS) monitors the operation of the battery during riding and charging.
- Lifetime – the battery is designed for 1000 charging cycles.
- Dimensions and Weight – the battery measures 36.8 x 9 x 11 cm and weighs 4.23 kg.

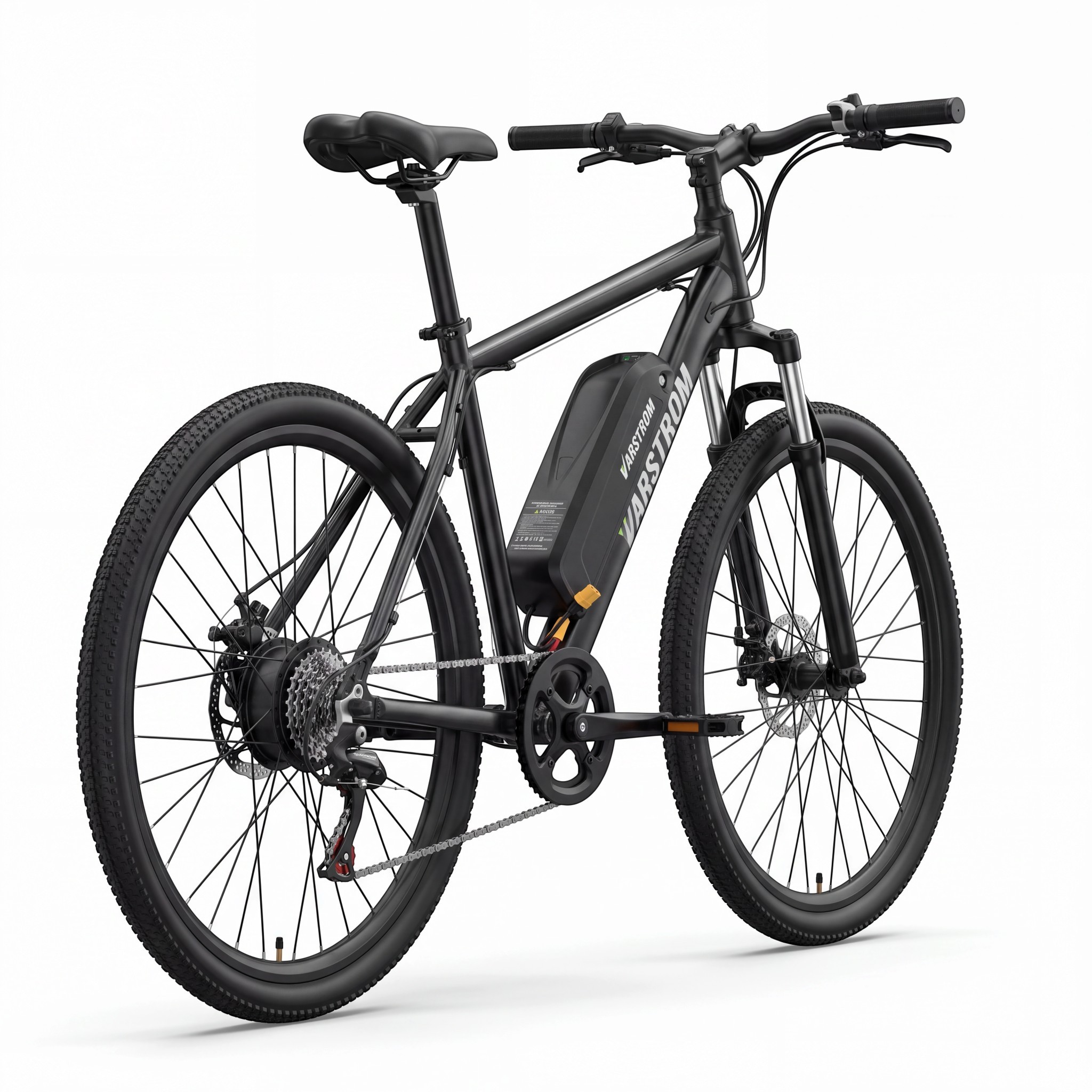

- Placement – downtube battery type is mounted on the down tube of the bicycle.
- Durability – the battery casing has an IP65 rating and is protected against damage from falls.
- USB Output – the battery is equipped with a 5 V 1 A USB output for charging small electronics, such as a phone.

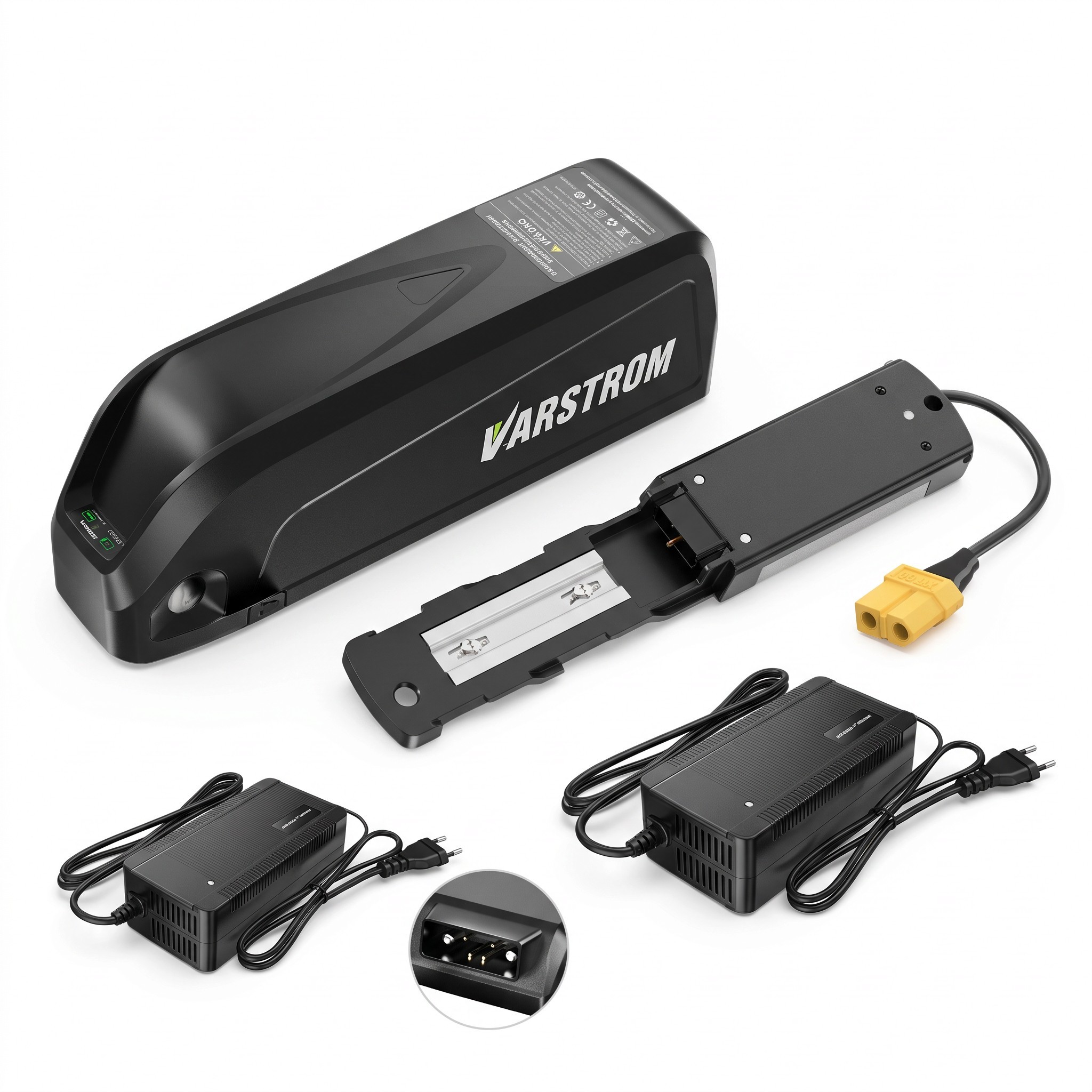

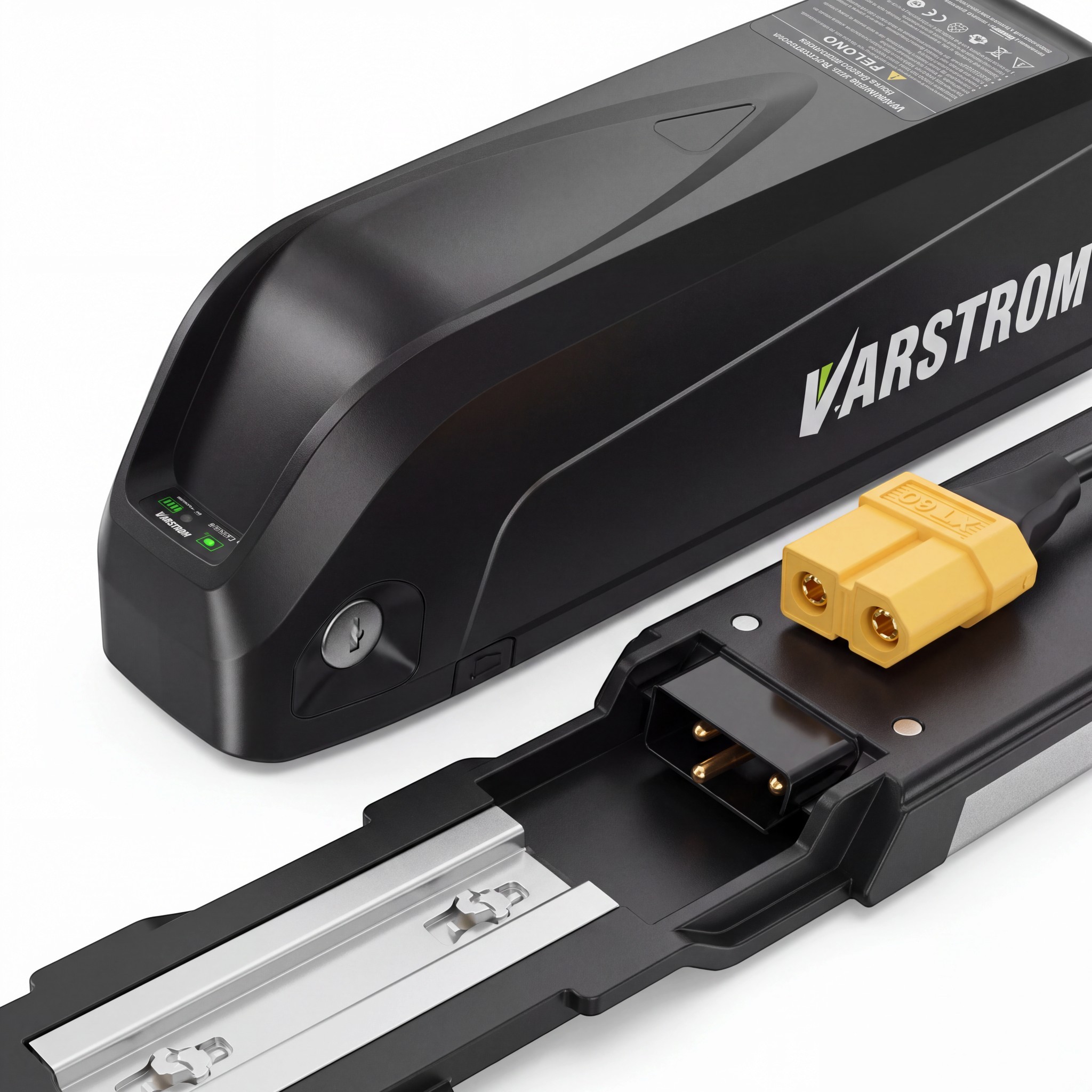

- Connection – the battery holder with 6 pins is equipped with a cable ending in an XT60 (male) connector for connection to the motor's control electronics.
- Charger – output voltage of 54.6 V and charging current of 3 A, the mains plug is part of the cable.
- Display – model EKD01 with a diagonal of 2.4" and wireless Bluetooth connectivity for displaying riding data on the handlebars.
- Brake Sensor – interrupts the motor operation when the brake lever is pressed.
Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W mid motor
- 1x 48 V 16 Ah 768 Wh battery
- 1x battery holder with 6 pins
- 1x 54.6 V 3 A charger
- 1x Bluetooth display EKD01 2.4"
- 1x brake sensor
This electric kit is designed for converting a bicycle into an electric bicycle with a mid-drive motor of 750 W. The battery with dimensions 36.8 x 9 x 11 cm and a weight of 4.23 kg is secured to the down tube in a holder with 6 pins and connects to the motor via an XT60 connector. The battery with 18650 cells offers an energy capacity of 768 Wh, is protected by a BMS system, and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, and the USB output allows for charging a phone while riding. The Bluetooth display EKD01 and brake sensor complete the kit with an overview of riding data and motor shut-off during braking.
