TSDZ8 Mid Motor Kit 48 V 750 W Carrier Battery 48 V 18.2 Ah 873.6 Wh VD18MT Display 1.45" Brake Sensor Black For Electric Bicycle
You already have the maximum available quantity in your cart.
This kit for converting a traditional bicycle into an electric bicycle includes a mid motor Tongsheng TSDZ8 48 V 750 W, a rear carrier battery, a touch display VD18MT, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive electric kit. Power is provided by a 48 V 18.2 Ah battery with 873.6 Wh of energy, which is housed in the rear carrier of the bike. Riding data is displayed on the touch screen VD18MT with a diagonal of 1.45", which is controlled directly by touch. The battery is in black and is charged using a 54.6 V 4 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle frame.
- Battery Capacity – the battery operates at a voltage of 48 V with a capacity of 18.2 Ah, corresponding to a total energy of 873.6 Wh.
- Battery Cells – the battery is composed of cylindrical EVE 18650 format cells.
- BMS Protection – the 30 A battery management system monitors the operation of the battery during riding and charging.
- Lifetime – the battery is designed for 1000 charging cycles.
- Dimensions and Weight – the battery measures 476 x 165 x 89 mm and weighs 6 kg.

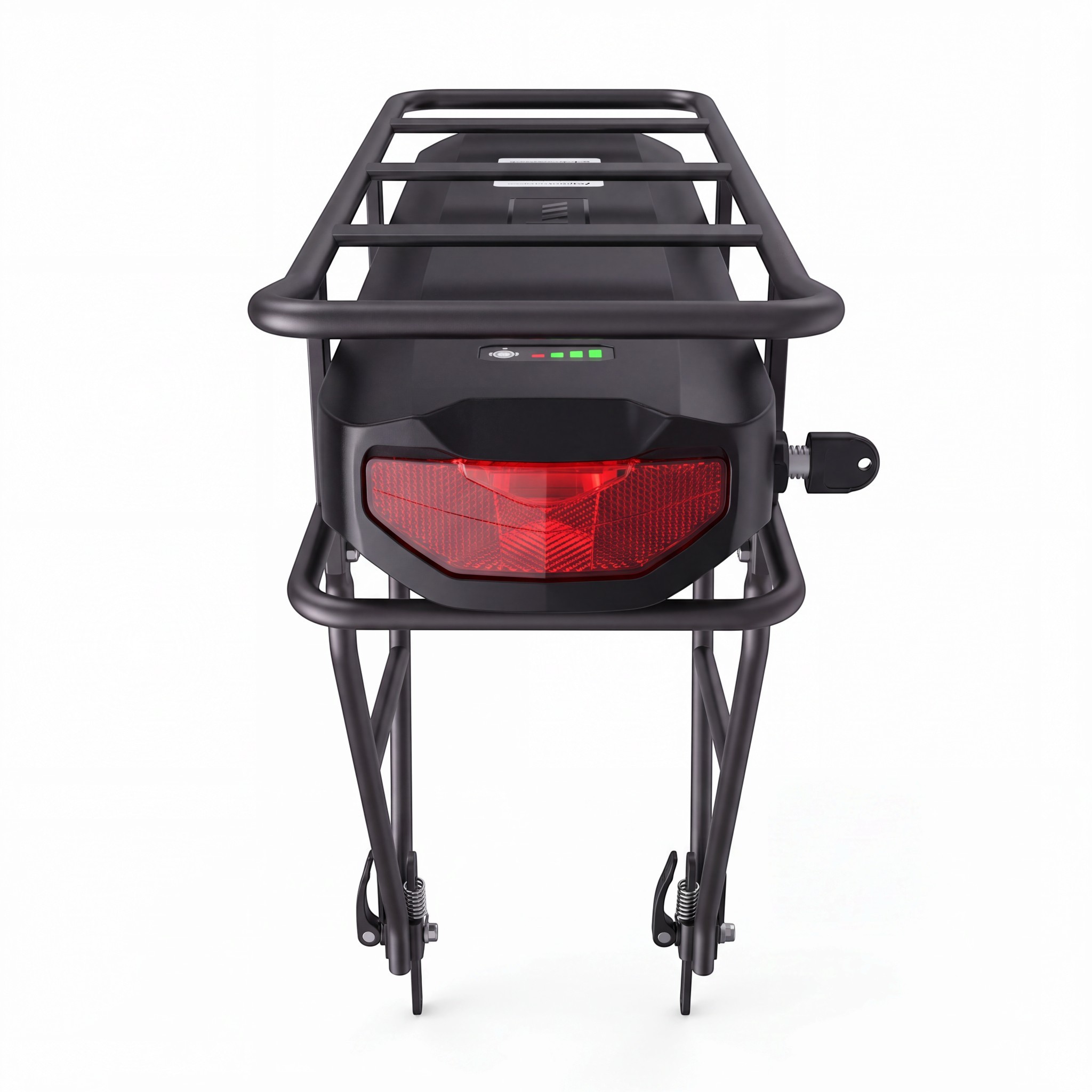

- Placement – the carrier battery is mounted on the rear rack of the bike, keeping the frame free.
- Durability – the battery casing has an IP65 rating and protection against damage from drops.
- USB Output – the battery is equipped with a 5 V 1 A USB output for charging small electronics, such as a phone.
- Connection – the power cable ends with an XT60 (male) connector for connection to the motor's control electronics.
- Charger – output voltage of 54.6 V and charging current of 4 A, the mains plug is part of the cable.
- Display – touch screen VD18MT with a diagonal of 1.45" for displaying riding data on the handlebars.
- Brake Sensor – serves to interrupt the motor operation when the brake lever is pressed.

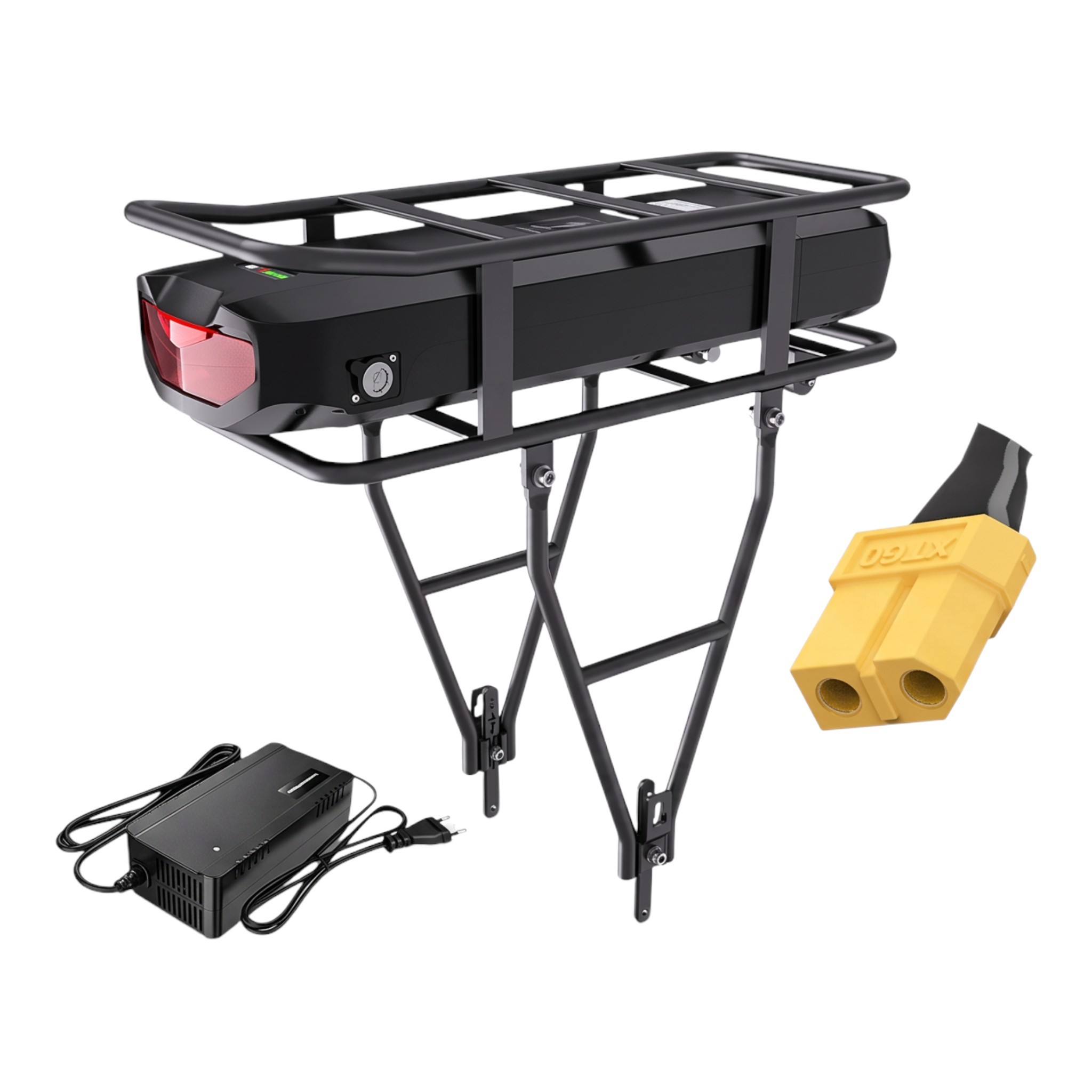

Package Contents:
- 1x mid motor Tongsheng TSDZ8 48 V 750 W
- 1x rear carrier battery 48 V 18.2 Ah 873.6 Wh
- 1x rear rack
- 1x charger 54.6 V 4 A
- 1x touch display VD18MT 1.45"
- 1x brake sensor
This electric kit is designed for converting a bicycle into an electric bicycle with a mid-drive motor of 750 W. The battery, measuring 476 x 165 x 89 mm and weighing 6 kg, is housed in the rear rack and connects to the motor via an XT60 connector. The battery with 18650 cells offers 873.6 Wh of energy and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, and the 5 V 1 A USB output allows for charging a phone while riding. The touch display VD18MT and brake sensor complete the kit with an overview of riding data and motor shutdown when braking.
