TSDZ8 48 V 750 W Mid Motor Kit Frame Battery 52 V 25 Ah 1300 Wh Touch Display VD18MT 1.45" Brake Sensor Black For Electric Bicycle
You already have the maximum available quantity in your cart.
This kit for converting a traditional bicycle into an electric bike includes a mid motor Tongsheng TSDZ8 48 V 750 W, a frame-mounted battery, a touch display VD18MT, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive electric bike kit. Power is supplied by a 52 V 25 Ah battery with an energy capacity of 1300 Wh designed to be mounted on the down tube. Riding data is displayed on the VD18MT touch screen with a diagonal of 1.45", which is operated directly by touch. The battery is finished in black and is charged using a 58.8 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle.
- Battery Capacity – the battery operates at a voltage of 52 V and a capacity of 25 Ah, corresponding to a total energy of 1300 Wh.
- Battery Cells – the battery is composed of cylindrical cells LG 21700 with a capacity of 5000 mAh.
- BMS Protection – the electronic battery management system BMS 40 A monitors the operation of the battery during riding and charging.
- Longevity – the battery is designed for 1000 charging cycles.
- Dimensions and Weight – the battery measures 36.8 x 9.5 x 15.6 cm and weighs 5.9 kg.

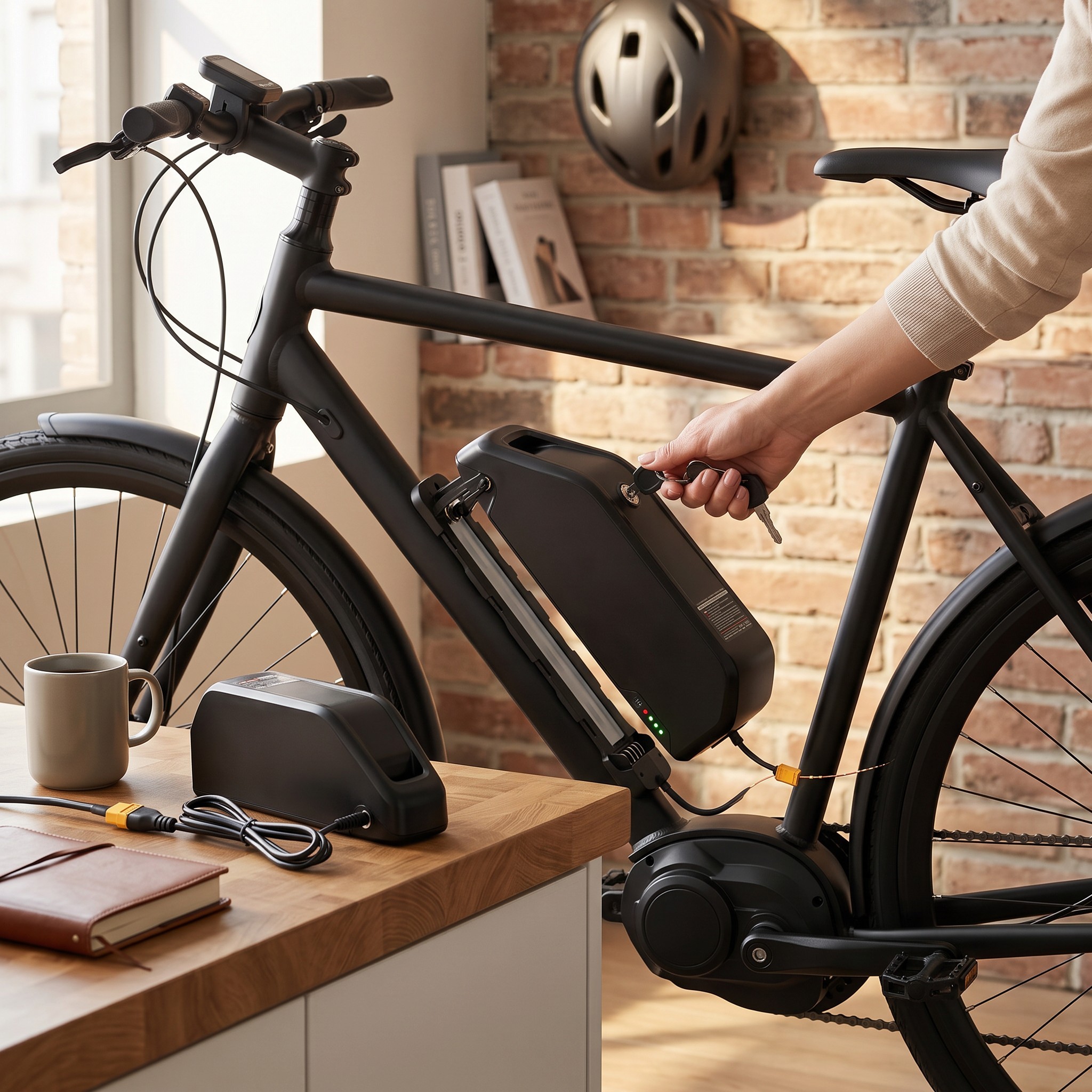

- Placement – downtube type battery is mounted on the down tube of the bike.
- Durability – the battery casing has an IP65 rating and protection against damage from falls.

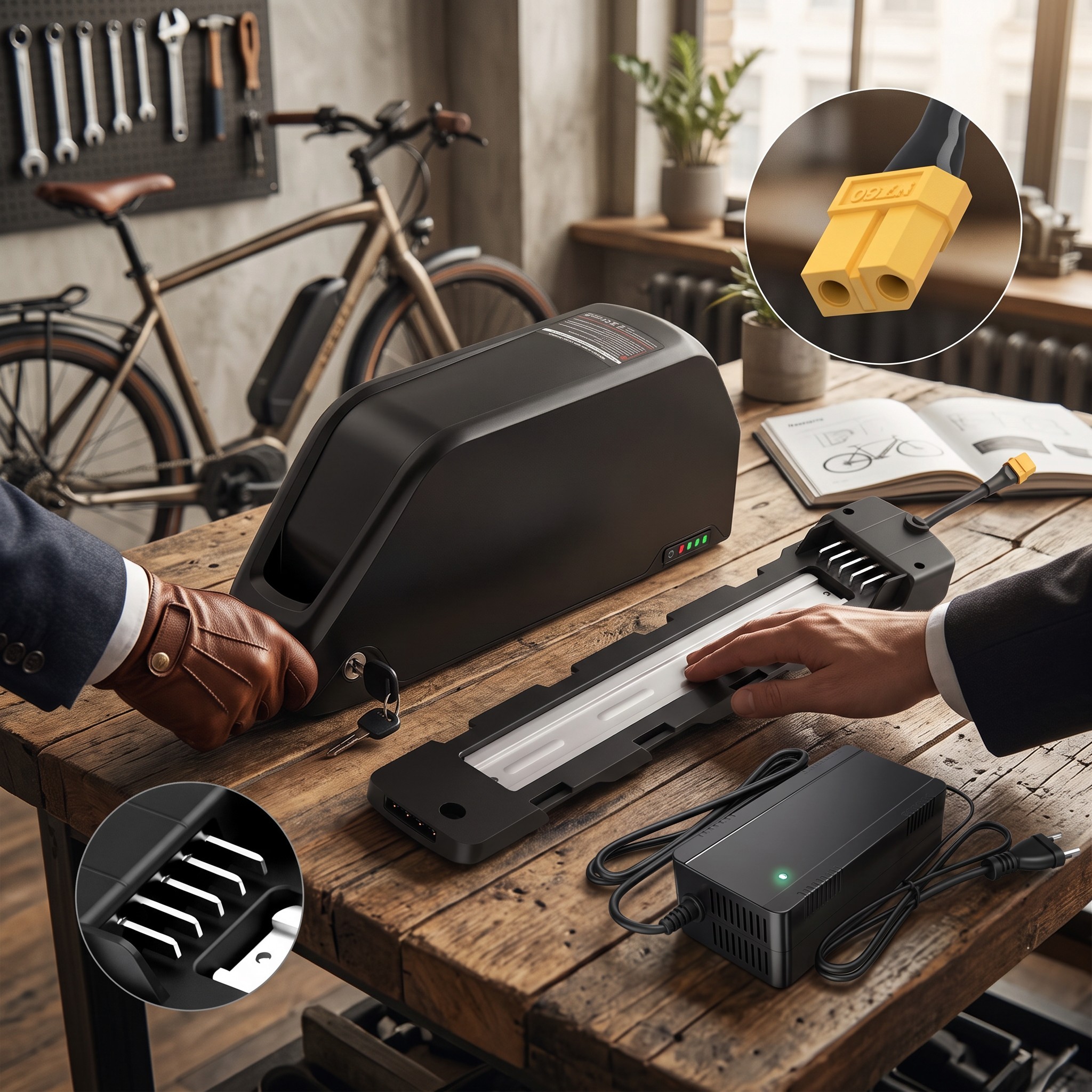

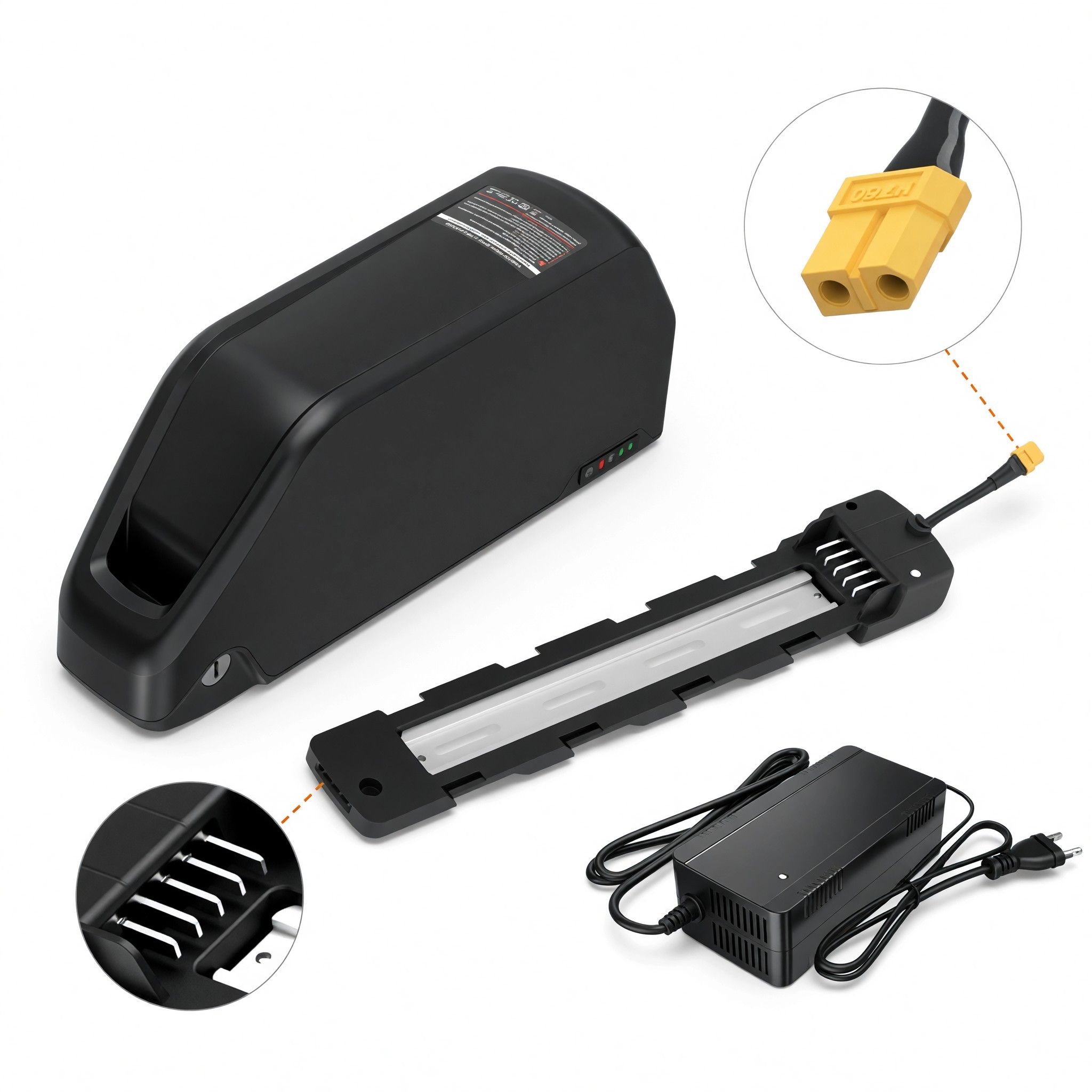

- Connection – the battery holder with 5 pins is equipped with a cable ending in an XT60 connector (male) for connection to the motor control electronics.
- Charger – output voltage 58.8 V and charging current 3 A, the mains plug is part of the cable.
- Display – VD18MT touch screen with a diagonal of 1.45" for displaying riding data on the handlebars.
- Brake Sensor – used to interrupt the motor operation when the brake lever is pressed.
- USB – the battery is not equipped with a USB output for charging additional devices.
Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W mid motor
- 1x 52 V 25 Ah 1300 Wh battery
- 1x battery holder with 5 pins
- 1x 58.8 V 3 A charger
- 1x VD18MT 1.45" touch display
- 1x brake sensor
This electric kit is designed for converting a bicycle into an electric bike with a mid-drive power of 750 W. The battery with dimensions 36.8 x 9.5 x 15.6 cm and a weight of 5.9 kg is secured to the down tube in a holder with 5 pins and connects with an XT60 connector. The battery with LG 21700 cells offers an energy capacity of 1300 Wh and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, making it suitable for riding in wet weather. The VD18MT touch display and brake sensor complement the kit by providing an overview of riding data and cutting off power during braking.
