Home page Home page Sports & Outdoor Electric bikes Off-road e-bikes Tongsheng TSDZ8 Mid Motor Conversion Kit 48 V 750 W 44T Chainring Torque Sensor Display 860C Controller 23 A Black
Tongsheng TSDZ8 Mid Motor Conversion Kit 48 V 750 W 44T Chainring Torque Sensor Display 860C Controller 23 A Black

Tongsheng TSDZ8 Mid Motor Conversion Kit 48 V 750 W 44T Chainring Torque Sensor Display 860C Controller 23 A Black

Mid-drive system for converting a bicycle into an electric bike with a speed range of 15–45 km/h, integrated 23 A controller and two brake levers included. Full description
In stock
Delivery €1.59
30-day return policy
€659.34
Safe shopping Safe shopping
Overview
Tongsheng TSDZ8 Mid Motor Conversion Kit 48 V 750 W 44T Chainring Torque Sensor Display 860C Controller 23 A Black

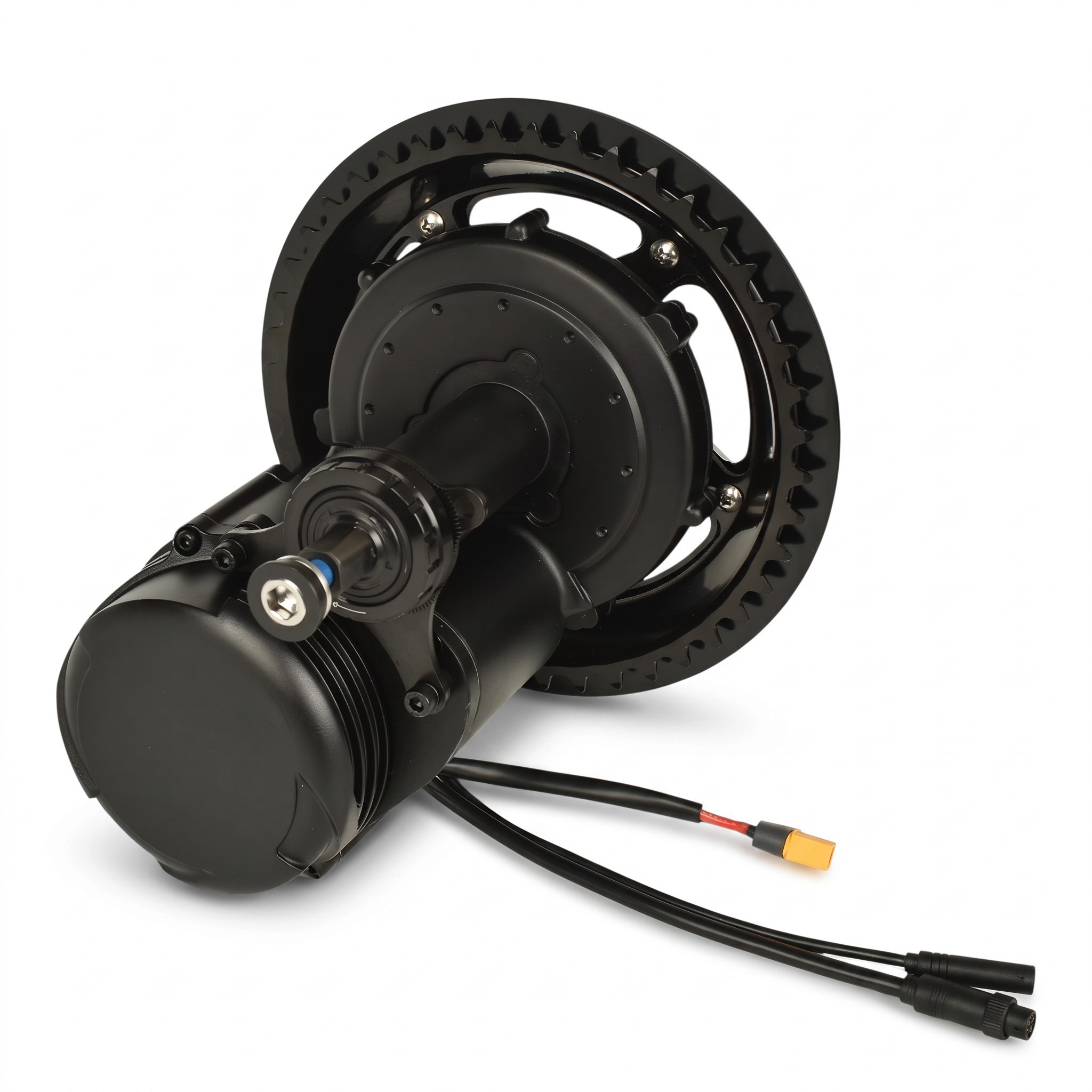

The conversion kit with the Tongsheng TSDZ8 mid motor is designed to convert a standard bicycle into an electric bike. The motor operates with parameters of 48 V 750 W and is equipped with a built-in controller and axial torque sensor. The sensor detects the force applied by the rider on the pedals, and the motor provides assistance accordingly. The kit includes a 44-tooth chainring, a display 860C, two brake levers, and cranks. The motor is finished in black and is mounted in the bottom bracket of the frame.

  • Tongsheng TSDZ8 Mid Motor — electric drive with a voltage of 48 V and a power of 750 W, which transmits power through the chainring and chain to the rear wheel.

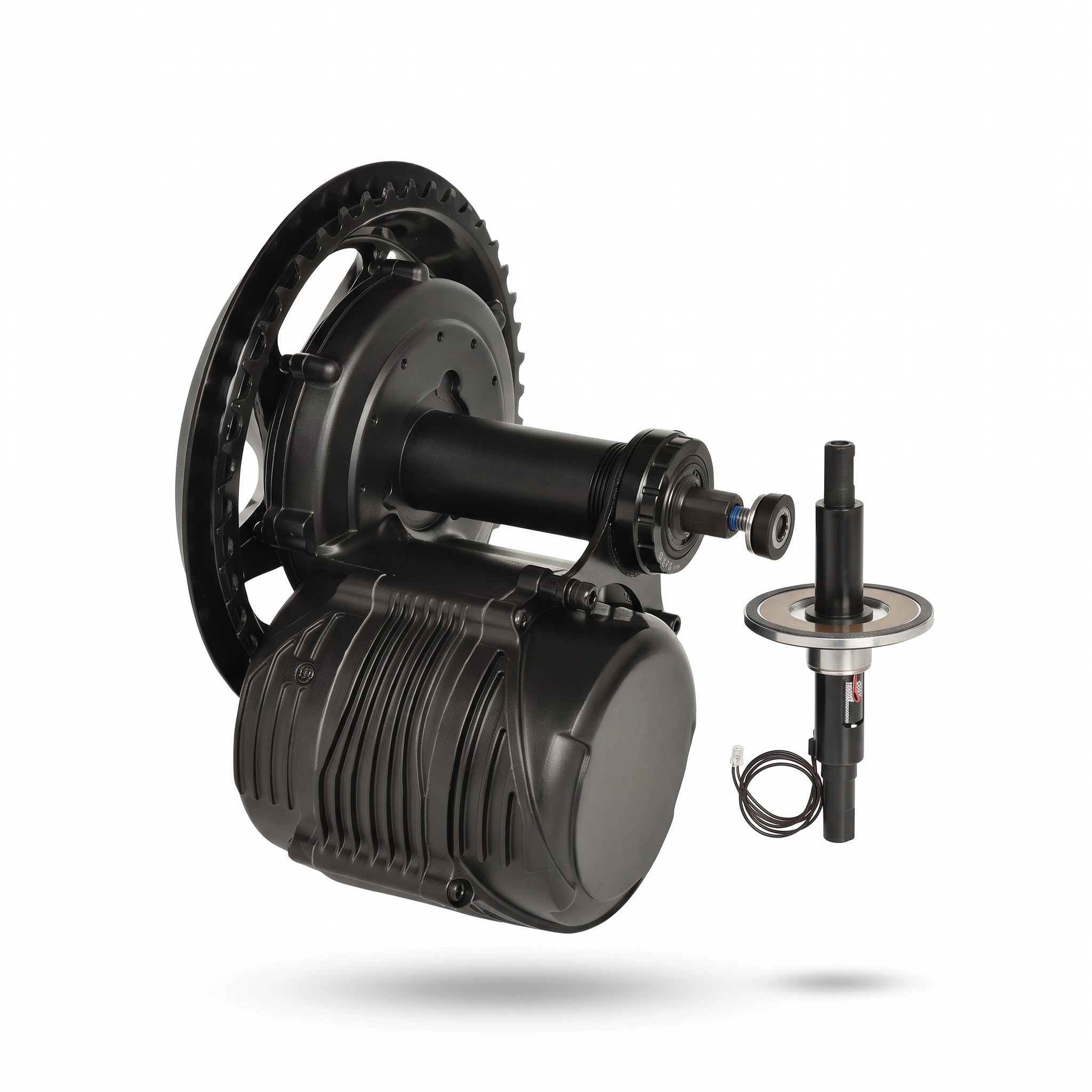

  • Torque Sensor — an axial sensor located in the motor axis that detects pedalling force from both sides.
  • Integrated 23 A Controller — the control unit is built directly into the motor body, so it does not need to be mounted separately on the frame.
  • Speed Range — the kit operates within a speed range of 15–45 km/h.
  • 44T Chainring — the 44-tooth chainring is part of the motor unit and drives the chain.
  • Display 860C — a display connected to the motor's wiring harness for ride information and assistance settings.
  • Brake Levers — two brake levers are connected via cable to the motor system and are mounted on the handlebars in place of the original levers.
  • Cranks — two cranks for mounting on the motor axle.
  • Wiring Harness — connects the motor with the display, brake levers, and other electrical components of the kit.
  • Mounting Accessories — the package includes a mounting key, screws, rings, washers, and zip ties.

Package Contents:

  • 1x Tongsheng TSDZ8 Mid Motor 48 V 750 W
  • 1x 44T Chainring
  • 1x Display 860C
  • 2x Brake Lever
  • 2x Crank
  • 1x Wiring Harness
  • 1x Connecting Cable
  • 1x Mounting Key
  • 2x Screw
  • 2x Ring
  • 2x Washer
  • 2x Zip Tie

The Tongsheng TSDZ8 kit is designed for those who want to convert their bicycle into an electric bike with a mid-drive system. The 48 V 750 W motor with a built-in 23 A controller does not require the installation of a separate control unit on the frame. The torque sensor in the motor axis responds to pedalling force, so the assistance corresponds to how the rider pedals. Ride information is displayed on the display 860C mounted on the handlebars. To operate, the kit needs to be supplemented with a 48 V battery, and the dimensions of the bottom bracket of the frame should be verified before installation.
