Tongsheng TSDZ8 48 V 750 W Mid Motor Kit 48 V 20 Ah 960 Wh Battery Bluetooth Display EKD01 2.4" Brake Sensor Black For E-Bike
You already have the maximum available quantity in your cart.
This kit for converting a traditional bicycle into an e-bike includes a mid motor Tongsheng TSDZ8 48 V 750 W, battery, Bluetooth display, and brake sensor. The motor is installed in the bottom bracket of the frame, making it a mid-drive e-kit. Power is provided by a 48 V 20 Ah battery with a capacity of 960 Wh designed to be mounted on the down tube. Riding data is displayed on the EKD01 display with a diagonal of 2.4" and wireless Bluetooth connectivity. The battery is in black and is charged using a 54.6 V 3 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle.
- Battery Capacity – the battery operates at a voltage of 48 V and a capacity of 20 Ah, corresponding to a total energy of 960 Wh.
- Battery Cells – the battery is composed of cylindrical cells of 21700 format.
- BMS Protection – the 30 A battery management system monitors the operation of the battery during riding and charging.
- Longevity – the battery is designed for 1000 charging cycles.
- Dimensions and Weight – the battery measures 365 x 85 x 107 mm and weighs 5.0 kg.
- Location – downtube type battery is mounted on the down tube of the bike.
- Durability – the battery casing has an IP65 rating and protection against damage from falls.

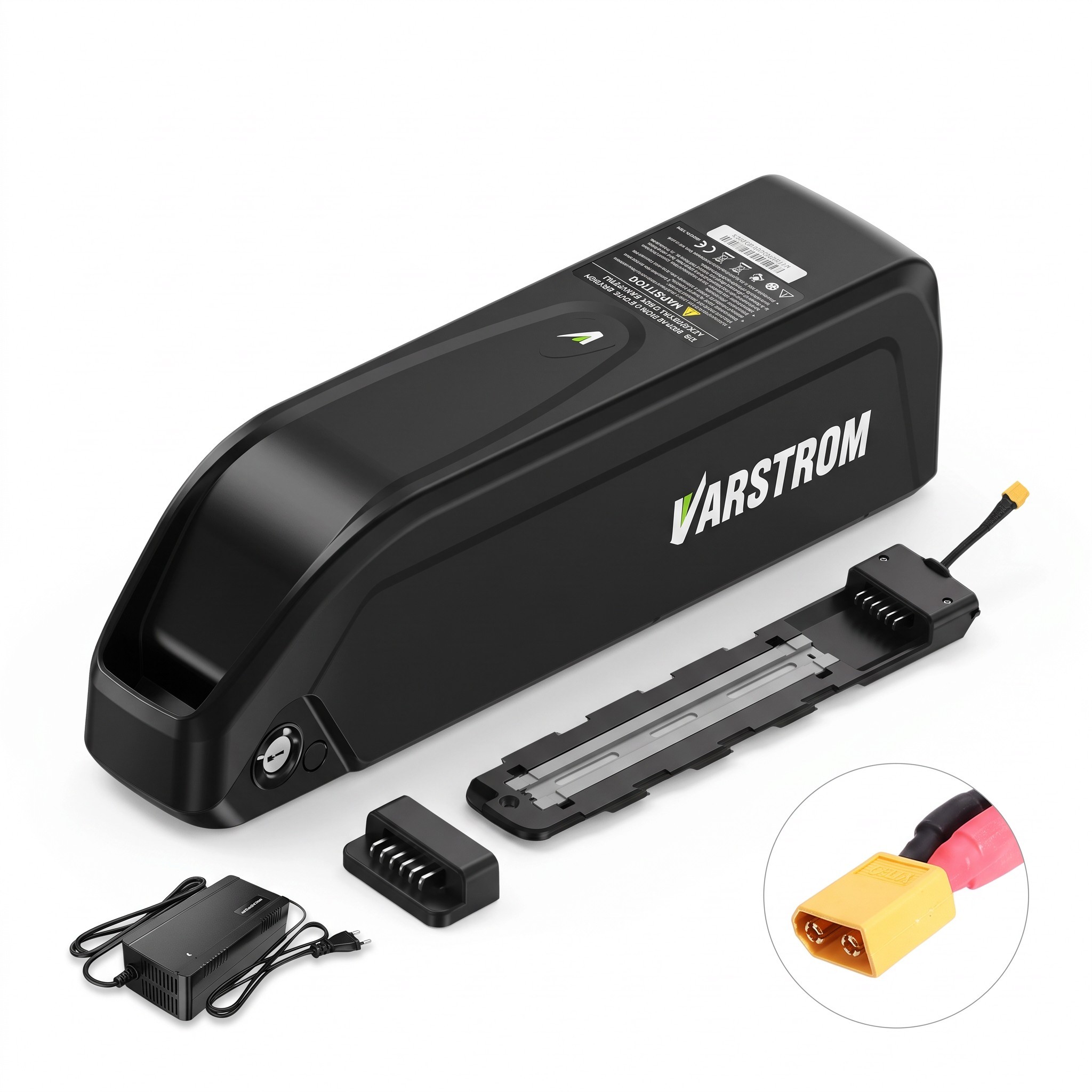

- Connection – the battery holder with 6 pins is equipped with a cable ending in an XT60 (male) connector for connection to the motor's control electronics.
- Charger – output voltage of 54.6 V and charging current of 3 A, the mains plug is part of the cable.
- Display – model EKD01 with a diagonal of 2.4" and wireless Bluetooth connectivity.
- Brake Sensor – used to interrupt the motor's operation when the brake lever is pressed.
- USB – the battery is not equipped with a USB output for charging other devices.
Package Contents:
- 1x Tongsheng TSDZ8 48 V 750 W mid motor
- 1x 48 V 20 Ah 960 Wh battery
- 1x battery holder with 6 pins
- 1x 54.6 V 3 A charger
- 1x Bluetooth display EKD01 2.4"
- 1x brake sensor
This e-kit is designed for converting a bicycle into an e-bike with a mid drive of 750 W. The battery with dimensions 365 x 85 x 107 mm and a weight of 5.0 kg is secured to the down tube in a holder with 6 pins and connects with an XT60 connector. The battery with 21700 cells offers 960 Wh of energy and is designed for 1000 charging cycles. With an IP65 rating, the battery is protected against dust and splashing water, making it suitable for riding in wet conditions. The EKD01 display with Bluetooth and brake sensor completes the kit with an overview of riding data and motor shutdown during braking.
