Tongsheng TSDZ8 48 V 750 W Mid Motor Conversion Kit 44T Chainring Torque Sensor VLCD5 Display 8pin Controller 23 A Black

Tongsheng TSDZ8 48 V 750 W Mid Motor Conversion Kit 44T Chainring Torque Sensor VLCD5 Display 8pin Controller 23 A Black

Mid drive for converting a bicycle into an electric bike with a speed range of 15–45 km/h, integrated 23 A controller, and two brake levers included. Full description
In stock
Delivery €1.59
30-day return policy
€603.45
Safe shopping Safe shopping
Overview
Tongsheng TSDZ8 48 V 750 W Mid Motor Conversion Kit 44T Chainring Torque Sensor VLCD5 Display 8pin Controller 23 A Black

The conversion kit with the Tongsheng TSDZ8 mid motor is designed to convert a standard bicycle into an electric bike. The motor operates with specifications of 48 V 750 W and is equipped with a built-in controller and an axial torque sensor. The sensor detects the force exerted by the rider on the pedals and the motor adds assistance accordingly. The kit includes a 44-tooth chainring, a VLCD5 display with an 8pin connector, two brake levers, and cranks. The motor has a black finish and is mounted into the bottom bracket of the frame.

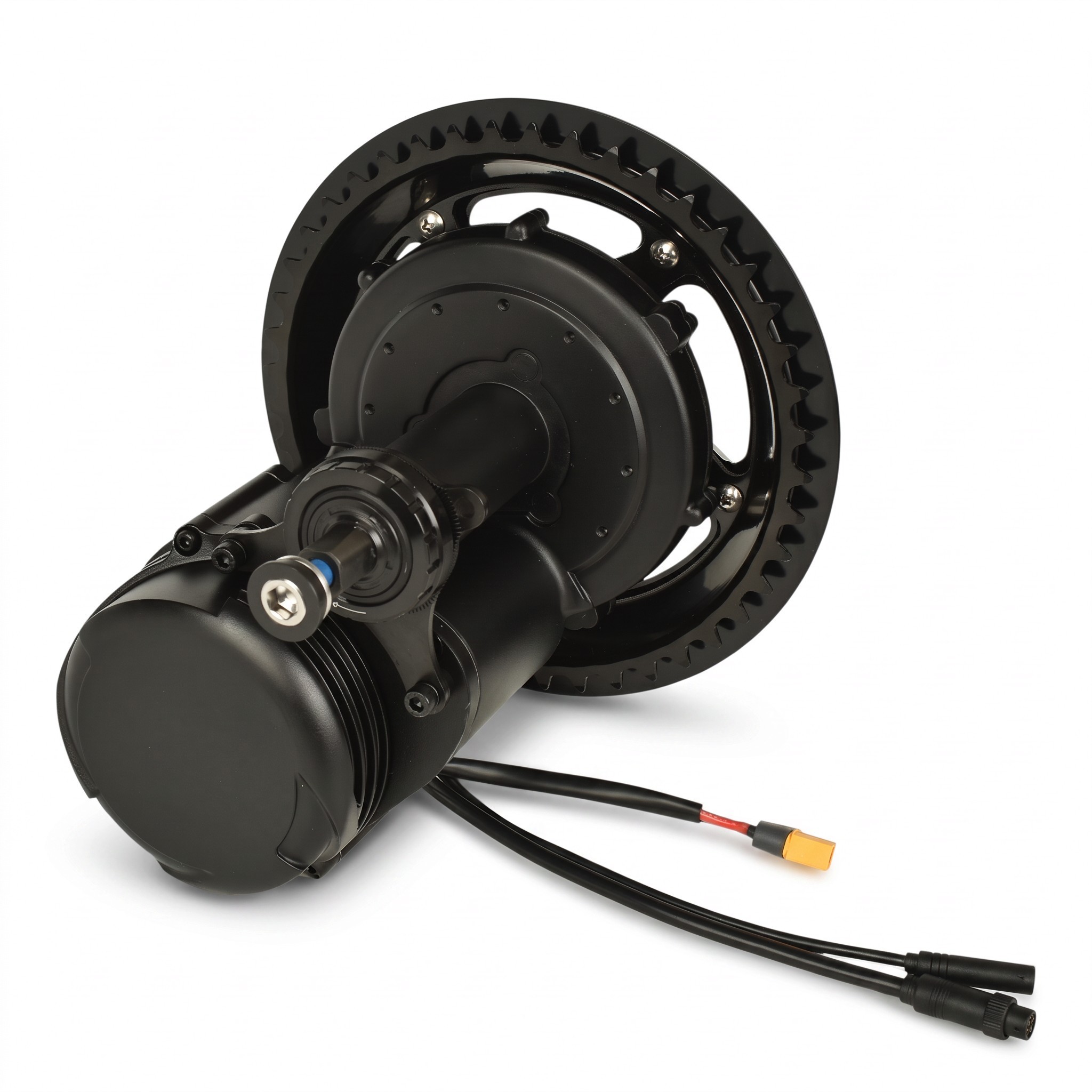

  • Tongsheng TSDZ8 Mid Motor — electric drive with a voltage of 48 V and a power of 750 W, transmitting power through the chainring and chain to the rear wheel.

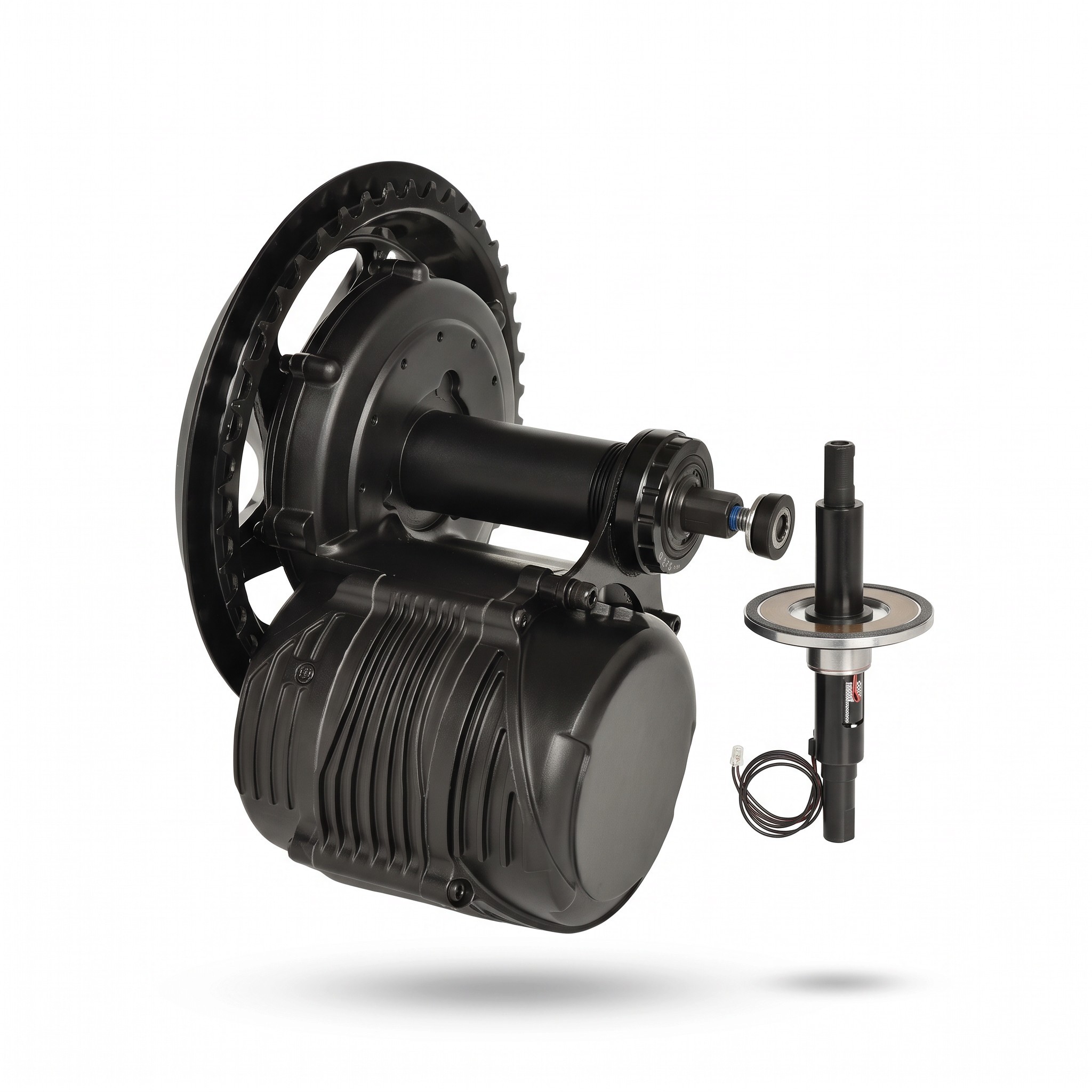

  • Torque Sensor — axial sensor located in the motor's axis detects pedalling force from both sides.
  • Integrated 23 A Controller — the control unit is built directly into the motor body, so it does not need to be mounted separately on the frame.
  • Speed Range — the kit operates within a speed range of 15–45 km/h.
  • 44T Chainring — the 44-tooth chainring is part of the motor unit and drives the chain.

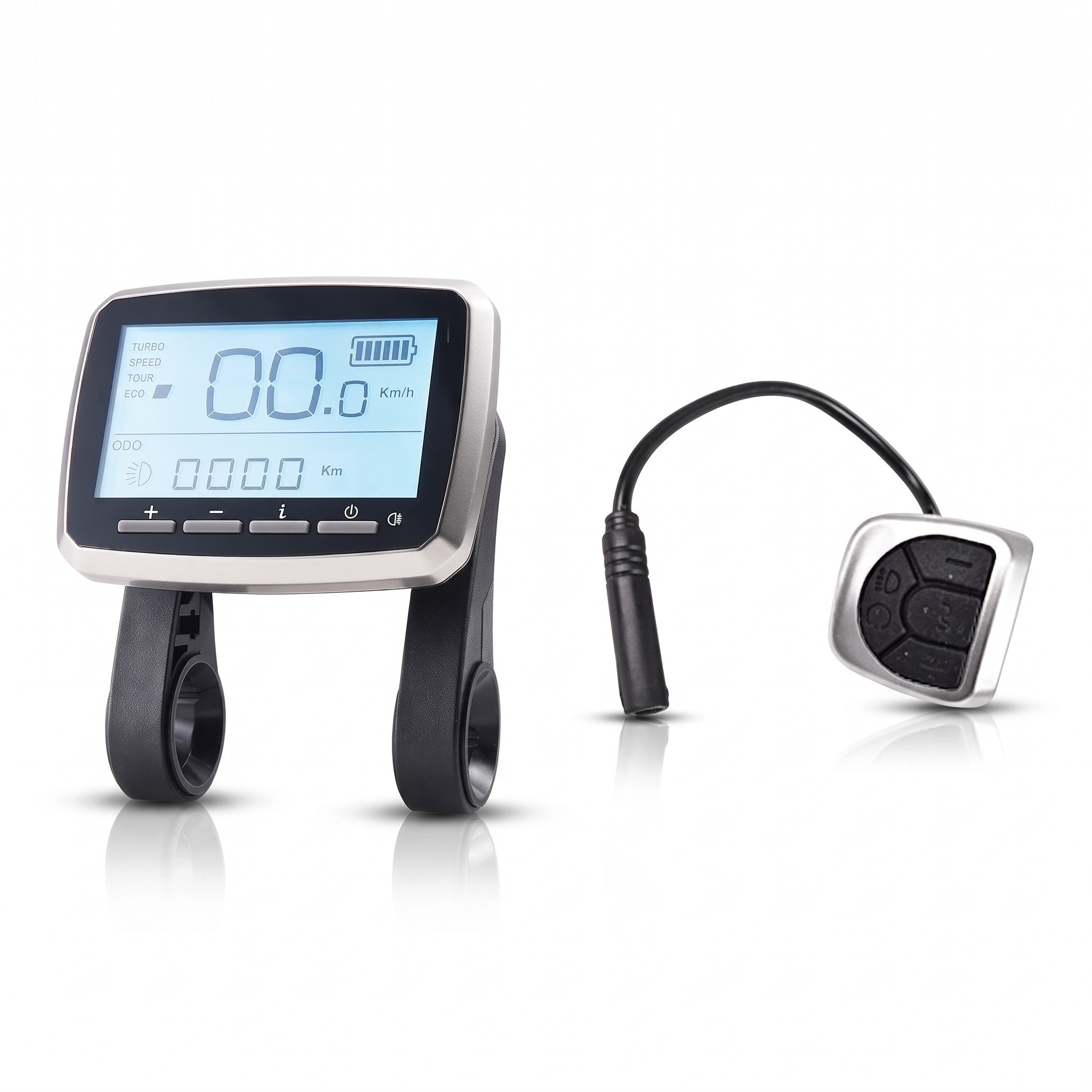

  • VLCD5 Display — display with an 8pin connection to the motor's wiring harness for ride information and assistance settings.
  • Brake Levers — two brake levers are connected via cable to the motor system and are mounted on the handlebars in place of the original levers.
  • Cranks — two cranks for mounting on the motor axle.
  • Wiring Harness — connects the motor to the display, brake levers, and other electrical components of the kit.
  • Mounting Accessories — the package includes a mounting key, screws, rings, washers, and zip ties.

Package Contents:

  • 1x Tongsheng TSDZ8 48 V 750 W Mid Motor
  • 1x 44T Chainring
  • 1x VLCD5 Display
  • 2x Brake Lever
  • 2x Crank
  • 1x Wiring Harness
  • 1x Connecting Cable
  • 1x Mounting Key
  • 2x Screw
  • 2x Ring
  • 2x Washer
  • 2x Zip Tie

The Tongsheng TSDZ8 kit is intended for those who wish to convert their bicycle into an electric bike with a mid drive. The 48 V 750 W motor with a built-in 23 A controller does not require separate installation of a control unit on the frame. The torque sensor in the motor's axis responds to pedalling force, so the assistance corresponds to how the rider pedals. Ride information is displayed on the VLCD5 display with an 8pin connector. To operate, the kit needs to be supplemented with a 48 V battery, and the dimensions of the bottom bracket of the frame should be verified before installation.
