Set of 5 Hardened Steel Nozzles 0.4 mm for 1.75 mm Filament with M6 Thread for Printing Precise 3D Models
You already have the maximum available quantity in your cart.

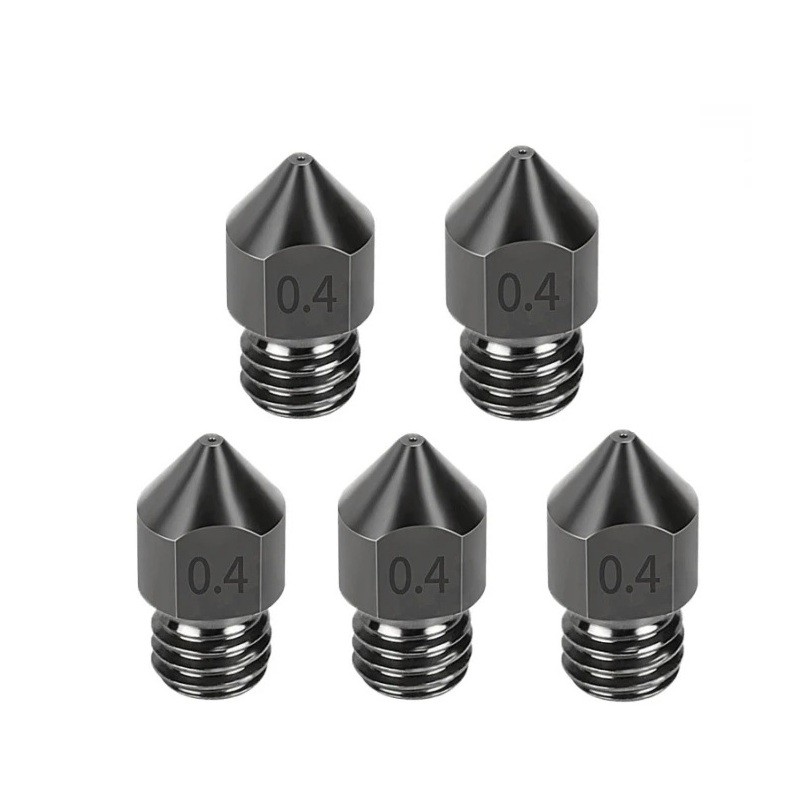

Set of 5 Hardened Steel Nozzles 0.4 mm for 1.75 mm Filament with M6 Thread for Printing Precise 3D Models
Nozzles with a diameter of 0.4 mm are the most versatile choice for both standard and detailed 3D printing, and thanks to the hardened steel, they provide long lifespan, precise material dosing, and stable results even when using abrasive filaments. This set of five pieces is ideal for regular printing as well as for keeping as a stock for quick replacement. The nozzle features a precisely machined body, a smooth internal passage, and a perfectly centred outlet, ensuring a consistent filament flow without clogging. With a standard M6 thread, it is compatible with a wide range of print heads used in most Creality printers and other brands.

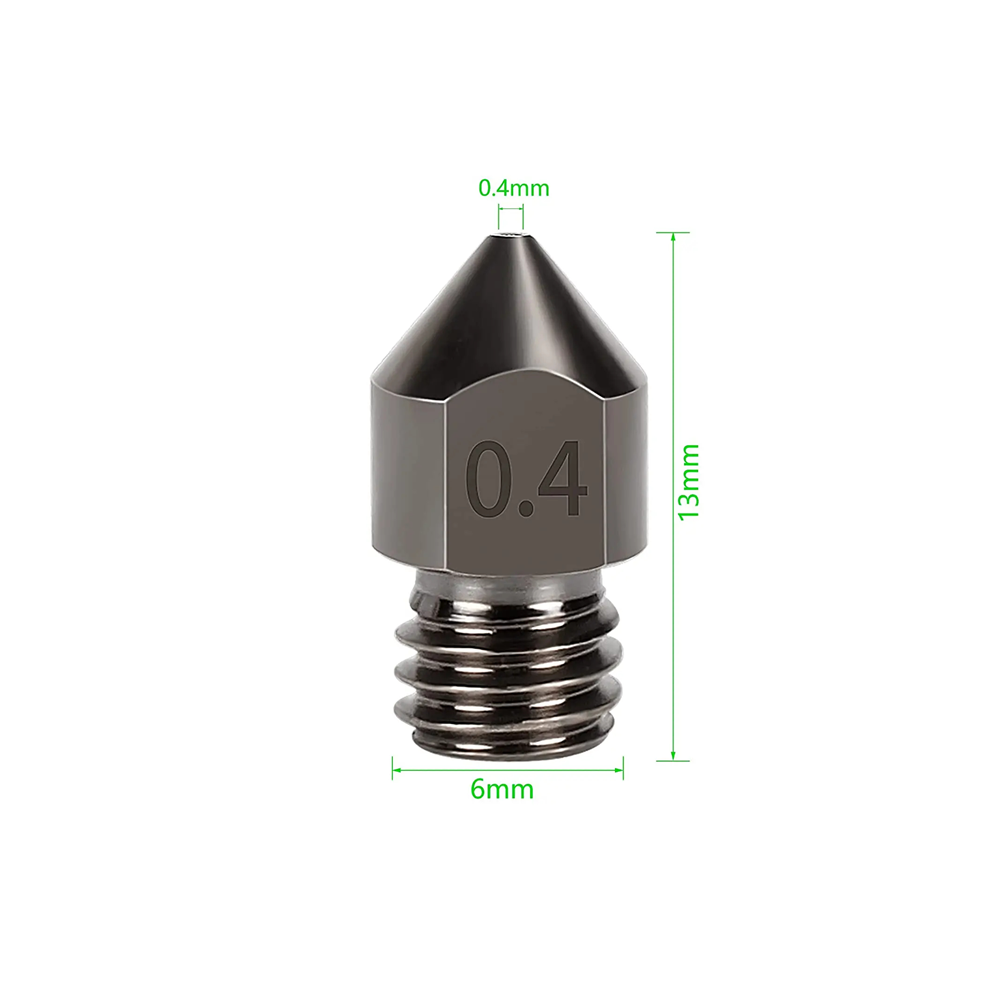

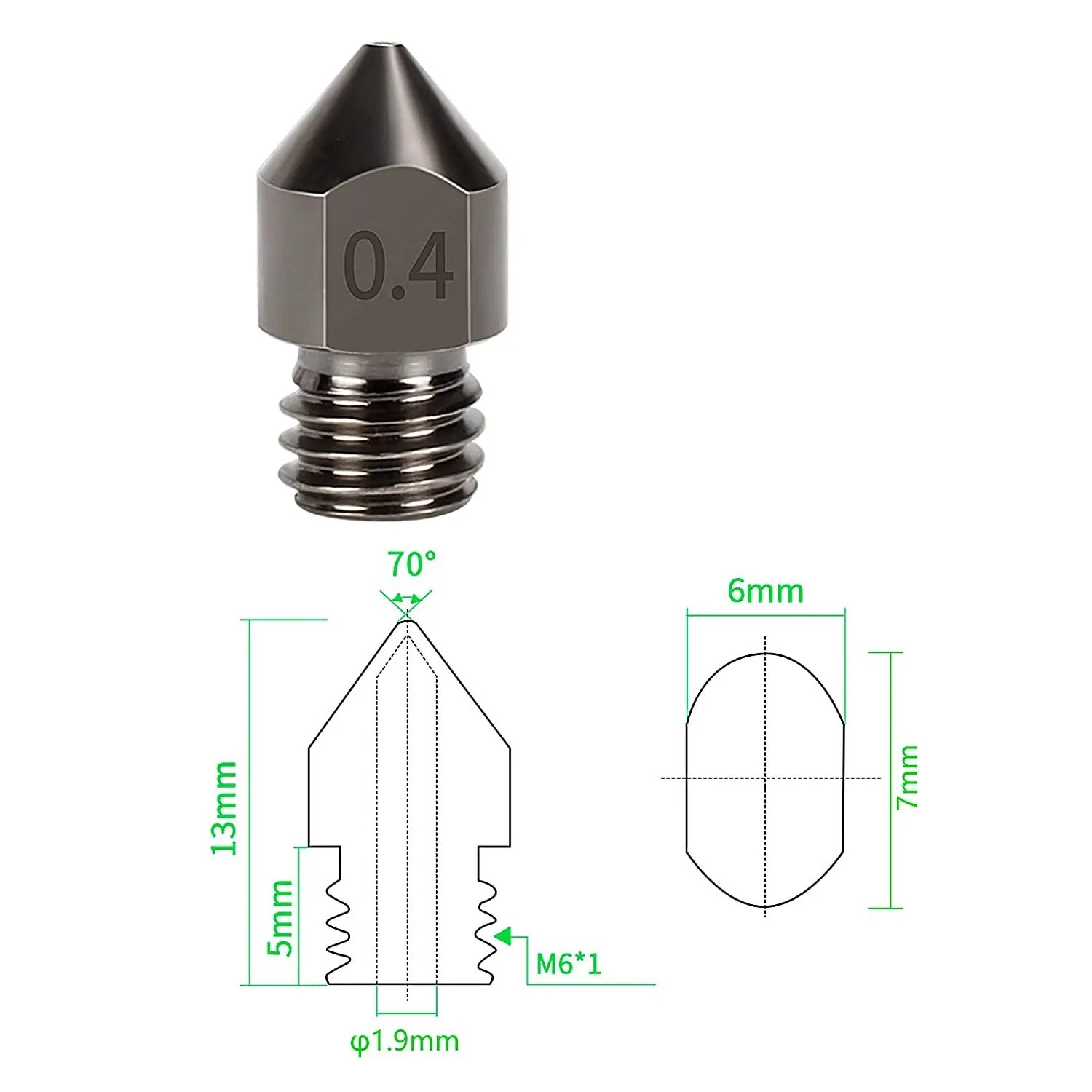

The dimensions of the nozzle meet the professional MK8 standard. The total height is 13 mm, with the threaded part having a height of 5 mm. The width of the hexagon for tightening is 6 mm, the maximum width of the nozzle body is 7 mm, and the tip angle is 70°, ensuring optimal material guidance. The inlet channel has a diameter of 1.9 mm and is designed for 1.75 mm filament. These parameters ensure compatibility, stable printing, and minimisation of resistance during material passage. Thanks to the hardened steel, the nozzles are suitable for abrasive materials such as carbon fibre or metal particle filaments.
Key Features
-
Outlet hole diameter of 0.4 mm for universal use and high-quality detail printing
-
Hardened steel for high wear resistance against abrasive filaments
-
Precise CNC processing ensuring smooth flow and reliable printing without clogging
-
Standard M6 thread compatible with most print heads
-

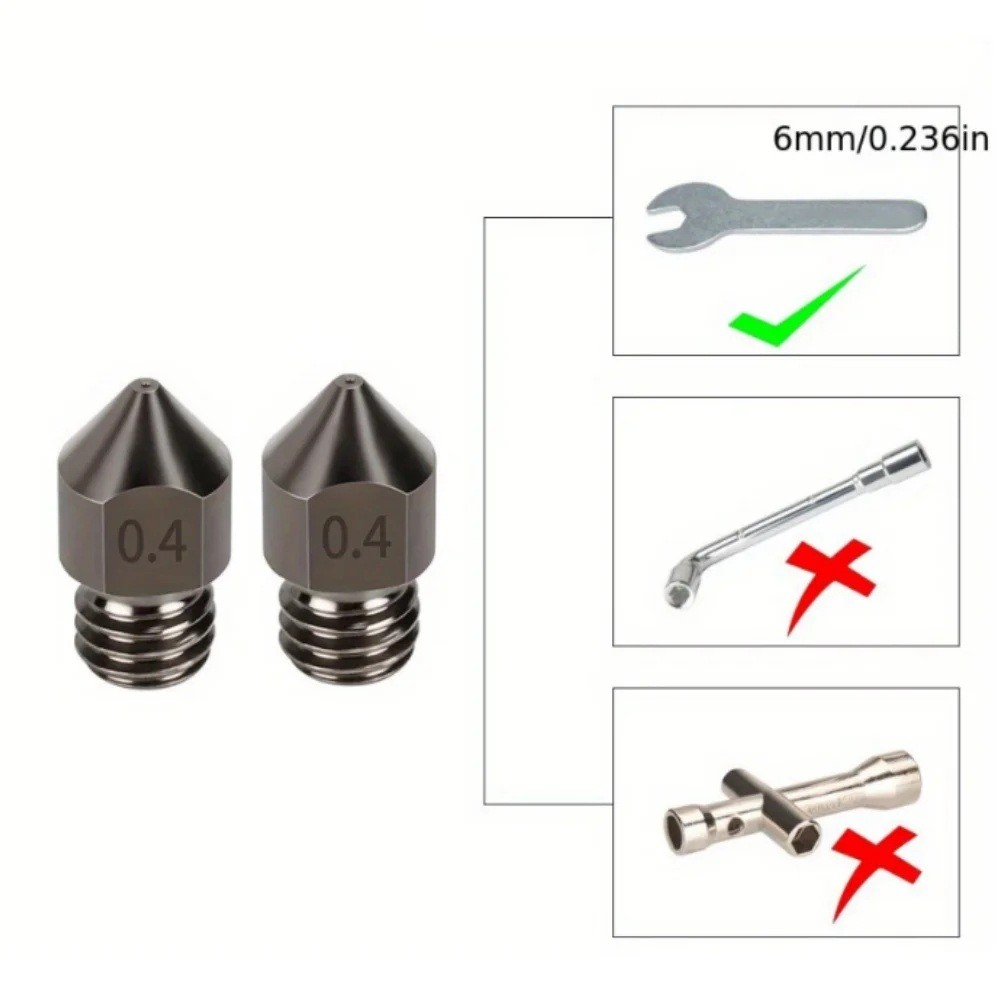

Detailed dimensions: height 13 mm, thread 5 mm, hexagon 6 mm, body width 7 mm, tip angle 70°, inlet 1.9 mm
-
Package contents: 1x set of 5 nozzles 0.4 mm
The nozzles are suitable for regular everyday use, but also for more demanding printing where long lifespan and precise dosing are required. With a hard surface and stable geometry, the resulting print is of high quality even at higher speeds or when using challenging materials. This set of five pieces is advantageous not only for regular printers but also for home workshops, where having more nozzles readily available is beneficial. These nozzles are an excellent choice for anyone looking for a reliable, precise, and durable solution for their 3D printing.
