Mid Motor Set for Electric Bicycle TSDZ8 48 V 750 W Carrier Battery 48 V 18.2 Ah 873.6 Wh Bluetooth Display EKD01 2.4" Brake Sensor Black
You already have the maximum available quantity in your cart.
The kit for converting a traditional bicycle into an electric bicycle includes a mid motor Tongsheng TSDZ8 48 V 750 W, a rear carrier battery, Bluetooth display EKD01, and a brake sensor. The motor is installed in the bottom bracket of the bicycle frame, making it a mid-drive electric kit. Power is supplied by a 48 V 18.2 Ah battery with an energy capacity of 873.6 Wh, which is housed in the rear carrier of the bicycle. Riding data is displayed on the EKD01 display with a diagonal of 2.4" and wireless Bluetooth connectivity. The battery comes in black and is charged using a 54.6 V 4 A charger.
Main Features
- Mid Motor – Tongsheng TSDZ8 with a voltage of 48 V and a power of 750 W is installed in the bottom bracket of the bicycle frame.
- Battery Capacity – The battery operates at a voltage of 48 V and a capacity of 18.2 Ah, corresponding to a total energy of 873.6 Wh.
- Battery Cells – The battery is assembled from cylindrical EVE 18650 format cells.
- BMS Protection – The 30 A battery management system (BMS) monitors the operation of the battery during riding and charging.
- Lifetime – The battery is designed for 1000 charge cycles.
- Dimensions and Weight – The battery measures 476 x 165 x 89 mm and weighs 6 kg.

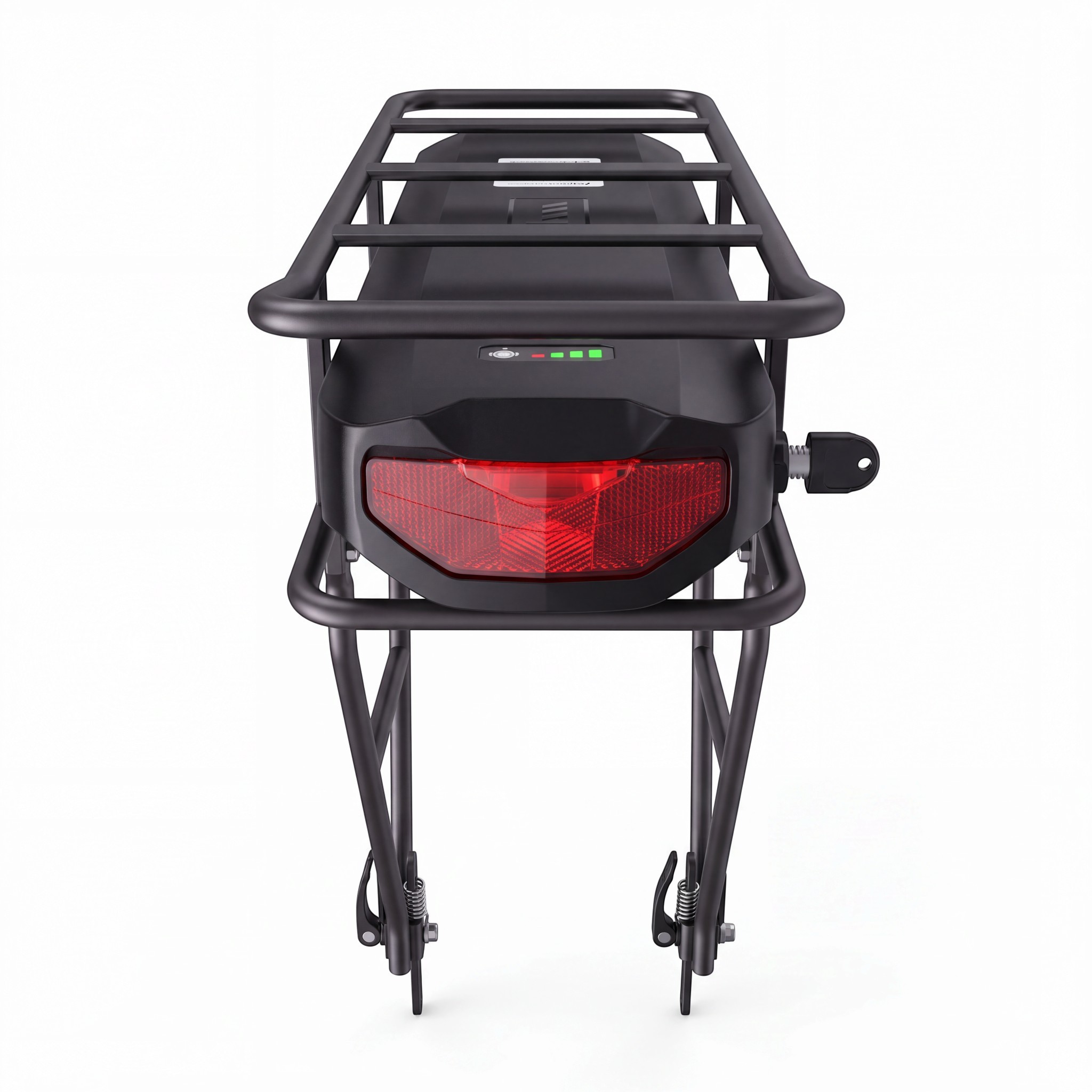

- Placement – The carrier battery is mounted on the rear carrier of the bicycle, keeping the frame free.
- Durability – The battery casing has an IP65 rating and is protected against damage from falls.
- USB Output – The battery is equipped with a 5 V 1 A USB output for charging small electronics, such as a phone.
- Connection – The power cable is terminated with an XT60 (male) connector for connection to the motor's control electronics.
- Charger – Output voltage of 54.6 V and charging current of 4 A, with the mains plug included in the cable.
- Display – Model EKD01 with a diagonal of 2.4" and wireless Bluetooth connectivity for displaying riding data on the handlebars.
- Brake Sensor – Used to interrupt the motor's operation when the brake lever is pressed.
Package Contents:
- 1x Mid Motor Tongsheng TSDZ8 48 V 750 W

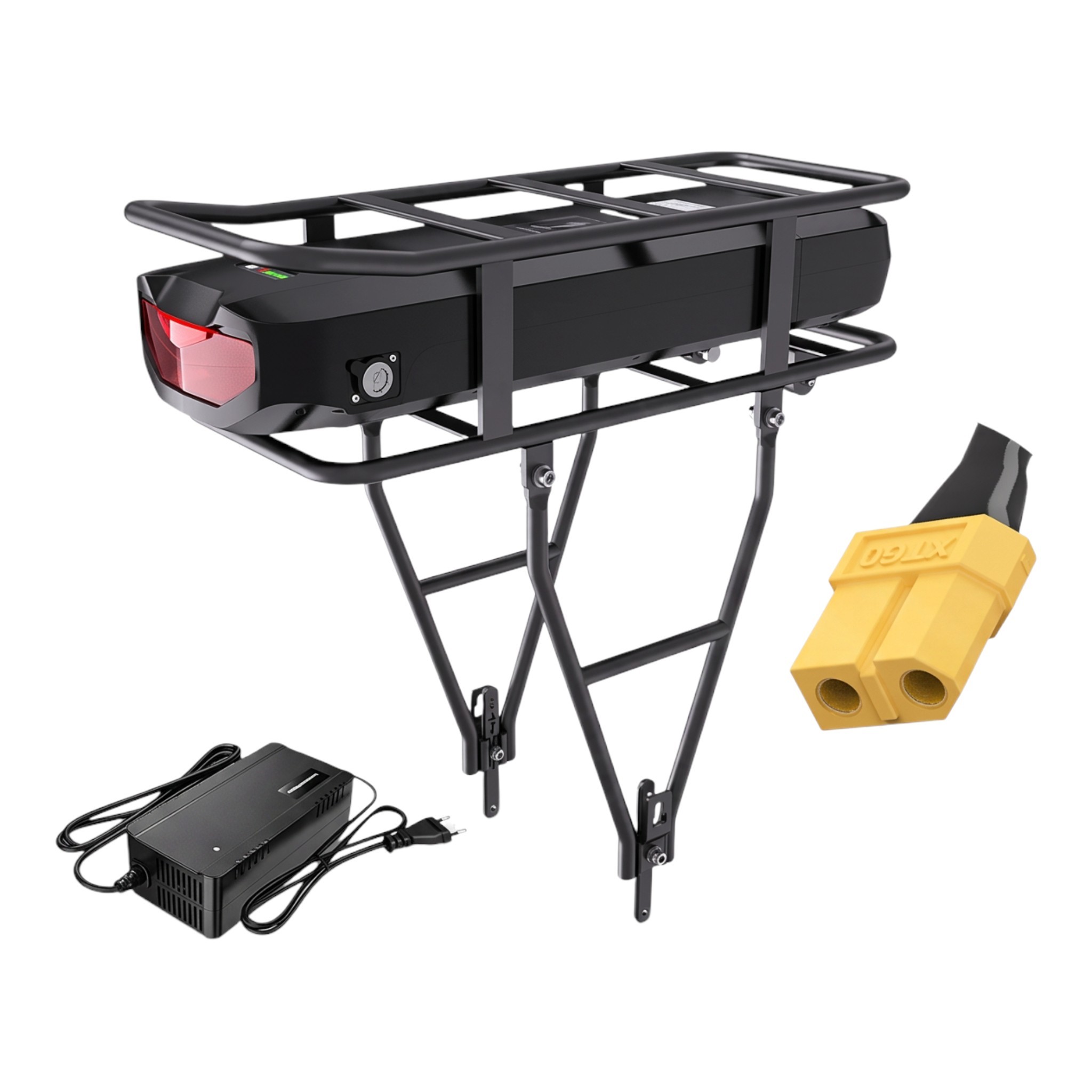

- 1x Rear Carrier Battery 48 V 18.2 Ah 873.6 Wh
- 1x Rear Carrier
- 1x Charger 54.6 V 4 A
- 1x Bluetooth Display EKD01 2.4"
- 1x Brake Sensor
This electric kit is designed for converting a bicycle into an electric bicycle with a mid-drive motor of 750 W. The battery, measuring 476 x 165 x 89 mm and weighing 6 kg, is housed in the rear carrier and connects to the motor with an XT60 connector. The battery with 18650 cells offers an energy capacity of 873.6 Wh and is designed for 1000 charge cycles. With an IP65 rating, the battery is protected against dust and splashing water, and the 5 V 1 A USB output allows for charging a phone while riding. The Bluetooth display EKD01 and brake sensor complement the kit by providing an overview of riding data and shutting off the drive when braking.
