Filament Connector 4.53 x 2.5 x 1 cm Clamp for 1.75mm Filament Precise Manual Material Joining for 3D Printing
This precise metal connector is the ideal tool for manually joining two pieces of filament with a diameter of 1.75 mm. It allows easy connection of strands without the need for sudden interruption of printing and is suitable for colour transitions, multi-colour projects, and situations where you need to finish printing with another piece of material. The metal body ensures high stability and precise guiding of the filament, so the joint holds firmly and straight. With a simple procedure, you can create a strong connection that easily passes through the extruder and printer nozzle.

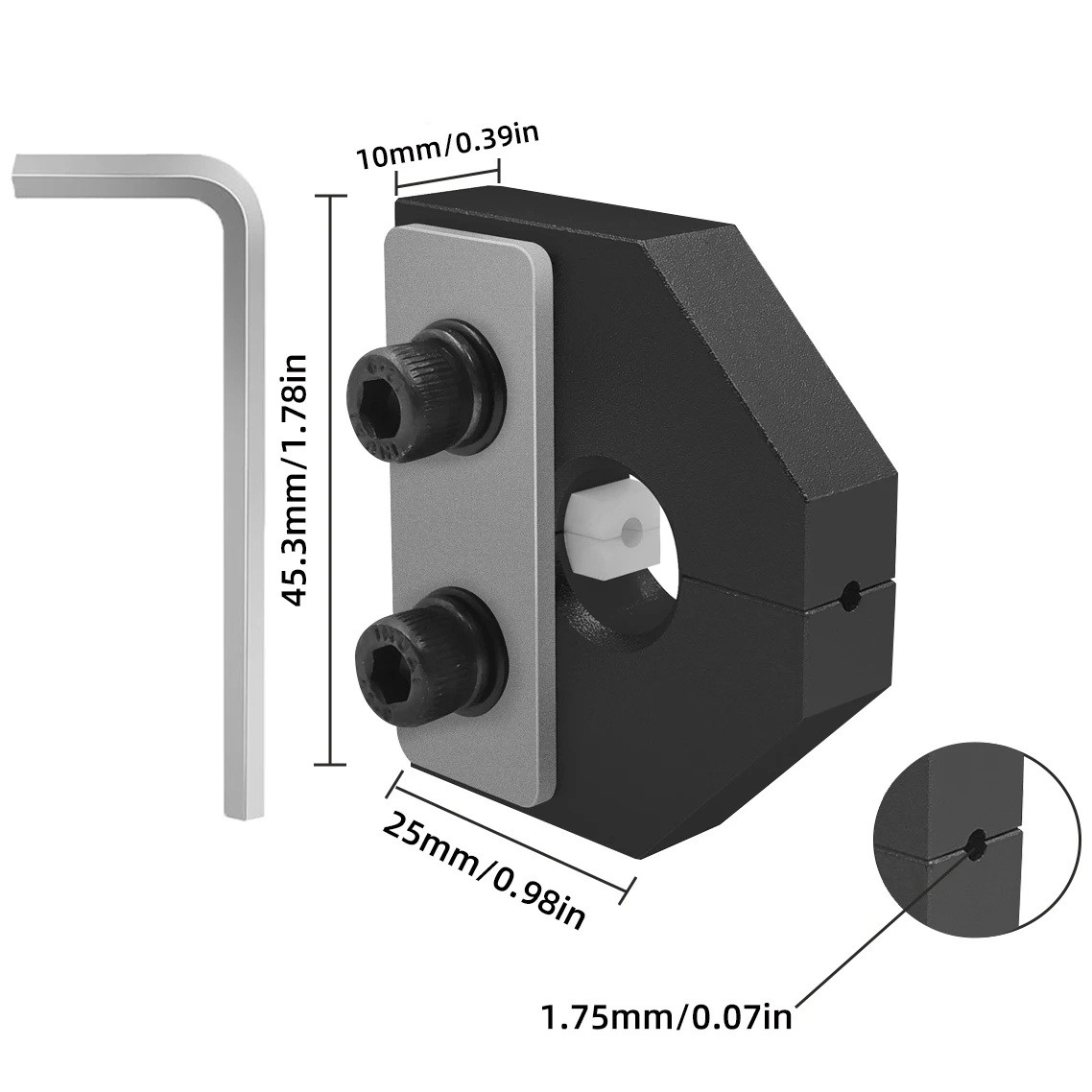

The connector is made from durable material and has compact dimensions of 4.53 x 2.5 x 1 cm, making it easy to use and store. Inside, there is a precisely guided channel that holds the ends of the filament in the ideal position for heating and subsequent joining. Included in the package is an Allen key used to securely tighten the two fixing screws. These ensure that the filament remains exactly where it should be during heating and joining. The joint created by this connector is strong, straight, and suitable for PLA, PETG, ABS, and other materials.
The joining procedure is simple: first, align both ends of the filament, insert them into the connector from the respective sides, and then heat them with a flame for a few seconds depending on the type of material. Subsequently, slowly push them together, resulting in a connection. Once cooled, the filament can be pulled out, aligned, and its strength tested. A properly executed connection is very durable and should not break even when bent. If the joint breaks, simply repeat the process and extend the heating time according to the hardness of the material.

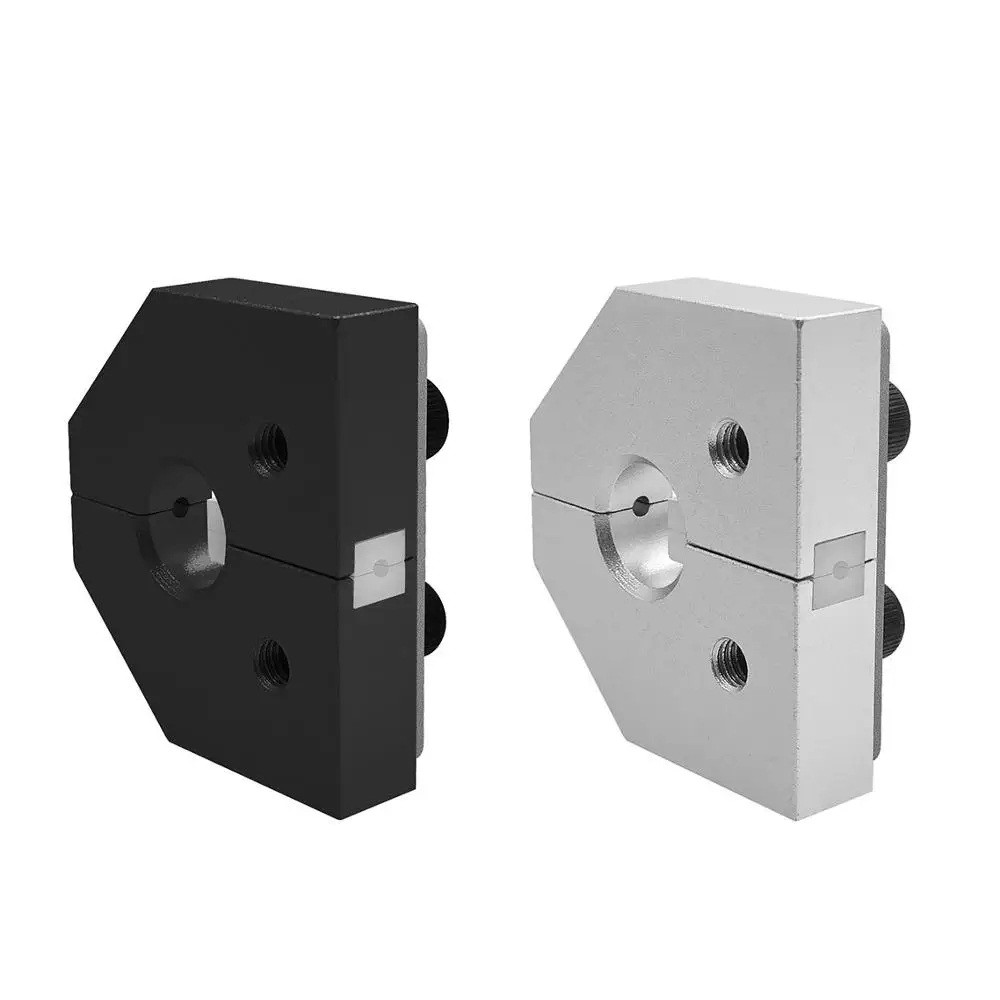

The connector has two sides – a wider and a narrower end – which facilitates the correct guiding of the strands and ensures accurate orientation during insertion. This solution helps achieve a clean, precise, and straight joint regardless of the type of material used. Gradual insertion followed by gentle backward pulling also helps achieve a smooth transition. The precise construction simultaneously minimises the risk of crooked connections or clogging of the extruder.
The connector is a practical aid for all 3D printer users who want to save time, material, and money. It allows you to finish printing without changing spools, create colourful models without multiple extruders, and utilise leftover filaments that would otherwise remain unused. Thanks to its durable design, it can serve long-term and is suitable for both standard home printers and professional use.
- Precise metal construction for accurate filament guiding
- Dimensions 4.53 x 2.5 x 1 cm
- Suitable for filaments with a diameter of 1.75 mm
- Easy and reliable joining of two pieces of material
- Usable for PLA, PETG, ABS, and other materials

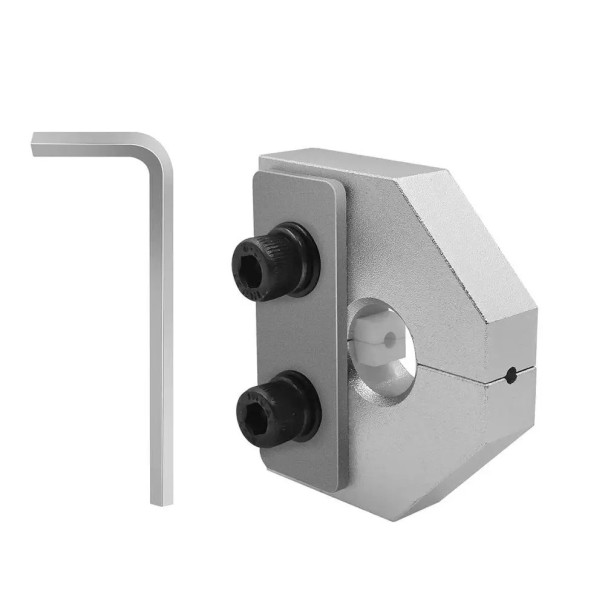

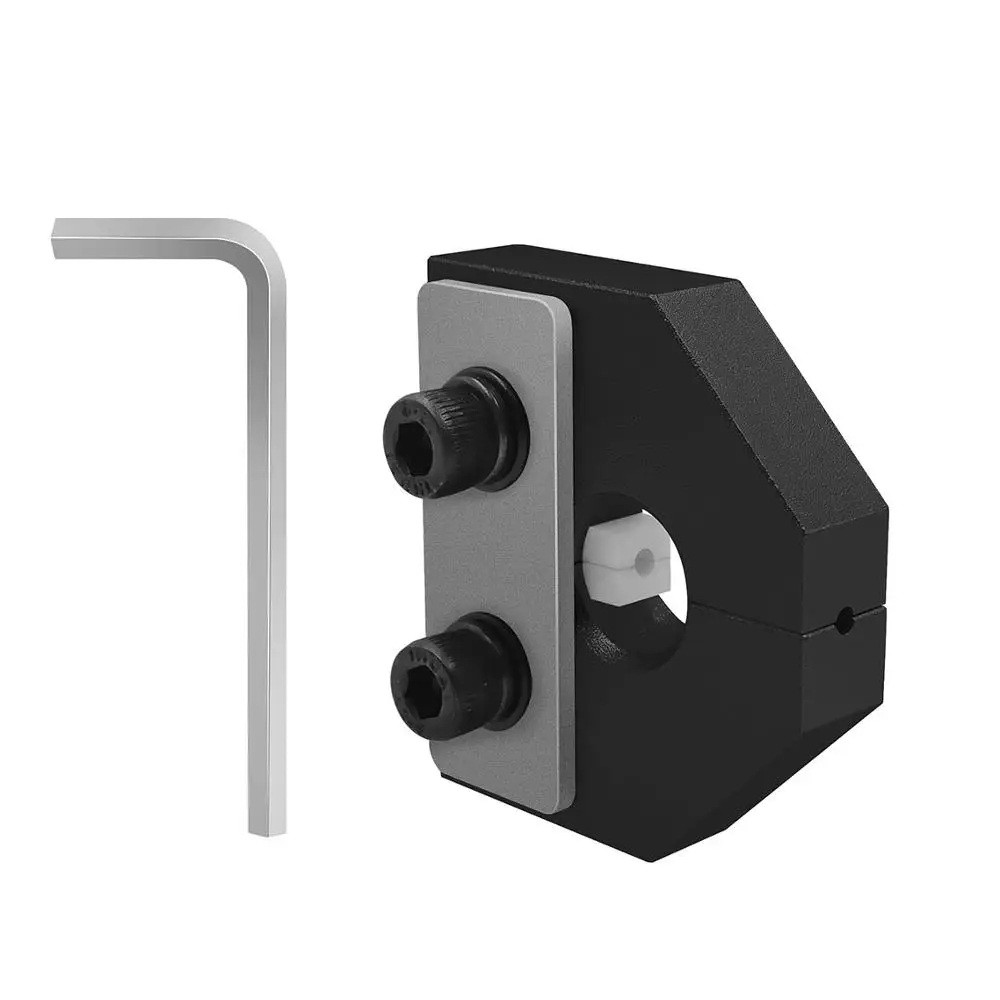

- Includes an Allen key for tightening screws
- Durable metal construction for long life
- Enables smooth colour transitions and completion of prints
- Package contents: 1x filament connector, 1x Allen key
This connector is a practical helper for anyone who wants to safely join filament without the need to stop printing or discard shorter scraps of material. It allows precise guiding of strands and a stable joint that passes through the printer without jamming. With a simple procedure, sturdy construction, and the ability to be reused, it represents an ideal solution for efficient work with filaments. It is suitable for both home printing and professional applications where high precision and reliability are required.
