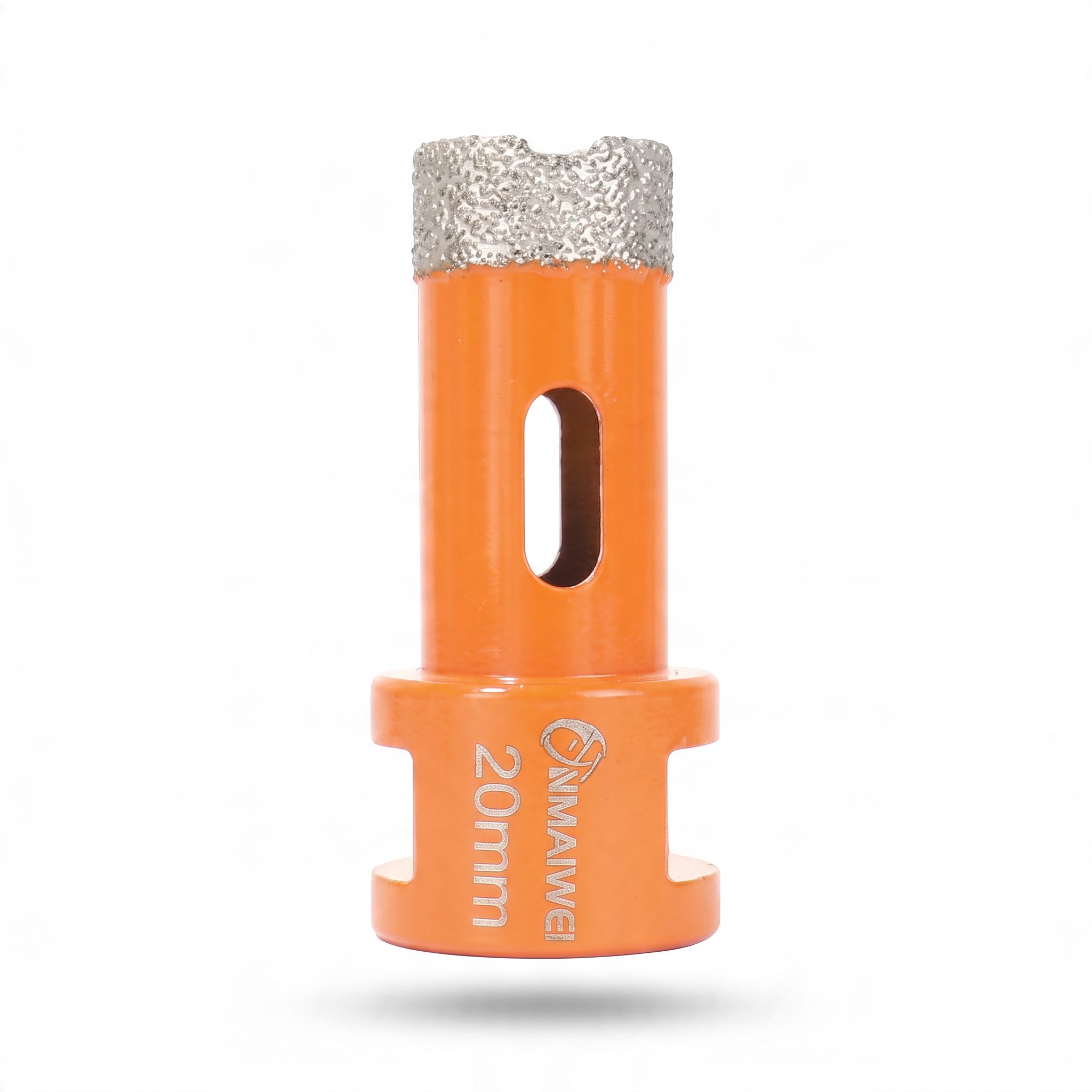

Diamond Drill Bit 20 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble
You already have the maximum available quantity in your cart.
The diamond drill bit with a diameter of 20 mm is designed for drilling clean circular holes in hard and brittle materials. It features an internal thread of M14, allowing it to be screwed directly onto the spindle of an angle grinder without the need for an additional chuck. The cutting edge is equipped with vacuum brazed diamond grains, which can handle ceramic tiles, coverings, marble, granite, stone slabs, and glass. The crown is intended for dry drilling without water cooling, although it can also be used with water for longer tasks. It is suitable for tilers, plumbers, and DIY enthusiasts during bathroom, kitchen renovations, or when laying tiles.
- Hole diameter 20 mm – the crown creates a hole with a diameter of 20 mm in tiles, coverings, stone, or glass.
- M14 thread – attachment directly to the angle grinder with an M14 thread.
- Vacuum brazed diamond – diamond grains securely bonded to the tool body for cutting hard and abrasive materials.
- Dry and wet drilling – drilling without the need for water cooling, although water can extend the tool's lifespan.
- Dimensions – diameter 20 mm, total length 60 mm, clamping part diameter 27 mm.
- Design – crown with a side cutout for the removal of drilled material.
- Suitable materials – marble, granite, stone slabs, ceramics, tiles, coverings, and glass.
- Drilling procedure – first, tilt the tool at a 45° angle and create a groove, then drill vertically at a 90° angle with a slight circular motion.

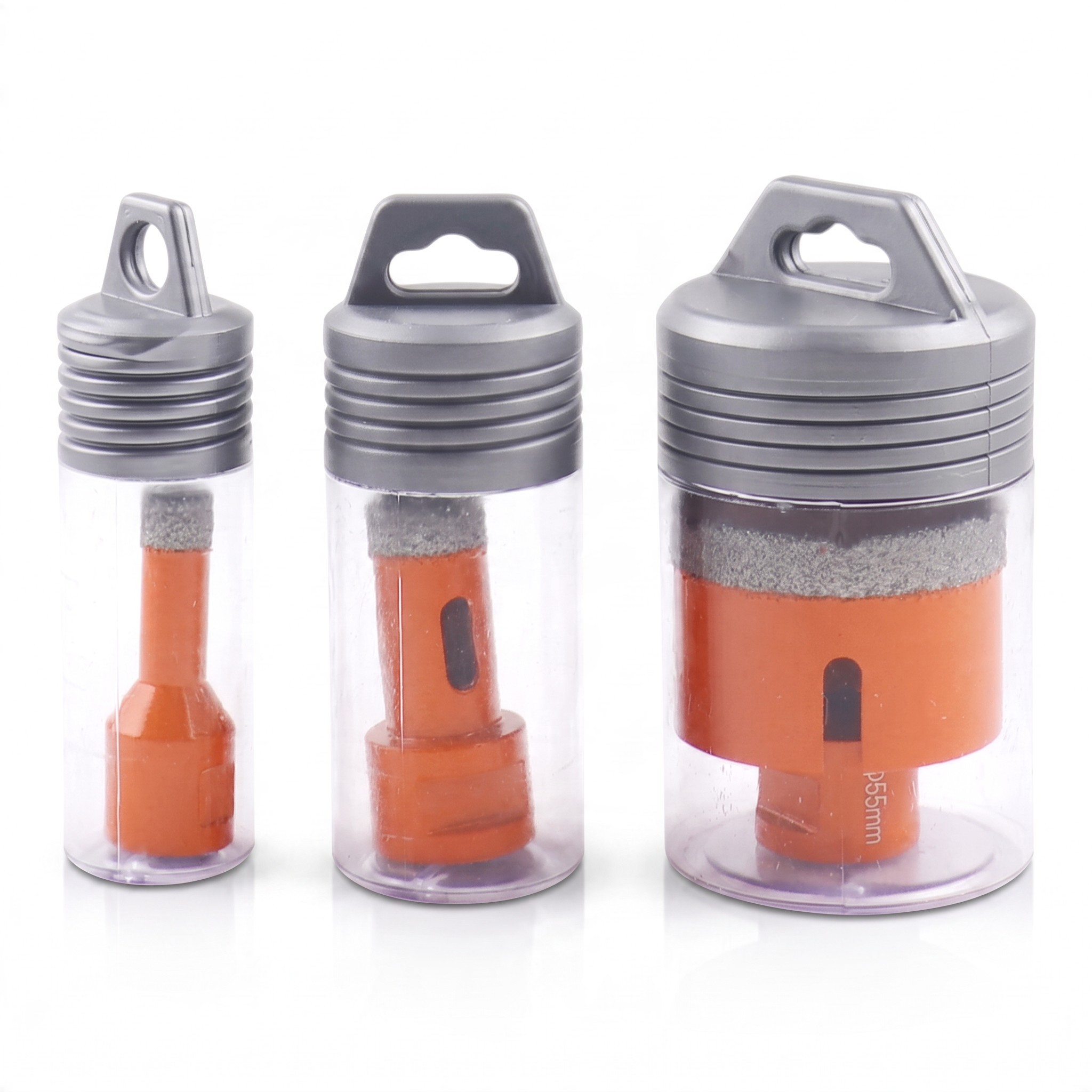

- Contents of the package – 1 piece of 20 mm diamond drill bit in a plastic tube.
When working, we recommend starting with the crown tilted approximately 45° to create a crescent-shaped groove in the surface, which prevents slipping on smooth glaze. Once the crown is held in the correct position, gradually straighten it to a vertical position and drill with a gentle circular motion and even pressure. This procedure helps maintain a clean edge of the hole and reduces the risk of chipping the glaze. The plastic tube in which the crown is supplied makes it easy to transport and store in the workshop.
The 20 mm diamond drill bit with M14 thread is a practical addition to the angle grinder for anyone working with coverings, tiles, or natural stone. The vacuum brazed diamond layer can handle even hard materials such as granite and marble, and the option for dry drilling simplifies work directly at the installation site. Directly screwing onto the spindle of the grinder saves time when installing sanitary equipment, kitchen units, and electrical installations. If the crown is occasionally cooled with water during prolonged drilling, it will extend its lifespan and maintain cutting ability for future use. The crown is suitable for both one-off home repairs and repeated use during renovations.
