Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass
Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 1
Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 1
Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 2
Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 3
Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 4
Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 5
Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 6
Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 7

Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass

12 mm drill bit with M14 thread for angle grinder for dry drilling holes into tiles, cladding, ceramics, marble, granite and glass. Packaged in a plastic tube. Full description
In stock
€19.61
Safe shopping Safe shopping
Overview
Diamond Drill Bit 12 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass

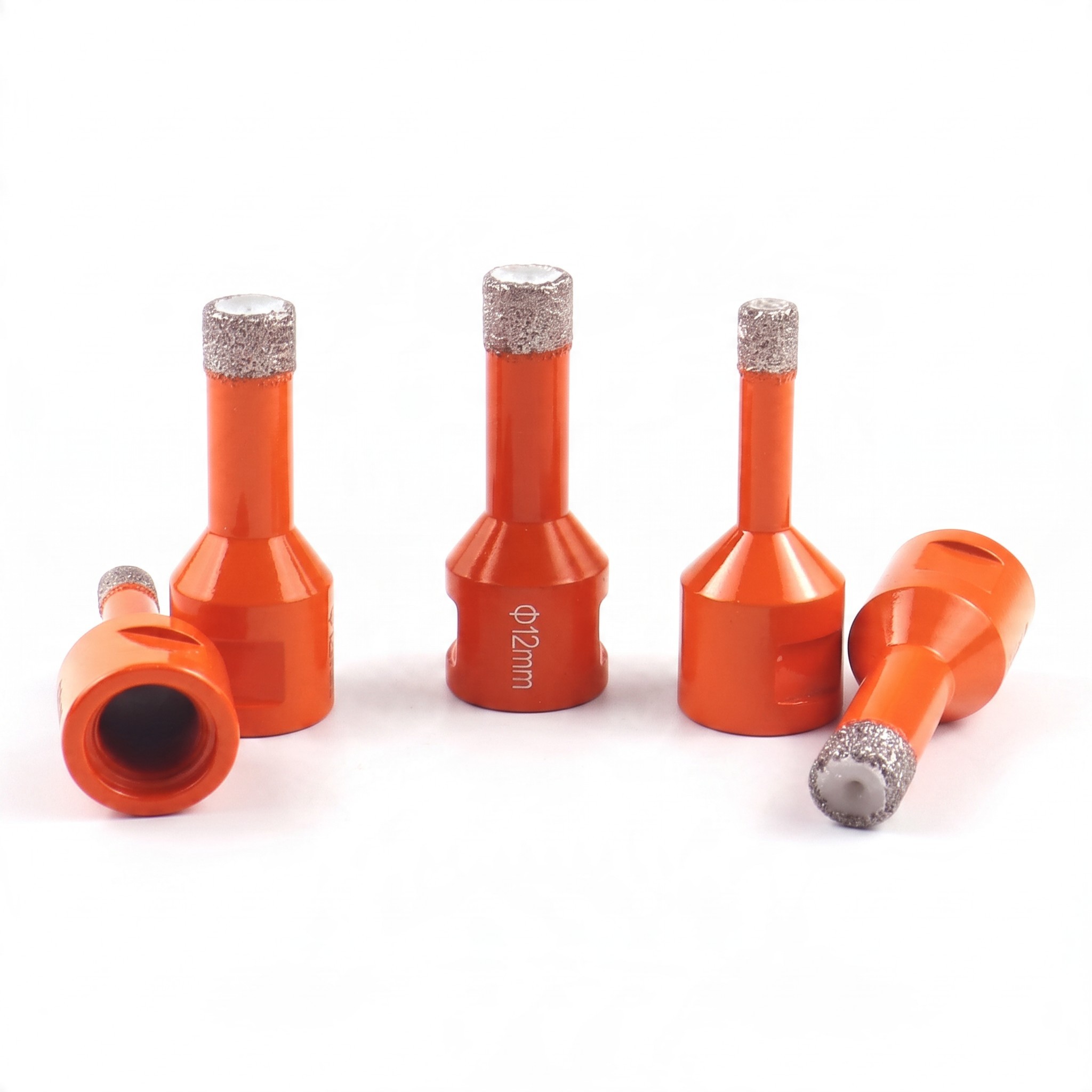

The diamond drill bit with a diameter of 12 mm is designed for drilling small precise holes into hard and brittle materials. It features an internal thread of M14, allowing it to be screwed directly onto the spindle of an angle grinder without the need for an additional chuck. The cutting edge is fitted with vacuum brazed diamond grains, which can handle ceramic tiles, cladding, marble, granite, stone slabs, and glass. The drill bit is intended for dry drilling without water cooling, but it can also be used with water for extended work. It is suitable for tilers, plumbers, and DIY enthusiasts during bathroom, kitchen renovations, or when laying tiles.

  • Hole diameter 12 mm – the drill bit creates a hole with a diameter of 12 mm in tiles, cladding, stone, or glass.
  • M14 thread – attaches directly to an angle grinder with an M14 thread.
  • Vacuum brazed diamond – diamond grains securely bonded to the tool body for cutting hard and abrasive materials.
  • Dry and wet drilling – drilling without the need for water cooling, although water can extend the tool's lifespan.
  • Dimensions – diameter 12 mm, overall length 60 mm.
  • Construction – slim drill bit with a tapered shank.
  • Suitable materials – marble, granite, stone slabs, ceramics, tiles, cladding, and glass.
  • Drilling procedure – first, position the tool at a 45° angle and create a groove, then drill perpendicularly at a 90° angle with a slight circular motion.
  • Contents of the package – 1 piece of 12 mm diamond drill bit in a plastic tube.

When working, it is recommended to start with the drill bit tilted at approximately 45° to create a crescent-shaped groove in the surface, which will prevent slipping on smooth glaze. Once the drill bit holds in the correct position, gradually straighten it to a vertical position and drill with a gentle circular motion and even pressure. This procedure helps maintain a clean edge of the hole and reduces the risk of chipping the glaze. The hard diamond layer retains the shape of the cutting edge even with repeated use. The plastic tube in which the drill bit is supplied makes it easy to transport and store in the workshop.

The 12 mm diamond drill bit with M14 thread is a practical addition to any angle grinder for those working with cladding, tiles, or natural stone. The vacuum brazed diamond layer can handle hard materials such as granite and marble, and the option for dry drilling simplifies work directly at the installation site. Directly screwing onto the spindle of the grinder saves time when installing sanitary ware, kitchen units, and electrical installations. If the drill bit is occasionally cooled with water during extended drilling, it will prolong its lifespan and maintain cutting ability for future use. The drill bit is suitable for both one-off home repairs and repeated use during renovations.

Price incl. VAT €19.61
