Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass
Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass 1
Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass 1
Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass 2
Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass 3
Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass 4
Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass 5
Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass 6

Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass

Diamond drill bit 100 mm with M10 thread for angle grinder. Soldered diamond for dry drilling into tiles, slabs, marble, granite, concrete and glass. Full description
In stock
€59.34
Safe shopping Safe shopping
Overview
Diamond Drill Bit 100 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles Marble Granite and Glass

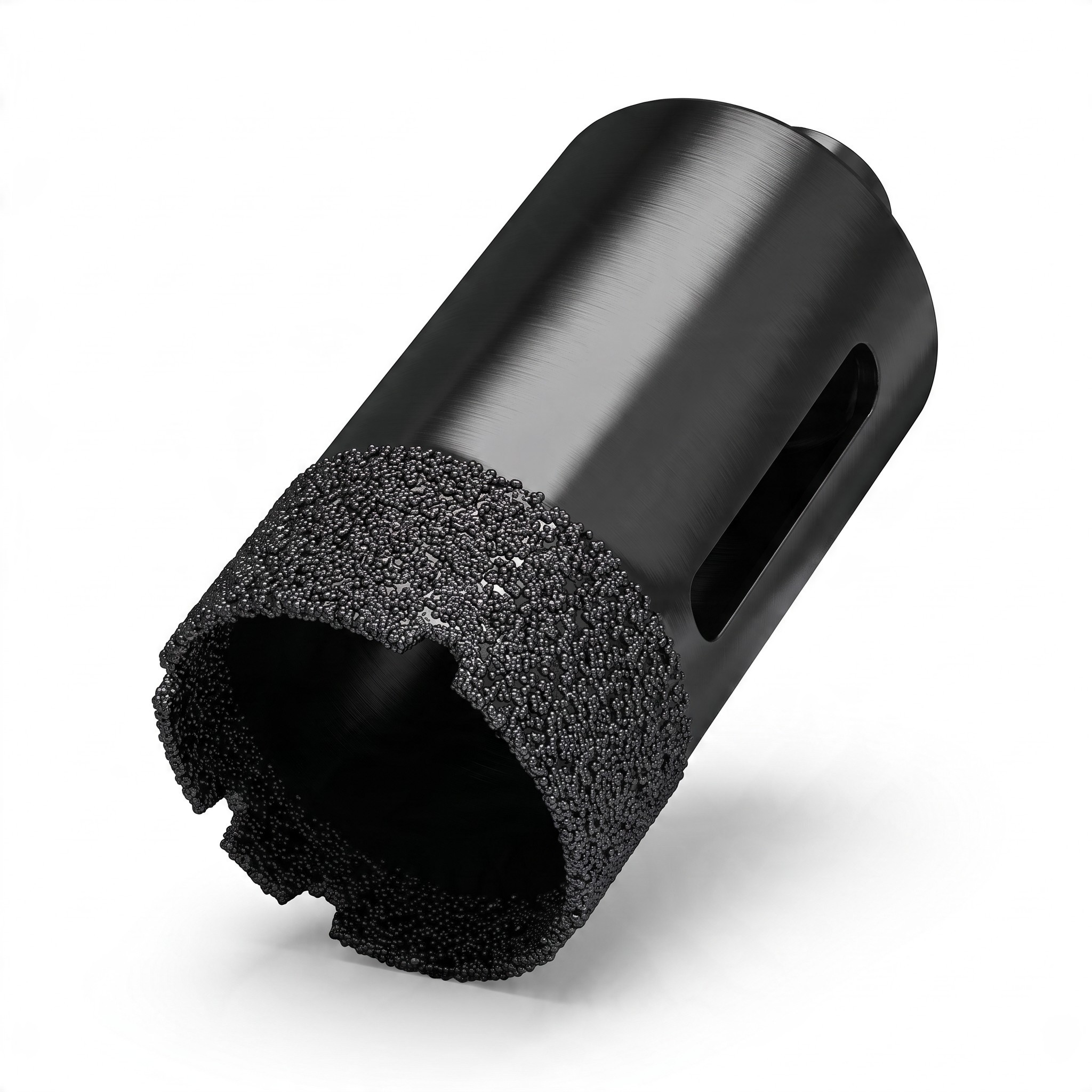

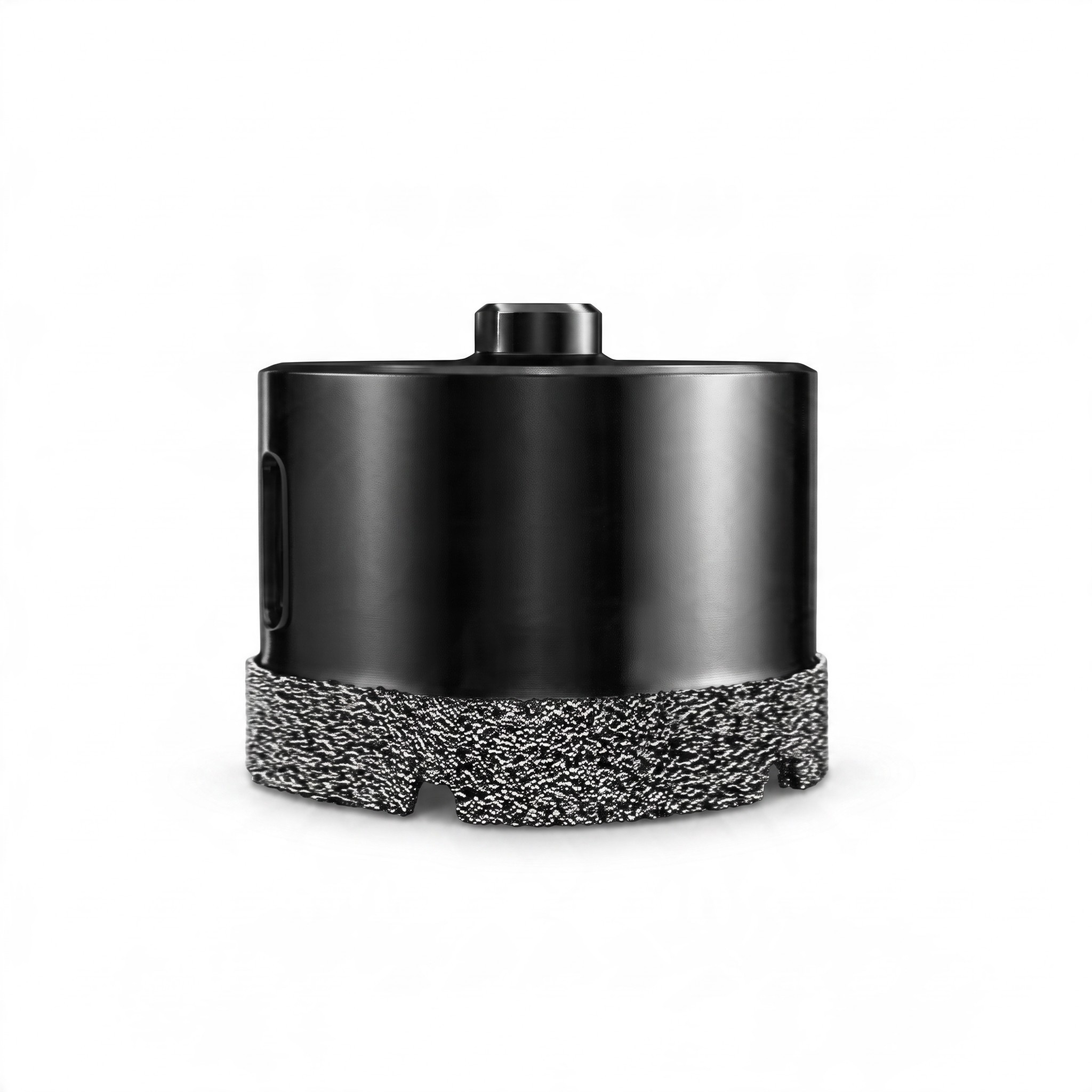

The diamond drill bit with a diameter of 100 mm is designed for drilling holes into hard construction materials using an angle grinder. It features an internal thread M10 on the clamping side, allowing it to be screwed directly onto the grinder’s spindle without a chuck or additional adapters. The cutting part is coated with soldered diamond grains, which can handle ceramic tiles, slabs, sintered tiles, marble, granite, concrete, and glass. The diameter of 100 mm indicates the size of the hole that will be created after drilling, so choose the diameter according to the pipe or element that will pass through the hole. The drill bit is intended for dry drilling, without the need to add water. It is suitable for holes for waste, ventilation, and passages for thicker pipes, and will be used by tilers, plumbers, and DIY enthusiasts during bathroom or kitchen renovations.

  • Diameter – 100 mm.

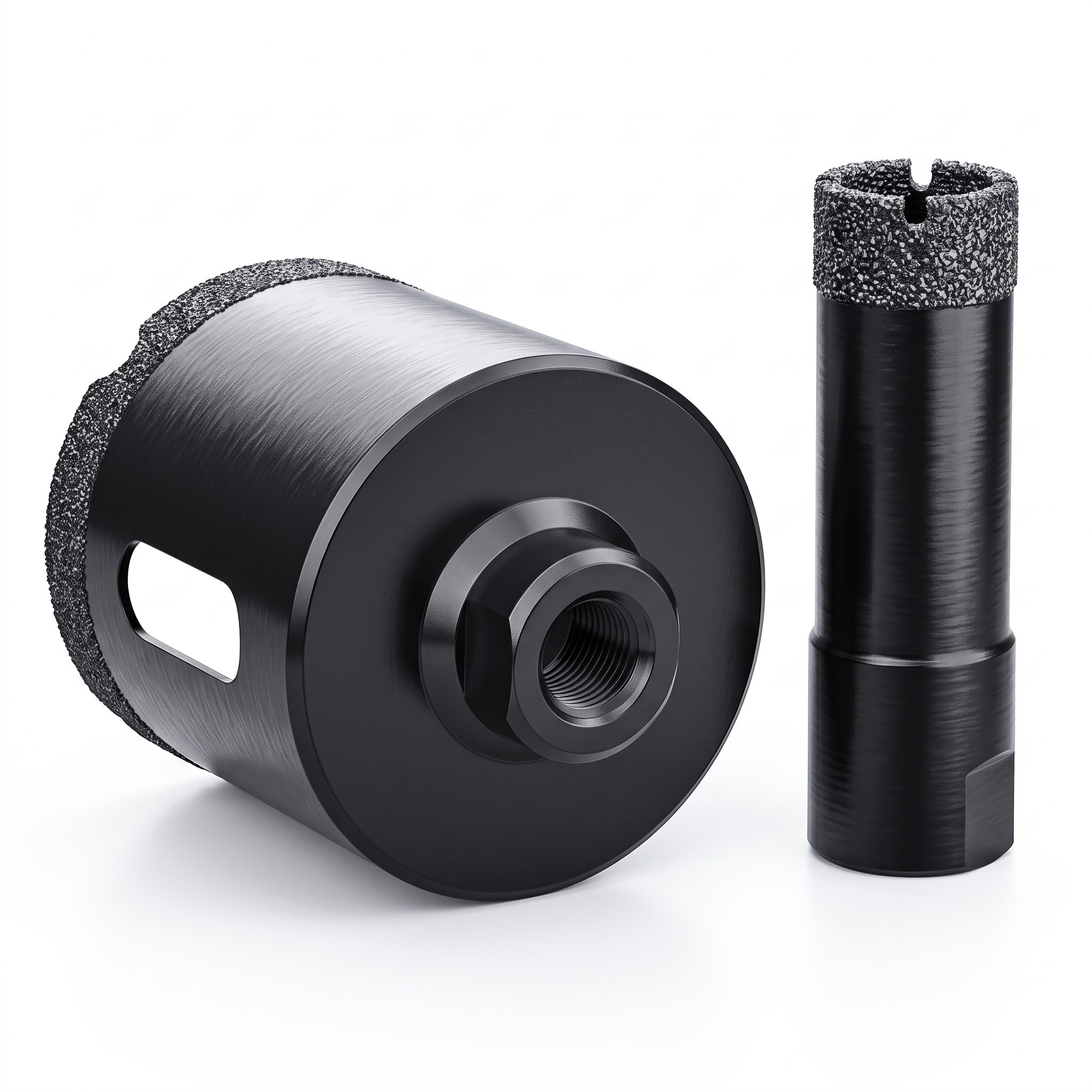

  • M10 Thread – attachment directly to the angle grinder with an M10 spindle thread.
  • Soldered Diamond – diamond grains firmly bonded to the tool body throughout the cutting part.
  • Dry Drilling – drilling without water; cooling with water may extend lifespan.

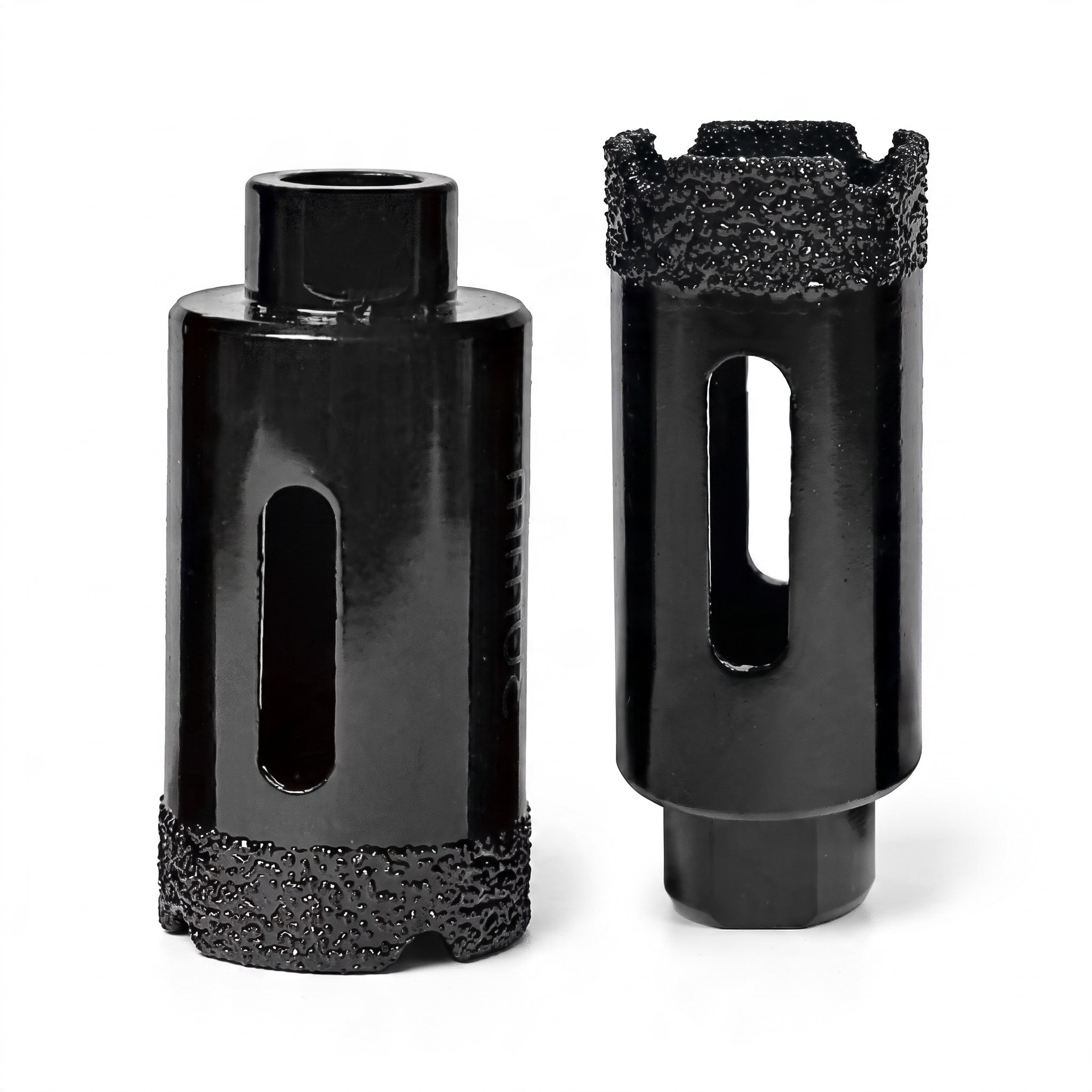

  • Chip Removal – two longitudinal cutouts in the casing for the removal of drilled material.
  • Materials – ceramic tiles, slabs, sintered tiles, marble, granite, concrete, and glass.
  • Colour – black.
  • Package Contents – 1 piece of diamond drill bit 100 mm.

When drilling, hold the grinder initially at an angle of about 45 degrees and carefully create a shallow groove in the surface in the shape of a crescent. Once the bit catches, gradually straighten the grinder to a vertical position of 90 degrees and drill with slight pressure. This process will prevent slipping on the smooth glaze and keep the edge of the hole clean. Allow the bit to work under its own weight and do not force it, to avoid overheating the diamond layer. Before the first use, check that the bit is securely tightened on the spindle and that the grinder runs without vibrations and wobbling. During prolonged drilling, take short breaks, or you can cool the cutting part with water, which will extend the tool's lifespan. Use protective glasses, gloves, and a respirator, as fine dust is generated during dry drilling.

The diamond drill bit 100 mm with M10 thread is a practical addition to any angle grinder. Thanks to the soldered diamond, it can handle hard tiles and natural stone, creating a clean hole without chipped edges. It is suitable for work on construction sites as well as at home, where you need to quickly make holes for waste, ventilation, and passages for thicker pipes. The attachment to angle grinder M10 is quick, and the bit can be easily replaced with another diameter. The tool is compact, making it easy to store in a tool case and always have on hand. Dry drilling saves time, as there is no need to prepare water or cooling. The result is precise holes in tiles, marble, and granite without the need to buy an expensive core drilling machine.

Price incl. VAT €59.34
