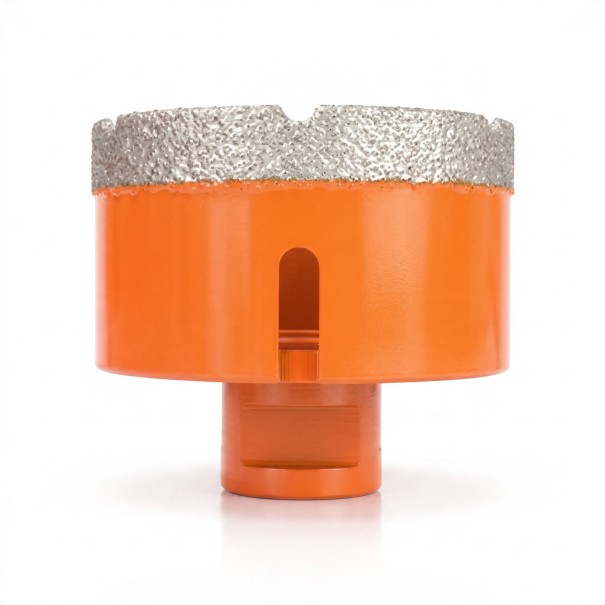

Diamond Core Drill Bit 70 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble
You already have the maximum available quantity in your cart.
The diamond core drill bit with a diameter of 70 mm is designed for drilling clean circular holes in hard and brittle materials. It features an internal thread of M14, allowing it to screw directly onto the spindle of an angle grinder without the need for an additional chuck. The cutting edge is fitted with vacuum brazed diamond grains, capable of handling ceramic tiles, cladding, marble, granite, stone slabs, and glass. The core bit is intended for dry drilling without water cooling, although it can also be used with water for extended work. It is suitable for tilers, plumbers, and DIY enthusiasts during bathroom or kitchen renovations or when laying tiles.
- Hole diameter 70 mm – the core bit creates a hole with a diameter of 70 mm in tiles, cladding, stone, or glass.
- M14 thread – direct attachment to an angle grinder with M14 thread.
- Vacuum brazed diamond – diamond grains firmly bonded to the tool body for cutting hard and abrasive materials.
- Dry and wet drilling – drilling without the need for water cooling, although water can extend the tool's lifespan.
- Dimensions – diameter 70 mm, total length 60 mm, clamping part diameter 27 mm.
- Design – core bit with a side cut-out for the removal of drilled material.
- Suitable materials – marble, granite, stone slabs, ceramics, tiles, cladding, and glass.
- Drilling procedure – first, position the tool at a 45° angle and create a groove, then drill vertically at a 90° angle with a slight circular motion.
- Package contents – 1 piece of 70 mm diamond core drill bit in a plastic tube.
When working, we recommend starting with the core bit tilted at approximately 45° to create a crescent-shaped groove on the surface to prevent slipping on smooth glaze. Once the core bit is held in the correct position, gradually straighten it to a vertical position and drill with a gentle circular motion and even pressure. This procedure helps maintain a clean edge on the hole and reduces the risk of chipping the glaze. The plastic tube in which the core bit is supplied makes it easy to transport and store in the workshop.
The 70 mm diamond core drill bit with M14 thread is a practical addition to any angle grinder for those working with tiles, paving, or natural stone. The vacuum brazed diamond layer can handle even hard materials such as granite and marble, and the option for dry drilling simplifies work directly at the installation site. Directly screwing onto the grinder's spindle saves time when installing sanitary ware, kitchen units, and electrical installations. If the core bit is occasionally cooled with water during extended drilling, its lifespan will be extended, and its cutting ability will be preserved for future use. The core bit is suitable for both one-off home repairs and repeated use during renovations.
