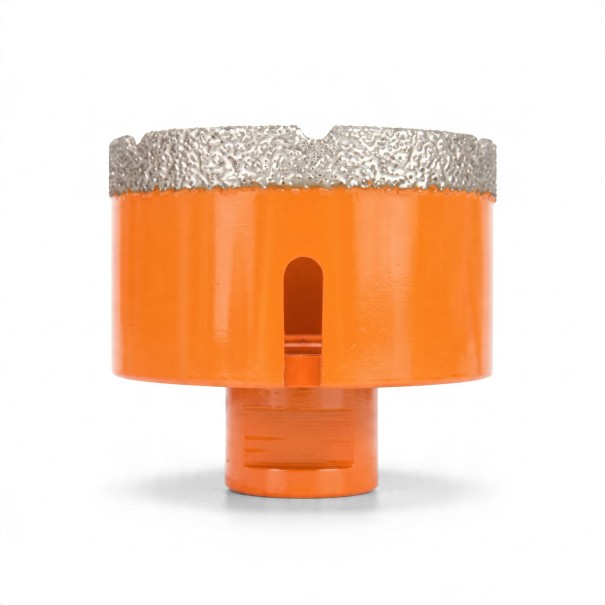

Diamond Core Drill Bit 68 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble
You already have the maximum available quantity in your cart.
The diamond core drill bit with a diameter of 68 mm is designed for drilling clean circular holes in hard and brittle materials. It features an internal thread of M14, allowing it to be screwed directly onto the spindle of an angle grinder without the need for an additional chuck. The cutting edge is equipped with vacuum brazed diamond grains, capable of handling ceramic tiles, cladding, marble, granite, stone slabs, and glass. The core bit is intended for dry drilling without water cooling, although it can also be used with water for prolonged work. It is suitable for tilers, plumbers, and DIY enthusiasts during bathroom or kitchen renovations, or when laying tiles.
- Hole diameter 68 mm – the core bit creates a hole with a diameter of 68 mm in tiles, cladding, stone, or glass.
- M14 thread – attaches directly to an angle grinder with an M14 thread.
- Vacuum brazed diamond – diamond grains firmly bonded to the tool body for cutting hard and abrasive materials.
- Dry and wet drilling – drilling without the need for water cooling, although water can extend the tool's lifespan.
- Dimensions – diameter of 68 mm, total length 60 mm, clamping part diameter 27 mm.
- Design – core bit with a side cutout for the removal of drilled material.
- Suitable materials – marble, granite, stone slabs, ceramics, tiles, cladding, and glass.
- Drilling procedure – first, position the tool at an angle of 45° and create a groove, then drill perpendicularly at a 90° angle with a slight circular motion.
- Contents of the package – 1 piece of 68 mm diamond core drill bit in a plastic tube.
When working, we recommend starting with the core bit tilted at approximately 45° to create a crescent-shaped groove in the surface, which prevents slipping on smooth glaze. Once the core bit is held in the correct position, gradually straighten it to a perpendicular position and drill with a slight circular motion and even pressure. This procedure helps maintain a clean edge of the hole and reduces the risk of chipping the glaze. The plastic tube in which the core bit is supplied facilitates transportation and storage in the workshop.
The 68 mm diamond core drill bit with M14 thread is a practical addition to an angle grinder for anyone working with tiles, flooring, or natural stone. The vacuum brazed diamond layer can handle hard materials such as granite and marble, and the option for dry drilling simplifies work directly at the installation site. Directly screwing onto the grinder's spindle saves time when installing sanitary fittings, kitchen units, and electrical installations. If you occasionally cool the core bit with water during prolonged drilling, you will extend its lifespan and maintain cutting ability for future use. The core bit is suitable for both one-off home repairs and repeated use during renovations.
