Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble
Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 1
Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 1
Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 2
Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 3
Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 4
Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 5
Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 6

Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble

Core bit 65 mm with M14 thread for angle grinder for dry drilling holes in tiles, ceramics, marble, granite, and glass. Packaged in a plastic tube. Full description
In stock
€50.17
Safe shopping Safe shopping
Overview
Diamond Core Drill Bit 65 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble

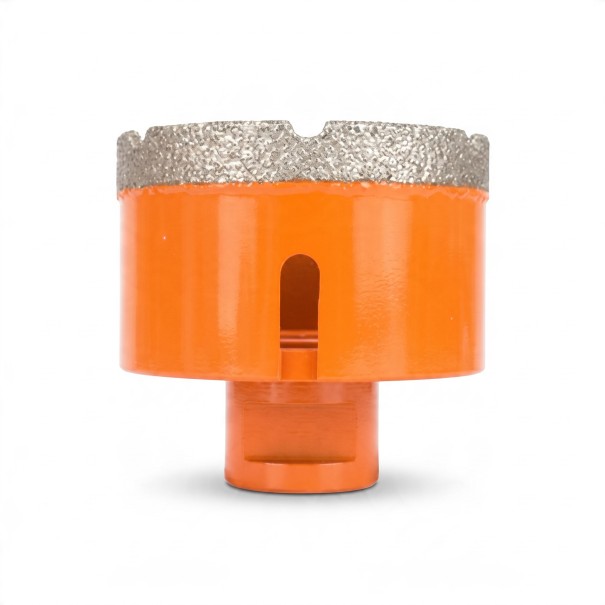

The diamond core drill bit with a diameter of 65 mm is designed for drilling clean circular holes in hard and brittle materials. It features an internal thread of M14, allowing it to be screwed directly onto the spindle of an angle grinder without the need for an additional chuck. The cutting edge is fitted with vacuum brazed diamond grains, which can handle ceramic tiles, cladding, marble, granite, stone slabs, and glass. The core bit is intended for dry drilling without water cooling, but it can also be used with water for extended work. It is suitable for tilers, plumbers, and DIY enthusiasts during bathroom and kitchen renovations or when laying tiles.

  • Hole Diameter 65 mm – the core bit creates a hole with a diameter of 65 mm in tiles, cladding, stone, or glass.
  • M14 Thread – attaches directly to an angle grinder with an M14 thread.
  • Vacuum Brazed Diamond – diamond grains firmly bonded to the tool body for cutting hard and abrasive materials.
  • Dry and Wet Drilling – drilling without the need for water cooling, although water can extend the tool's lifespan.
  • Dimensions – diameter 65 mm, total length 60 mm, clamping part diameter 27 mm.
  • Design – core bit with a side cutout for the removal of drilled material.
  • Suitable Materials – marble, granite, stone slabs, ceramics, tiles, cladding, and glass.
  • Drilling Procedure – first, position the tool at a 45° angle to create a groove, then drill perpendicularly at a 90° angle with a slight circular motion.
  • Contents of the Package – 1 piece of 65 mm diamond core drill bit in a plastic tube.

When working, we recommend starting with the core bit tilted approximately 45° to create a crescent-shaped groove on the surface, which prevents slipping on smooth glaze. Once the core bit is held in the correct position, gradually straighten it to a perpendicular position and drill with a gentle circular motion and even pressure. This procedure helps maintain a clean edge on the hole and reduces the risk of chipping the glaze. The plastic tube in which the core bit is supplied makes it easy to transport and store in the workshop.

The 65 mm diamond core drill bit with M14 thread is a practical addition to any angle grinder for those working with tiles, flooring, or natural stone. The vacuum brazed diamond layer can handle even hard materials such as granite and marble, and the option for dry drilling simplifies work directly at the installation site. Directly screwing onto the grinder's spindle saves time during the installation of sanitary equipment, kitchen units, and electrical installations. If the core bit is occasionally cooled with water during prolonged drilling, it will extend its lifespan and maintain cutting ability for future use. The core bit is suitable for both one-off home repairs and repeated use during renovations.

Price incl. VAT €50.17
