Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass
Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 1
Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 1
Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 2
Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 3
Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 4
Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 5
Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 6

Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass

Diamond core drill bit 60 mm with M10 thread for angle grinder. Sintered diamond for dry drilling into tiles, panels, marble, granite, concrete and glass. Full description
In stock
€30.09
Safe shopping Safe shopping
Overview
Diamond Core Drill Bit 60 mm with M10 Thread for Angle Grinder Sintered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass

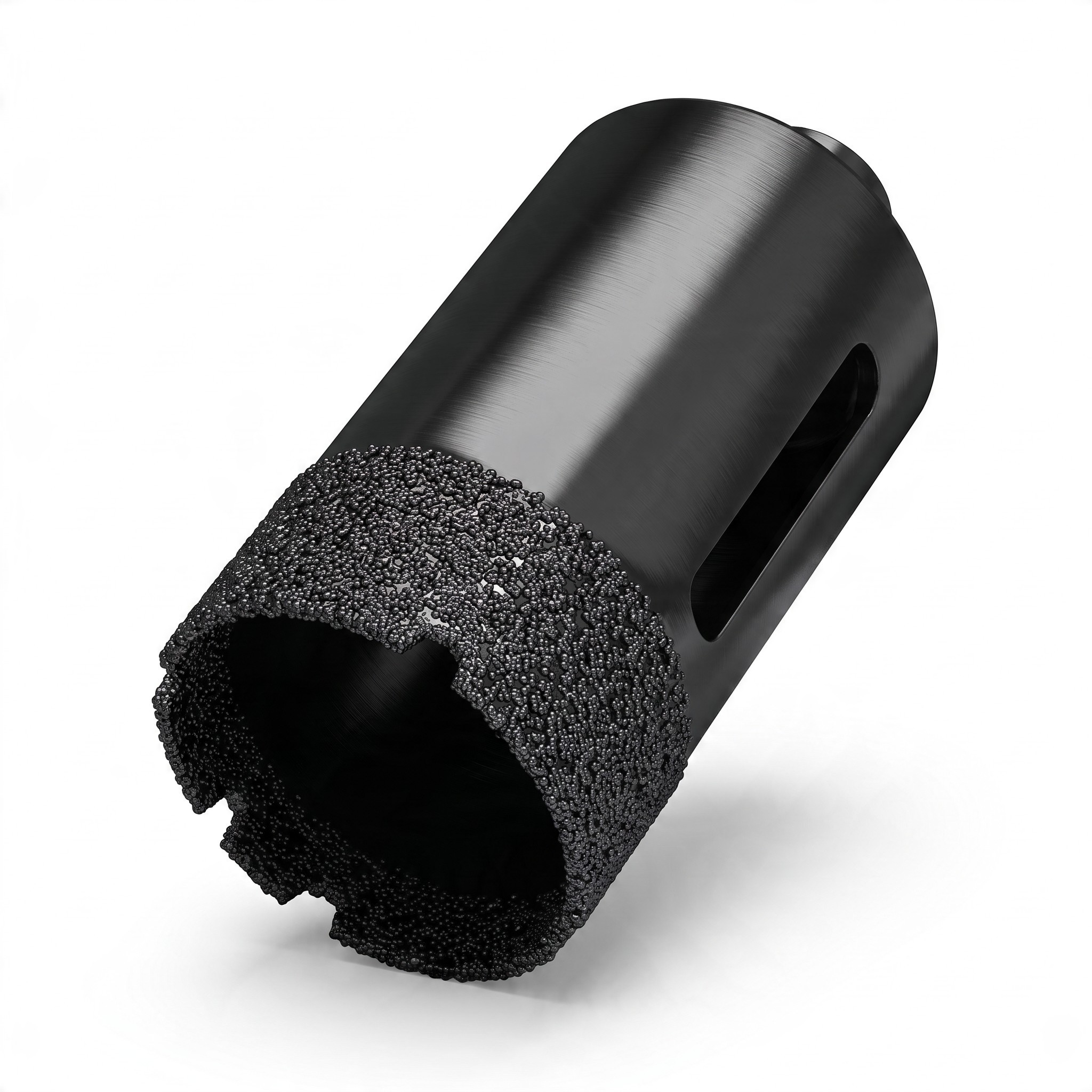

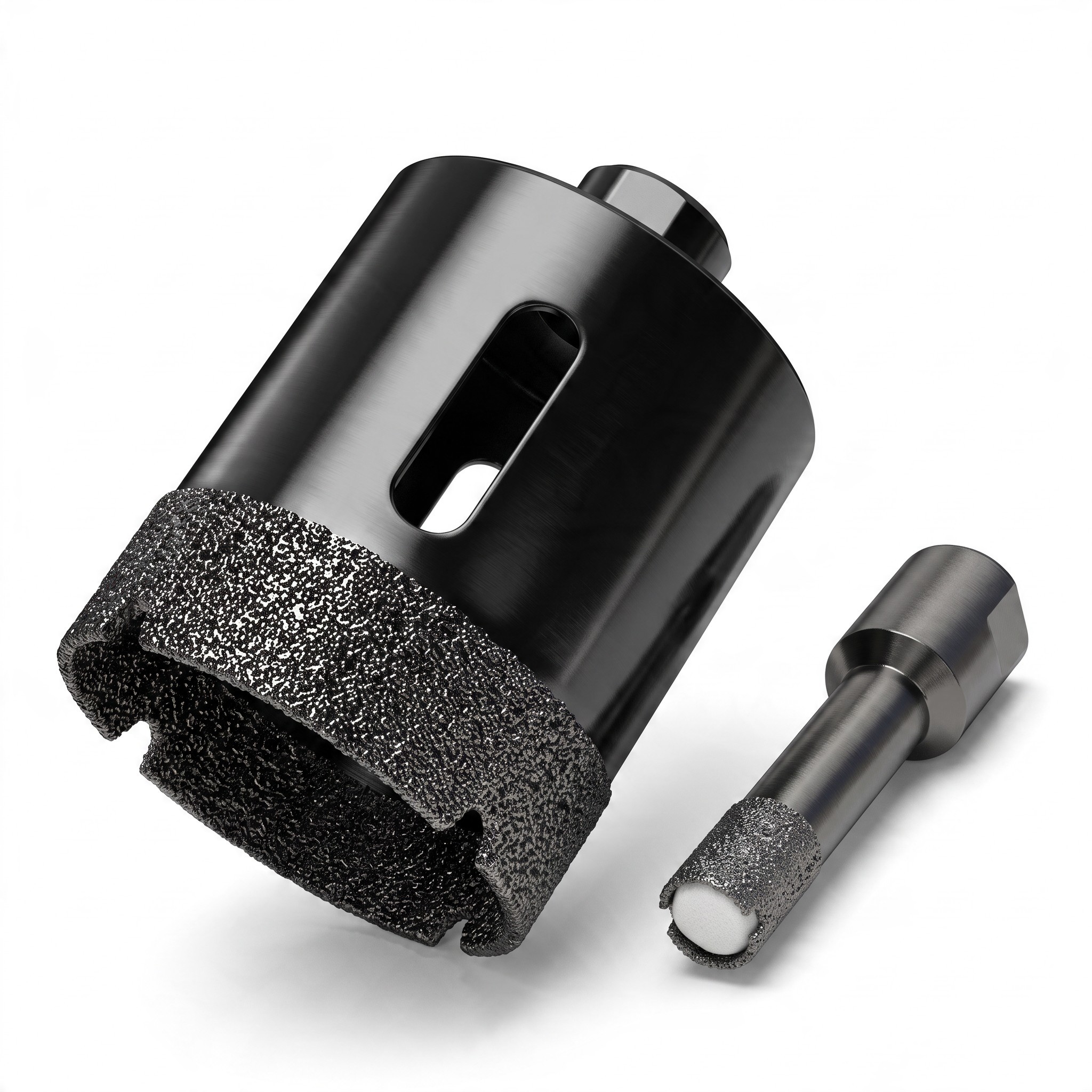

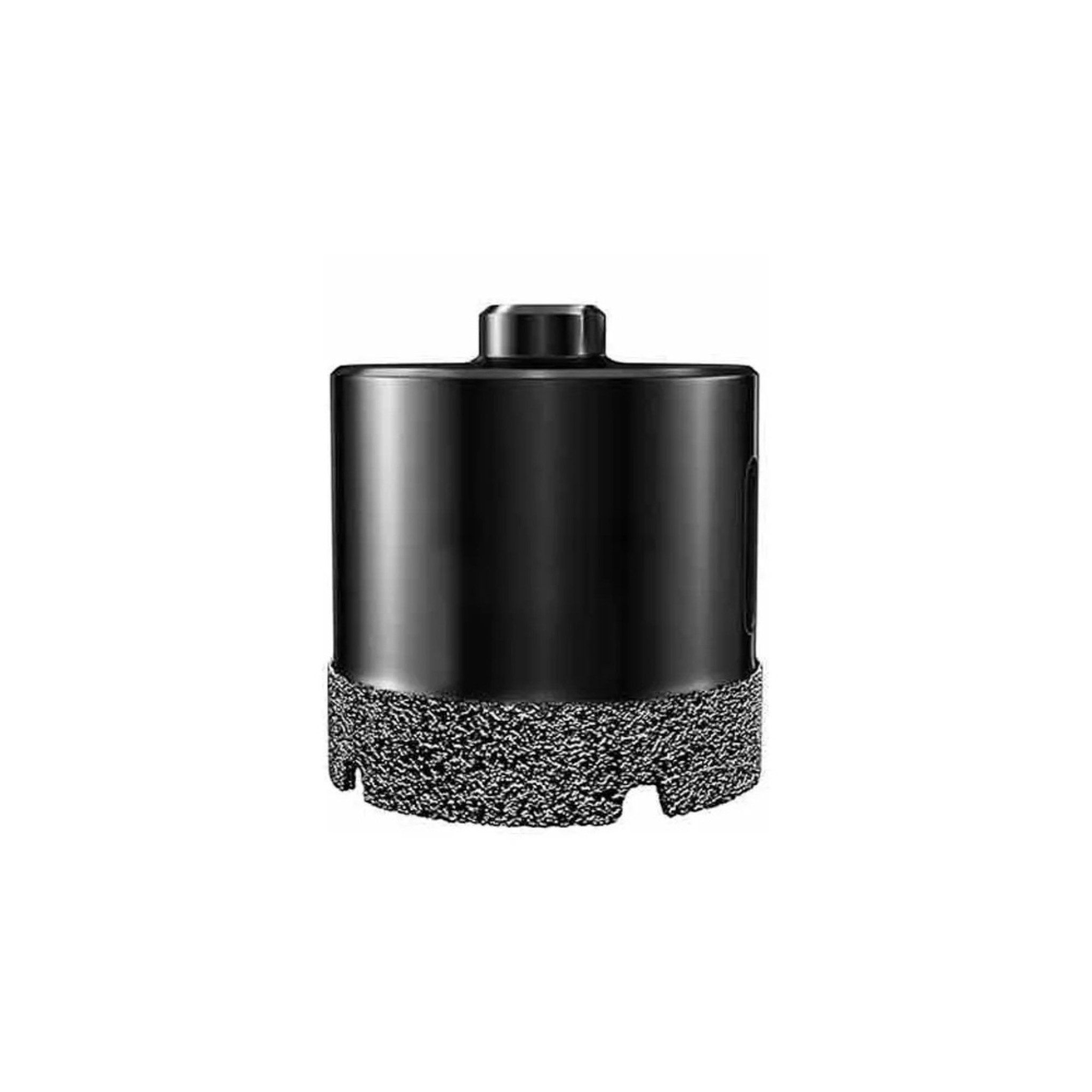

The diamond core drill bit with a diameter of 60 mm is designed for drilling holes into hard building materials using an angle grinder. It features an internal thread M10 on the clamping side, allowing it to screw directly onto the spindle of the grinder without the need for a chuck or additional adapters. The cutting section is coated with sintered diamond grains, which can handle ceramic tiles, panels, porcelain tiles, marble, granite, concrete, and glass. The diameter of 60 mm indicates the size of the hole that will be created after drilling, so please select the diameter according to the pipe or element that will pass through the hole. The core bit is intended for dry drilling, without the need to add water. It is suitable for holes for electrical installation boxes, waste pipes, and pipe passages, and will be useful for tilers, plumbers, and DIY enthusiasts during bathroom or kitchen renovations.

  • Diameter – 60 mm.

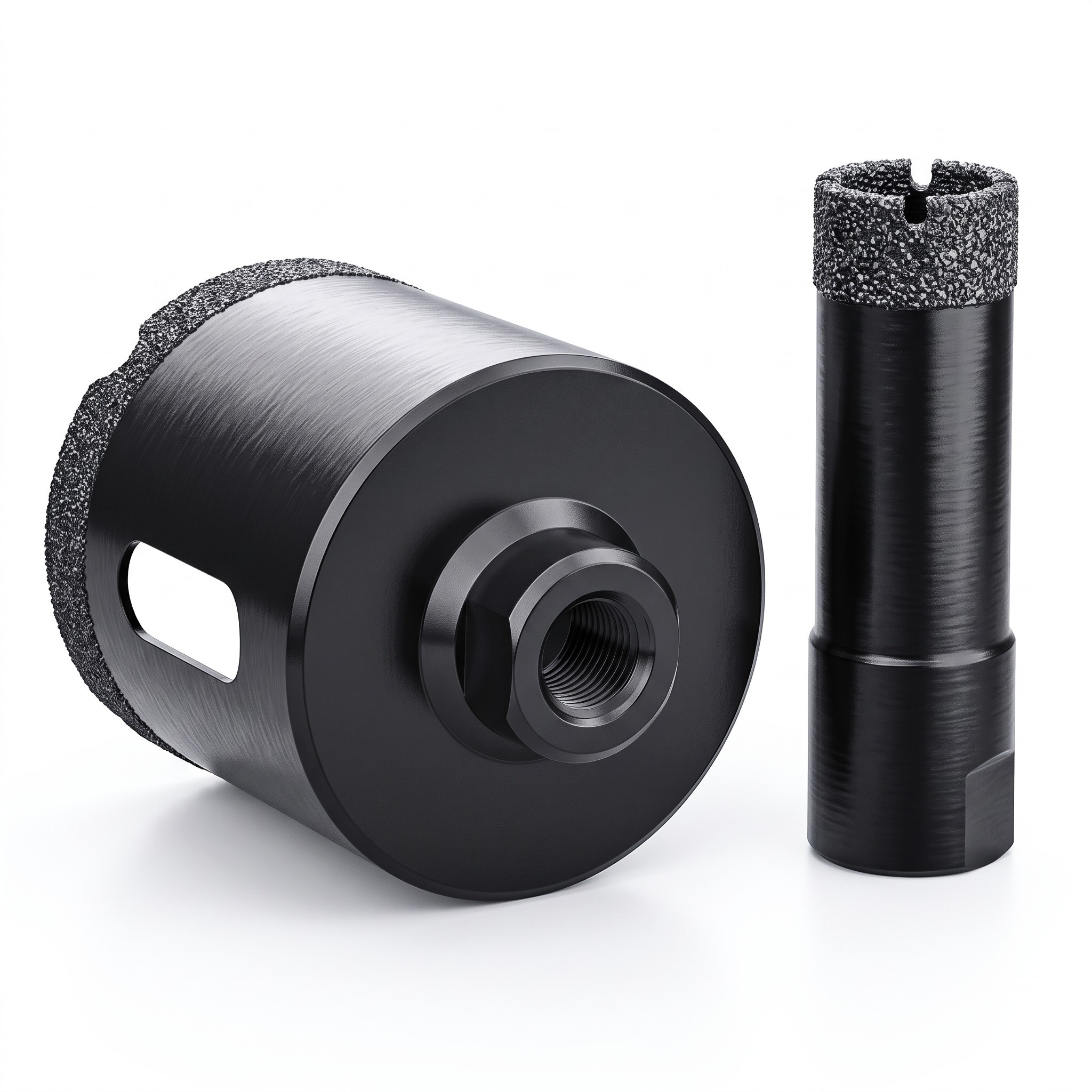

  • M10 Thread – attachment directly to the angle grinder with M10 spindle thread.
  • Sintered Diamond – diamond grains firmly bonded to the tool body across the entire cutting section.
  • Dry Drilling – drilling without water; cooling with water can extend the lifespan.

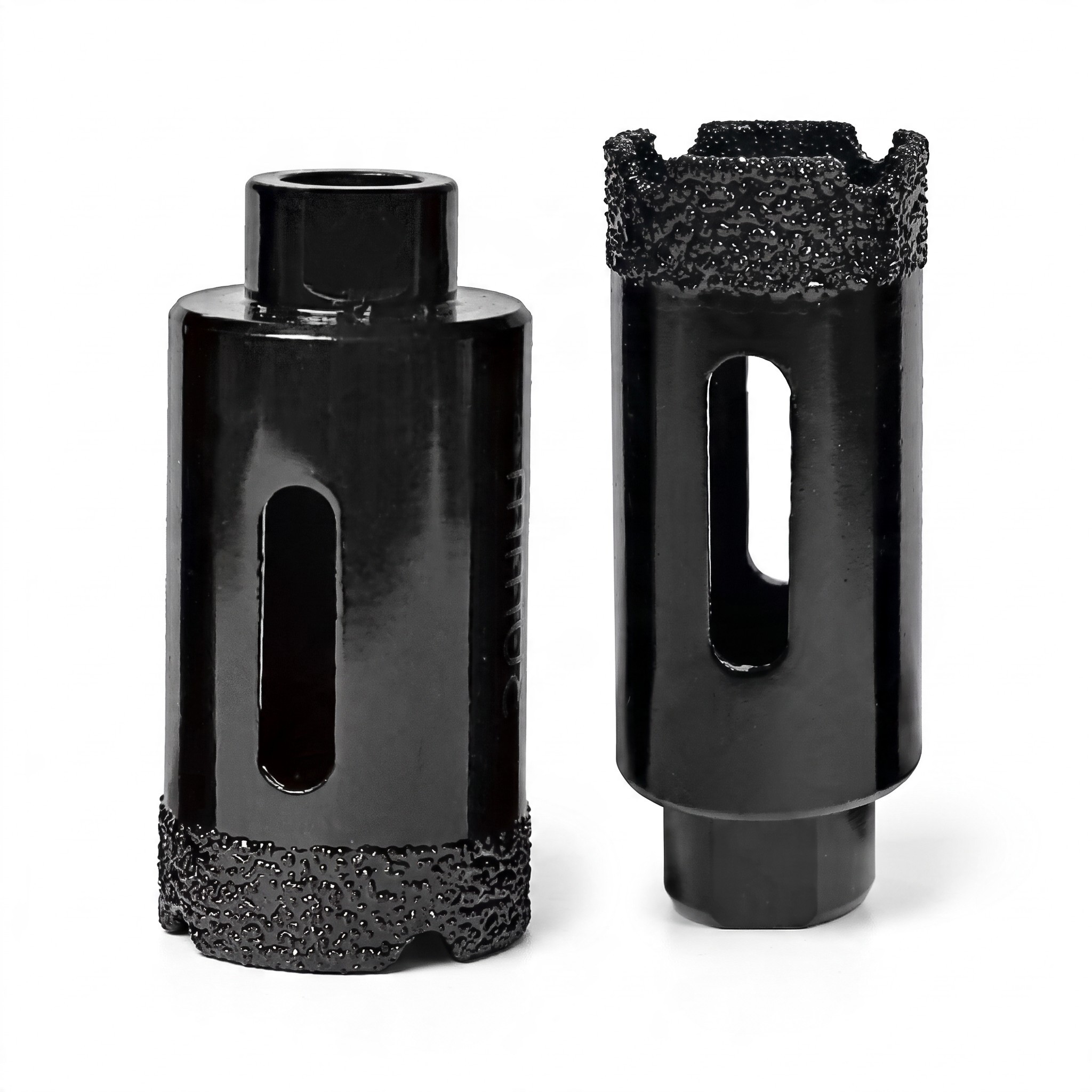

  • Chip Removal – two longitudinal cuts in the casing for the removal of drilled material.
  • Materials – ceramic tiles, panels, porcelain tiles, marble, granite, concrete, and glass.
  • Colour – black.
  • Contents of Package – 1 piece of 60 mm diamond core drill bit.

When starting to drill, hold the grinder at an angle of approximately 45 degrees and carefully create a shallow groove in the surface in the shape of a crescent. Once the core bit catches, gradually straighten the grinder to a vertical position of 90 degrees and drill with light pressure. This procedure will prevent slipping on the smooth glaze and keep the edge of the hole clean. Allow the core bit to work under the weight of the machine and do not apply excessive force to avoid overheating the diamond layer. Before the first use, check that the core bit is securely tightened on the spindle and that the grinder operates without vibrations or wobbling. During extended drilling, take short breaks, or you may cool the cutting section with water, which will extend the lifespan of the tool. Use protective goggles, gloves, and a respirator, as fine dust is generated during dry drilling.

The 60 mm diamond core drill bit with M10 thread is a practical addition to any angle grinder. Thanks to the sintered diamond, it can handle hard tiles and natural stone, creating a clean hole without chipped edges. It is suitable for work on construction sites as well as at home, where you need to quickly make holes for electrical installation boxes, waste pipes, and pipe passages. The attachment to the angle grinder M10 is quick, and the core bit can be easily swapped for another diameter. The tool is compact, making it easy to store in a toolbox and always have on hand. Dry drilling saves time, as you do not need to prepare water or cooling. The result is precise holes in tiles, marble, and granite without the need to purchase an expensive core drilling machine.

Price incl. VAT €30.09
