Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass
Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass 1
Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass 1
Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass 2
Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass 3
Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass 4
Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass 5
Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass 6

Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass

35 mm core bit with M10 thread for angle grinder for quick dry drilling of holes in ceramic tiles, slabs, marble, granite and glass without water cooling. Full description
In stock
€22.23
Safe shopping Safe shopping
Overview
Diamond Core Drill Bit 35 mm with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Marble, Granite and Glass

The diamond core drill bit with a diameter of 35 mm is designed for drilling circular holes in hard and brittle materials. Thanks to the M10 thread, it attaches directly to the spindle of the angle grinder, eliminating the need for a special drill for tiles. The cutting edge is covered with soldered diamond grains, which can handle ceramic tiles, slabs, porcelain tiles, marble, granite, and glass. The core bit allows for dry drilling without the need to supply water. It is suitable for tilers, plumbers, and DIY enthusiasts who need to drill a hole for pipes, waste, taps, or electrical installations.

  • Hole diameter 35 mm – suitable for passing pipes, waste, taps, and electrical installations in tiles or slabs.

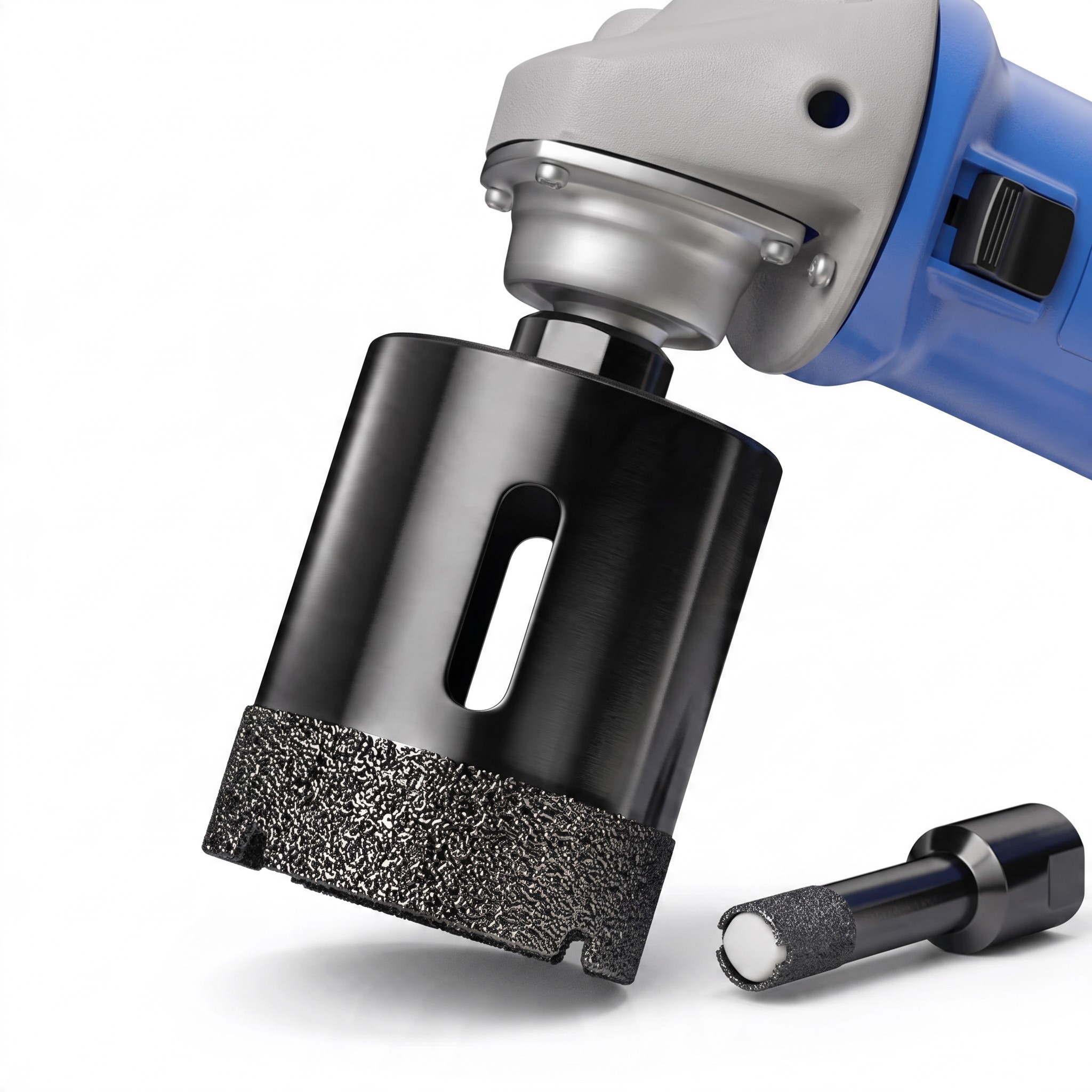

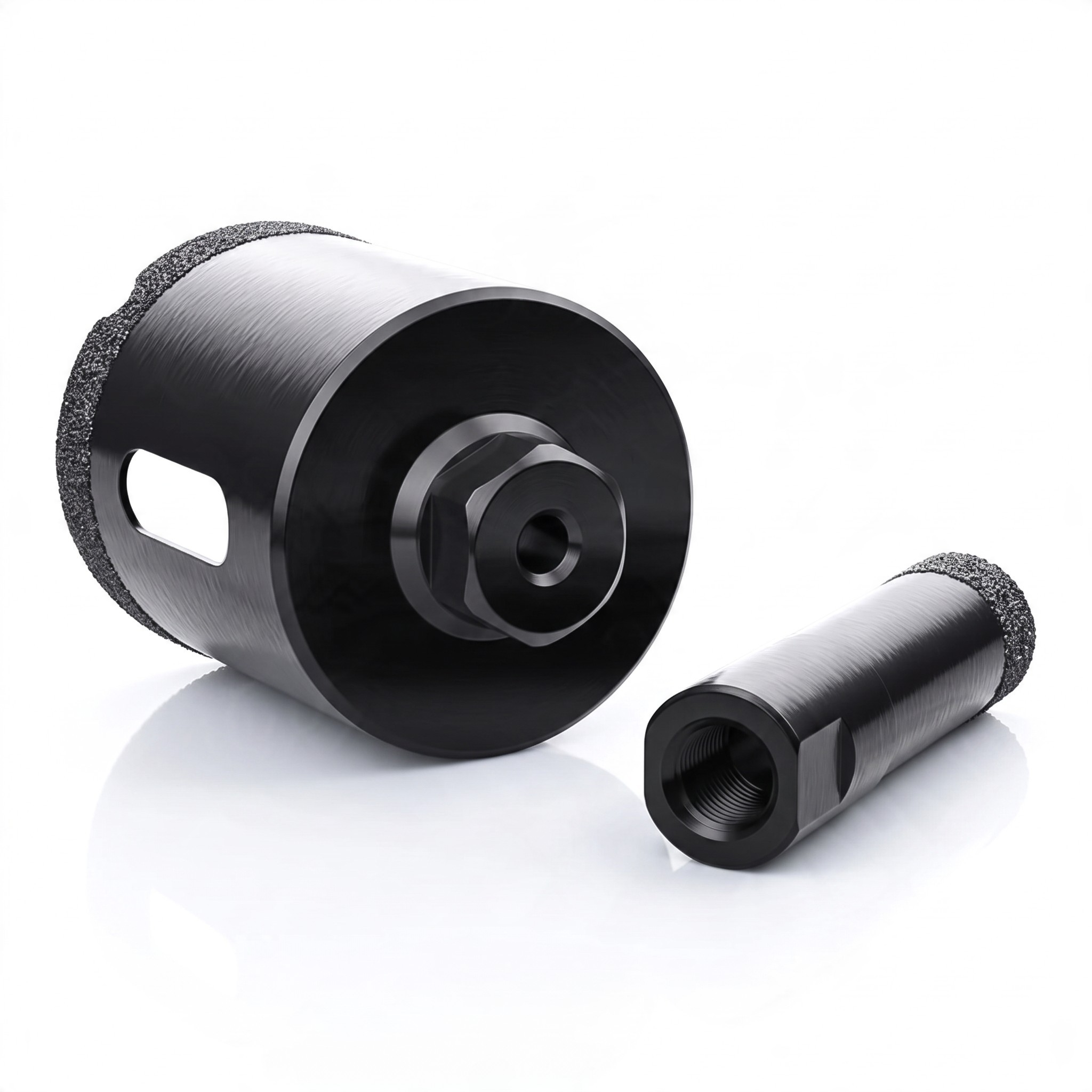

  • M10 thread – the core bit screws directly onto an angle grinder with an M10 thread.

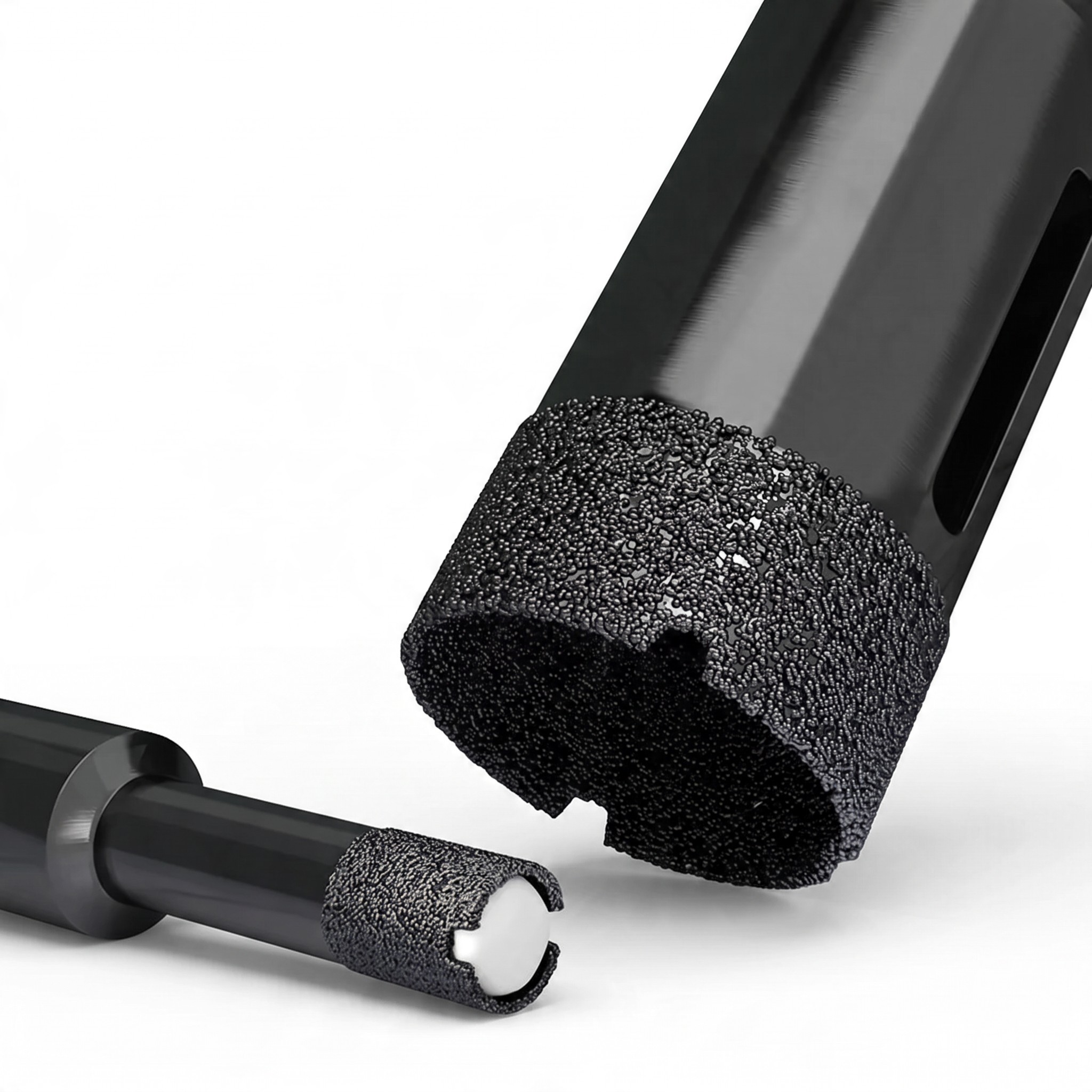

  • Soldered diamond – the cutting edge with diamond grains is designed for hard materials such as tiles, marble, granite, or glass.
  • Dry drilling – no water cooling is required during operation, although adding water can extend the life of the core bit.

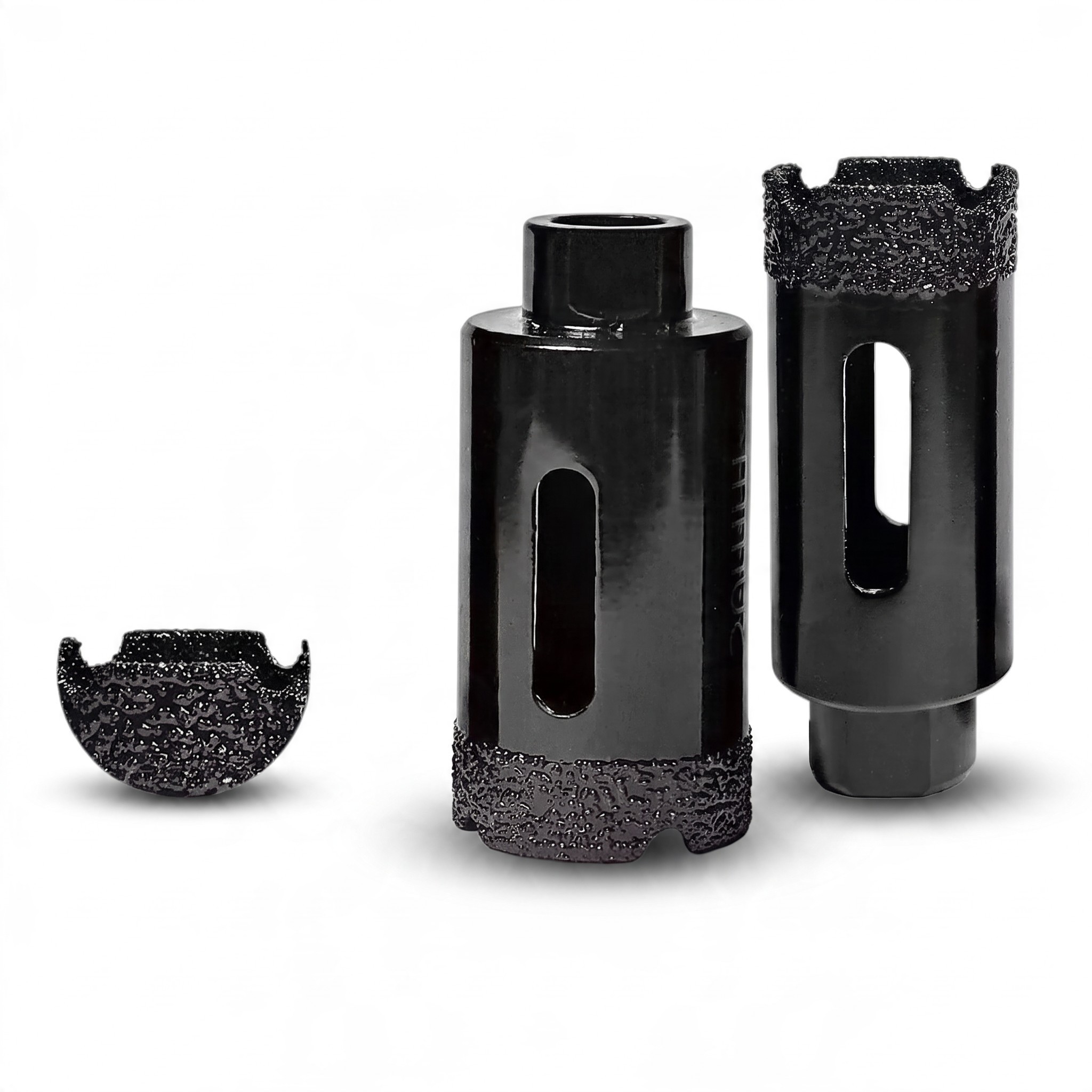

  • Chip removal holes – side cutouts in the body of the core bit facilitate the removal of drilled material from the hole.

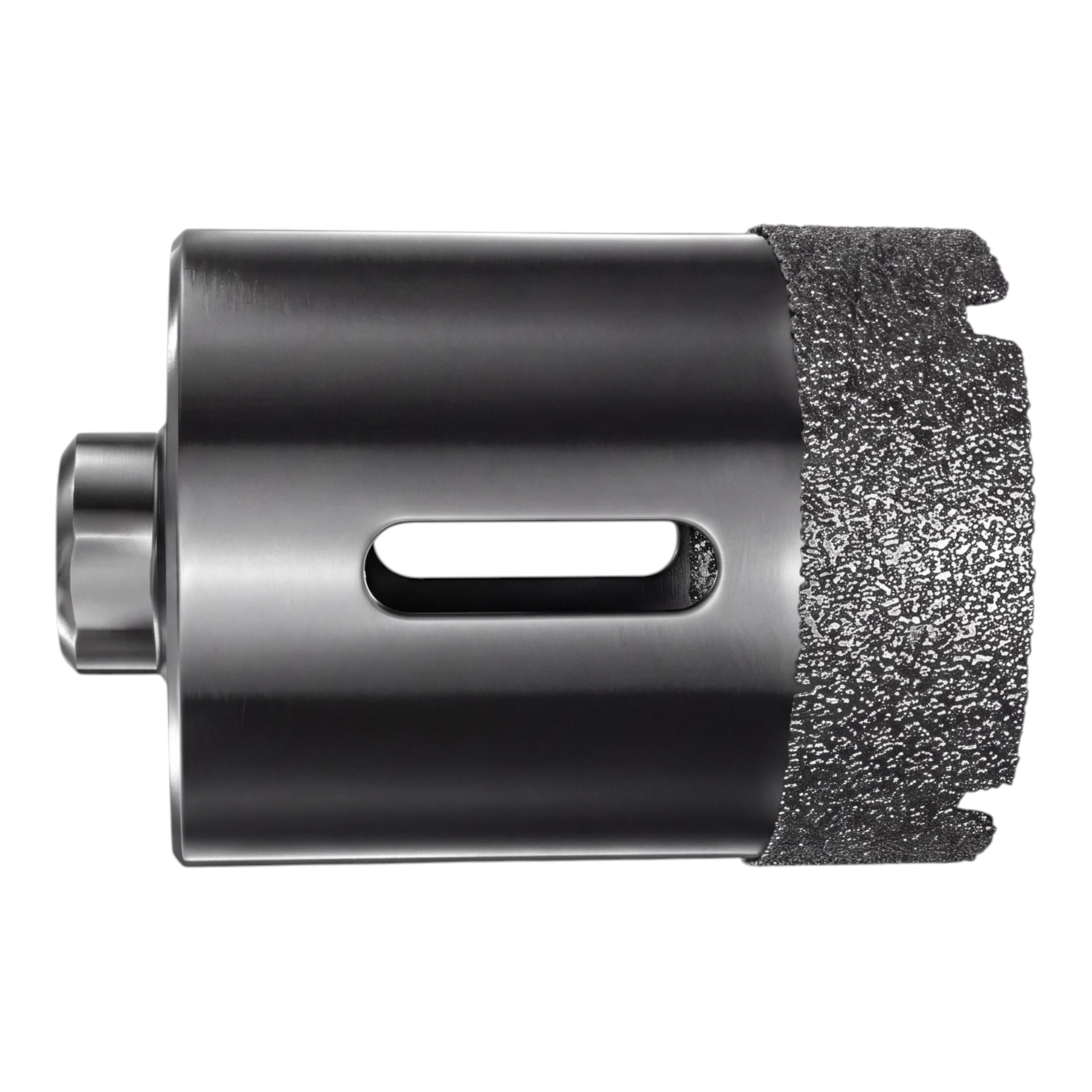

  • Dimensions – diameter 35 mm, total height 60 mm, body height of the core bit 50 mm.
  • Wide application – glass, ceramic tiles, porcelain tiles, marble, granite, and concrete.
  • Easy procedure – start drilling at a 45° angle to create a groove, then continue perpendicular to the surface.
  • Package contents – 1 piece of diamond core drill bit 35 mm with M10 thread.

When drilling, we recommend initially positioning the core bit at an angle, approximately 45°, to create a semicircular groove in the surface. Once the core bit holds in the correct position, gradually straighten it to a perpendicular position and drill with even pressure without sudden force. This procedure prevents the core bit from slipping on the smooth surface of the tiles or glass and helps achieve a clean edge of the hole. The side cutouts in the body of the core bit continuously release accumulated material, reducing clogging and keeping the hole clear.

The 35 mm diamond core bit with M10 thread is a practical addition to any angle grinder for those working with tiles, slabs, or natural stone. The soldered diamond layer can handle hard materials such as granite and marble, and the option of dry drilling simplifies work directly at the installation site. Compact dimensions and direct attachment to the spindle of the grinder save time when installing sanitary equipment, kitchen units, and electrical installations. If you occasionally cool the core bit with water during prolonged drilling, you will extend its lifespan and maintain cutting performance for future use. The core bit is suitable for both one-off home repairs and repeated use during bathroom and kitchen renovations.

Price incl. VAT €22.23
