Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble
Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 1
Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 1
Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 2
Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 3
Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 4
Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 5
Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble 6

Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble

18 mm core bit with M14 thread for angle grinder for dry drilling holes in tiles, slabs, ceramics, marble, granite and glass. Packaged in a plastic tube. Full description
In stock
€21.35
Safe shopping Safe shopping
Overview
Diamond Core Drill Bit 18 mm with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling for Tiles and Marble

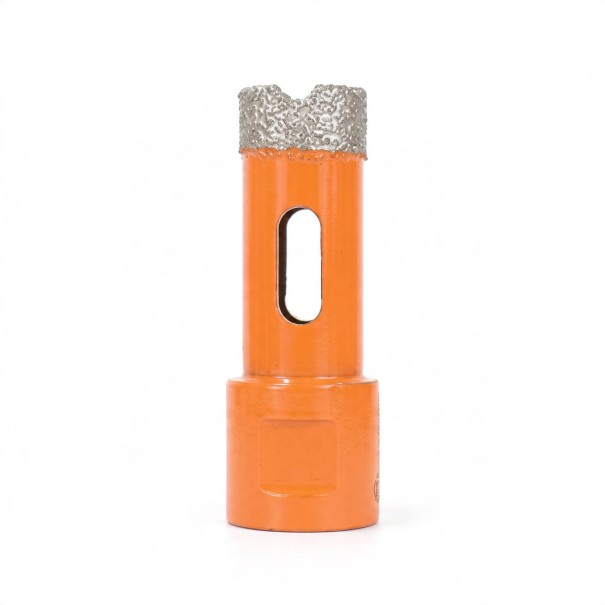

The diamond core drill bit with a diameter of 18 mm is designed for drilling clean circular holes in hard and brittle materials. It is equipped with an internal thread of M14, allowing it to be screwed directly onto the spindle of an angle grinder without the need for an additional chuck. The cutting edge is fitted with vacuum brazed diamond grains, which can handle ceramic tiles, slabs, marble, granite, stone surfaces, and glass. The core bit is intended for dry drilling without water cooling, but it can also be used with water for extended work. It is suitable for tilers, plumbers, and DIY enthusiasts during bathroom and kitchen renovations or when laying tiles.

  • Hole diameter 18 mm – the core bit creates a hole with a diameter of 18 mm in tiles, slabs, stone, or glass.
  • M14 thread – attachment directly to the angle grinder with M14 thread.
  • Vacuum brazed diamond – diamond grains firmly bonded to the tool body for cutting hard and abrasive materials.
  • Dry and wet drilling – drilling without the need for water cooling, although water can extend the tool's lifespan.
  • Dimensions – diameter 18 mm, total length 60 mm, diameter of the clamping part 27 mm.
  • Design – core bit with a side cut-out for the removal of drilled material.
  • Suitable materials – marble, granite, stone slabs, ceramics, tiles, and glass.
  • Drilling procedure – first, position the tool at an angle of 45° and create a groove, then drill vertically at a 90° angle with a slight circular motion.
  • Contents of the package – 1 piece of 18 mm diamond core drill bit in a plastic tube.

When working, we recommend starting with the core bit tilted at approximately 45° to create a crescent-shaped groove on the surface, which will prevent slipping on the smooth glaze. Once the core bit is held in the correct position, gradually straighten it to a vertical position and drill with a gentle circular motion and even pressure. This procedure helps maintain a clean edge around the hole and reduces the risk of chipping the glaze. The plastic tube in which the core bit is supplied facilitates transportation and storage in the workshop.

The 18 mm diamond core drill bit with M14 thread is a practical addition to any angle grinder for those working with tiles, flooring, or natural stone. The vacuum brazed diamond layer can handle hard materials such as granite and marble, and the option for dry drilling simplifies work directly at the installation site. Directly screwing onto the grinder spindle saves time during the installation of sanitary fittings, kitchen units, and electrical installations. If you occasionally cool the core bit with water during prolonged drilling, you will extend its lifespan and maintain cutting ability for future use. The core bit is suitable for both one-off home repairs and repeated use during renovations.

Price incl. VAT €21.35
