Conversion Kit for Electric Bike Bafang Mid Motor 48 V 750 W 44T Chainring Bottom Bracket 68–73 mm Bafang DP080 Display Grey

Conversion Kit for Electric Bike Bafang Mid Motor 48 V 750 W 44T Chainring Bottom Bracket 68–73 mm Bafang DP080 Display Grey

Convert your regular bicycle into an electric bike. Mid motor 750 W at 48 V, Bafang DP080 display, brake levers and 44T chainring in one kit. Full description
In stock
Delivery €1.59
30-day return policy
€796.90
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bike Bafang Mid Motor 48 V 750 W 44T Chainring Bottom Bracket 68–73 mm Bafang DP080 Display Grey

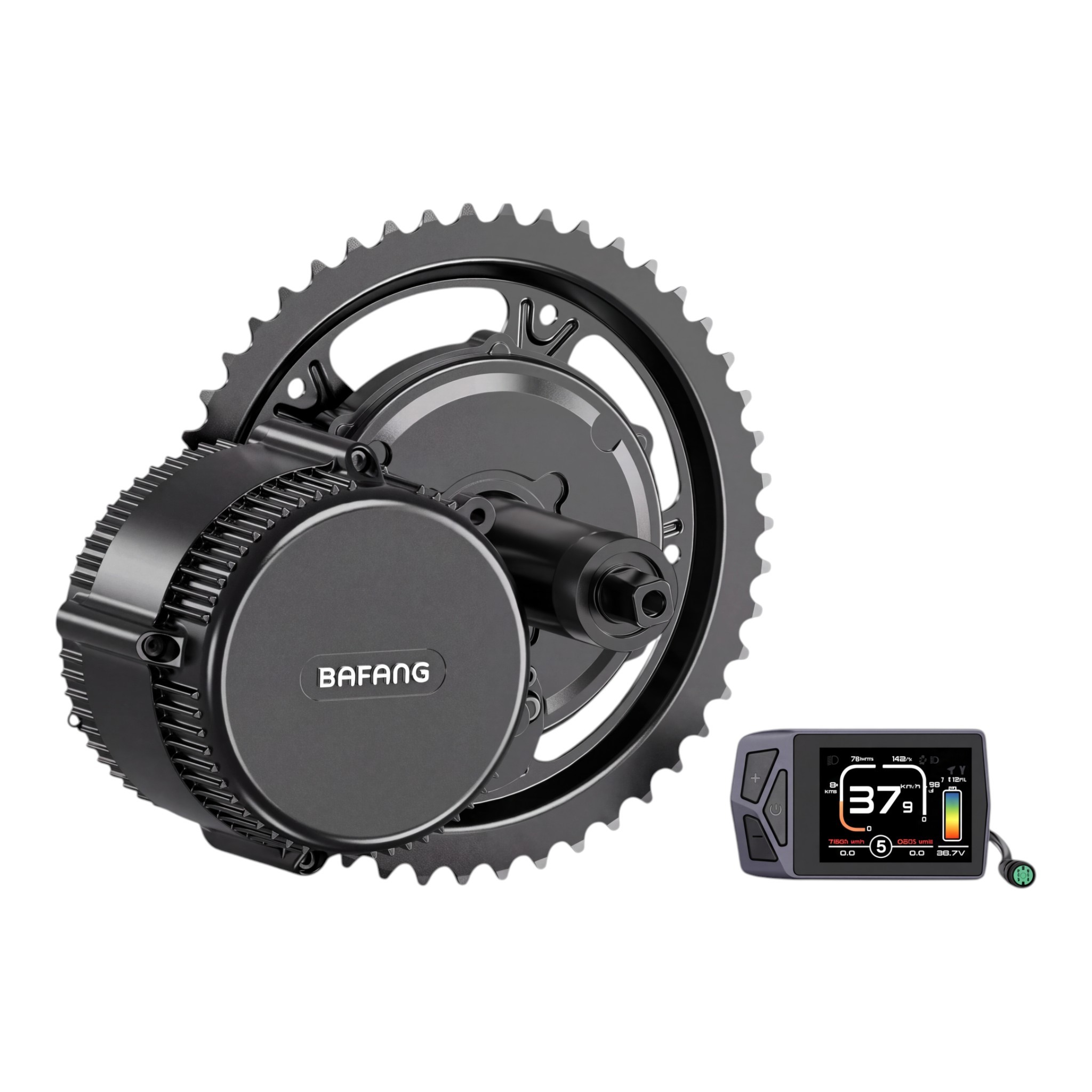

The bicycle conversion kit to electric bike is built around the Bafang mid motor, which is mounted in the bottom bracket of the frame instead of the original bottom axle. The motor operates at a voltage of 48 V and has a power of 750 W, making it suitable for bike owners who want to add electric assistance without replacing the entire bike. The kit is designed for frames with a bottom bracket width of 68–73 mm. Included in the kit is the Bafang DP080 display, brake levers connected to the drive system, a throttle, and a 44-tooth chainring. The motor is in grey and, due to its central placement in the frame, does not interfere with the front or rear hub.

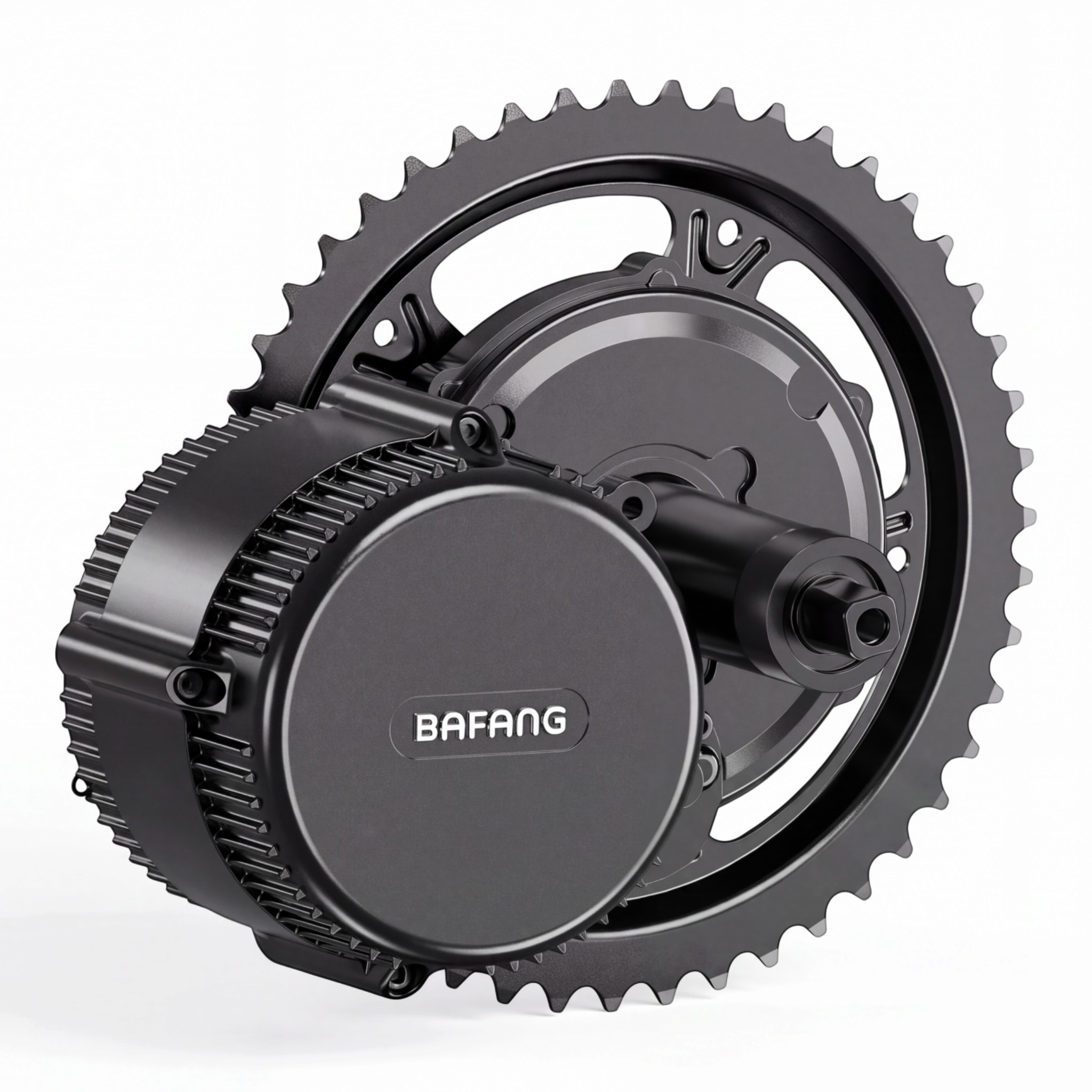

  • Bafang Mid Motor — electric drive with a power of 750 W and 48 V voltage located in the centre of the frame, transmitting power through the chainring and chain to the rear wheel.
  • Compatibility — the kit is designed for bicycles with a bottom bracket width of 68–73 mm, it is advisable to measure the dimension before installation.
  • 44T Chainring — the 44-tooth chainring mounts directly onto the motor.
  • Bafang DP080 Display — handlebar-mounted display that connects to the wiring harness along with other controls.
  • Brake Levers — two brake levers are connected by cable to the electric bike's drive system and are mounted on the handlebars instead of the original levers.
  • Throttle — thumb throttle for direct control of motor power.
  • Front Light — light with its own cable for connection to the bicycle's electrical system.
  • Speed Sensor — sensor with a magnet for measuring speed and distance travelled.
  • Wiring Harness — connects the motor, display, brake levers, throttle, and light into one system.
  • Installation Tools — the kit includes tools and installation materials needed to install the motor into the frame.

Package contents:

  • 1x Bafang Mid Motor 48 V 750 W
  • 1x Bafang DP080 Display
  • 2x Brake Lever
  • 1x 44T Chainring
  • 2x Crank
  • 1x Throttle
  • 1x Speed Sensor with Magnet
  • 1x Wiring Harness
  • 1x Front Light
  • 1x Installation Material Kit
  • 1x Installation Tool Kit
  • 1x Cable Tie Kit
  • 1x Manual

The conversion kit is intended for those who want to turn their bicycle into an electric bike with a mid-drive system while retaining the original frame. The Bafang motor with a power of 750 W transmits power through the 44T chainring and chain, thus maintaining the gear shifting on the rear wheel. For ride information, the Bafang DP080 display is mounted on the handlebars. Before ordering, please ensure that the width of your frame's bottom bracket matches the range of 68–73 mm. To operate, the kit needs to be supplemented with a 48 V battery.
