Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15R 48 V 500 W 26" Wheel Brake Sensor Freewheel 6–9 Speeds LCD Display Black

Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15R 48 V 500 W 26" Wheel Brake Sensor Freewheel 6–9 Speeds LCD Display Black

Rear hub motor 48 V 500 W for screw-on freewheel 6–9 speeds, 26" wheel, speed of approximately 41 km/h, LCD display, throttle, PAS and brake sensor included in the kit. Full description
In stock
Delivery €1.59
30-day return policy
€407.38
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15R 48 V 500 W 26" Wheel Brake Sensor Freewheel 6–9 Speeds LCD Display Black

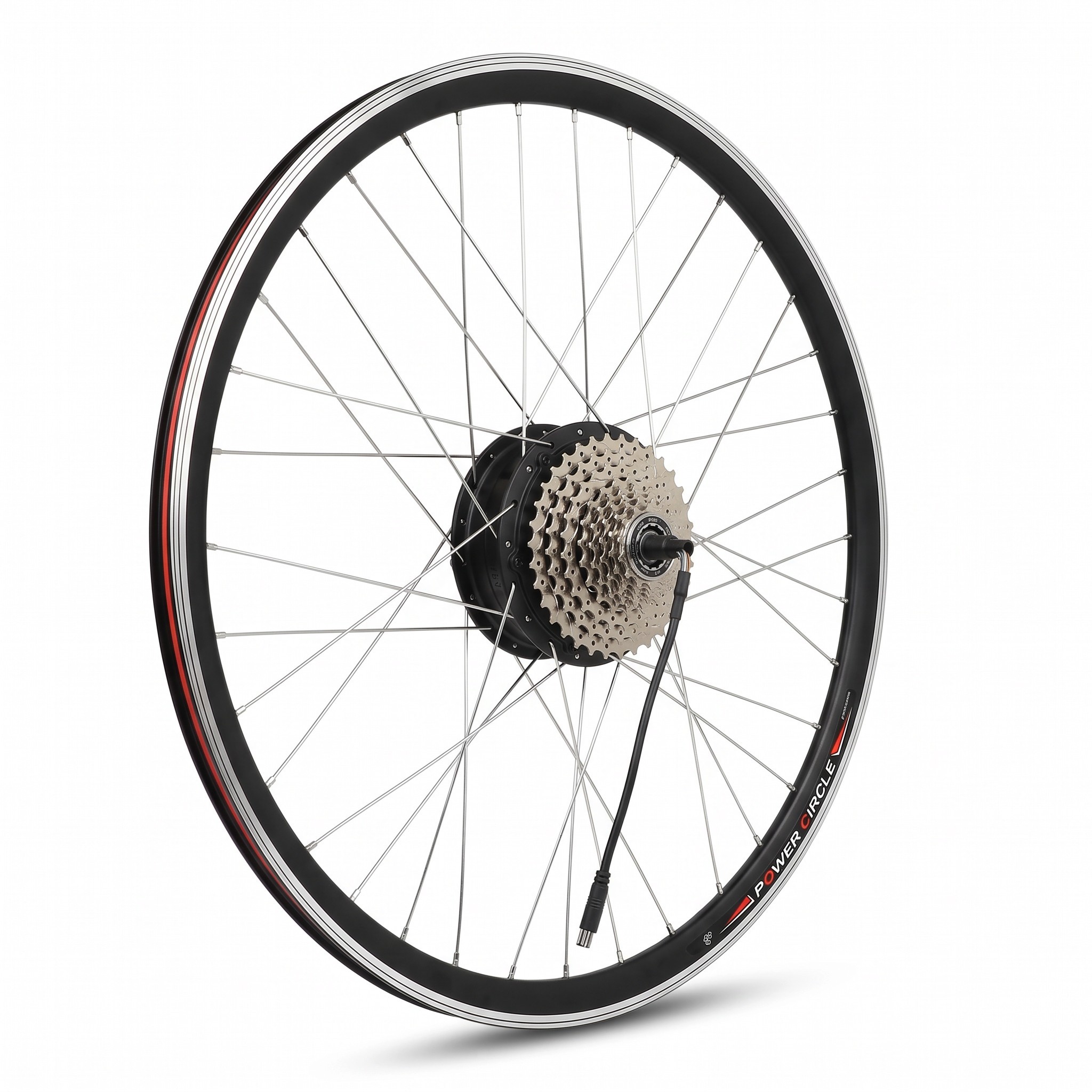

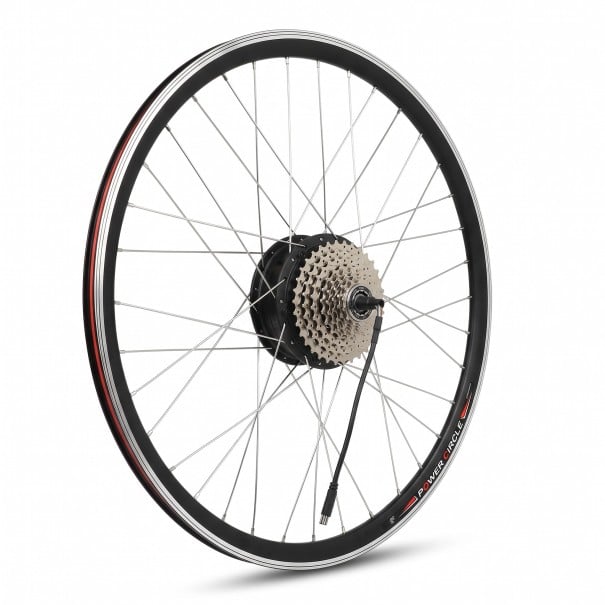

The kit for converting a traditional bicycle into an electric bicycle includes a 26" rear wheel with an integrated MXUS XF15R 48 V 500 W motor, LCD display, brake sensor, and other necessary components for installation. The motor is located in the rear hub and is designed for bikes with a screw-on freewheel with 6–9 speeds, not for cassettes. According to the manufacturer, the 26" bicycle can reach speeds of approximately 41 km/h. The rear wheel is suitable for frames with a rear dropout spacing of 13.7–14.3 cm. The rim and motor body are finished in black.

Main Features

  • Motor in the rear hub – the XF15R model with a nominal voltage of 48 V and a rated power of 500 W is located directly in the hub and drives the rear wheel.
  • Wheel Size – 26" rear wheel with spokes and rim into which the motor is laced, making it ready for installation into the frame.
  • Speed – the manufacturer states that the 26" bicycle can achieve speeds of approximately 41 km/h.
  • Gears – the motor is designed for a screw-on freewheel with 6 to 9 speeds; a cassette does not fit this hub.
  • Frame Compatibility – the bicycle is suitable for frames with a rear dropout spacing of 13.7–14.3 cm, the hub's installation width is 14.05 cm.
  • Display – the LCD display with buttons is mounted on the handlebars and shows riding data.
  • Brake Sensor – when the brake is pressed, it sends a signal to the controller and interrupts the motor operation, so the drive does not resist braking.
  • Control – the throttle allows riding with motor assistance without pedalling.
  • Controller – connects the motor with the display, pedal assist sensor, throttle, brake sensor, and light.
  • Pedal Assist Sensor – the PAS sensor detects pedalling and activates motor support while riding.
  • Lighting – the kit includes a front light that connects to the bicycle's electrical system.
  • Cabling – the wiring harness and extension cable are used to connect all components of the kit.
  • Finish – the rim has red accents and the motor body is black, while the spokes are silver.

Package Contents:

  • 1x 26" rear wheel with MXUS XF15R 48 V 500 W motor
  • 1x LCD display
  • 1x brake sensor kit
  • 1x controller
  • 1x PAS sensor
  • 1x throttle
  • 1x front light
  • 1x wiring harness
  • 1x extension cable

This kit is designed to convert a bicycle into an electric bicycle with a rear hub motor rated at 500 W and 48 V. The 26" rear wheel is suitable for frames with dropout spacings of 13.7–14.3 cm and for a screw-on freewheel with 6–9 speeds. It can achieve speeds of approximately 41 km/h. The LCD display shows riding data and the brake sensor disables the motor when braking. The throttle, PAS sensor, and front light complete the kit's equipment.

Delivery and Returns
Price incl. VAT €407.38
