Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15C 48 V 500 W 28" 700C Brake Sensor for 8–9 Speed Cassette LCD Display

Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15C 48 V 500 W 28" 700C Brake Sensor for 8–9 Speed Cassette LCD Display

Rear hub motor 48 V 500 W for 8–9 speed cassette, 28" 700C wheel, speed of approximately 44 km/h, LCD display, throttle, PAS sensor and brake sensor included in the kit. Full description
In stock
Delivery €1.59
30-day return policy
€440.13
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15C 48 V 500 W 28" 700C Brake Sensor for 8–9 Speed Cassette LCD Display

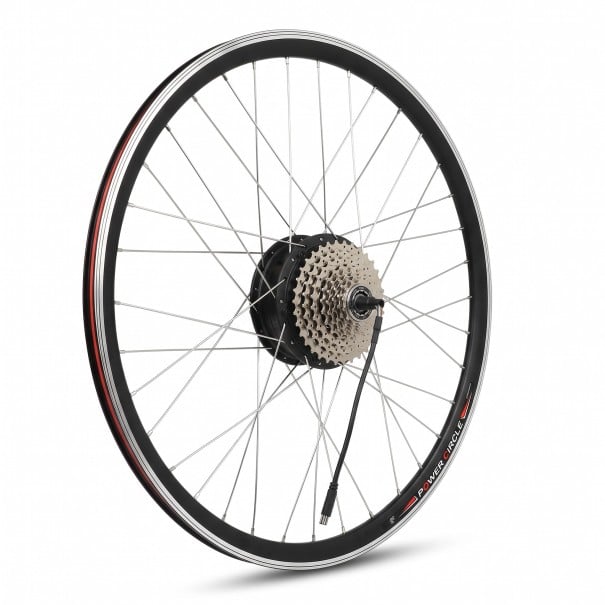

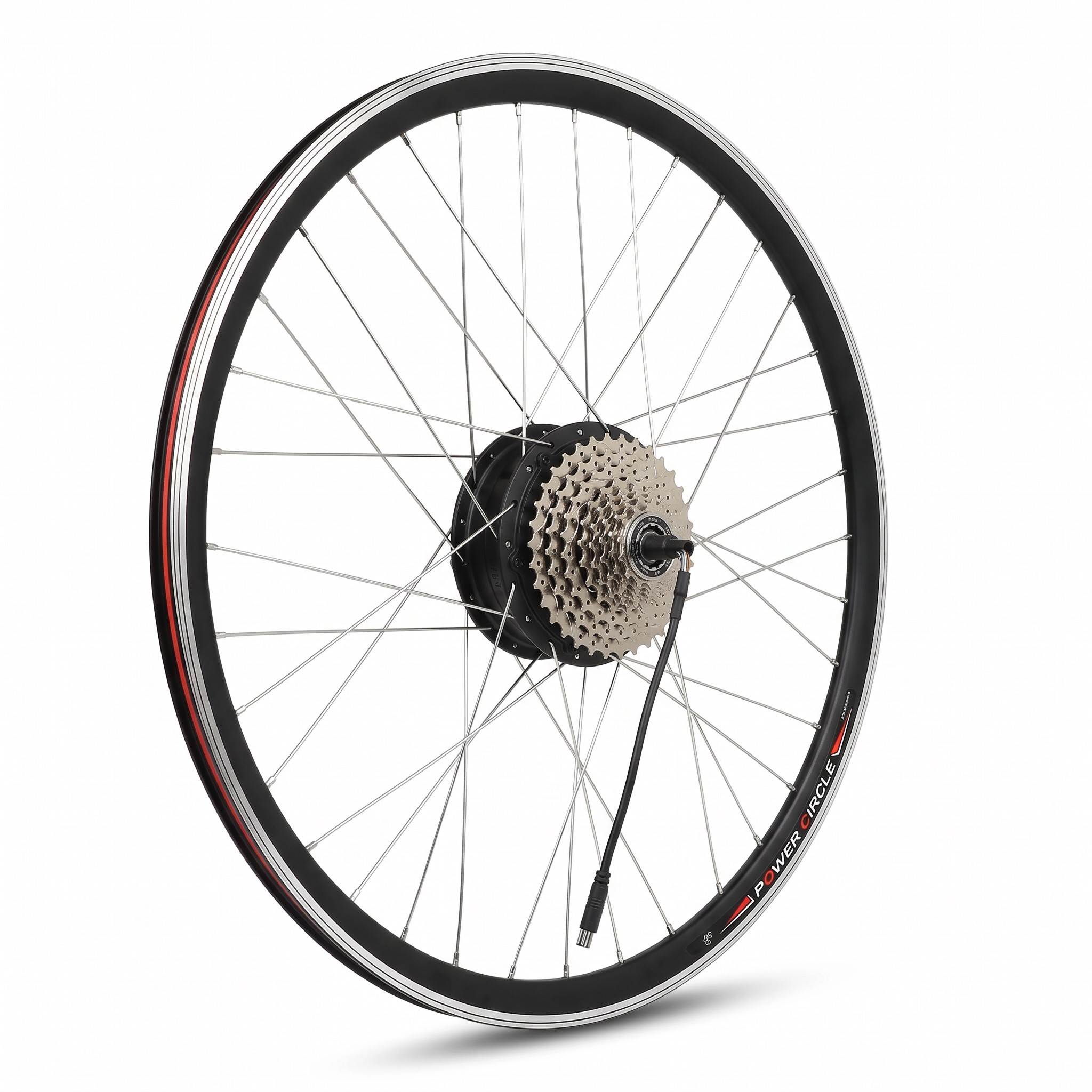

The kit for converting a traditional bicycle into an electric bicycle includes a 28" (700C) rear wheel with an integrated MXUS XF15C 48 V 500 W motor, an LCD display, a brake sensor, and other components required for installation. The motor is located in the rear hub and is designed for bikes with an 8–9 speed cassette, not for a screw-on freewheel. According to the manufacturer, the 28" wheel can reach speeds of approximately 44 km/h. The rear wheel is suitable for frames with a rear dropout spacing of 14.2–14.8 cm. The rim and motor housing are finished in black.

Main Features

  • Rear Hub Motor – the XF15C model with a nominal voltage of 48 V and a nominal power of 500 W is located directly in the hub and drives the rear wheel.
  • Wheel Size – 28" (700C) rear wheel with spokes and rim into which the motor is laced, making it ready for installation into the frame.
  • Speed – the manufacturer states that the 28" wheel can achieve a speed of approximately 44 km/h.
  • Gears – the motor hub is designed for an 8 to 9 speed cassette; a screw-on freewheel is not compatible.
  • Frame Compatibility – the wheel is suitable for frames with a rear dropout spacing of 14.2–14.8 cm, and the hub width is 14.5 cm.
  • Display – the LCD display with buttons attaches to the handlebars and shows riding data.
  • Brake Sensor – when the brake is pressed, it sends a signal to the controller, interrupting the motor's operation, so the drive does not counteract braking.
  • Control – the throttle allows riding with motor assistance without pedalling.
  • Controller – connects the motor with the display, pedal assist sensor, throttle, brake sensor, and light.
  • Pedal Assist Sensor – the PAS sensor detects pedalling and activates motor support while riding.
  • Lighting – the kit includes a front light that connects to the bicycle's electrical system.
  • Cabling – the cable harness and extension cable serve to connect all components of the kit.
  • Finish – the rim features red elements and the motor housing is black, while the spokes are silver.

Package Contents:

  • 1x rear wheel 28" (700C) with MXUS XF15C 48 V 500 W motor
  • 1x LCD display
  • 1x brake sensor kit
  • 1x controller
  • 1x PAS sensor
  • 1x throttle
  • 1x front light
  • 1x cable harness
  • 1x extension cable

This kit is designed to convert a bicycle into an electric bicycle with a 500 W rear hub motor and 48 V voltage. The 28" (700C) rear wheel is suitable for frames with dropout spacing of 14.2–14.8 cm and for an 8–9 speed cassette. It can reach speeds of approximately 44 km/h. The LCD display shows riding data, and the brake sensor shuts off the motor when braking. The throttle, PAS sensor, and front light complete the kit's equipment.

Delivery and Returns
Price incl. VAT €440.13
