Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15C 48 V 500 W 26" Wheel for 8–9 Speed Cassette LCD Display Black

Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15C 48 V 500 W 26" Wheel for 8–9 Speed Cassette LCD Display Black

Rear hub motor 48 V 500 W for 8–9 speed cassette, 26" wheel, speed of approximately 41 km/h, LCD display, throttle, PAS sensor and brake levers included in the kit. Full description
In stock
Delivery €1.59
30-day return policy
€407.38
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15C 48 V 500 W 26" Wheel for 8–9 Speed Cassette LCD Display Black

The kit for converting a traditional bicycle into an electric bicycle includes a 26" rear wheel with a built-in MXUS XF15C 48 V 500 W motor, an LCD display, brake levers, and other necessary components for installation. The motor is located in the rear hub and is designed for bicycles with an 8–9 speed cassette, not for a screw-on freewheel. According to the manufacturer, the 26" bicycle can reach speeds of approximately 41 km/h. The rear wheel is suitable for frames with a rear dropout spacing of 14.2–14.8 cm. The rim and motor body are finished in black.

Main Features

  • Rear Hub Motor – the XF15C model with a nominal voltage of 48 V and a nominal power of 500 W is located directly in the hub and drives the rear wheel.
  • Wheel Size – 26" rear wheel with spokes and rim into which the motor is laced, making it ready for installation into the frame.
  • Speed – the manufacturer states that the 26" bicycle can reach speeds of approximately 41 km/h.
  • Gears – the motor hub is designed for an 8 to 9 speed cassette; a screw-on freewheel does not fit.
  • Frame Compatibility – the bicycle is suitable for frames with a rear dropout spacing of 14.2–14.8 cm, with a hub width of 14.5 cm.
  • Display – the LCD display with buttons is mounted on the handlebars and shows riding data.
  • Brake Levers – pressing the brake interrupts the motor's operation, so the drive does not work against braking.
  • Control – the throttle allows for riding with motor assistance without pedalling.
  • Controller – connects the motor with the display, pedal assist sensor, throttle, brake levers, and light.
  • Pedal Assist Sensor – the PAS sensor detects pedalling and activates motor support while riding.
  • Lighting – the kit includes a front light that connects to the bicycle's electrical system.
  • Cabling – the cable harness and extension cable are used to connect all components of the kit.
  • Finish – the rim has red elements and the motor body is black, with silver spokes.

Package Contents:

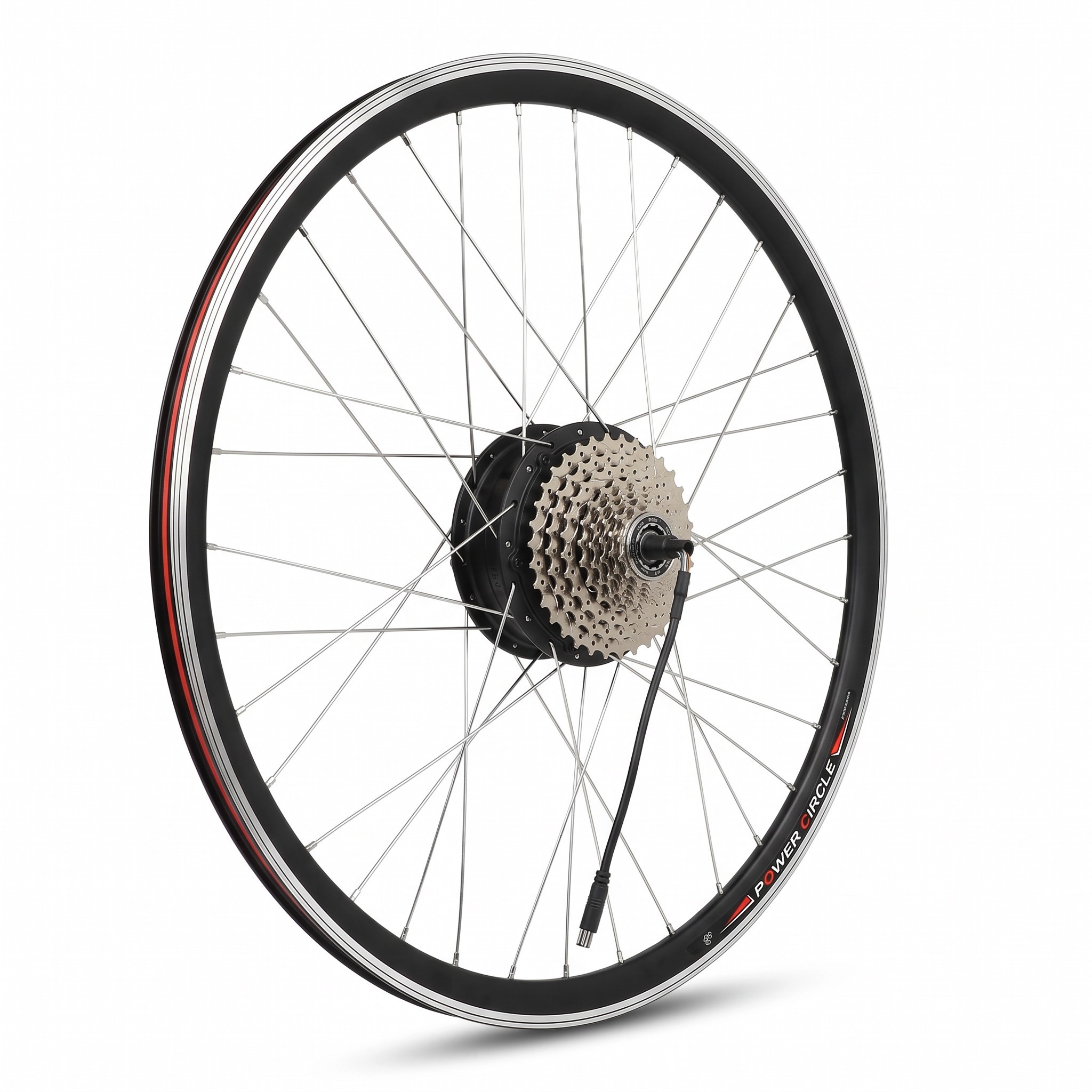

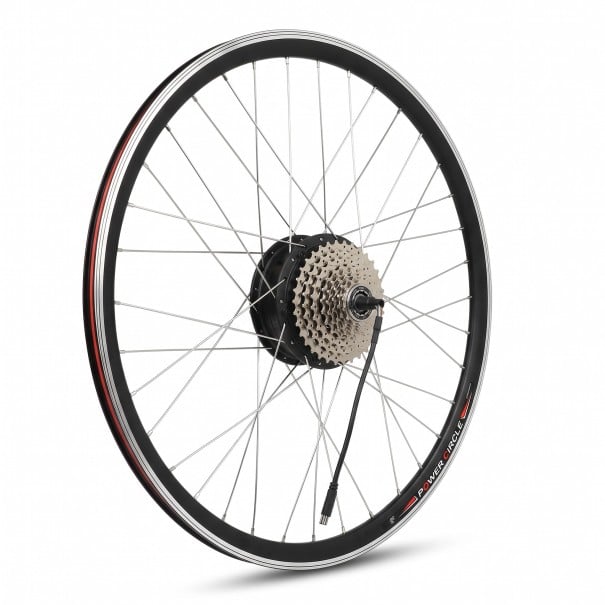

  • 1x 26" rear wheel with MXUS XF15C 48 V 500 W motor
  • 1x LCD display
  • 2x brake levers
  • 1x controller
  • 1x PAS sensor
  • 1x throttle
  • 1x front light
  • 1x cable harness
  • 1x extension cable

This kit is designed for converting a bicycle into an electric bicycle with a rear hub motor rated at 500 W and 48 V. The 26" rear wheel is suitable for frames with dropout spacing of 14.2–14.8 cm and for an 8–9 speed cassette. While riding, it can reach speeds of approximately 41 km/h. The LCD display shows riding data and the brake levers cut off the motor when braking. The throttle, PAS sensor, and front light complete the kit's equipment.
