Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15C 48 V 500 W 26" Wheel Brake Sensor for 8–9 Speed Cassette LCD Display Black

Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15C 48 V 500 W 26" Wheel Brake Sensor for 8–9 Speed Cassette LCD Display Black

Rear hub motor 48 V 500 W for 8–9 speed cassette, 26" wheel, speed approximately 41 km/h, LCD display, throttle, PAS sensor and brake sensor included in the kit. Full description
In stock
Delivery €1.59
30-day return policy
€427.90
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF15C 48 V 500 W 26" Wheel Brake Sensor for 8–9 Speed Cassette LCD Display Black

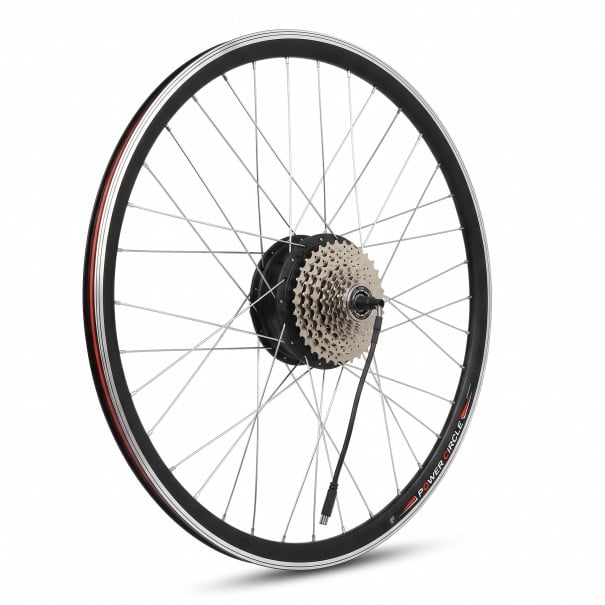

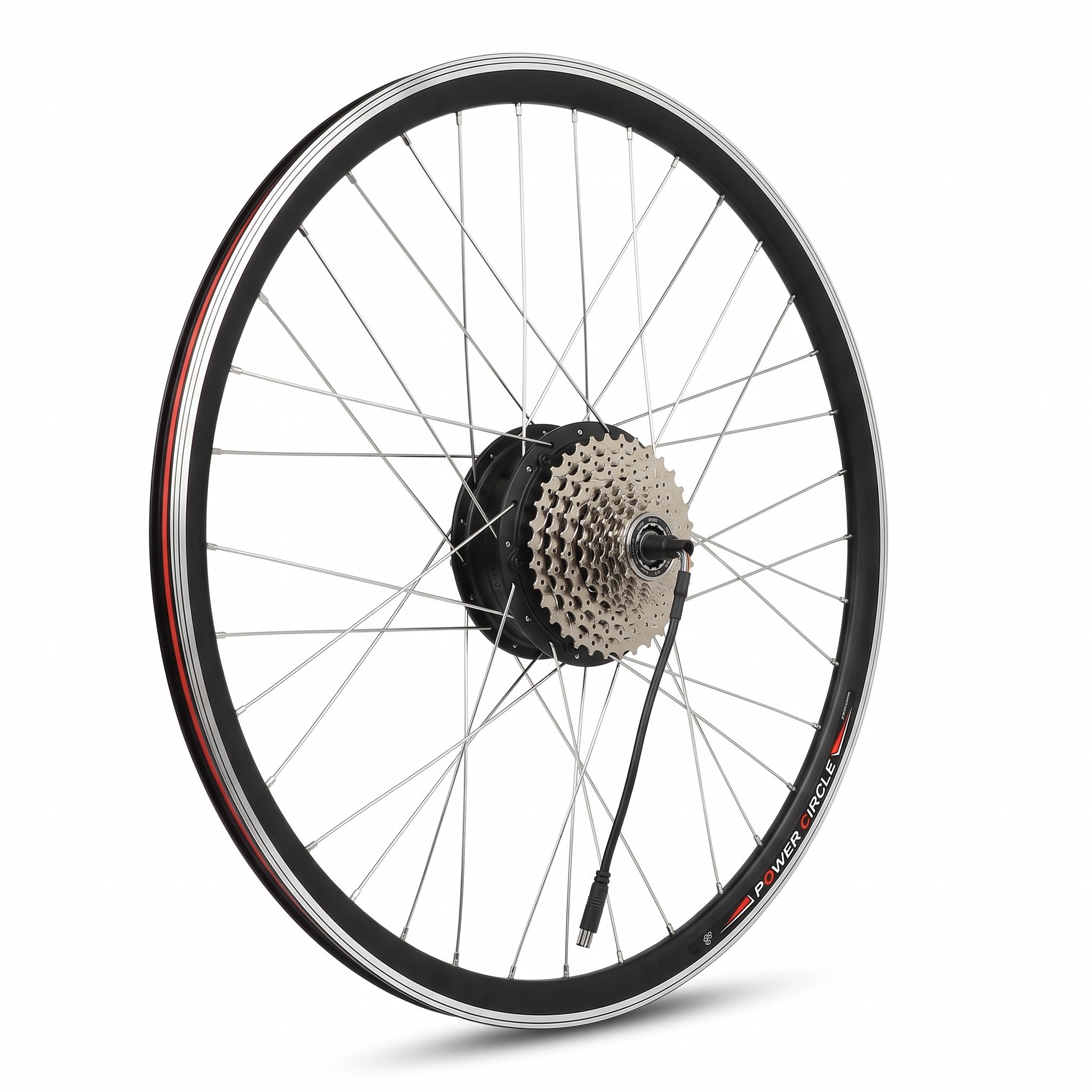

This kit converts a traditional bicycle into an electric bicycle and includes a 26" rear wheel with a built-in MXUS XF15C 48 V 500 W motor, LCD display, brake sensor, and other necessary components for installation. The motor is located in the rear hub and is designed for bikes with an 8–9 speed cassette, not for screw-on freewheels. According to the manufacturer, the 26" bike can reach speeds of approximately 41 km/h. The rear wheel is suitable for frames with a rear dropout spacing of 14.2–14.8 cm. The rim and motor casing are finished in black.

Main Features

  • Rear Hub Motor – model XF15C with a nominal voltage of 48 V and a rated power of 500 W is located directly in the hub and drives the rear wheel.
  • Wheel Size – 26" rear wheel with spokes and rim, into which the motor is laced, making the wheel ready for mounting in the frame.
  • Speed – the manufacturer states that the 26" bike can reach speeds of approximately 41 km/h.
  • Gears – the motor hub is designed for an 8 to 9 speed cassette; screw-on freewheels do not fit.
  • Frame Compatibility – the bike is suitable for frames with a rear dropout spacing of 14.2–14.8 cm, the hub installation width is 14.5 cm.
  • Display – the LCD display with buttons attaches to the handlebars and shows riding data.
  • Brake Sensor – when the brake is pressed, it sends a signal to the controller and interrupts the motor operation, so the drive does not counteract braking.
  • Control – the throttle allows riding with motor assistance without pedalling.
  • Controller – connects the motor to the display, pedal assist sensor, throttle, brake sensor, and light.
  • Pedal Assist Sensor – the PAS sensor detects pedalling and activates motor support while riding.
  • Lighting – the kit includes a front light that connects to the bike's electrical system.
  • Cabling – the cable harness and extension cable serve to connect all components of the kit.
  • Finish – the rim features red elements and the motor casing is black, while the spokes are silver.

Package Contents:

  • 1x 26" rear wheel with MXUS XF15C 48 V 500 W motor
  • 1x LCD display
  • 1x set of brake sensors
  • 1x controller
  • 1x PAS sensor
  • 1x throttle
  • 1x front light
  • 1x cable harness
  • 1x extension cable

This kit is designed for converting a bicycle into an electric bicycle with a rear hub motor rated at 500 W and a voltage of 48 V. The 26" rear wheel is suitable for frames with dropout spacing of 14.2–14.8 cm and for an 8–9 speed cassette. It can reach speeds of approximately 41 km/h while riding. The LCD display shows riding data and the brake sensor cuts off the motor when braking. The throttle, PAS sensor, and front light complete the kit's equipment.

Delivery and Returns
Price incl. VAT €427.90
