Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF08C 36 V 250 W 28" 700C Brake Sensor for 8–9 Speed Cassette LCD Display

Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF08C 36 V 250 W 28" 700C Brake Sensor for 8–9 Speed Cassette LCD Display

Rear hub motor 36 V 250 W for 8–9 speed cassette, 28" (700C) bicycle, speed around 30 km/h, LCD display, throttle, PAS and brake sensor included. Full description
In stock
Delivery €1.59
30-day return policy
€407.38
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF08C 36 V 250 W 28" 700C Brake Sensor for 8–9 Speed Cassette LCD Display

This kit converts a traditional bicycle into an electric bicycle and includes a rear wheel 28" (700C) with a built-in MXUS XF08C 36 V 250 W motor, an LCD display, brake sensor, and other components necessary for installation. The motor is located in the rear hub and is designed for bicycles with a cassette of 8–9 speeds, not for a screw-on freewheel. According to the manufacturer, the 28" bicycle can reach speeds of approximately 30 km/h. The rear wheel is suitable for frames with a rear dropout spacing of 14.2–14.8 cm. The rim and motor body are in black finish.

Main Features

  • Rear Hub Motor – the XF08C model with a nominal voltage of 36 V and a rated power of 250 W is integrated directly into the hub and drives the rear wheel.
  • Wheel Size – rear wheel 28" (700C) with spokes and rim, into which the motor is laced, so the wheel is ready for installation into the frame.
  • Speed – the manufacturer states that the 28" bicycle can achieve speeds of approximately 30 km/h.
  • Gears – the motor hub is designed for a cassette with 8 to 9 speeds; a screw-on freewheel does not fit.
  • Frame Compatibility – the bicycle is suitable for frames with a rear dropout spacing of 14.2–14.8 cm, the hub's mounting width is 14.5 cm.
  • Display – the LCD display with buttons is mounted on the handlebars and shows riding data.
  • Brake Sensor – when the brake is pressed, it sends a signal to the control unit and interrupts the motor operation, so the drive does not counteract braking.
  • Control – the throttle lever allows riding with motor assistance without pedalling.
  • Controller – connects the motor with the display, pedal sensor, throttle, brake sensor, and light.
  • Pedal Sensor – the PAS sensor detects pedalling and activates motor support while riding.
  • Lighting – the kit includes a front light that connects to the bicycle's electrical system.
  • Cabling – the cable harness and extension cable serve to connect all components of the kit.
  • Finish – the rim and motor body are black, while the spokes are silver.

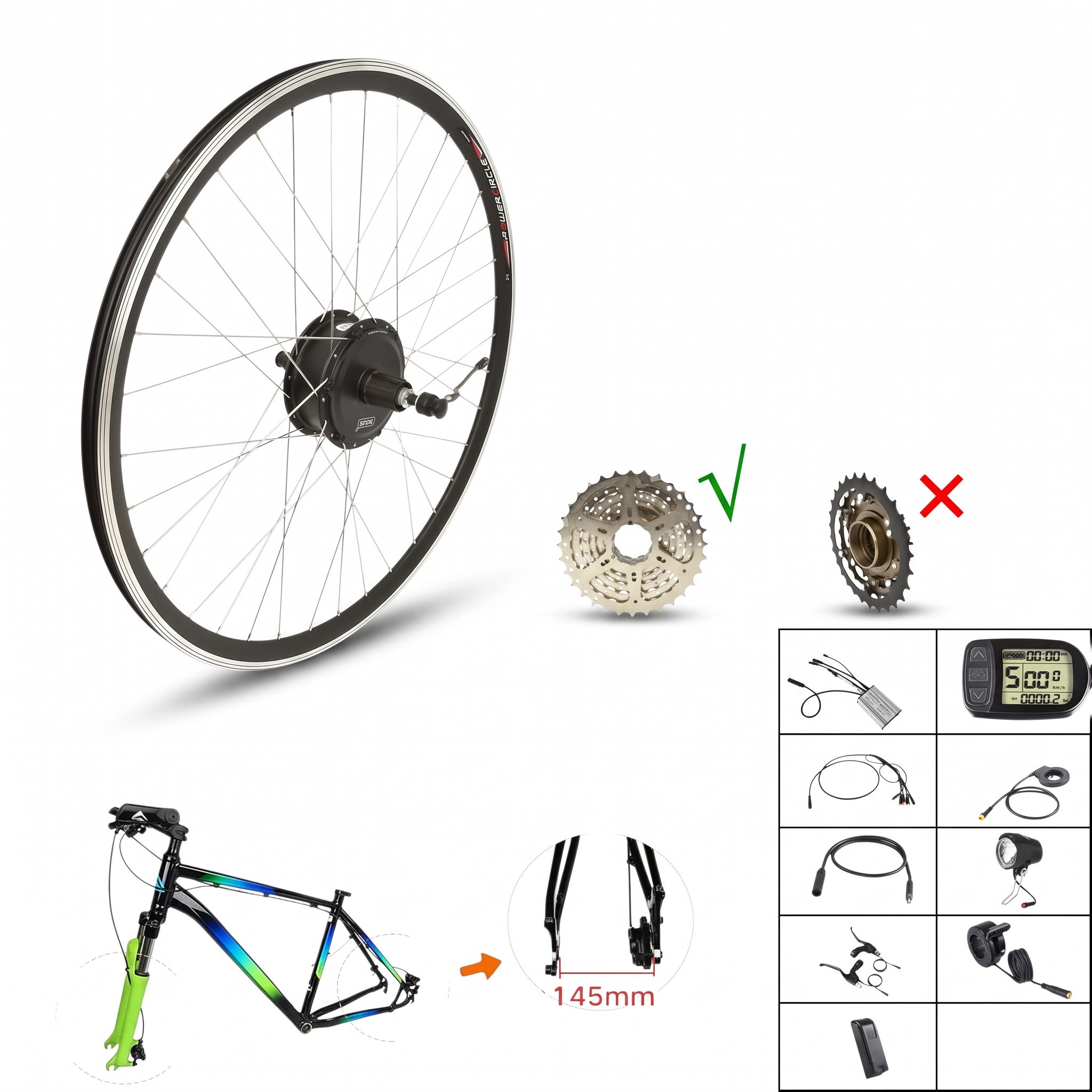

Package Contents:

  • 1x rear wheel 28" (700C) with MXUS XF08C 36 V 250 W motor
  • 1x LCD display
  • 1x brake sensor kit
  • 1x controller
  • 1x PAS pedal sensor
  • 1x throttle lever
  • 1x front light
  • 1x cable harness
  • 1x extension cable

This kit is designed for converting a bicycle into an electric bicycle with a rear hub motor rated at 250 W and 36 V. The rear wheel 28" (700C) is suitable for frames with dropout spacing of 14.2–14.8 cm and for a cassette with 8–9 speeds. It can reach speeds of approximately 30 km/h. The LCD display shows riding data, and the brake sensor cuts off the motor during braking. The throttle lever, PAS sensor, and front light complete the kit's equipment.
