Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF08 36 V 250 W Wheel 28" 700C Brake Sensor Freewheel 6–7 Speeds LCD Display

Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF08 36 V 250 W Wheel 28" 700C Brake Sensor Freewheel 6–7 Speeds LCD Display

Rear hub motor 36 V 250 W laced into a 28" (700C) wheel, speed around 30 km/h, LCD display, throttle, PAS sensor, and brake sensor in one kit. Full description
In stock
Delivery €1.59
30-day return policy
€386.86
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF08 36 V 250 W Wheel 28" 700C Brake Sensor Freewheel 6–7 Speeds LCD Display

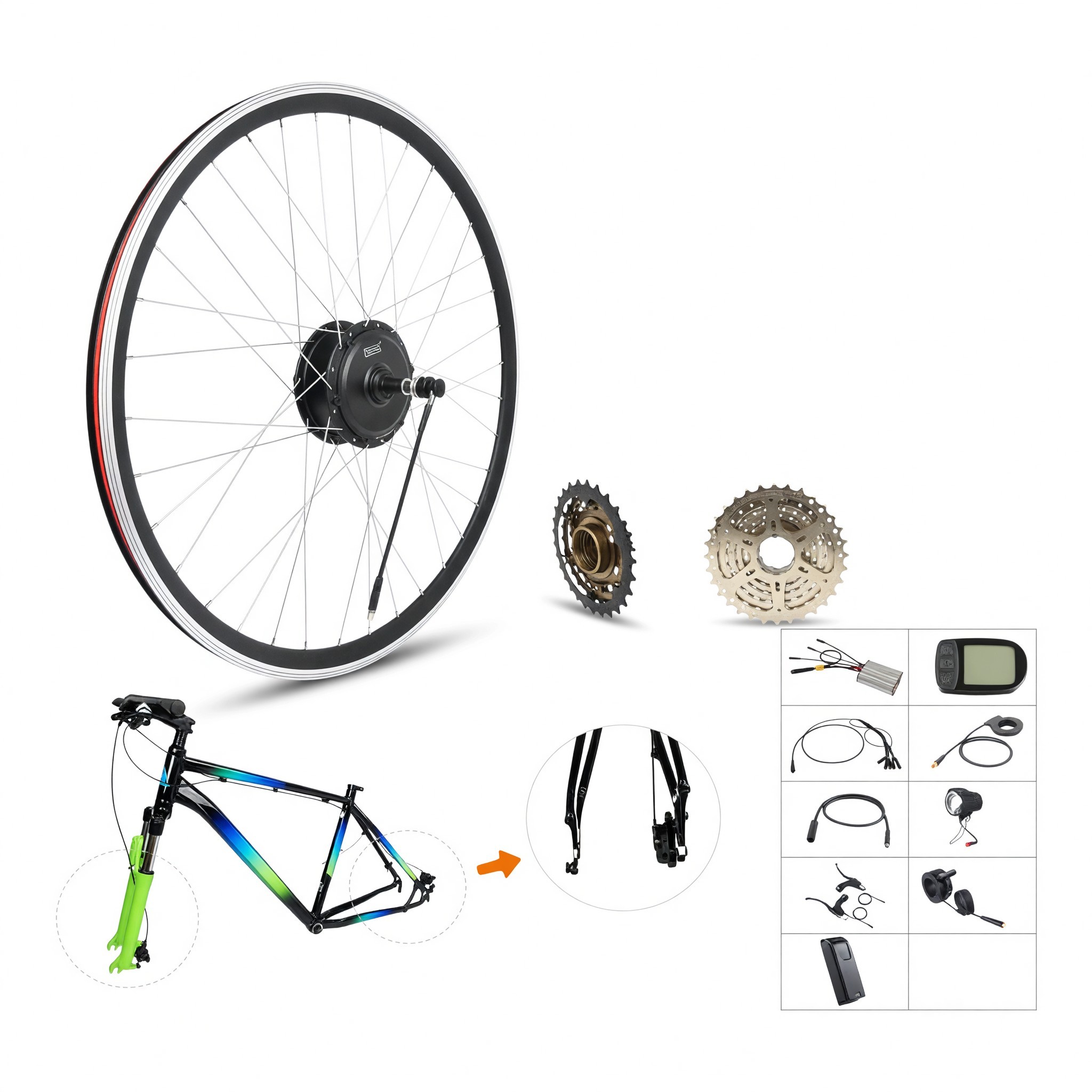

The kit for converting a traditional bicycle into an electric bicycle includes a rear wheel 28" (700C) with a built-in MXUS XF08 36 V 250 W motor, an LCD display, a brake sensor, and other components needed for installation. The motor is located in the rear hub and is designed for bikes with a screw-on freewheel with 6–7 speeds, not for a cassette. According to the manufacturer, the 28" wheel achieves speeds of approximately 30 km/h while riding. The rear wheel is suitable for frames with a rear dropout spacing of 13.3–13.9 cm. The rim and motor body are in black finish.

Main Features

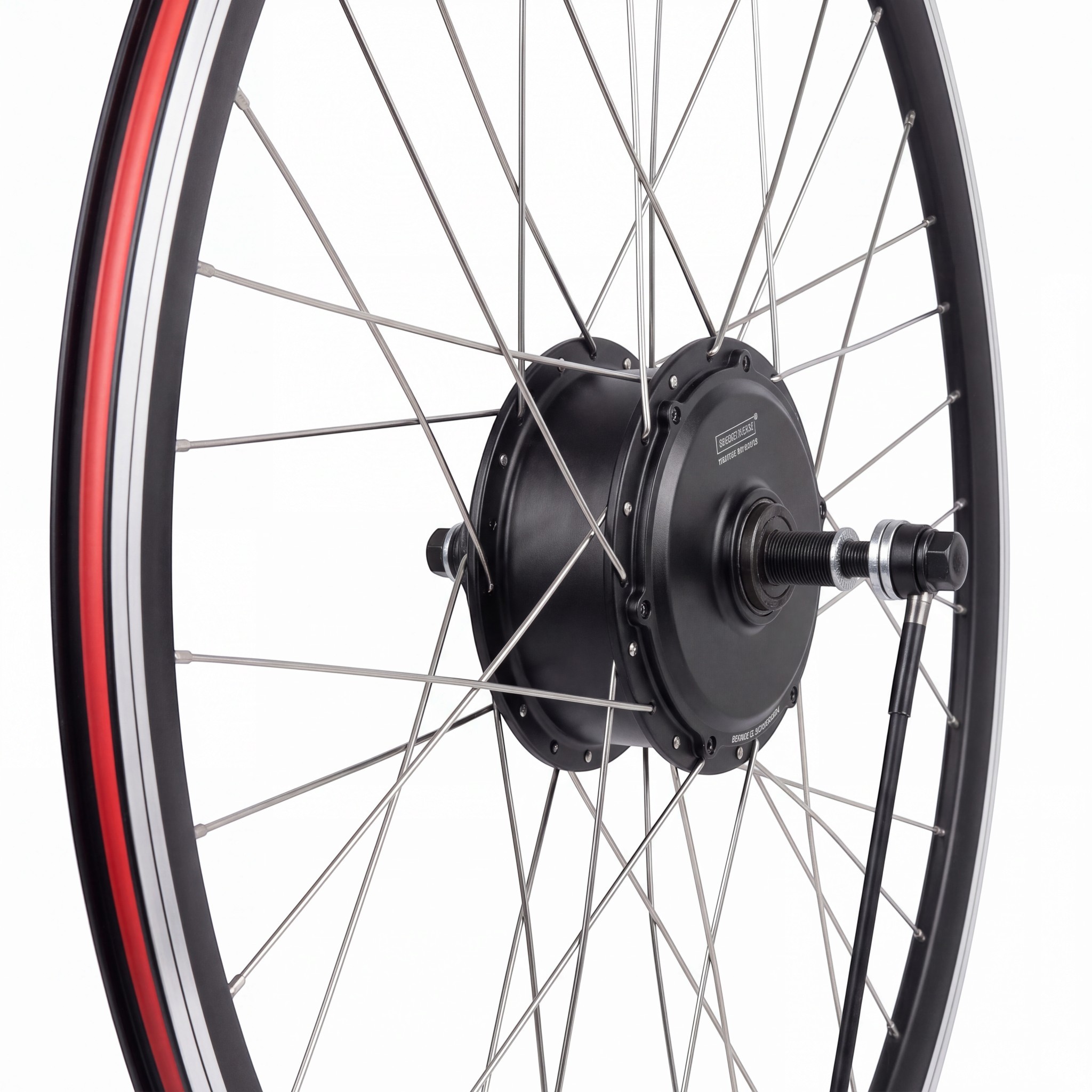

  • Rear Hub Motor – model XF08 with a rated voltage of 36 V and a rated power of 250 W is located directly in the hub and drives the rear wheel.
  • Wheel Size – rear wheel 28" (700C) with spokes and rim, into which the motor is laced, so the wheel is ready for mounting in the frame.
  • Speed – the manufacturer states that the 28" wheel can reach speeds of approximately 30 km/h while riding.
  • Gears – the motor is intended for a screw-on freewheel with 6 to 7 speeds; a cassette does not fit this hub.
  • Frame Compatibility – the wheel is suitable for frames with a rear dropout spacing of 13.3–13.9 cm, and the hub's mounting width is 13.6 cm.
  • Display – the LCD display with buttons is mounted on the handlebars and shows riding data.
  • Brake Sensor – when the brake is pressed, it sends a signal to the controller and interrupts the motor operation, so the drive does not oppose braking.
  • Control – the throttle lever allows riding with motor assistance without the need to pedal.
  • Controller – connects the motor to the display, pedal assist sensor, throttle, brake sensor, and light.
  • Pedal Assist Sensor – the PAS sensor detects pedalling and activates motor support while riding.
  • Lighting – the kit includes a front light that connects to the bicycle's electrical system.
  • Cabling – the cable harness and extension cable serve to connect all components of the kit.
  • Finish – the rim features red elements and the motor body is black, while the spokes are silver.

Package Contents:

  • 1x rear wheel 28" (700C) with MXUS XF08 36 V 250 W motor
  • 1x LCD display
  • 1x brake sensor kit
  • 1x controller
  • 1x PAS sensor
  • 1x throttle lever
  • 1x front light
  • 1x cable harness
  • 1x extension cable

This kit is designed for converting a bicycle into an electric bicycle with a rear hub motor rated at 250 W and a voltage of 36 V. The rear wheel 28" (700C) is suitable for frames with dropout spacing of 13.3–13.9 cm and for a screw-on freewheel with 6–7 speeds. While riding, it can reach speeds of approximately 30 km/h. The LCD display shows riding data, and the brake sensor turns off the motor when braking. The throttle lever, PAS sensor, and front light complete the kit's equipment.
