Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF08 36 V 250 W 26" Wheel Brake Sensor Freewheel 6–7 Speeds LCD Display Black

Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF08 36 V 250 W 26" Wheel Brake Sensor Freewheel 6–7 Speeds LCD Display Black

Rear hub motor 36 V 250 W laced into a 26" wheel, speed around 28 km/h, LCD display, throttle, PAS sensor, light and brake sensor in one kit. Full description
In stock
Delivery €1.59
30-day return policy
€374.63
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bicycle Rear Hub Motor MXUS XF08 36 V 250 W 26" Wheel Brake Sensor Freewheel 6–7 Speeds LCD Display Black

The kit for converting a traditional bicycle into an electric bicycle includes a 26" rear wheel with a built-in MXUS XF08 36 V 250 W motor, LCD display, brake sensor, and other parts necessary for installation. The motor is located in the rear hub and is designed for bikes with a screw-on freewheel with 6–7 speeds, not for a cassette. According to the manufacturer, the 26" wheel can reach speeds of approximately 28 km/h. The rear wheel is suitable for frames with rear dropout spacing of 13.3–13.9 cm. The rim and motor body are in black finish.

Main Features

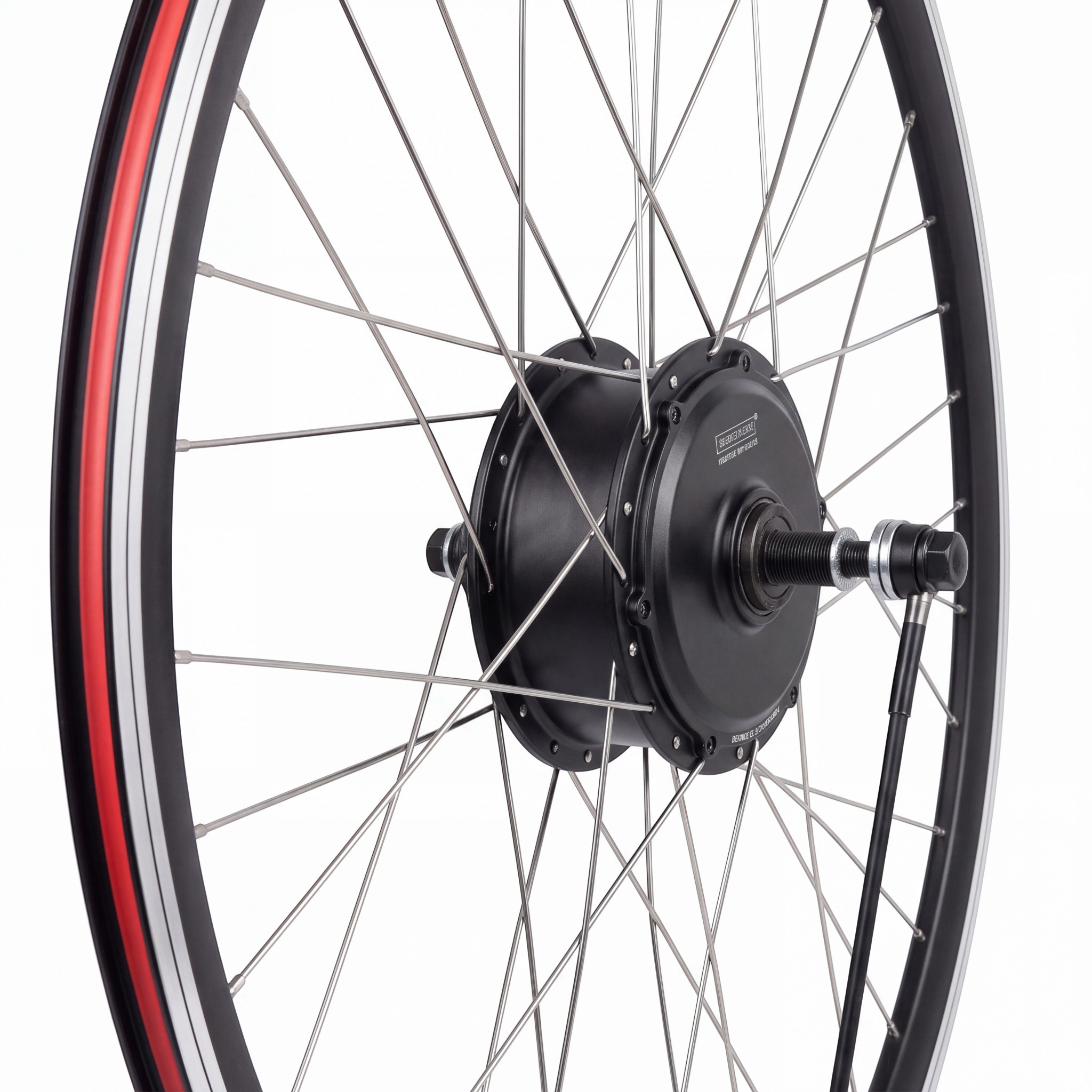

  • Motor in Rear Hub – model XF08 with a nominal voltage of 36 V and a nominal power of 250 W is located directly in the hub and drives the rear wheel.
  • Wheel Size – 26" rear wheel with lacing and rim, into which the motor is laced, making it ready for installation into the frame.
  • Speed – the manufacturer states that the 26" wheel can achieve a speed of approximately 28 km/h.
  • Gears – the motor is designed for a screw-on freewheel with 6 to 7 speeds; a cassette does not fit this hub.
  • Frame Compatibility – the wheel is suitable for frames with rear dropout spacing of 13.3–13.9 cm, the hub's installation width is 13.6 cm.
  • Display – the LCD display with buttons is mounted on the handlebars and shows riding data.
  • Brake Sensor – when the brake is pressed, it sends a signal to the control unit and interrupts the motor operation, so the drive does not counteract braking.
  • Control – the throttle lever allows riding with motor assistance without the need to pedal.
  • Control Unit – connects the motor with the display, pedal assist sensor, throttle, brake sensor, and light.
  • Pedal Assist Sensor – the PAS sensor detects pedalling and activates motor support while riding.
  • Lighting – the kit includes a front light that connects to the bicycle's electrical system.
  • Cabling – the cable harness and extension cable serve to connect all parts of the kit.
  • Finish – the rim features red elements and the motor body is black, while the spokes are silver.

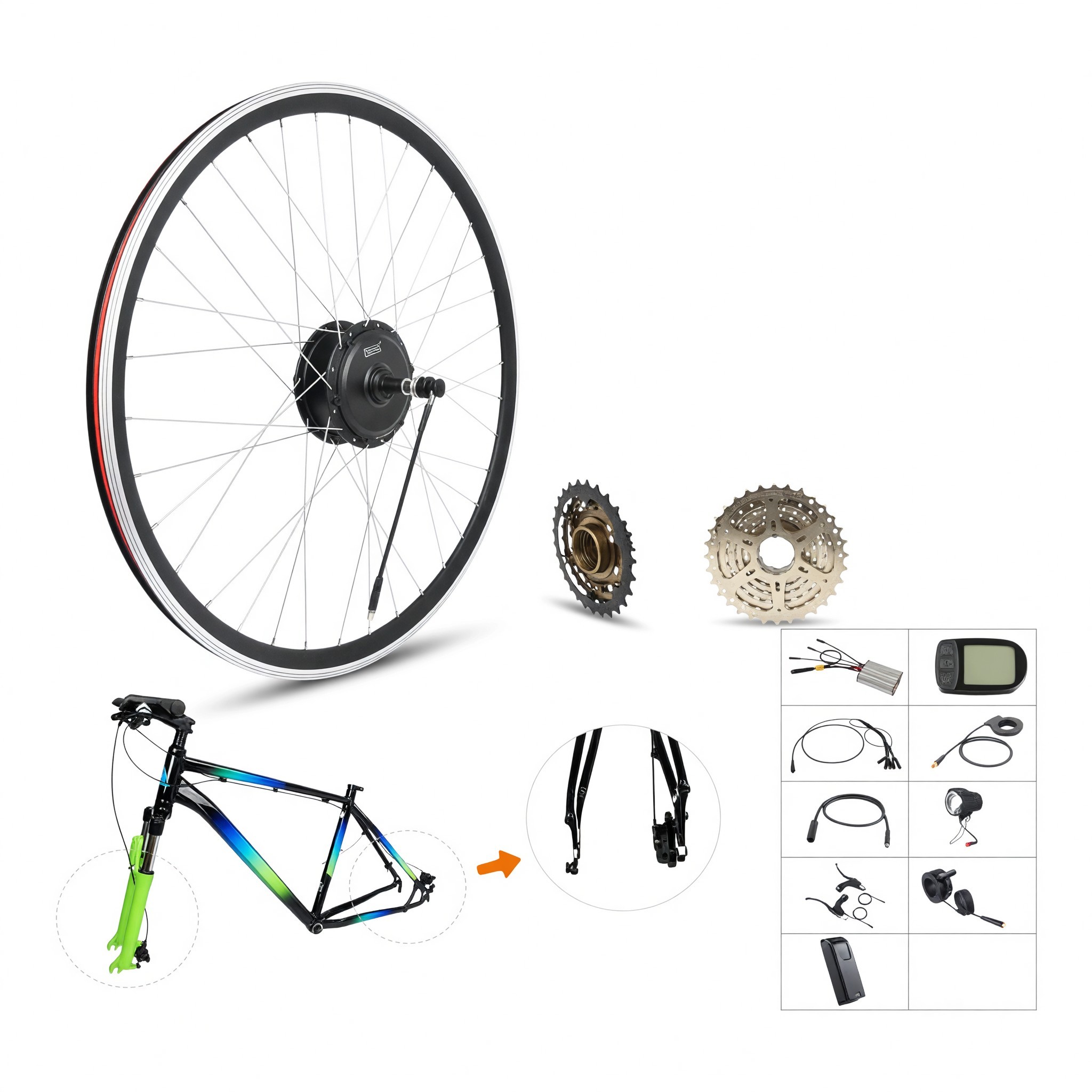

Package Contents:

  • 1x 26" rear wheel with MXUS XF08 36 V 250 W motor
  • 1x LCD display
  • 1x brake sensor kit
  • 1x control unit
  • 1x PAS sensor
  • 1x throttle lever
  • 1x front light
  • 1x cable harness
  • 1x extension cable

This kit is designed for converting a bicycle into an electric bicycle with a rear hub motor rated at 250 W and a voltage of 36 V. The 26" rear wheel is suitable for frames with dropout spacing of 13.3–13.9 cm and for a screw-on freewheel with 6–7 speeds. It can reach speeds of approximately 28 km/h. The LCD display shows riding data and the brake sensor shuts off the motor when braking. The throttle lever, PAS sensor, and front light complete the kit's equipment.
