Conversion Kit for Electric Bicycle Mid Motor Bafang 48 V 750 W Chainring 44T Bottom Bracket 68–73 mm Bluetooth Display VD04

Conversion Kit for Electric Bicycle Mid Motor Bafang 48 V 750 W Chainring 44T Bottom Bracket 68–73 mm Bluetooth Display VD04

Convert a standard bicycle into an electric bike. Mid motor 750 W at 48 V, Bluetooth display VD04, brake sensors and 44T chainring in one kit. Full description
In stock
Delivery €1.59
30-day return policy
€828.34
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bike Bafang Mid Motor 48 V 750 W 44T Chainring Bottom Bracket 68–73 mm Bluetooth Display VD04 Grey

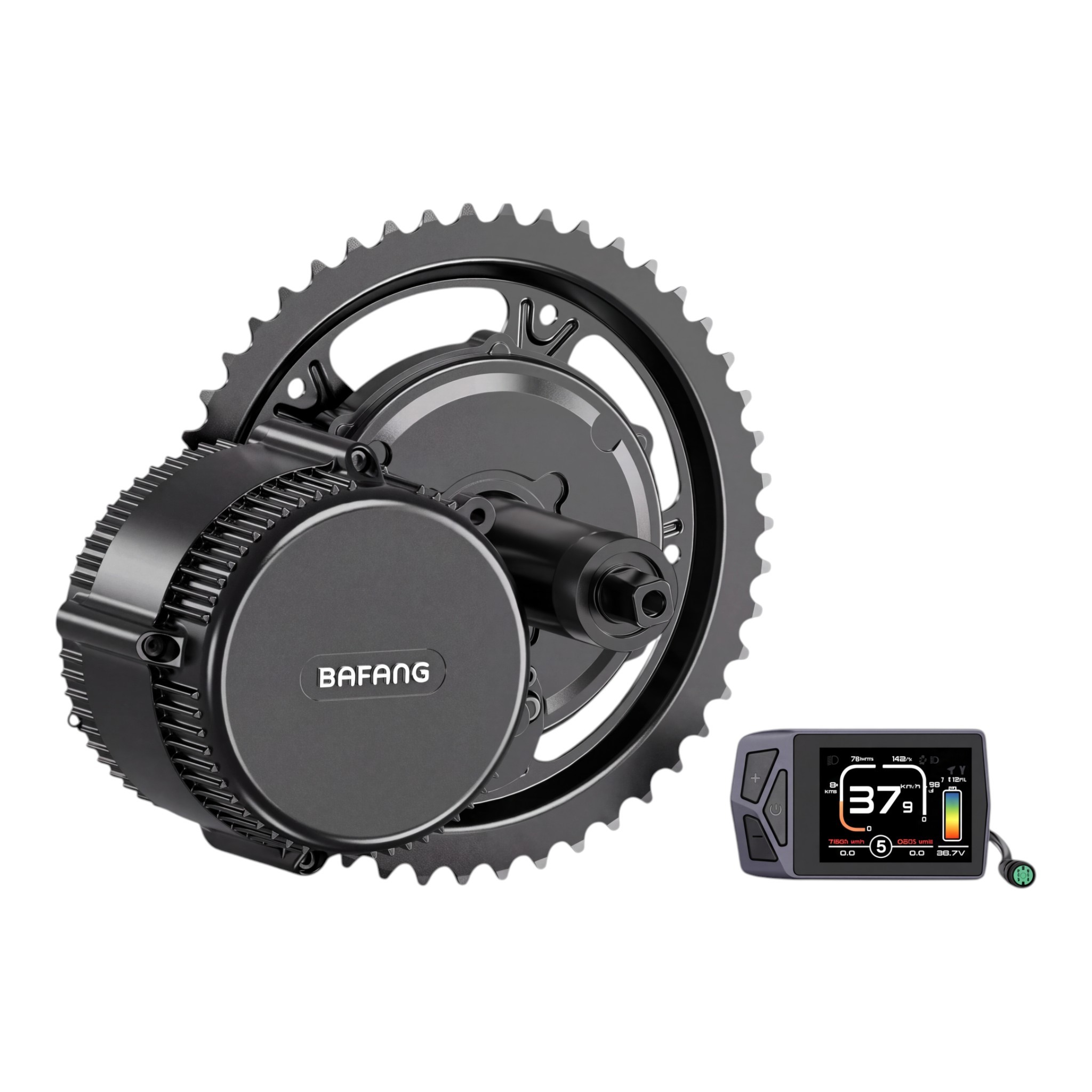

The conversion kit for transforming a bicycle into an electric bike is based on the Bafang mid motor, which is installed in the bottom bracket of the frame instead of the original bottom axle. The motor operates at a voltage of 48 V and has a power output of 750 W, making it suitable for bicycle owners who wish to add electric assistance without replacing the entire bike. The kit is designed for frames with a bottom bracket width of 68–73 mm. Included in the kit is the Bluetooth display VD04, brake sensors connected to the drive system, a throttle, and a 44-tooth chainring. The motor features a grey finish and, due to its central placement in the frame, does not interfere with the front or rear hub.

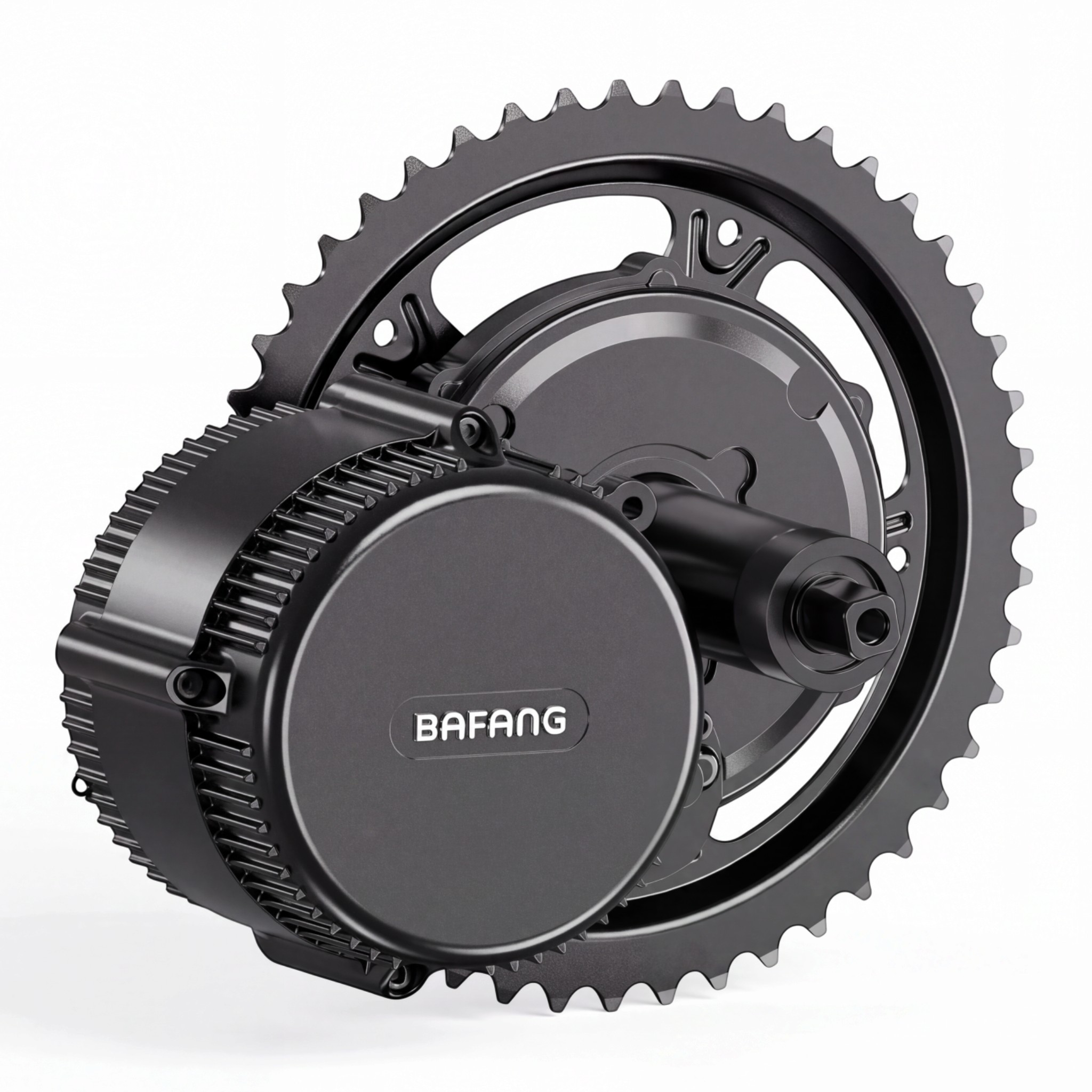

  • Bafang Mid Motor — electric drive with a power output of 750 W and 48 V voltage located at the centre of the frame, transmitting power through the chainring and chain to the rear wheel.
  • Compatibility — the kit is intended for bicycles with a bottom bracket width of 68–73 mm; it is advisable to measure this dimension before installation.
  • 44T Chainring — a 44-tooth chainring that mounts directly onto the motor.
  • Bluetooth Display VD04 — a Bluetooth technology display for mounting on the handlebars, which connects to the wiring harness along with other controls.
  • Brake Sensors — two brake sensors with their own cables for connection to the wiring harness and the electric bike's drive system.
  • Throttle — a thumb throttle for direct control of the motor's power.
  • Front Light — a light with its own cable for connection to the bike's electrical system.
  • Speed Sensor — a sensor with a magnet for measuring speed and distance travelled.
  • Wiring Harness — connects the motor, display, brake sensors, throttle, and light into one system.
  • Installation Tools — the kit includes tools and mounting materials necessary for installing the motor into the frame.

Package Contents:

  • 1x Bafang Mid Motor 48 V 750 W
  • 1x Bluetooth Display VD04
  • 2x Brake Sensor
  • 1x 44T Chainring
  • 2x Crank
  • 1x Throttle
  • 1x Speed Sensor with Magnet
  • 1x Wiring Harness
  • 1x Front Light
  • 1x Installation Material Kit
  • 1x Installation Tools Kit
  • 1x Zip Tie Kit
  • 1x Manual

The conversion kit is designed for those who wish to turn their bicycle into an electric bike with a mid-drive system while retaining the original frame. The Bafang motor with a power output of 750 W transmits power through the 44T chainring and chain, allowing for gear shifting on the rear wheel to remain intact. The Bluetooth Display VD04 located on the handlebars provides ride information. Before ordering, please ensure that the width of your frame's bottom bracket corresponds to the range of 68–73 mm. To operate, the kit needs to be supplemented with a 48 V battery.
