Conversion Kit for Electric Bicycle Front Hub Motor XF07 36 V 250 W Wheel 28" 700C Fork Spacing 9.7–10.3 cm LCD Display Black

Conversion Kit for Electric Bicycle Front Hub Motor XF07 36 V 250 W Wheel 28" 700C Fork Spacing 9.7–10.3 cm LCD Display Black

Front hub motor 36 V 250 W laced into a 28" (700C) wheel, speed around 30 km/h, LCD display, throttle, PAS sensor and brake levers in one kit. Full description
In stock
Delivery €1.59
30-day return policy
€366.33
Safe shopping Safe shopping
Overview
Conversion Kit for Electric Bicycle Front Hub Motor XF07 36 V 250 W Wheel 28" 700C Fork Spacing 9.7–10.3 cm LCD Display Black

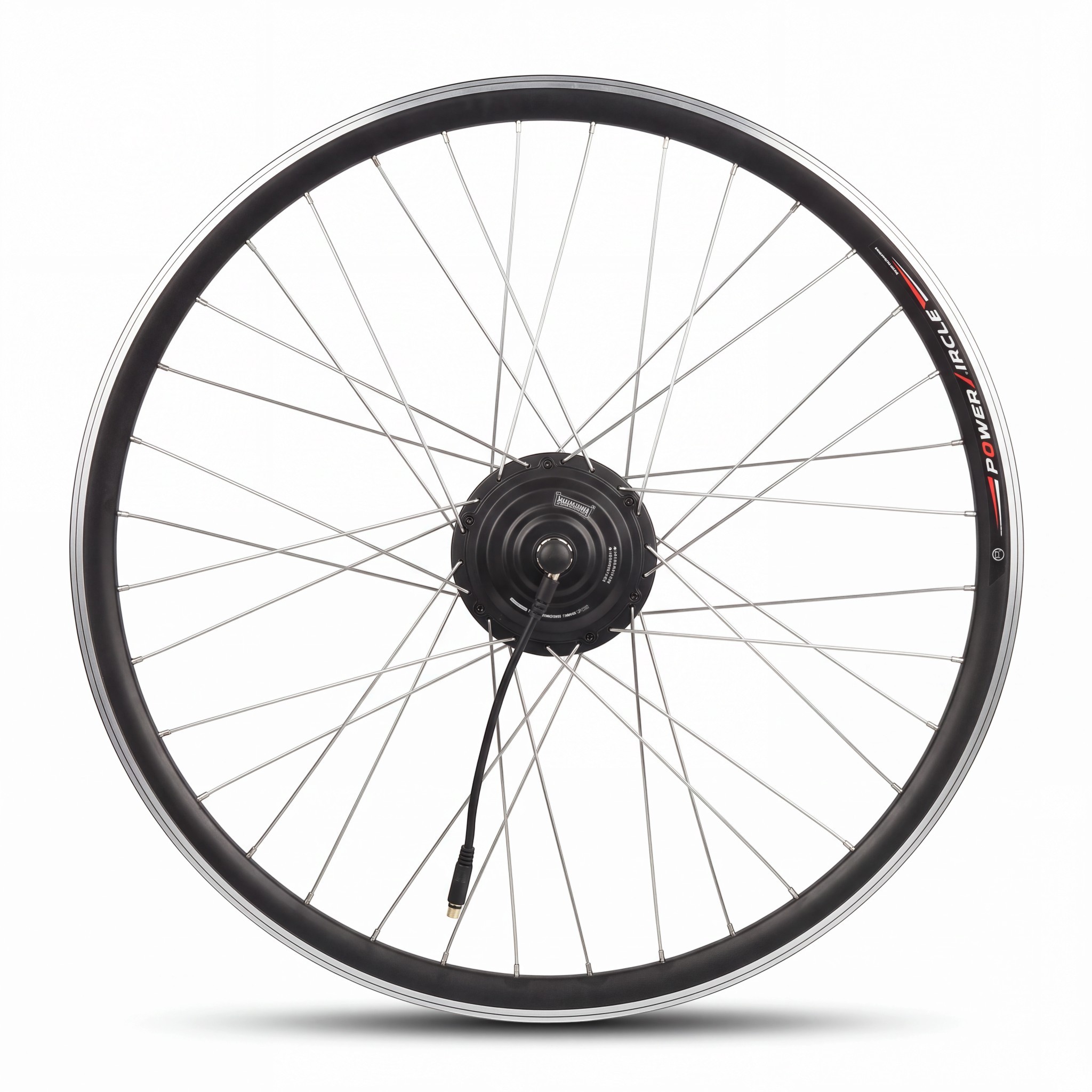

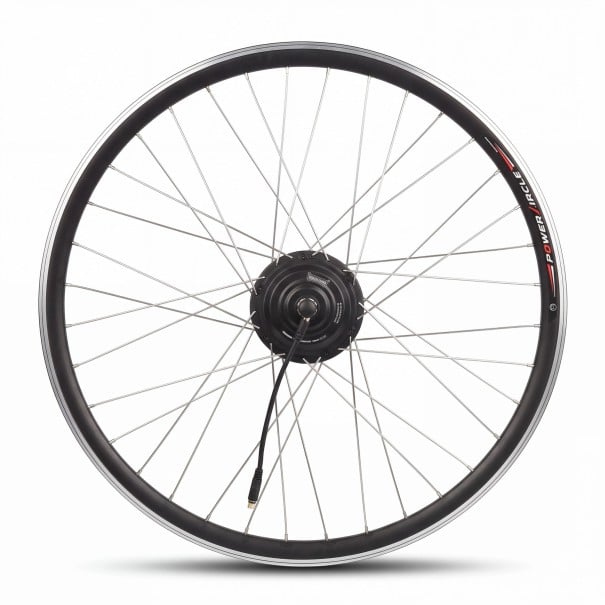

The kit for converting a traditional bicycle into an electric bicycle includes a 28" (700C) front wheel with a built-in XF07 36 V 250 W motor, LCD display, brake levers, and other necessary components for installation. The motor is located in the front hub and is mounted in the front fork in place of the original wheel. The wheel fits forks with a dropout spacing of 9.7–10.3 cm. According to the manufacturer, the 28" wheel reaches a speed of approximately 30 km/h while riding. The rim and motor housing are finished in black.

Main Features

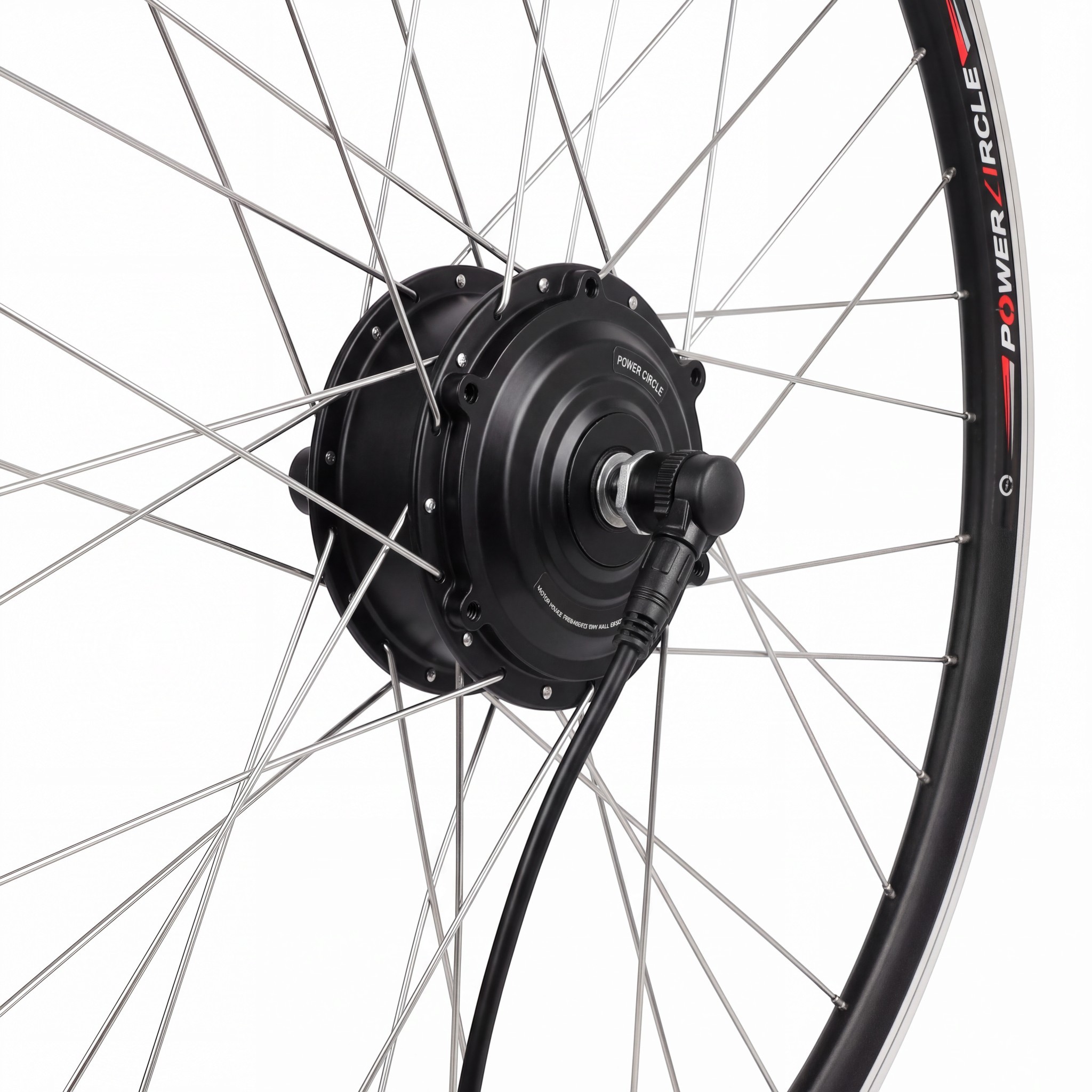

  • Motor in Front Hub – the XF07 model with a nominal voltage of 36 V and a rated power of 250 W is located directly in the hub and drives the front wheel.
  • Wheel Size – the front wheel is 28" (700C) with a rim into which the motor is laced, making it ready for installation in the fork.
  • Speed – the manufacturer states that the 28" wheel achieves a speed of approximately 30 km/h while riding.
  • Fork Compatibility – the wheel is suitable for forks with a front dropout spacing of 9.7–10.3 cm, and the hub width is 10 cm.
  • Rear Drive Unchanged – the motor is at the front, so the gears and rear wheel remain original.
  • Display – the LCD display with buttons attaches to the handlebars and shows riding data.
  • Brake Levers – pressing the brake interrupts the motor operation, so the drive does not counteract braking.
  • Control – the throttle allows riding with motor assistance without pedalling.
  • Controller – connects the motor to the display, pedal assist sensor, throttle, brake levers, and light.
  • Pedal Assist Sensor – the PAS sensor detects pedalling and activates motor support while riding.
  • Lighting – the kit includes a front light that connects to the bicycle's electrical system.
  • Cabling – the cable harness and extension cable are used to connect all components of the kit.
  • Finish – the rim and motor housing are black, while the spokes are silver.

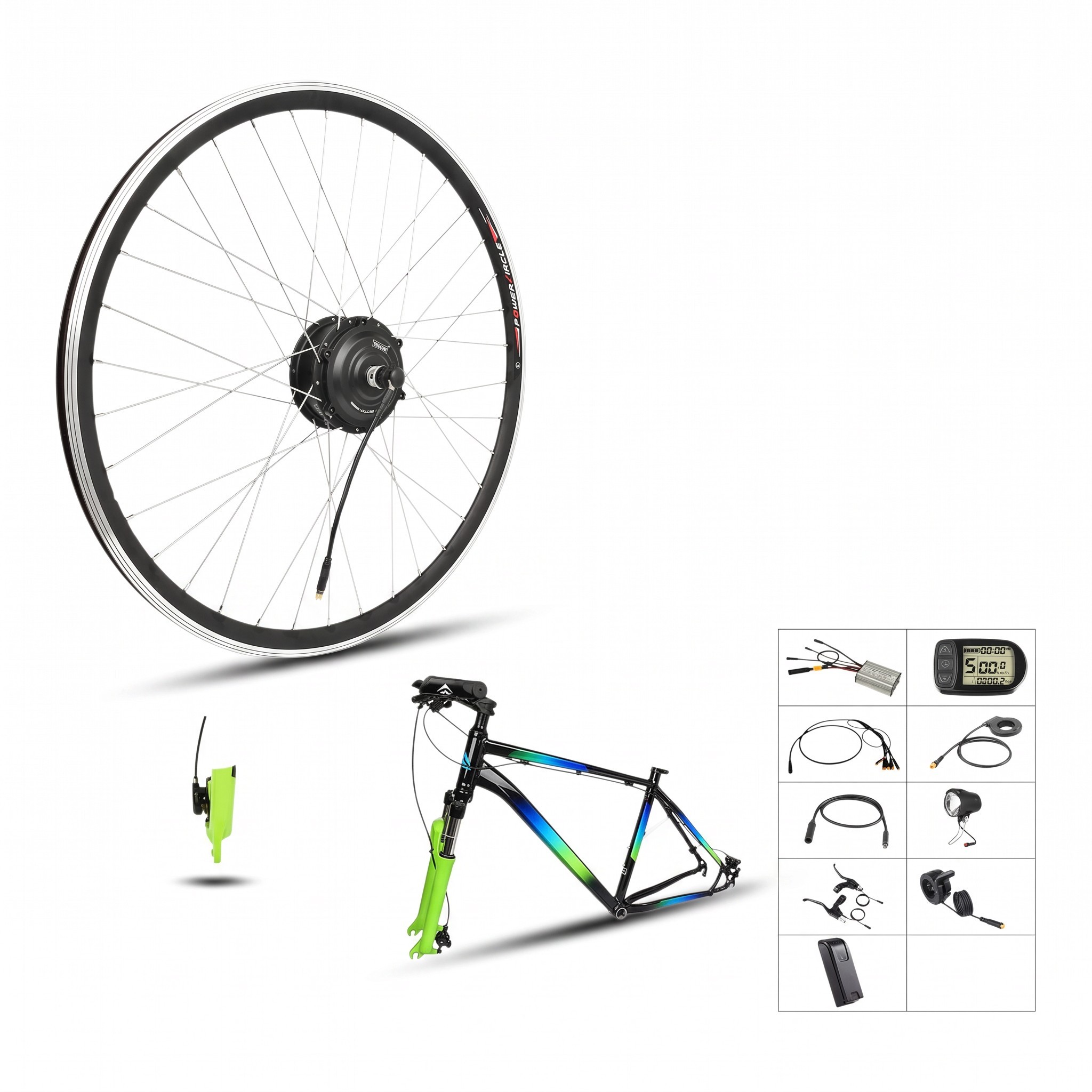

Package Contents:

  • 1x front wheel 28" (700C) with XF07 36 V 250 W motor
  • 1x LCD display
  • 2x brake lever
  • 1x controller
  • 1x PAS sensor
  • 1x throttle
  • 1x front light
  • 1x cable harness
  • 1x extension cable

This kit is designed for converting a bicycle into an electric bicycle with a front hub motor rated at 250 W and a voltage of 36 V. The 28" (700C) front wheel fits forks with a dropout spacing of 9.7–10.3 cm, and the rear drive remains unchanged. While riding, it reaches a speed of approximately 30 km/h. The LCD display shows riding data, and the brake levers cut off the motor when braking. The throttle, PAS sensor, and front light complete the kit's equipment.
