Conversion Kit for E-Bike Rear Hub Motor MXUS XF15C 48 V 500 W Wheel 28" 700C For 8–9 Speed Cassette LCD Display Black

Conversion Kit for E-Bike Rear Hub Motor MXUS XF15C 48 V 500 W Wheel 28" 700C For 8–9 Speed Cassette LCD Display Black

Rear hub motor 48 V 500 W for 8–9 speed cassette, 28" 700C wheel, speed of approximately 44 km/h, LCD display, throttle, PAS sensor, and brake levers included in the kit. Full description
In stock
Delivery €1.59
30-day return policy
€419.61
Safe shopping Safe shopping
Overview
Conversion Kit for E-Bike Rear Hub Motor MXUS XF15C 48 V 500 W Wheel 28" 700C For 8–9 Speed Cassette LCD Display Black

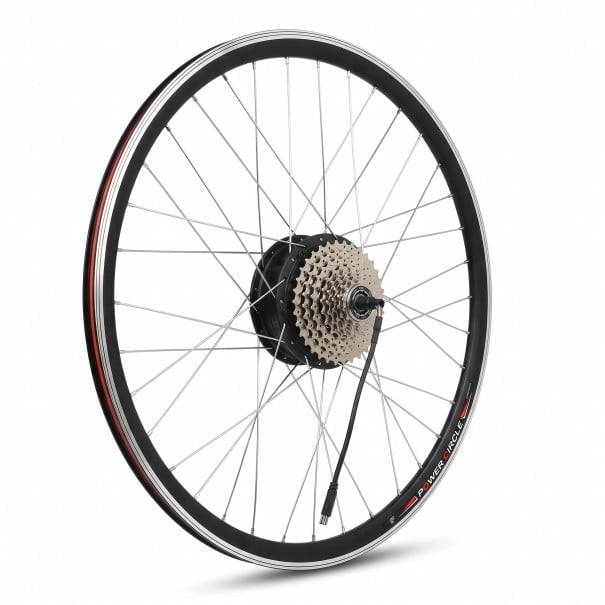

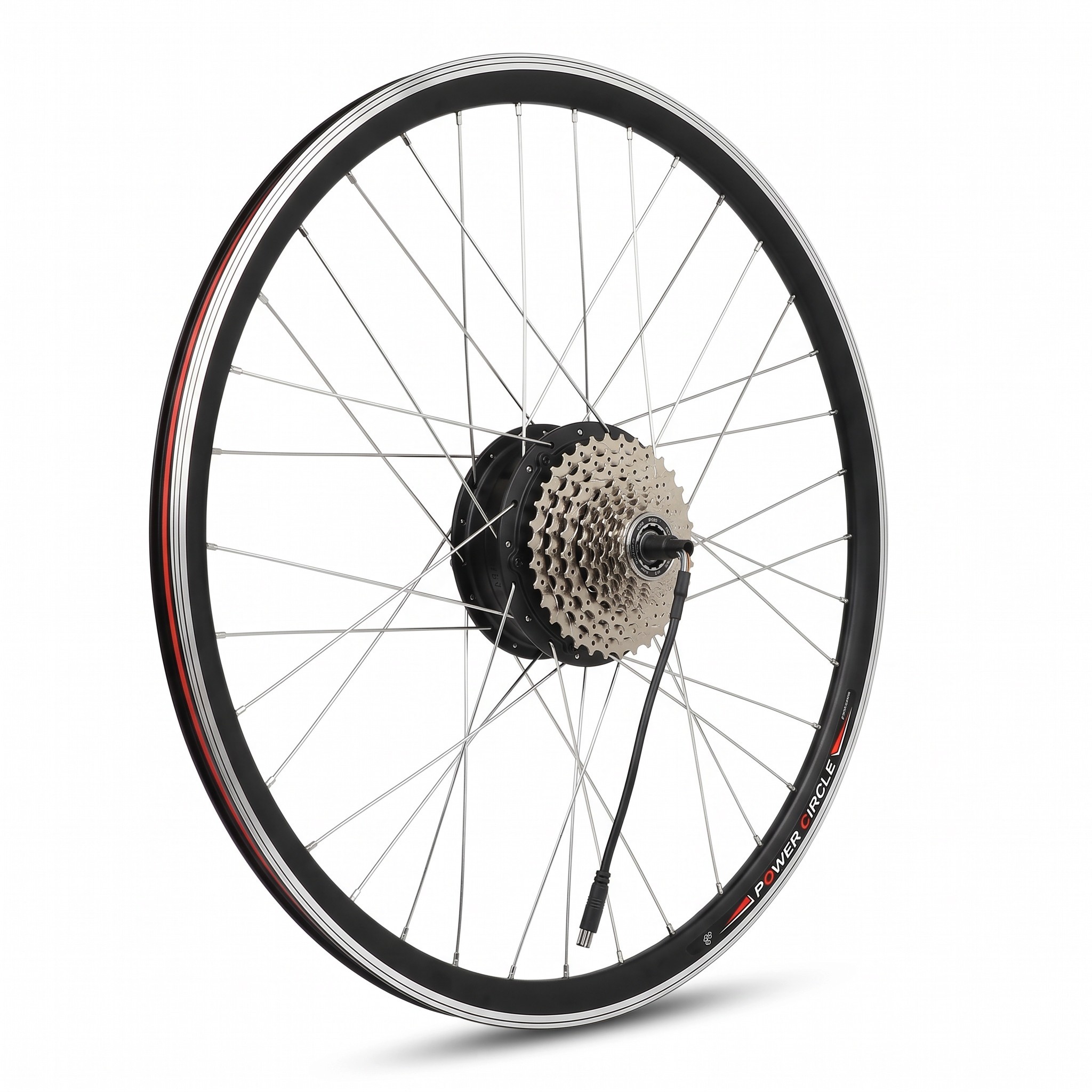

The kit for converting a traditional bicycle into an e-bike includes a 28" (700C) rear wheel with an integrated MXUS XF15C 48 V 500 W motor, LCD display, brake levers, and other necessary components for installation. The motor is located in the rear hub and is designed for bicycles with an 8–9 speed cassette, not for a threaded freewheel. According to the manufacturer, the 28" wheel can reach speeds of approximately 44 km/h. The rear wheel is suitable for frames with a rear dropout spacing of 14.2–14.8 cm. The rim and motor housing are finished in black.

Main Features

  • Rear Hub Motor – model XF15C with a nominal voltage of 48 V and a rated power of 500 W is located directly in the hub and drives the rear wheel.
  • Wheel Size – 28" (700C) rear wheel with spokes and rim into which the motor is laced, making the wheel ready for installation into the frame.
  • Speed – the manufacturer states that the 28" wheel can achieve speeds of approximately 44 km/h.
  • Gears – the motor hub is designed for an 8 to 9 speed cassette; a threaded freewheel does not fit.
  • Frame Compatibility – the wheel is suitable for frames with a rear dropout spacing of 14.2–14.8 cm, and the hub width is 14.5 cm.
  • Display – the LCD display with buttons attaches to the handlebars and shows riding data.
  • Brake Levers – pressing the brake interrupts the motor operation, preventing the drive from working against braking.
  • Control – the throttle allows riding with motor assistance without the need to pedal.
  • Controller – connects the motor with the display, pedal assist sensor, throttle, brake levers, and light.
  • Pedal Assist Sensor – the PAS sensor detects pedalling and activates motor support while riding.
  • Lighting – the kit includes a front light that connects to the bicycle's electrical system.
  • Cabling – the wiring harness and extension cable serve to connect all components of the kit.
  • Design – the rim features red elements and the motor housing is black, while the spokes are silver.

Package Contents:

  • 1x rear wheel 28" (700C) with MXUS XF15C 48 V 500 W motor
  • 1x LCD display
  • 2x brake levers
  • 1x controller
  • 1x PAS sensor
  • 1x throttle
  • 1x front light
  • 1x wiring harness
  • 1x extension cable

This kit is designed for converting a bicycle into an e-bike with a rear hub motor rated at 500 W and 48 V. The 28" (700C) rear wheel is suitable for frames with dropout spacing of 14.2–14.8 cm and for an 8–9 speed cassette. It can reach speeds of approximately 44 km/h. The LCD display shows riding data, and the brake levers cut off the motor during braking. The throttle, PAS sensor, and front light complete the kit's equipment.
