Bafang BBS02B 48 V 750 W Electric Bike Conversion Kit 44T Chainring Bottom Bracket 68 mm Battery 48 V 20 Ah TFT Display EKD01 Black

Bafang BBS02B 48 V 750 W Electric Bike Conversion Kit 44T Chainring Bottom Bracket 68 mm Battery 48 V 20 Ah TFT Display EKD01 Black

Central motor with CAN bus system and IPX5 rating, battery with 2 A charger and brake sensors. Suitable for converting a regular bicycle into an electric bike. Full description
In stock
Delivery €1.59
30-day return policy
€1,354.10
Safe shopping Safe shopping
Overview
Bafang BBS02B 48 V 750 W Electric Bike Conversion Kit 44T Chainring Bottom Bracket 68 mm Battery 48 V 20 Ah TFT Display EKD01 Black

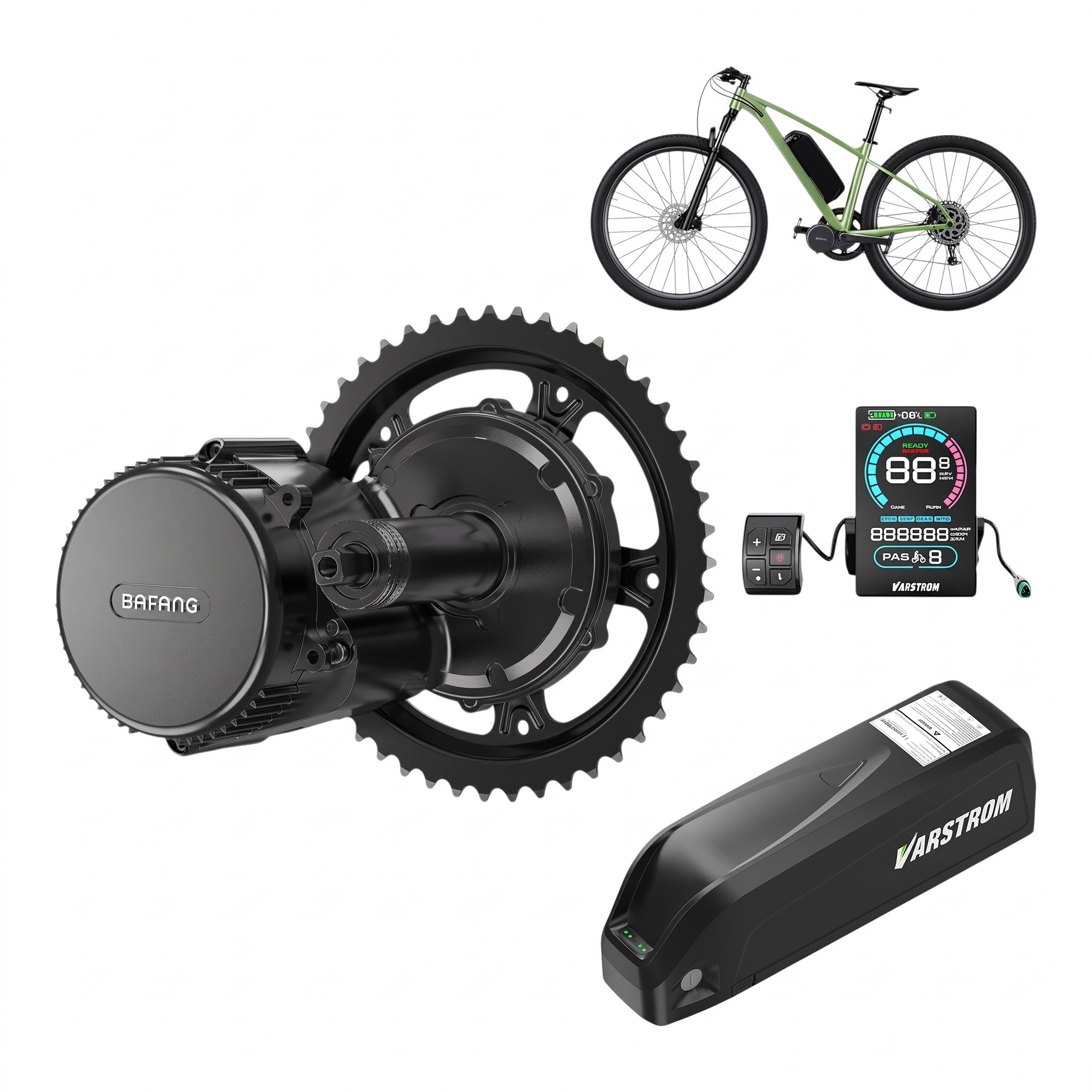

The bicycle conversion kit to an electric bike includes a Bafang BBS02B central motor, battery, display, and brake sensors. The motor with specifications 48 V 750 W is mounted in a bottom bracket 68 mm wide and drives the rear wheel through a 44-tooth chainring and chain. Power is supplied by a HY 48 V 20 Ah battery, which comes with a 2 A charger. Riding data is displayed on a 2.4-inch TFT display EKD01. The motor operates with a CAN bus system and comes in black.

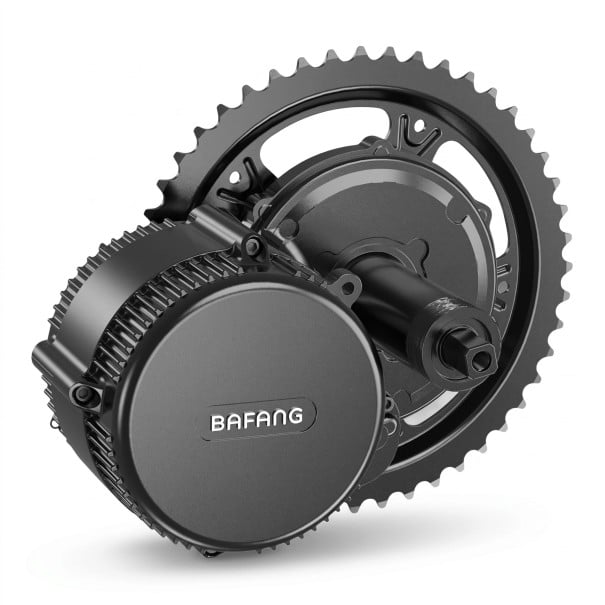

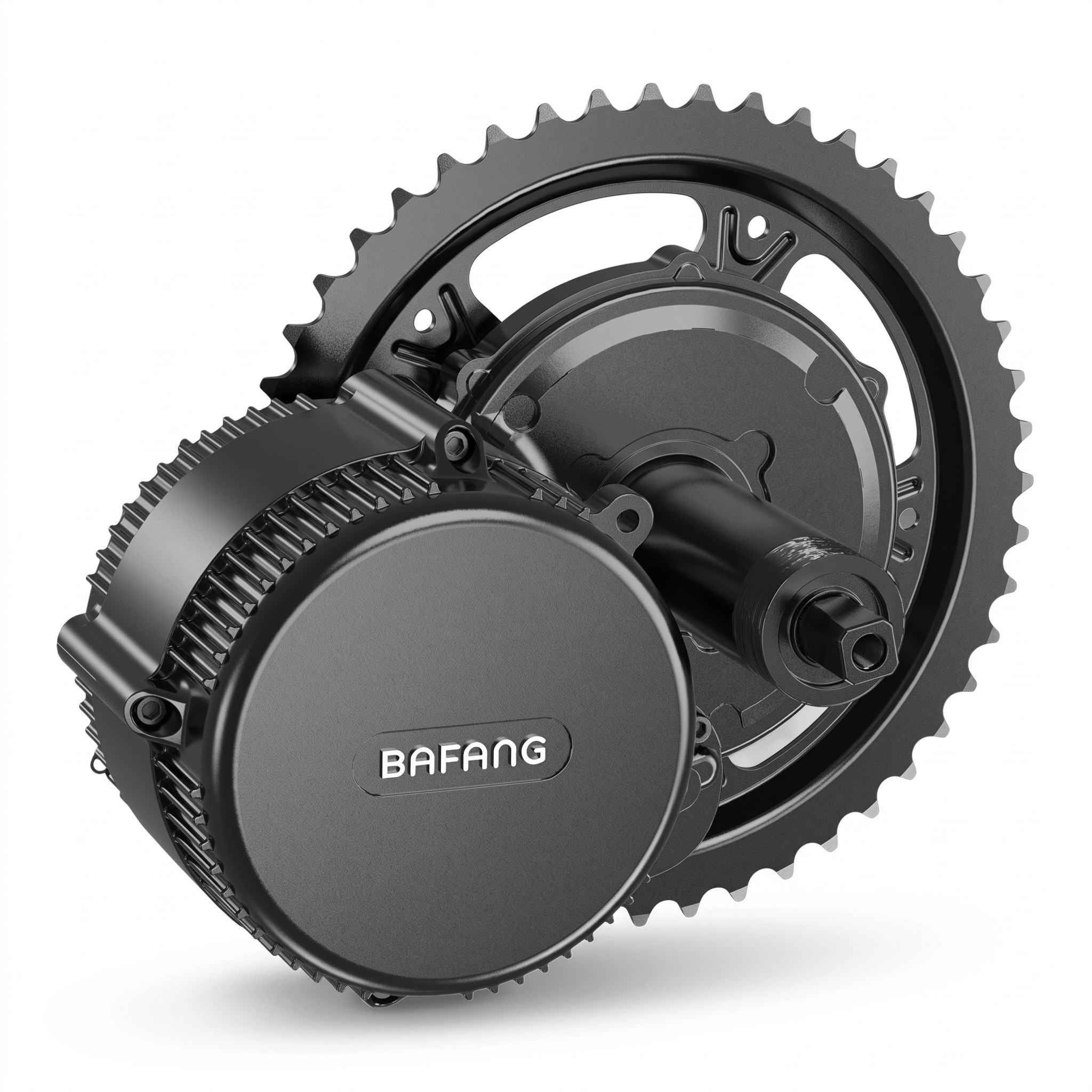

  • Bafang BBS02B Central Motor — electric drive with a rated power of 750 W and a voltage of 48 V, which replaces the original bottom bracket and transmits power through the chainring and chain to the rear wheel.
  • Durability — the motor has an IPX5 water resistance rating.
  • CAN bus System — the motor communicates with the display, battery, and other kit components via the CAN bus.
  • Riding Modes — pedalling assistance and walk assist at a speed of 6 km/h, which can be used, for example, when pushing the bike uphill.
  • 44T Chainring — the 44-tooth chainring transmits the motor's power to the chain.
  • Compatibility — the kit is designed for bicycles with a bottom bracket width of 68 mm, which should be measured before installation.
  • HY 48 V 20 Ah Battery — battery with a voltage matching the motor, supplied with a 2 A charger.
  • TFT Display EKD01 — colour display with a diagonal of 2.4" for an overview of the ride.
  • Brake Sensors — two sensors connect the brakes to the motor system.
  • Connectors — the motor has connectors for front and rear lights, speed sensor, gear sensor, battery, and communication with the battery and a 1T4 connector.

Contents of the package:

  • 1x Bafang BBS02B 48 V 750 W central motor
  • 1x 44T chainring
  • 1x TFT display EKD01 2.4"
  • 1x HY 48 V 20 Ah battery
  • 1x 2 A charger
  • 2x brake sensors

The kit is intended for those who want to convert their bicycle into an electric bike with a central drive and acquire both the motor and battery at once. Before ordering, please verify that the bottom bracket of your frame is 68 mm wide. The motor communicates with other components via the CAN bus system and offers assistance while pedalling as well as walk assistance. Riding data is monitored on the 2.4-inch TFT display EKD01 mounted on the handlebars. The 48 V 20 Ah battery with a 2 A charger is included in the kit, so it does not need to be purchased separately.
