Bafang BBS02B 48 V 750 W Electric Bike Conversion Kit 44T Chainring Bottom Bracket 100 mm Battery 48 V 20 Ah TFT Display EKD01 Black

Bafang BBS02B 48 V 750 W Electric Bike Conversion Kit 44T Chainring Bottom Bracket 100 mm Battery 48 V 20 Ah TFT Display EKD01 Black

Central motor with CAN bus system and IPX5 rating, battery with 2 A charger and brake sensors. Suitable for converting a standard bicycle into an electric bike. Full description
In stock
Delivery €1.59
30-day return policy
€1,354.10
Safe shopping Safe shopping
Overview
Bafang BBS02B 48 V 750 W Electric Bike Conversion Kit 44T Chainring Bottom Bracket 100 mm Battery 48 V 20 Ah TFT Display EKD01 Black

The bicycle conversion kit to an electric bike includes the Bafang BBS02B central motor, battery, display and brake sensors. The motor with specifications 48 V 750 W is mounted in a bottom bracket with a width of 100 mm and drives the rear wheel via a 44-tooth chainring and chain. Power is provided by a HY 48 V 20 Ah battery, which comes with a 2 A charger. Riding data is displayed on a 2.4-inch TFT display EKD01. The motor operates with a CAN bus system and is available in black.

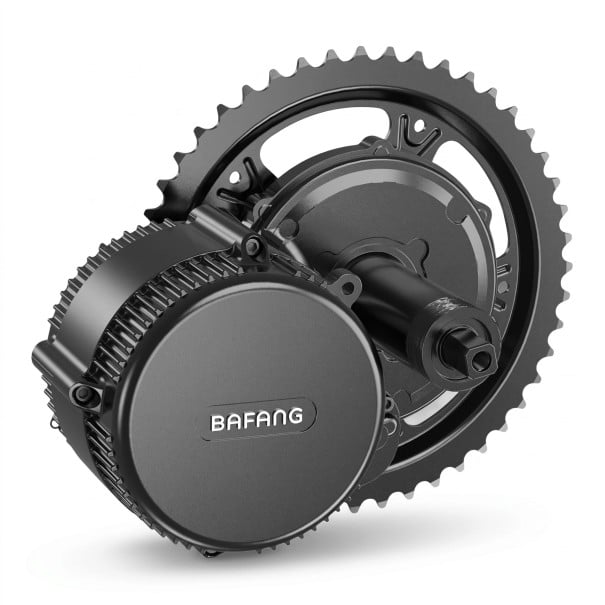

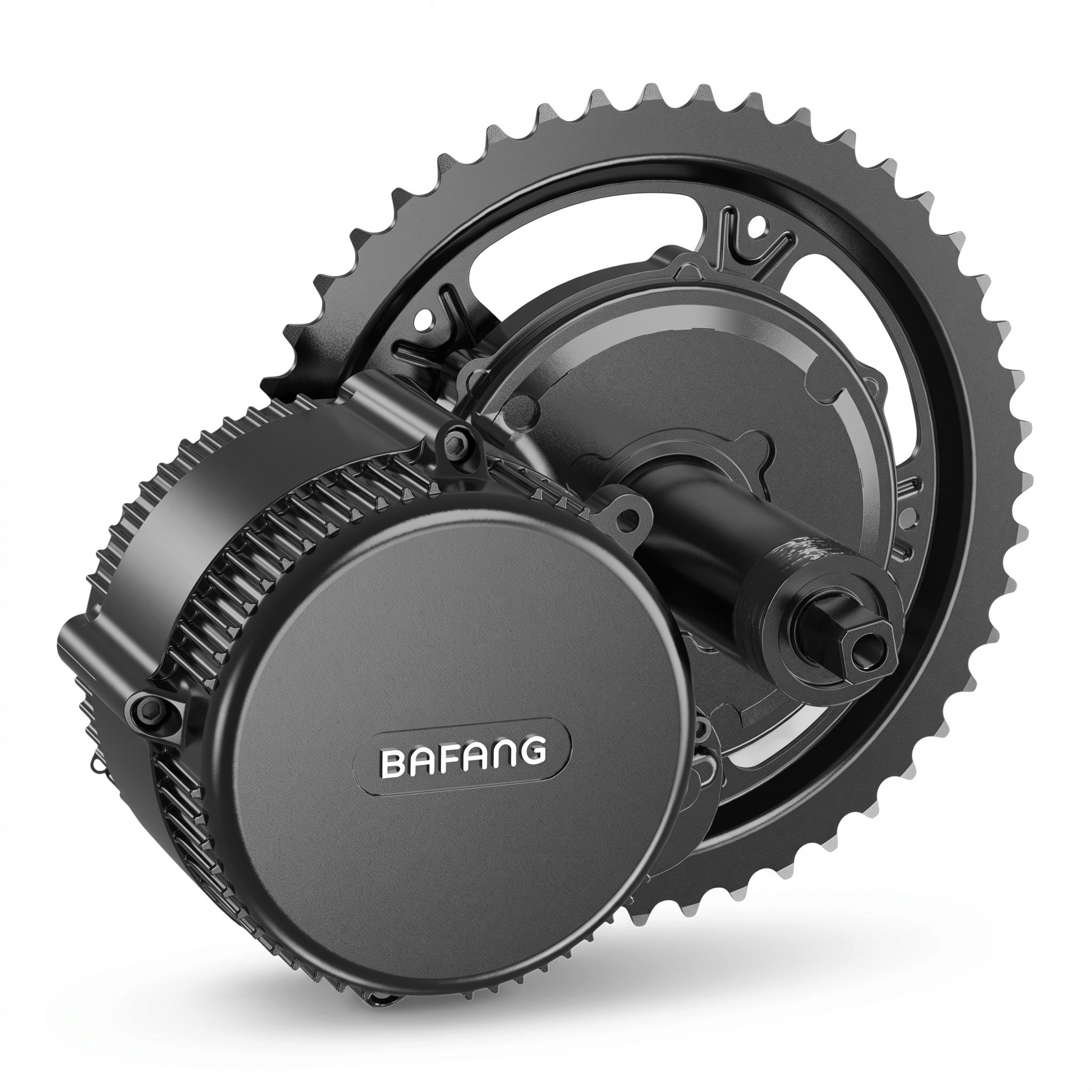

  • Bafang BBS02B Central Motor — electric drive with a rated power of 750 W and voltage of 48 V, which is mounted in place of the original bottom bracket and transfers power through the chainring and chain to the rear wheel.
  • Durability — the motor has an IPX5 water resistance rating.
  • CAN bus System — the motor communicates with the display, battery and other components of the kit via the CAN bus.
  • Riding Modes — pedal assistance and walking assistance at a speed of 6 km/h, which can be used, for example, when pushing the bike uphill.
  • 44T Chainring — the 44-tooth chainring transfers the motor's power to the chain.
  • Compatibility — the kit is designed for bicycles with a bottom bracket width of 100 mm, which should be measured before installation.
  • HY 48 V 20 Ah Battery — battery with voltage matching the motor, supplied together with a 2 A charger.
  • TFT Display EKD01 — colour display with a diagonal of 2.4" for an overview of the ride.
  • Brake Sensors — two sensors connect the brakes to the motor system.
  • Connectors — the motor has connectors for front and rear lights, speed sensor, gear sensor, battery and communication with the battery, and a 1T4 connector.

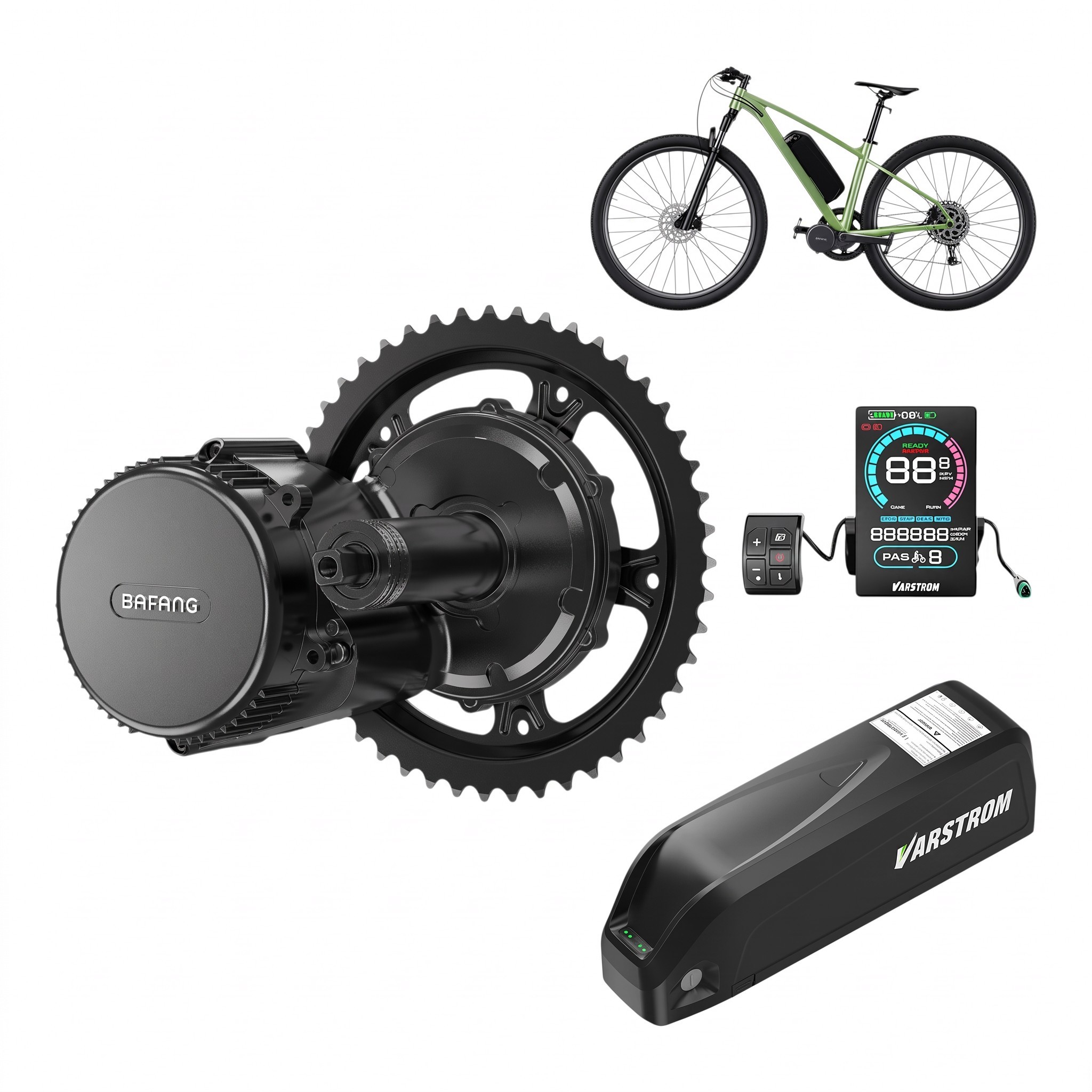

Package Contents:

  • 1x Bafang BBS02B 48 V 750 W Central Motor
  • 1x 44T Chainring
  • 1x 2.4" TFT Display EKD01
  • 1x HY 48 V 20 Ah Battery
  • 1x 2 A Charger
  • 2x Brake Sensors

This kit is intended for those who want to convert their bicycle into an electric bike with a central drive and acquire both the motor and battery at once. Before ordering, please check that the bottom bracket of your frame has a width of 100 mm. The motor communicates with the other components via the CAN bus system and offers both pedal assistance and walking assistance. Riding data is monitored on the 2.4-inch TFT display EKD01 mounted on the handlebars. The 48 V 20 Ah battery with a 2 A charger is included in the kit, so it does not need to be purchased separately.
