Bafang BBS02B 48 V 750 W Electric Bike Conversion Kit 42T Chainring Bottom Bracket 100 mm Battery 48 V 20 Ah TFT Display EKD01 Black

Bafang BBS02B 48 V 750 W Electric Bike Conversion Kit 42T Chainring Bottom Bracket 100 mm Battery 48 V 20 Ah TFT Display EKD01 Black

Mid-drive motor with CAN bus system and IPX5 rating, battery with 2 A charger and brake sensors. Suitable for converting a regular bicycle into an electric bike. Full description
In stock
Delivery €1.59
30-day return policy
€1,354.10
Safe shopping Safe shopping
Overview
Bafang BBS02B 48 V 750 W Electric Bike Conversion Kit 42T Chainring Bottom Bracket 100 mm Battery 48 V 20 Ah TFT Display EKD01 Black

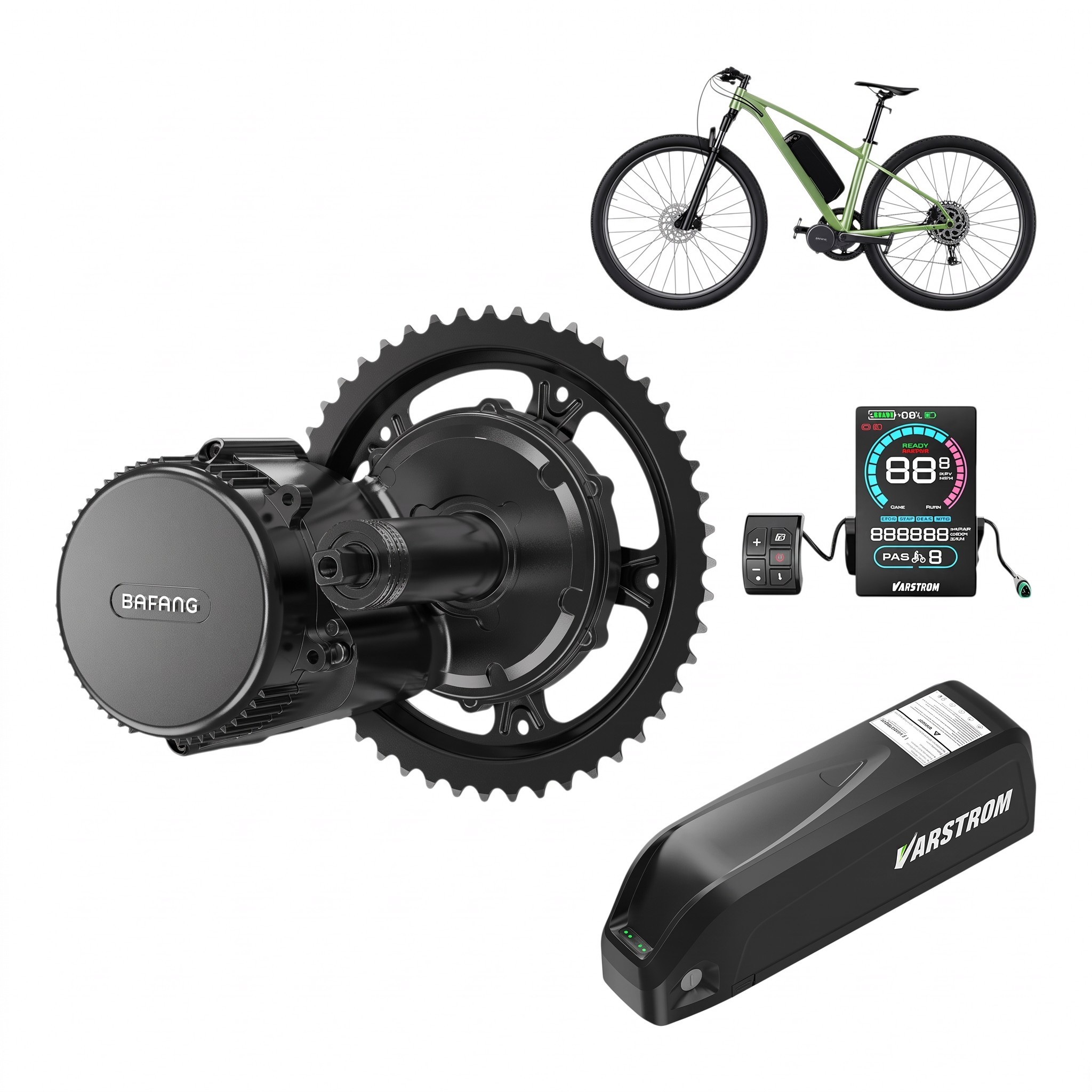

The electric bike conversion kit includes a Bafang BBS02B mid-drive motor, battery, display, and brake sensors. The motor with specifications 48 V 750 W is installed in a bottom bracket with a width of 100 mm and drives the rear wheel through a 42-tooth chainring and chain. Power is provided by a HY 48 V 20 Ah battery, which comes with a 2 A charger. Riding data is displayed on a 2.4-inch TFT display EKD01. The motor operates with a CAN bus system and is available in black.

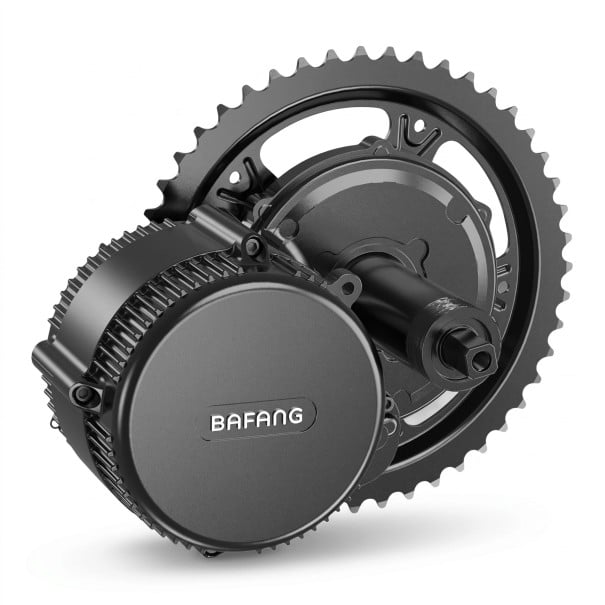

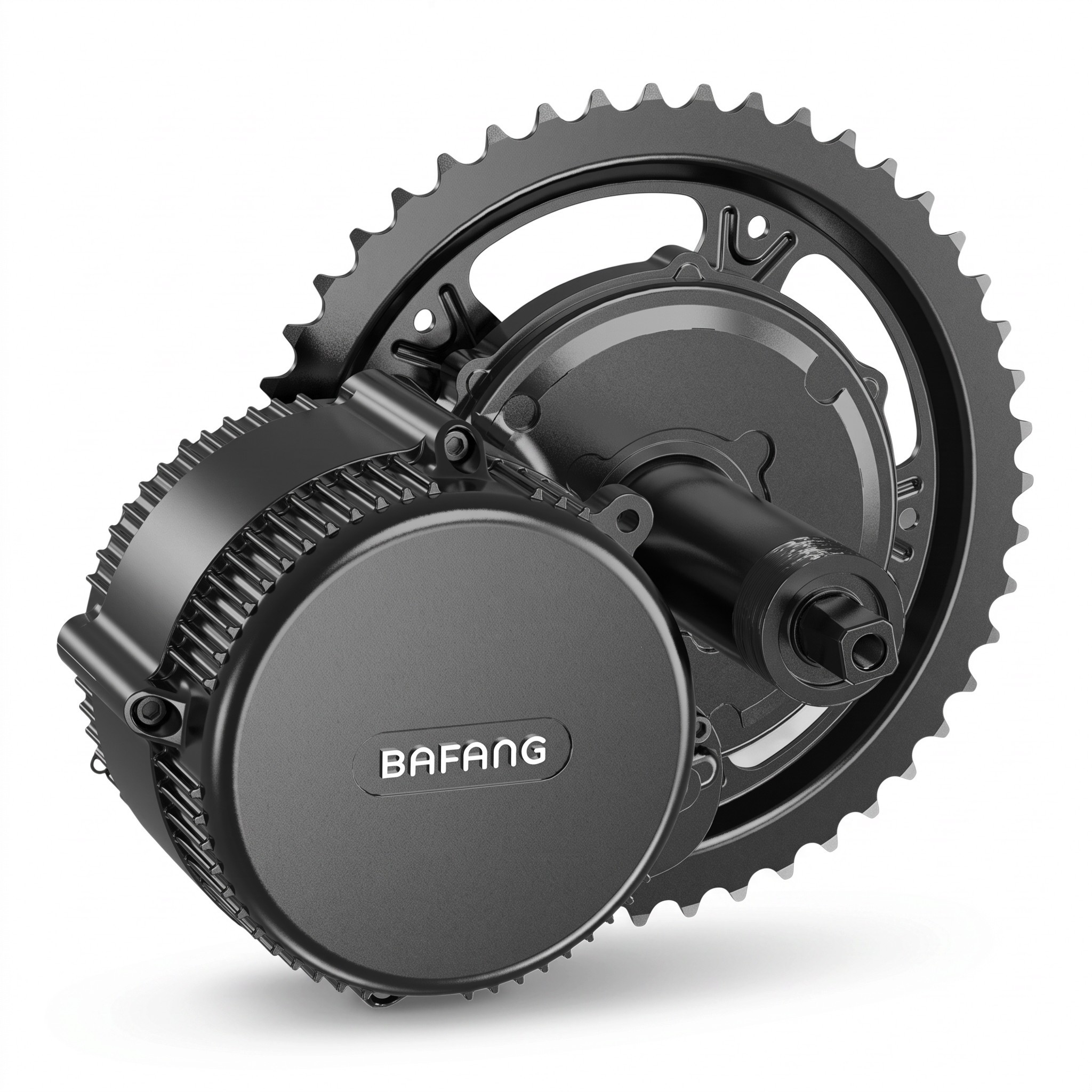

  • Bafang BBS02B Mid-Drive Motor — electric drive with a rated power of 750 W and voltage of 48 V, which replaces the original bottom bracket and transfers power through the chainring and chain to the rear wheel.
  • Durability — the motor has an IPX5 water resistance rating.
  • CAN bus System — the motor communicates with the display, battery, and other kit components via the CAN bus.
  • Riding Modes — pedal-assist and walk-assist mode at a speed of 6 km/h, which can be used, for example, when pushing the bike uphill.
  • 42T Chainring — the 42-tooth chainring transfers the motor's power to the chain.
  • Compatibility — the kit is designed for bicycles with a bottom bracket width of 100 mm; it is advisable to measure this dimension before installation.
  • HY 48 V 20 Ah Battery — battery with the voltage corresponding to the motor, supplied together with a 2 A charger.
  • TFT Display EKD01 — colour display with a diagonal of 2.4" for ride information.
  • Brake Sensors — two sensors connect the brakes to the motor system.
  • Connectors — the motor has connectors for front and rear lights, speed sensor, gear sensor, battery, and communication with the battery and a 1T4 connector.

Package Contents:

  • 1x Bafang BBS02B 48 V 750 W Mid-Drive Motor
  • 1x 42T Chainring
  • 1x TFT Display EKD01 2.4"
  • 1x HY 48 V 20 Ah Battery
  • 1x 2 A Charger
  • 2x Brake Sensors

The kit is intended for those who want to convert their bicycle into an electric bike with a mid-drive system and acquire both the motor and battery at once. Before ordering, please verify that the bottom bracket of your frame has a width of 100 mm. The motor communicates with other components via the CAN bus system and offers both pedal-assist and walk-assist modes. Riding data is monitored on the 2.4-inch TFT display EKD01 mounted on the handlebars. The 48 V 20 Ah battery with a 2 A charger is included in the kit, so it does not need to be purchased separately.
