Bafang BBS02B 48 V 750 W Conversion Kit for E-Bike 42T Chainring 68 mm Bottom Bracket 48 V 20 Ah Battery TFT Display EKD01 Black

Bafang BBS02B 48 V 750 W Conversion Kit for E-Bike 42T Chainring 68 mm Bottom Bracket 48 V 20 Ah Battery TFT Display EKD01 Black

Central motor with CAN bus system and IPX5 rating, battery with 2 A charger and brake sensors. Suitable for converting a regular bicycle into an e-bike. Full description
In stock
Delivery €1.59
30-day return policy
€1,358.03
Safe shopping Safe shopping
Overview
Bafang BBS02B 48 V 750 W Conversion Kit for E-Bike 42T Chainring 68 mm Bottom Bracket 48 V 20 Ah Battery TFT Display EKD01 Black

The conversion kit for transforming a bicycle into an e-bike includes the Bafang BBS02B central motor, battery, display, and brake sensors. The motor with specifications 48 V 750 W is mounted in a bottom bracket with a width of 68 mm and drives the rear wheel via a 42-tooth chainring and chain. Power is supplied by the HY 48 V 20 Ah battery, which comes with a 2 A charger. Riding data is displayed on a 2.4-inch TFT display EKD01. The motor operates with a CAN bus system and is finished in black.

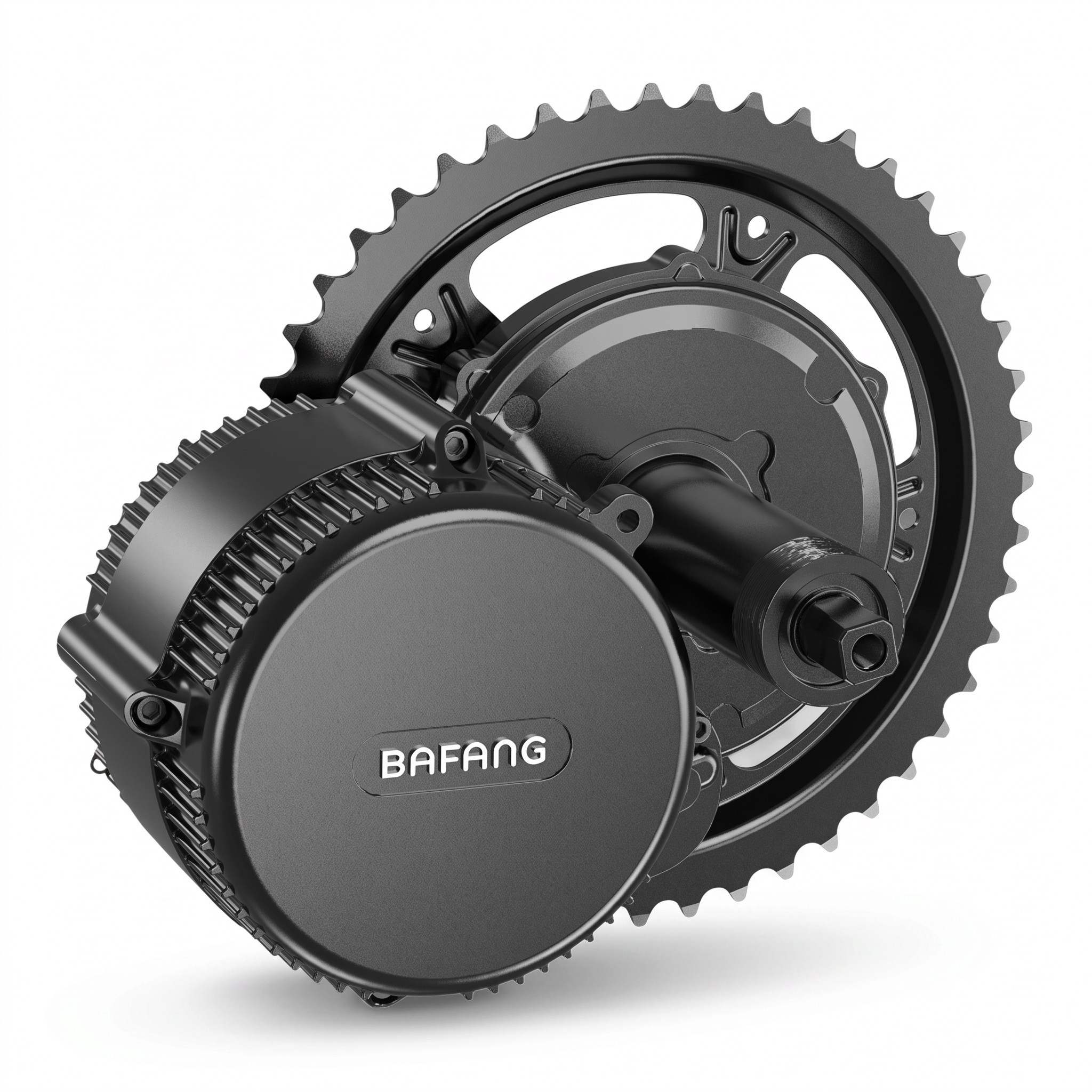

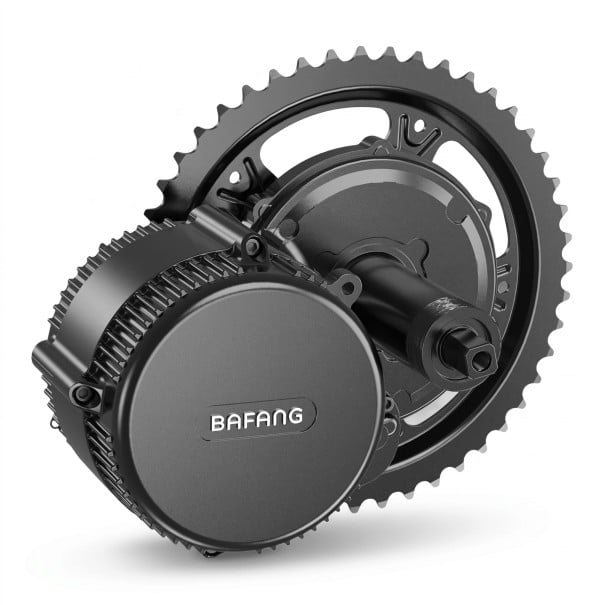

  • Bafang BBS02B Central Motor — electric drive with a rated power of 750 W and voltage of 48 V, which is mounted in place of the original bottom bracket and transmits power through the chainring and chain to the rear wheel.
  • Durability — the motor has an IPX5 water protection rating.
  • CAN bus System — the motor communicates with the display, battery, and other kit components via the CAN bus.
  • Riding Modes — pedalling assistance and walking assistance at a speed of 6 km/h, which can be used, for example, when pushing the bike uphill.
  • 42T Chainring — the 42-tooth chainring transmits the motor's power to the chain.
  • Compatibility — the kit is designed for bicycles with a bottom bracket width of 68 mm; it is advisable to measure this dimension before installation.
  • HY 48 V 20 Ah Battery — battery with voltage matching the motor, supplied together with a 2 A charger.
  • TFT Display EKD01 — colour display with a diagonal of 2.4" for an overview of the ride.
  • Brake Sensors — two sensors connect the brakes to the motor system.
  • Connectors — the motor has connectors for front and rear lights, speed sensor, gear sensor, battery, and communication with the battery, as well as a 1T4 connector.

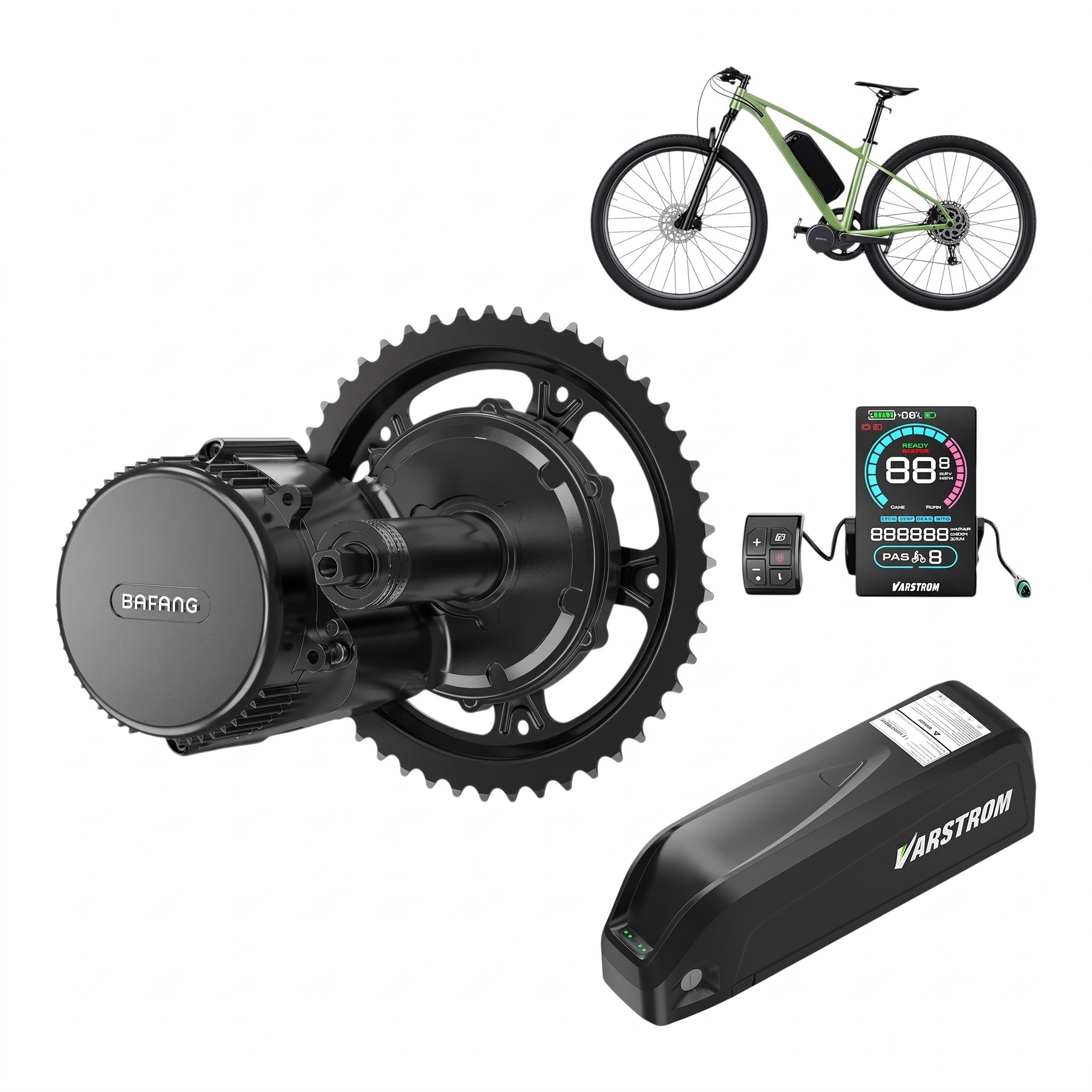

Contents of the package:

  • 1x Bafang BBS02B 48 V 750 W central motor
  • 1x 42T chainring
  • 1x TFT display EKD01 2.4"
  • 1x HY 48 V 20 Ah battery
  • 1x 2 A charger
  • 2x brake sensor

The kit is intended for those who wish to convert their bicycle into an e-bike with a central drive and acquire both the motor and battery at once. Before ordering, please verify that the bottom bracket of your frame has a width of 68 mm. The motor communicates with other components via the CAN bus system and offers both pedalling assistance and walking assistance. Riding data is monitored on the 2.4-inch TFT display EKD01 mounted on the handlebars. The 48 V 20 Ah battery with a 2 A charger is included in the kit, so it does not need to be purchased separately.
