Bafang BBS02B 48 V 500 W Electric Bike Conversion Kit 44T Chainring 68 mm Bottom Bracket 48 V 20 Ah Battery TFT Display EKD01 Black

Bafang BBS02B 48 V 500 W Electric Bike Conversion Kit 44T Chainring 68 mm Bottom Bracket 48 V 20 Ah Battery TFT Display EKD01 Black

Central motor with a torque of 100 N·m, battery with a 2 A charger and brake sensors. Suitable for converting mountain, city, and cargo bikes. Full description
In stock
Delivery €1.59
30-day return policy
€1,354.10
Safe shopping Safe shopping
Overview
Bafang BBS02B 48 V 500 W Electric Bike Conversion Kit 44T Chainring 68 mm Bottom Bracket 48 V 20 Ah Battery TFT Display EKD01 Black

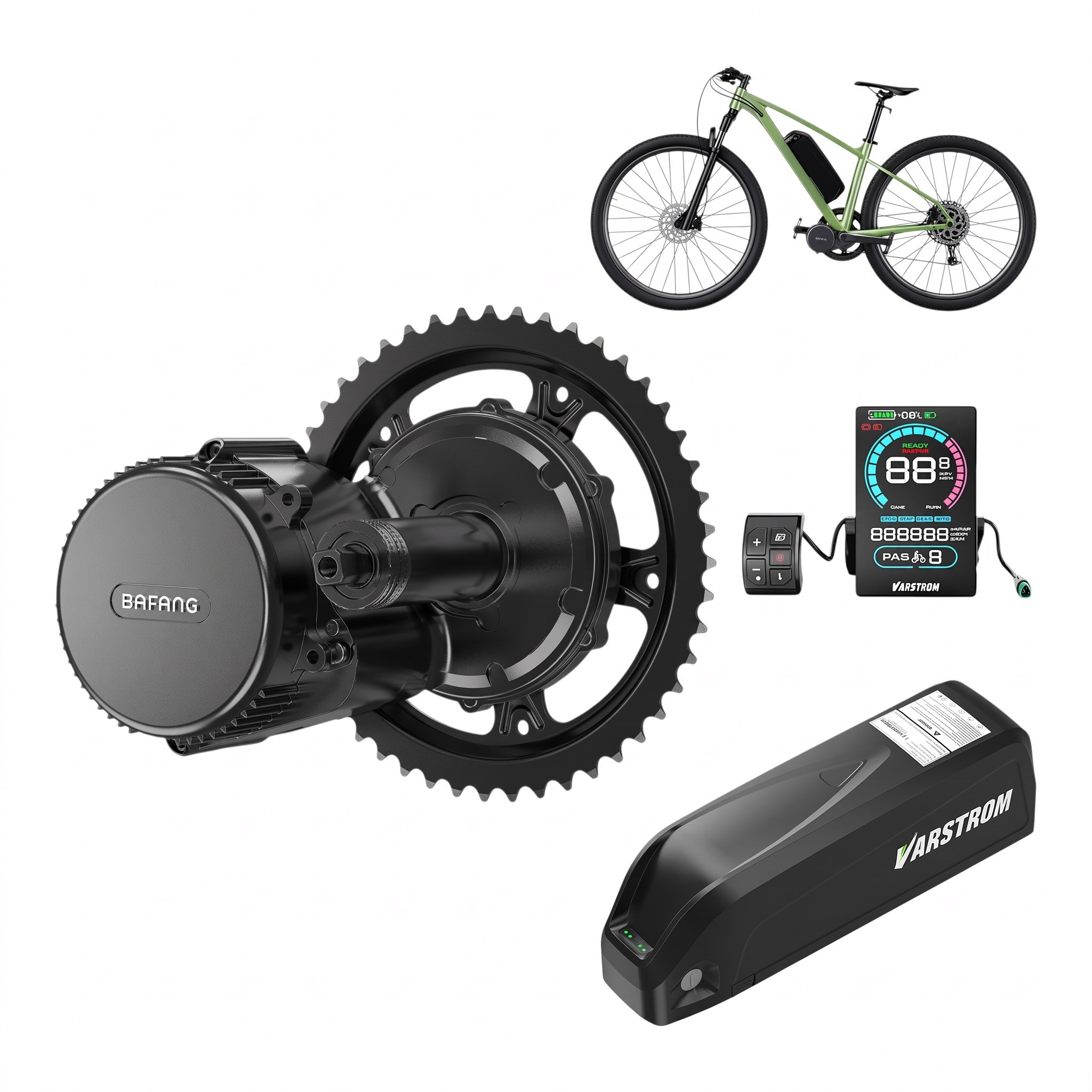

The kit for converting a bicycle into an electric bike includes a Bafang BBS02B central motor, a battery, a display, and brake sensors. The motor with specifications 48 V 500 W is mounted in a bottom bracket with a width of 68 mm and drives the rear wheel via a 44-tooth chainring and chain. Power is provided by a HY 48 V 20 Ah battery, which comes with a 2 A charger. Riding data is displayed on a 2.4-inch TFT display EKD01. The motor operates with a CAN bus system and is finished in black.

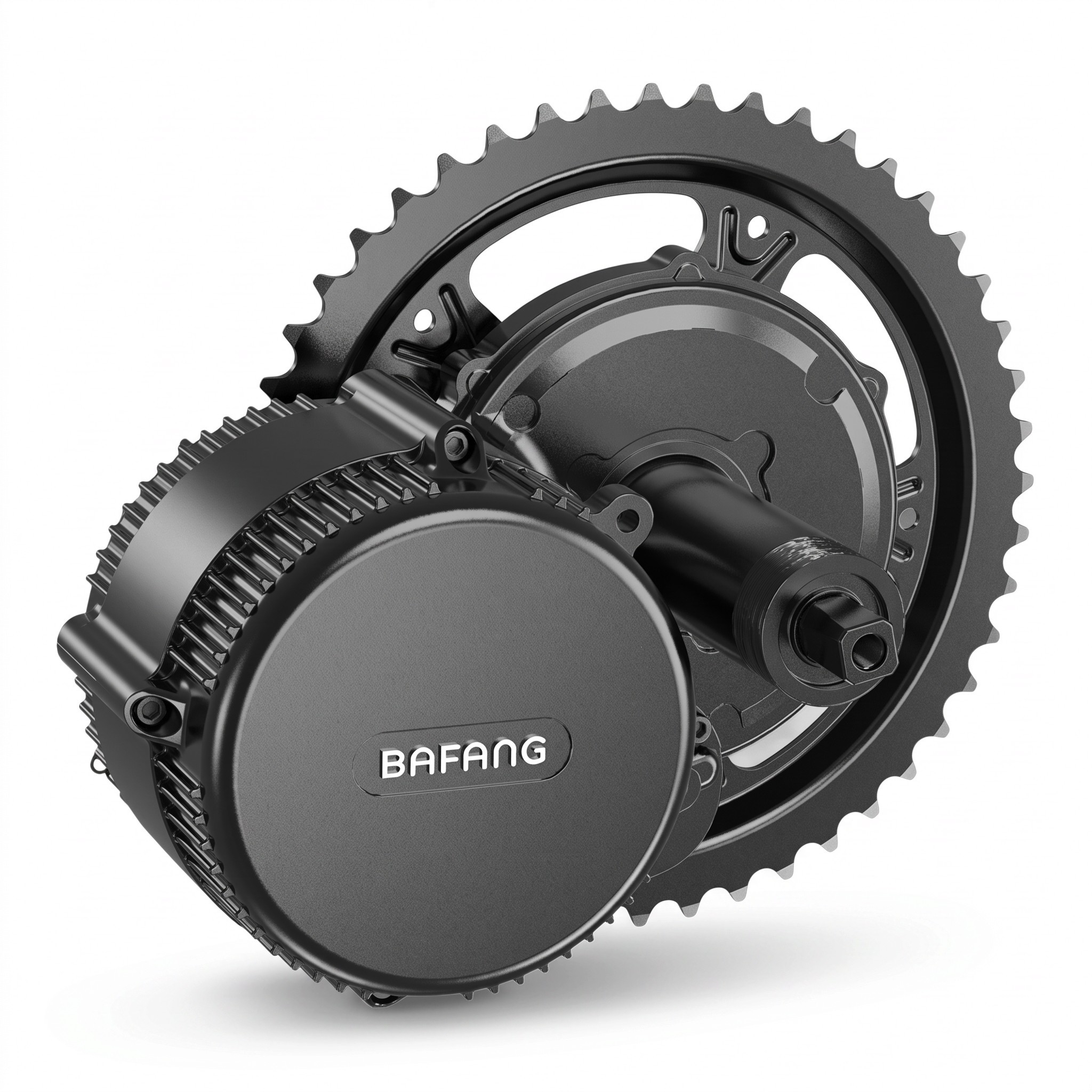

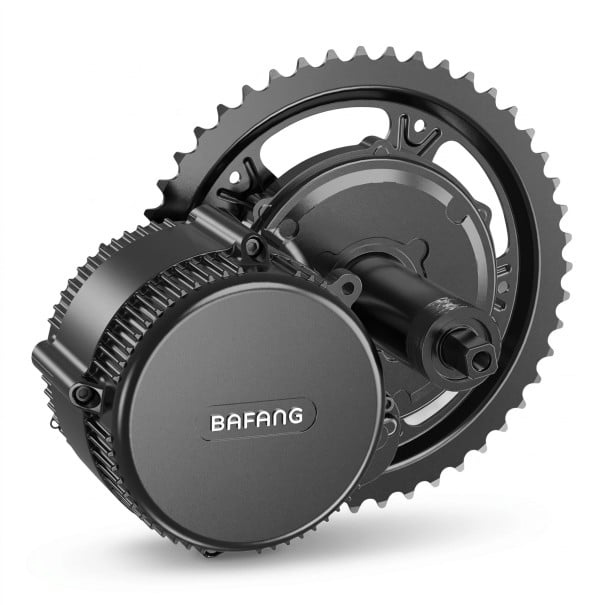

  • Bafang BBS02B Central Motor — electric drive with a rated power of 500 W, voltage of 48 V, and a maximum torque of 100 N·m.
  • Weight and Durability — the motor weighs 4.2 kg and has an IPX5 protection rating.
  • Speed — the maximum speed for the 500 W version is stated to be between 38–45 km/h.
  • Riding Modes — assistance while pedalling and assistance while walking the bike at a speed of 6 km/h.
  • 44T Chainring — the 44-tooth chainring transfers the motor's power to the chain.
  • Compatibility — the kit is designed for bikes with a bottom bracket width of 68 mm. It can be used on mountain, road, city, and cargo bikes as well as tricycles.
  • HY 48 V 20 Ah Battery — a battery with voltage matching the motor, supplied together with a 2 A charger.
  • TFT Display EKD01 — colour display with a diagonal of 2.4" for ride overview.
  • Brake Sensors — two sensors connect the brakes to the motor system.
  • Connectors — the motor has connectors for front and rear lights, speed sensor, gear sensor, battery, and communication with the battery as well as a 1T4 connector.

Package Contents:

  • 1x Bafang BBS02B 48 V 500 W Central Motor
  • 1x 44T Chainring
  • 1x TFT Display EKD01 2.4"
  • 1x HY 48 V 20 Ah Battery
  • 1x 2 A Charger
  • 2x Brake Sensor

The kit is intended for those who want to convert their bicycle into an electric bike with a central drive and acquire both the motor and battery at once. Before ordering, please verify that the bottom bracket of your frame has a width of 68 mm. The motor communicates with other components via the CAN bus system and offers assistance while pedalling as well as assistance while walking the bike. The IPX5 protection rating and weight of 4.2 kg are specified for the motor alone. The 48 V 20 Ah battery with a 2 A charger is included in the kit, so it does not need to be purchased separately.
