Bafang BBS01B 48 V 250 W Electric Bike Conversion Kit 44T Chainring 68 mm Bottom Bracket 48 V 20 Ah Battery TFT Display EKD01 Black

Bafang BBS01B 48 V 250 W Electric Bike Conversion Kit 44T Chainring 68 mm Bottom Bracket 48 V 20 Ah Battery TFT Display EKD01 Black

Central motor with a torque of 80 N·m, battery with a 2 A charger and brake sensors. Suitable for converting mountain, city, and cargo bikes. Full description
In stock
Delivery €1.59
30-day return policy
€1,325.28
Safe shopping Safe shopping
Overview
Bafang BBS01B 48 V 250 W Electric Bike Conversion Kit 44T Chainring 68 mm Bottom Bracket 48 V 20 Ah Battery TFT Display EKD01 Black

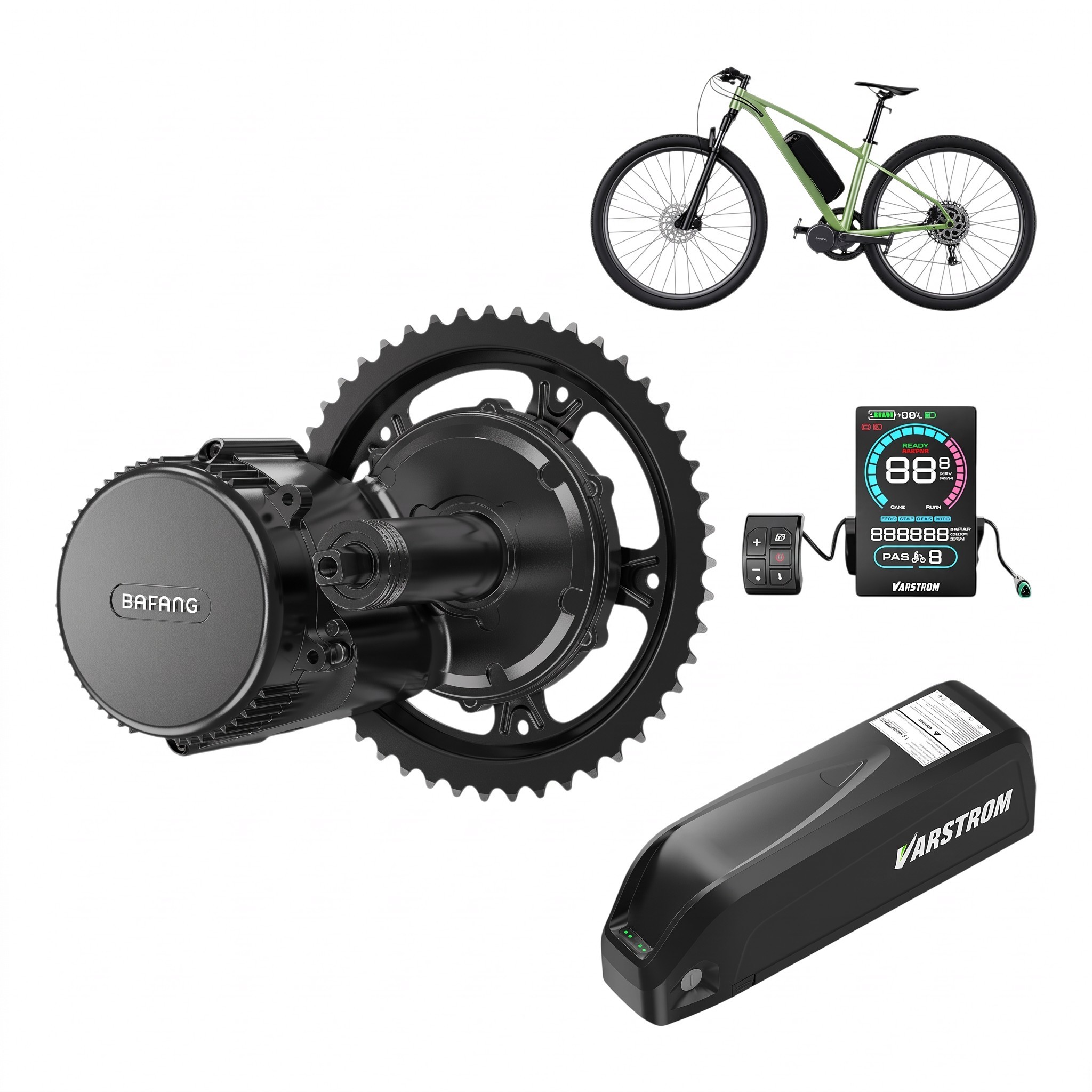

The electric bike conversion kit includes a Bafang BBS01B central motor, battery, display, and brake sensors. The motor with specifications 48 V 250 W is mounted in a bottom bracket with a width of 68 mm and drives the rear wheel via a 44-tooth chainring and chain. Power is provided by a HY 48 V 20 Ah battery, which comes with a 2 A charger. Riding data is displayed on a 2.4-inch TFT display EKD01. The motor operates with a CAN bus system and is available in black.

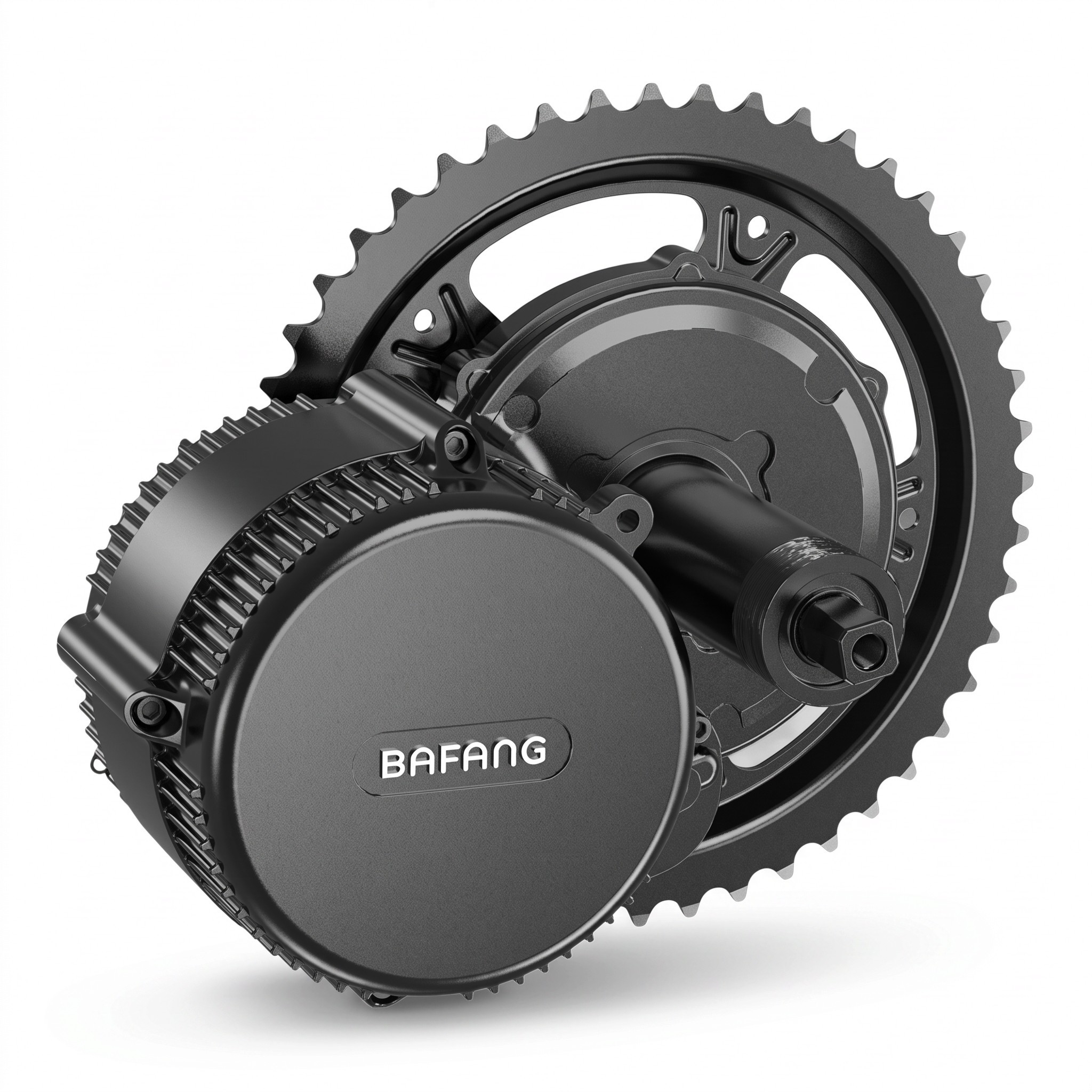

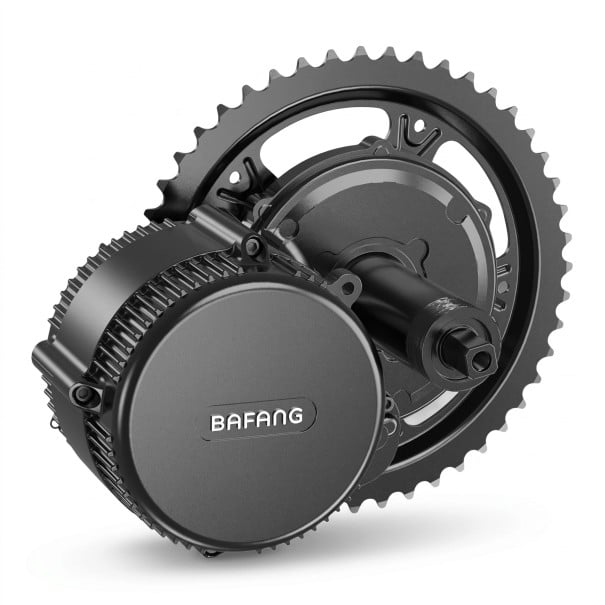

  • Bafang BBS01B Central Motor — model M315.G340 with a rated power of 250 W, voltage of 48 V, and maximum torque of 80 N·m.
  • Weight and Durability — the motor weighs 3.8 kg and has an IPX5 protection rating.
  • Speed — the maximum speed for the 250 W version is stated to be between 30–35 km/h.
  • Riding Modes — pedalling assistance and walking assistance at a speed of 6 km/h.
  • 44T Chainring — the 44-tooth chainring transmits the motor's power to the chain.
  • Compatibility — the kit is designed for bikes with a bottom bracket width of 68 mm. It can be used on mountain, road, city, and cargo bikes as well as tricycles.
  • HY 48 V 20 Ah Battery — a battery with voltage matching the motor, supplied together with a 2 A charger.
  • TFT Display EKD01 — a colour display with a diagonal of 2.4" for ride information.
  • Brake Sensors — two sensors connect the brakes to the motor system.
  • Connectors — the motor has connectors for front and rear lights, speed sensor, gear sensor, battery, and communication with the battery, as well as a 1T4 connector.

Contents of the package:

  • 1x Bafang BBS01B 48 V 250 W central motor
  • 1x 44T chainring
  • 1x TFT display EKD01 2.4"
  • 1x HY 48 V 20 Ah battery
  • 1x 2 A charger
  • 2x brake sensor

This kit is intended for those who want to convert their bike into an electric bike with a central drive and purchase both the motor and battery at once. Before ordering, please verify that the bottom bracket of your frame has a width of 68 mm. The motor communicates with other components via the CAN bus system and offers pedalling assistance as well as walking assistance. The IPX5 protection rating and weight of 3.8 kg are specified for the motor alone. The 48 V 20 Ah battery with a 2 A charger is included in the kit, so it does not need to be purchased separately.
