Bafang 48 V 750 W Mid Motor Conversion Kit 44T Chainring 100 mm Bottom Bracket Mini Display VD03 Dark Grey

Bafang 48 V 750 W Mid Motor Conversion Kit 44T Chainring 100 mm Bottom Bracket Mini Display VD03 Dark Grey

48 V 750 W mid motor conversion kit for bicycles, 100 mm bottom bracket, 44T chainring, mini display VD03, throttle, cranks and brake levers included in the kit. Full description
In stock
Delivery €1.59
30-day return policy
€738.38
Safe shopping Safe shopping
Overview
Bafang 48 V 750 W Mid Motor Conversion Kit 44T Chainring 100 mm Bottom Bracket Mini Display VD03 Dark Grey

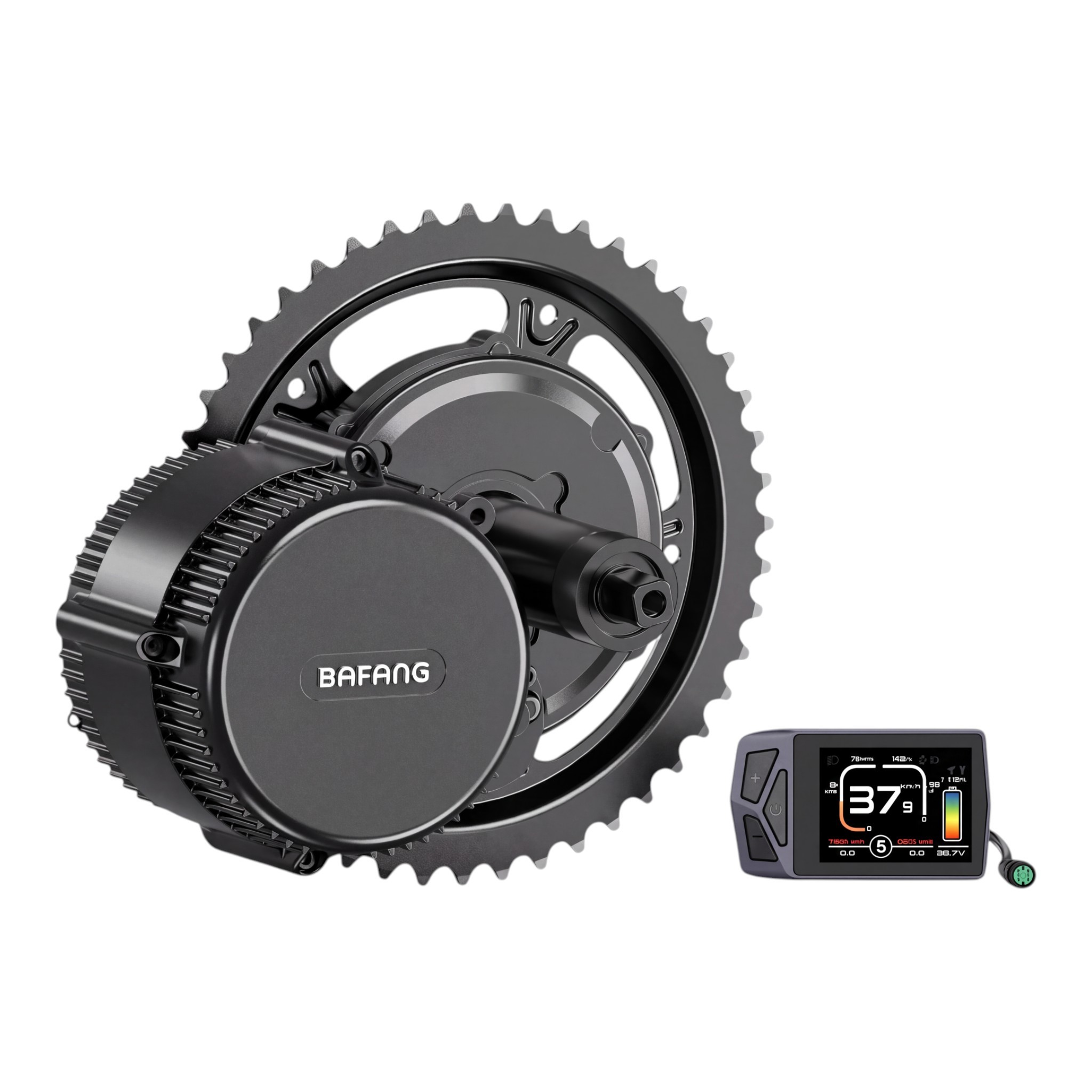

This kit converts a traditional bicycle into an electric bike and includes a mid motor Bafang 48 V 750 W, 44T chainring, mini display VD03, brake levers, and other components necessary for installation. The motor is mounted in the bottom bracket area and is designed for frames with a 100 mm bottom bracket. It powers the bicycle through the chain, allowing the existing gears on the rear wheel to be retained. The kit also includes cranks, a throttle, a speed sensor, and a front light. The motor housing is finished in dark grey.

Main Features

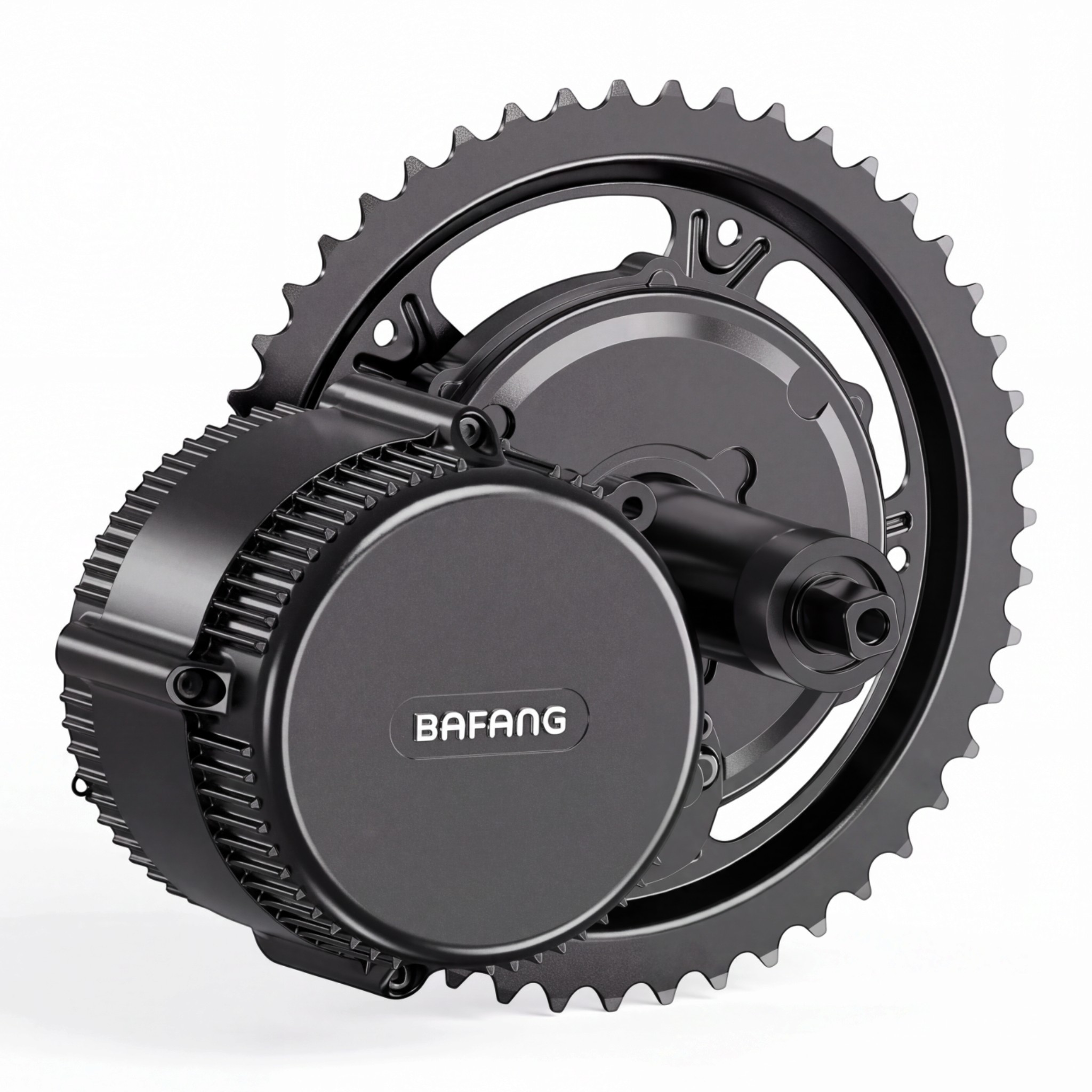

  • Mid Motor – Bafang motor with a nominal voltage of 48 V and a power output of 750 W is secured into the bottom bracket of the frame and drives the bicycle through the chain.
  • Bottom Bracket – The kit is intended for frames with a bottom bracket width of 100 mm, it is advisable to measure this dimension on the bicycle before purchase.
  • Chainring – 44T chainring with a protective cover is directly mounted on the motor and replaces the original chainring on the cranks.
  • Cranks – A pair of cranks is attached to the motor axle and replaces the original bicycle cranks.
  • Display – The mini display VD03 is mounted on the handlebars and shows riding data, taking up minimal space on the handlebars due to its small size.
  • Brake Levers – Pressing the brake interrupts the motor's operation, ensuring that the drive does not counteract braking.
  • Control – The throttle allows for riding with motor assistance without the need to pedal.
  • Speed Sensor – The sensor with a magnet on the wheel transmits information about the bicycle's speed to the system and display.
  • Lighting – The kit includes a front light that connects to the bicycle's electrical system.
  • Cabling – The cable harness is used to connect the motor to the display, throttle, brake levers, and light.
  • Installation – The package includes mounting materials, a mounting tool, a wrench, zip ties, and an installation manual.
  • Finish – The motor body and cranks are dark grey, while the chainring with cover is black.

Package Contents:

  • 1x Bafang 48 V 750 W mid motor
  • 1x mini display VD03
  • 2x brake lever
  • 1x 44T chainring with cover
  • 2x crank
  • 1x throttle
  • 1x speed sensor with magnet
  • 1x cable harness
  • 1x front light
  • 1x set of mounting materials
  • 1x mounting tool
  • 1x mounting wrench
  • 1x set of zip ties
  • 1x manual

This kit is designed to convert a bicycle into an electric bike with a mid motor rated at 750 W and a voltage of 48 V. The motor is mounted in frames with a 100 mm bottom bracket and the chain drive retains the original bicycle gears. The 44T chainring and cranks are included in the package, so there is no need to purchase them separately. The mini display VD03 shows riding data and brake levers cut off the motor during braking. The throttle, speed sensor, and front light complete the kit's equipment.

Delivery and Returns
Price incl. VAT €738.38
