8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 1
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 1
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 2
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 3
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 4
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 5
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 6
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 7
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 8

8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass

8 mm drill bit with M14 thread for angle grinder for dry drilling holes into tiles, ceramics, marble, granite and glass. Packed in a plastic tube. Full description
In stock
€19.17
Safe shopping Safe shopping
Overview
8 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass

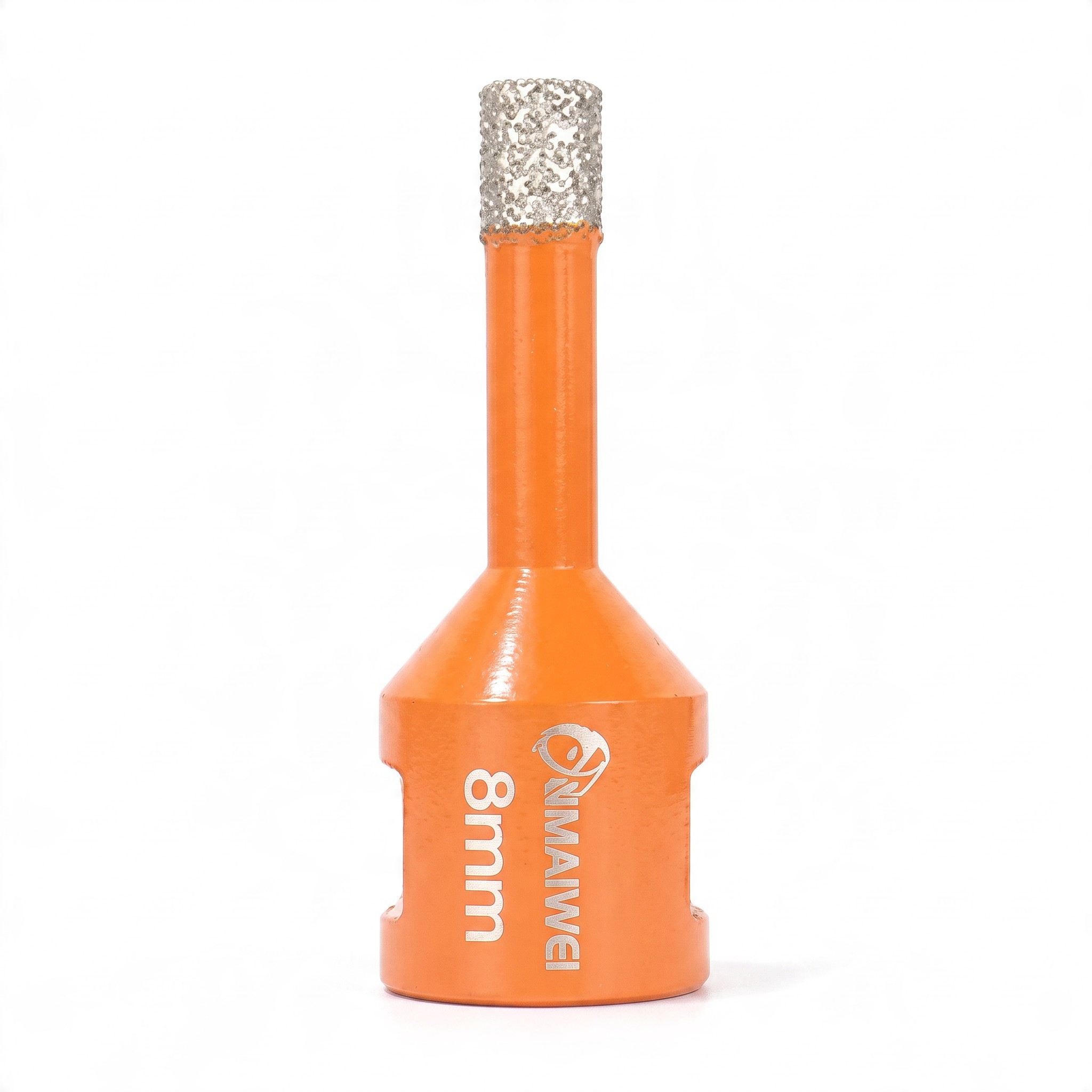

The 8 mm diamond drill bit is designed for drilling small precise holes into hard and brittle materials. It features an internal thread of M14, allowing it to be screwed directly onto the spindle of an angle grinder without the need for an additional chuck. The cutting edge is fitted with vacuum brazed diamond grains, which can handle ceramic tiles, slabs, marble, granite, stone surfaces, and glass. The drill bit is intended for dry drilling without water cooling, although it can also be used with water for longer tasks. It is suitable for tilers, plumbers, and DIY enthusiasts during bathroom and kitchen renovations or when laying tiles.

  • Hole Diameter 8 mm – the drill bit creates a hole with a diameter of 8 mm in tiles, slabs, stone or glass.
  • M14 Thread – attachment directly to the angle grinder with M14 thread.
  • Vacuum Brazed Diamond – diamond grains firmly bonded to the tool body for cutting hard and abrasive materials.
  • Dry and Wet Drilling – drilling without the need for water cooling, although water can extend the tool's lifespan.
  • Dimensions – diameter 8 mm, total length 60 mm, clamping part diameter 22 mm.
  • Construction – slim drill bit with a tapered clamping section.
  • Suitable Materials – marble, granite, stone slabs, ceramics, tiles, and glass.
  • Drilling Procedure – first, position the tool at a 45° angle and create a groove, then drill vertically at a 90° angle with a slight circular motion.

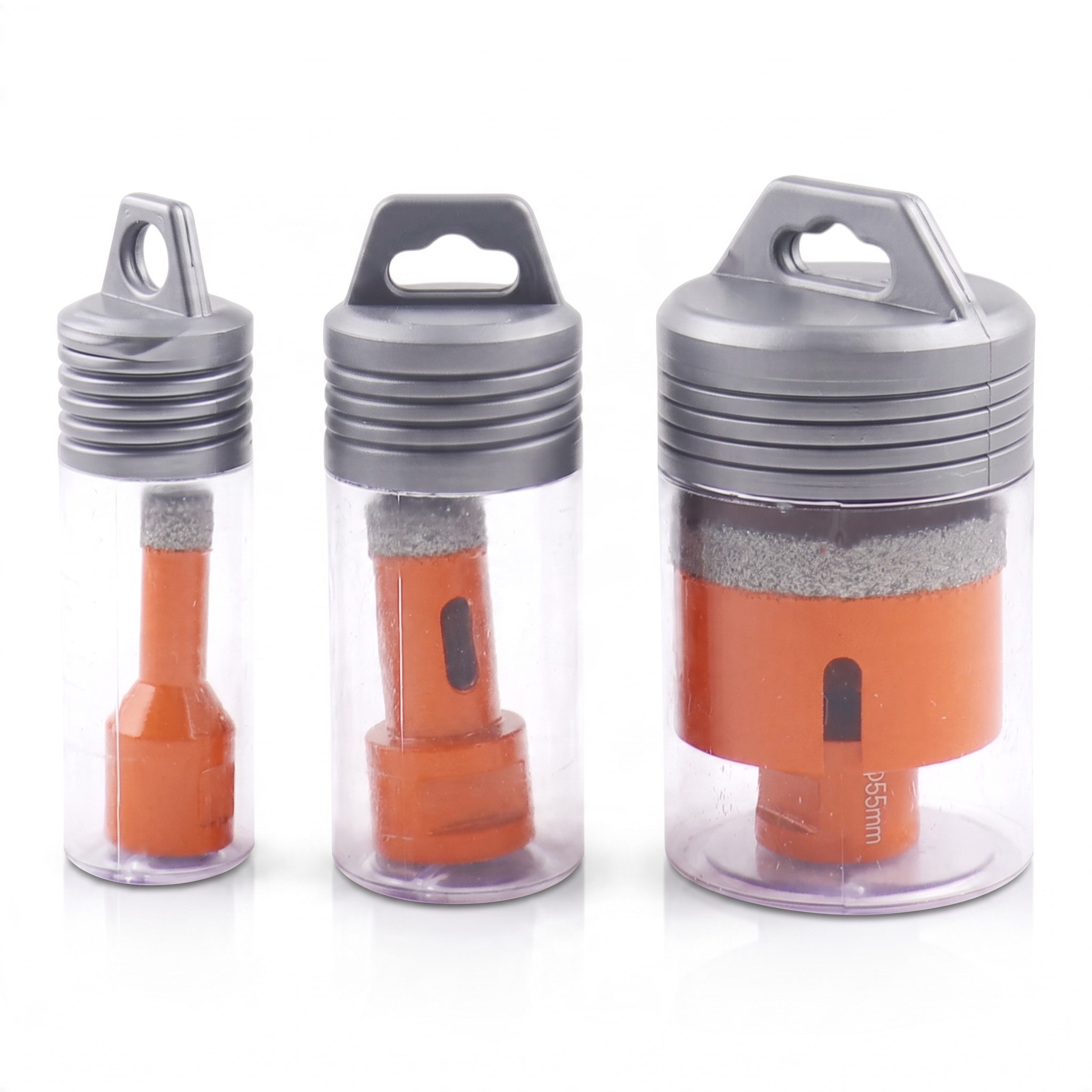

  • Contents of Packaging – 1 piece of 8 mm diamond drill bit in a plastic tube.

When working, we recommend starting with the drill bit tilted at approximately 45° to create a crescent-shaped groove in the surface, which will prevent slipping on smooth glaze. Once the drill bit holds in the correct position, gradually straighten it to a vertical position and drill with a gentle circular motion and even pressure. This procedure helps maintain a clean edge around the hole and reduces the risk of chipping the glaze. The hard diamond layer retains the shape of the cutting edge even after repeated use. The plastic tube in which the drill bit is supplied makes it easy to carry and store in the workshop.

The 8 mm diamond drill bit with M14 thread is a practical addition to any angle grinder for those working with tiles, flooring, or natural stone. The vacuum brazed diamond layer can handle tough materials such as granite and marble, and the option for dry drilling simplifies work directly at the installation site. Directly screwing onto the grinder spindle saves time when installing sanitary fittings, kitchen units, and electrical installations. If the drill bit is occasionally cooled with water during prolonged drilling, it will extend its lifespan and maintain cutting ability for future use. The drill bit is suitable for both one-off home repairs and repeated use during renovations.

Price incl. VAT €19.17
