10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 1
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 1
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 2
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 3
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 4
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 5
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 6
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 7
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass 8

10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass

10 mm drill bit with M14 thread for angle grinder for dry drilling holes into tiles, ceramics, marble, granite and glass. Packaged in a plastic tube. Full description
In stock
€19.61
Safe shopping Safe shopping
Overview
10 mm Diamond Drill Bit with M14 Thread for Angle Grinder Vacuum Brazed Diamond Orange Dry Drilling into Tiles Marble Granite and Glass

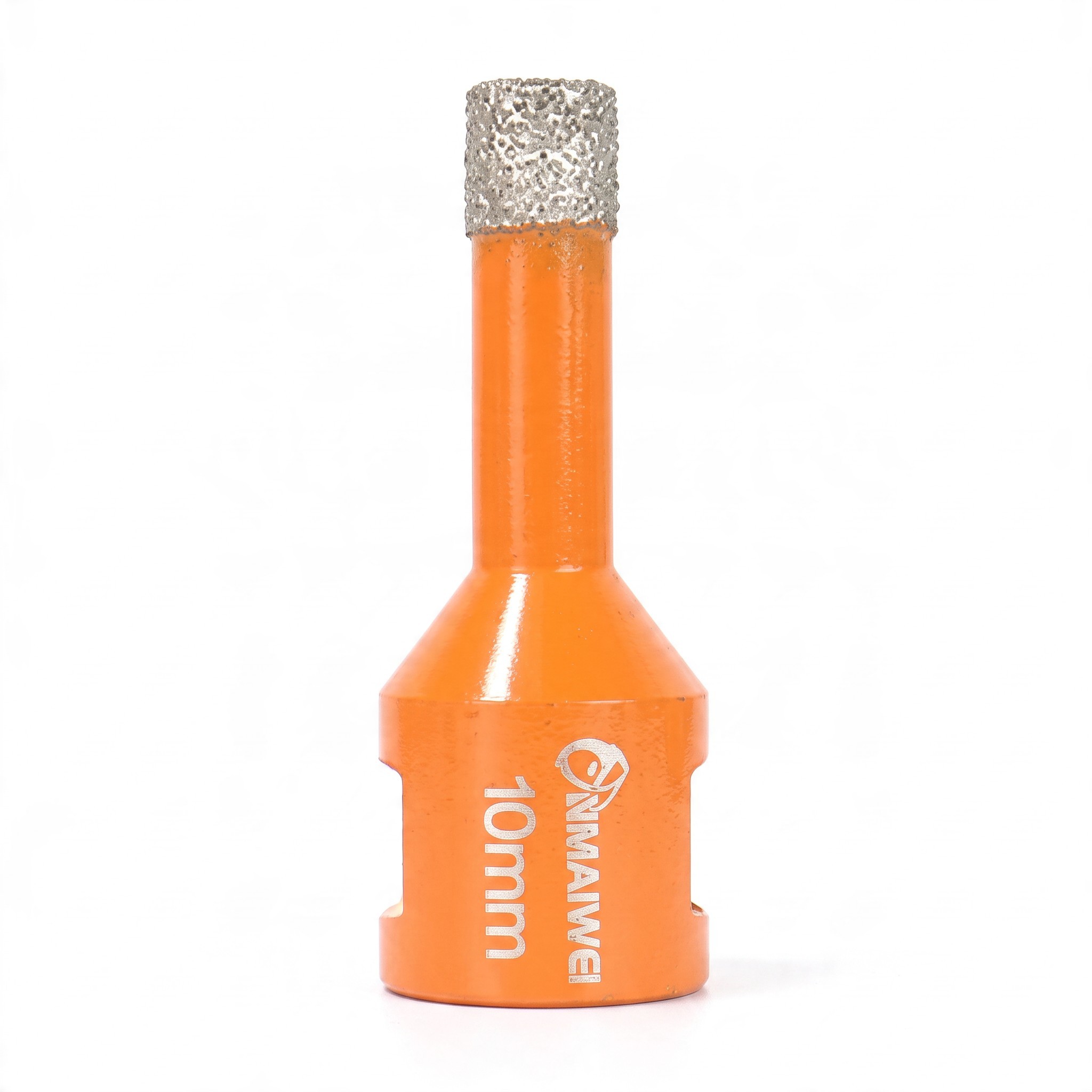

The diamond drill bit with a diameter of 10 mm is designed for drilling small precise holes into hard and brittle materials. It features an internal thread of M14, allowing it to be screwed directly onto the spindle of the angle grinder without the need for an additional chuck. The cutting edge is fitted with vacuum brazed diamond grains, capable of handling ceramic tiles, cladding, marble, granite, stone slabs, and glass. The drill bit is intended for dry drilling without water cooling, although it can also be used with water for longer tasks. It is suitable for tilers, plumbers, and DIY enthusiasts during bathroom, kitchen renovations or laying tiles.

  • Hole diameter 10 mm – the drill bit creates a hole with a diameter of 10 mm in tiles, cladding, stone, or glass.
  • M14 thread – direct attachment to the angle grinder with M14 thread.
  • Vacuum brazed diamond – diamond grains firmly bonded to the tool body for cutting hard and abrasive materials.
  • Dry and wet drilling – drilling without the need for water cooling, although water can extend the tool's lifespan.
  • Dimensions – diameter 10 mm, total length 60 mm, clamping part diameter 22 mm.
  • Design – slender drill bit with a tapered clamping section.
  • Suitable materials – marble, granite, stone slabs, ceramics, tiles, cladding, and glass.
  • Drilling procedure – first, position the tool at an angle of 45° and create a groove, then drill vertically at a 90° angle with a slight circular motion.

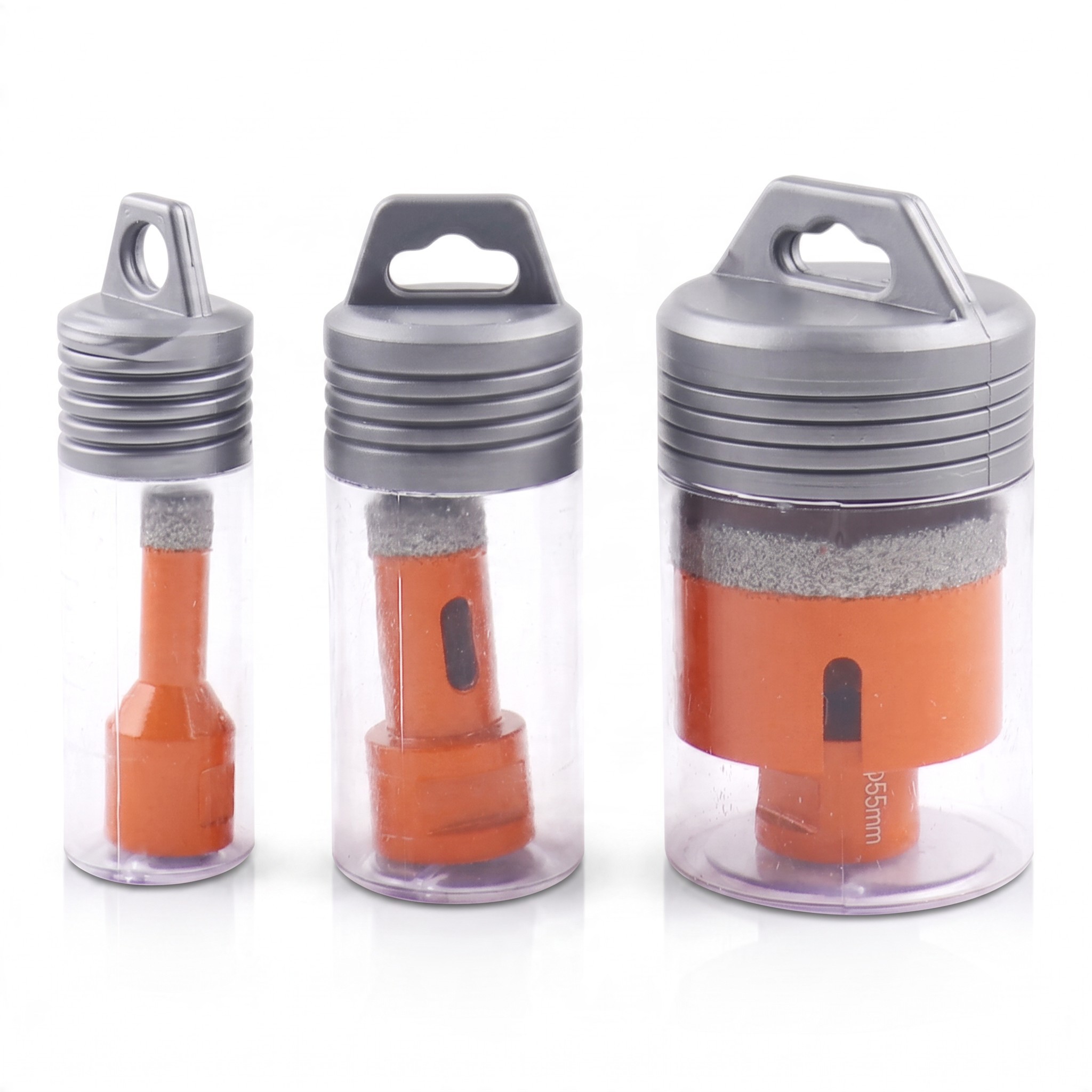

  • Contents of the package – 1 piece of 10 mm diamond drill bit in a plastic tube.

When working, it is recommended to start with the drill bit tilted at approximately 45° to create a crescent-shaped groove on the surface, which will prevent slipping on the smooth glaze. Once the drill bit holds in the correct position, gradually straighten it to a vertical position and drill with a gentle circular motion and even pressure. This procedure helps maintain a clean edge of the hole and reduces the risk of chipping the glaze. The hard diamond layer retains the shape of the cutting edge even with repeated use. The plastic tube in which the drill bit is supplied facilitates transport and storage in the workshop.

The 10 mm diamond drill bit with M14 thread is a practical addition to any angle grinder for those working with tiles, flooring, or natural stone. The vacuum brazed diamond layer handles hard materials such as granite and marble, and the option for dry drilling simplifies work directly at the installation site. Directly screwing onto the spindle of the grinder saves time during the installation of sanitary equipment, kitchen units, and electrical installations. If the drill bit is occasionally cooled with water during prolonged drilling, it will extend its lifespan and maintain cutting ability for future use. The drill bit is suitable for both one-off home repairs and repeated use during renovations.

Price incl. VAT €19.61
