Wireless Car Parking Camera with LED Illumination Viewing Angle 170° Transmitter and Receiver Included Video Output RCA Power Supply 12 V
You already have the maximum available quantity in your cart.
The parking camera will show you the area behind the vehicle and make reversing and parking in tight spaces easier. The image is transmitted to the monitor by a pair of transmitter and receiver, so you do not need to run a video cable between the camera and the monitor. The lens with a viewing angle of 170° captures a wide area behind the car. LED lights around the lens illuminate in low light conditions. The camera operates at 12 V and supports both PAL and NTSC formats.
- Wide Angle — the lens with a focal length of 1.9 mm has a viewing angle of 170°. This allows you to see not only the area directly behind the vehicle but also to the sides, making it easier to notice curbs, posts, or other obstacles. The camera uses a PC1030 CMOS image sensor with a size of 1/3 inch.
- Image Quality — the camera operates in both PAL and NTSC formats. The effective resolution is 512 x 582 px in PAL mode and 512 x 492 px in NTSC mode. The horizontal resolution reaches 420 TVL, the signal-to-noise ratio is 48 dB, and the image synchronisation is internal.
- Low Light — the camera can handle minimum illumination of 0.1 lux and the LED lights around the lens will illuminate the area behind the vehicle. Automatic white balance and automatic backlight compensation adjust the image to current lighting conditions, such as when the sun or the lights of another car are shining behind you.

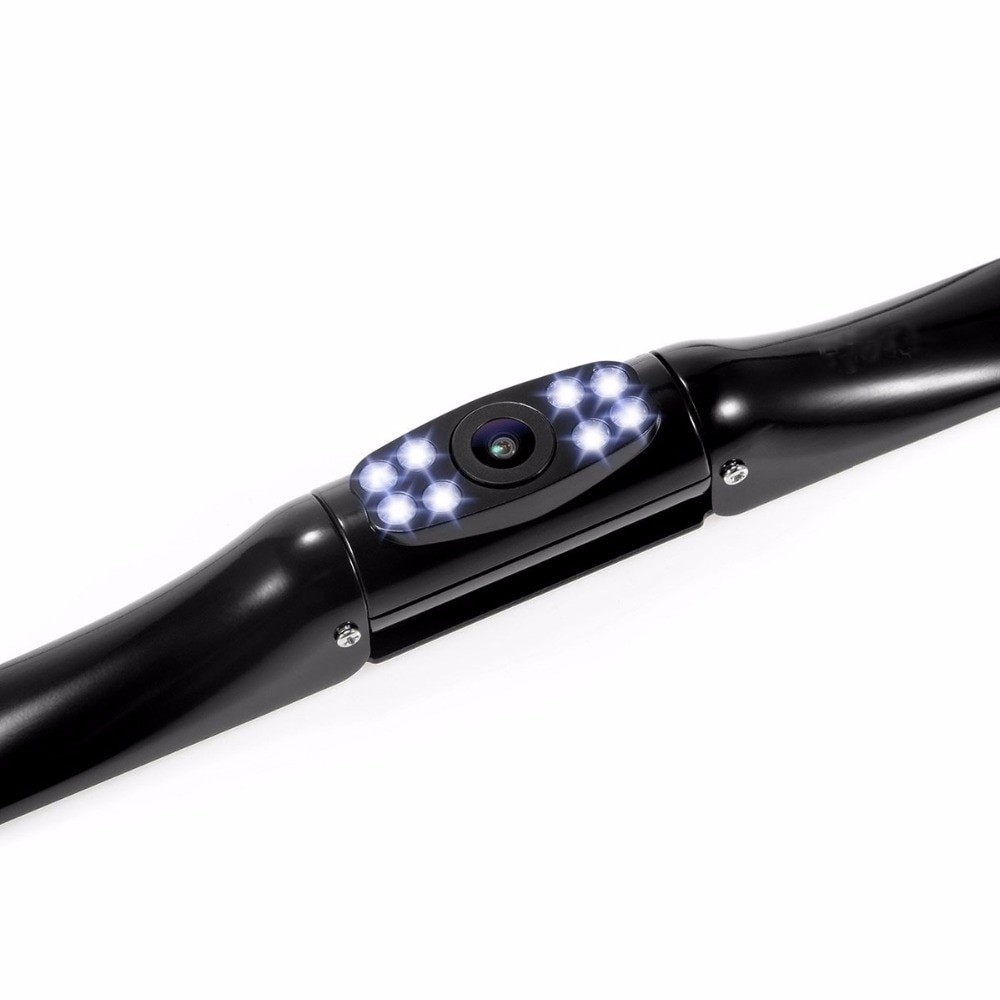

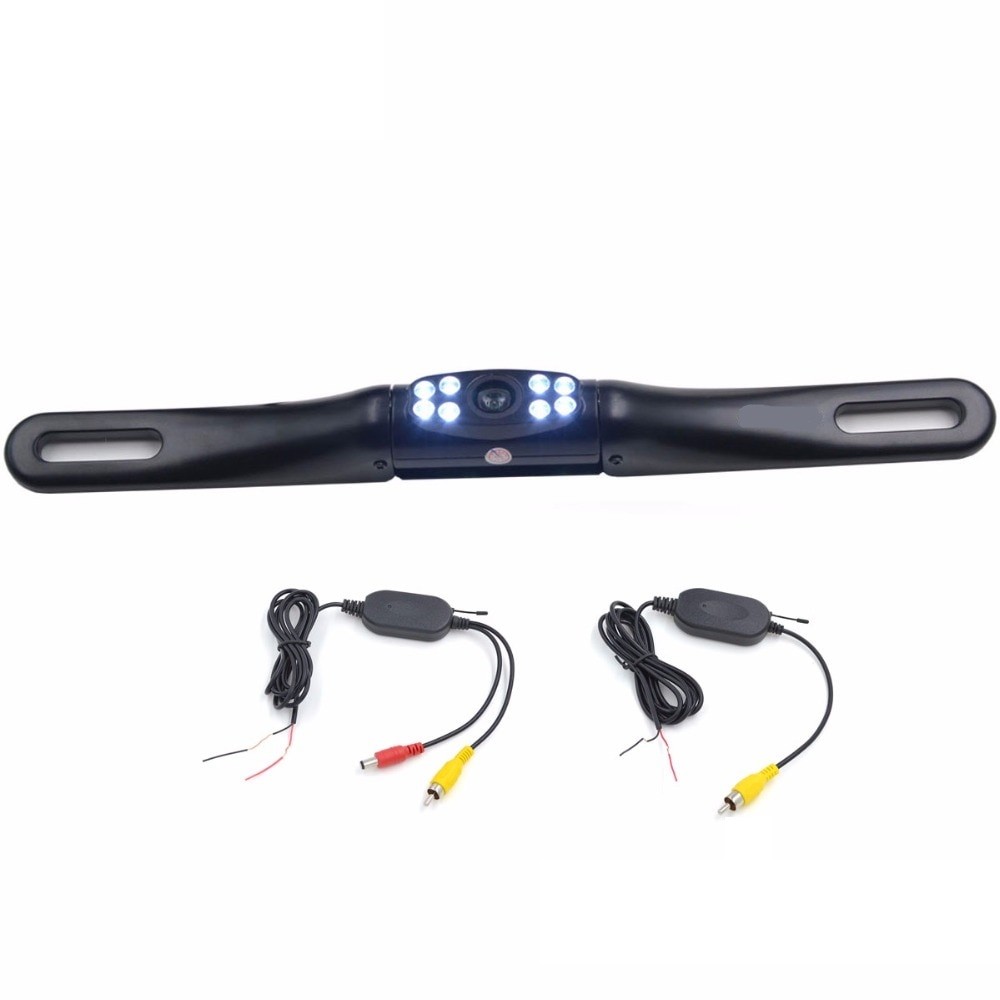

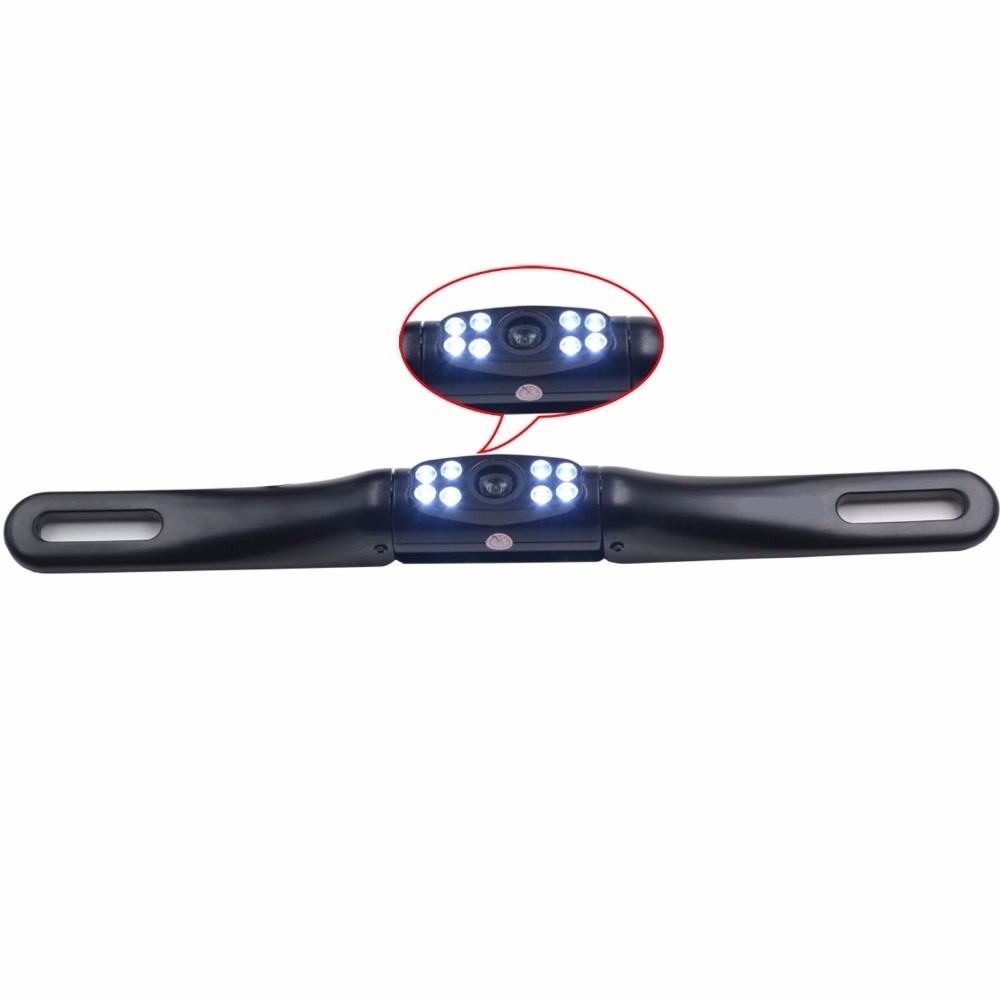

- Construction — the camera is built into a black strip with two oval holes for mounting. The LED lights are positioned on both sides of the lens. A cable from the camera ends with a yellow RCA connector and a power connector.

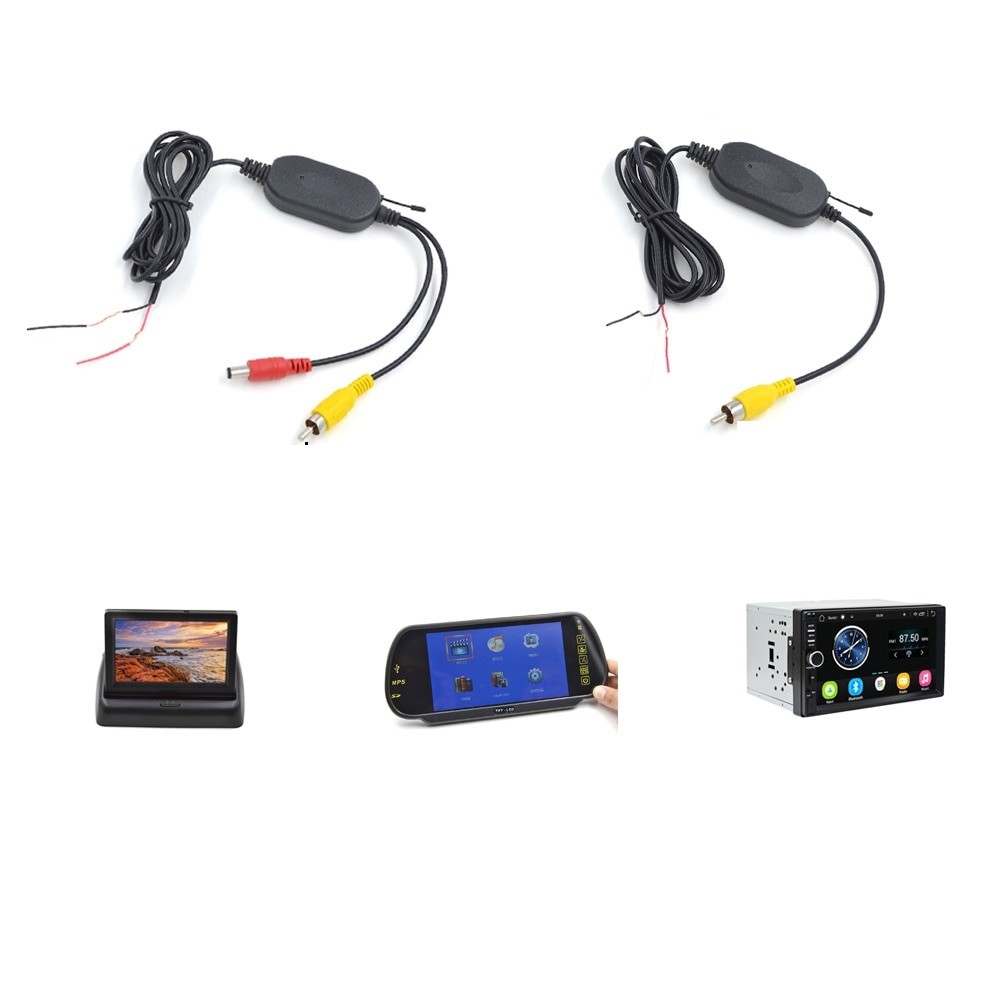

- Wireless Transmission — the package includes a transmitter and receiver that transmit the image from the camera to the monitor without a connecting video cable. The transmitter connects to the camera and the receiver to the monitor. Both modules have yellow RCA connectors and wires for power connection.
- Connection to Monitor — the camera has a video output RCA with parameters of 1.0 Vp-p and 75 ohms. You can display the image on a monitor or car radio with RCA video input that supports PAL or NTSC format.
- Power Supply — the camera operates with a direct current of 12 V, which corresponds to the standard electrical system of passenger cars. However, before installation, check the voltage in your vehicle, especially in trucks with a 24 V electrical system.

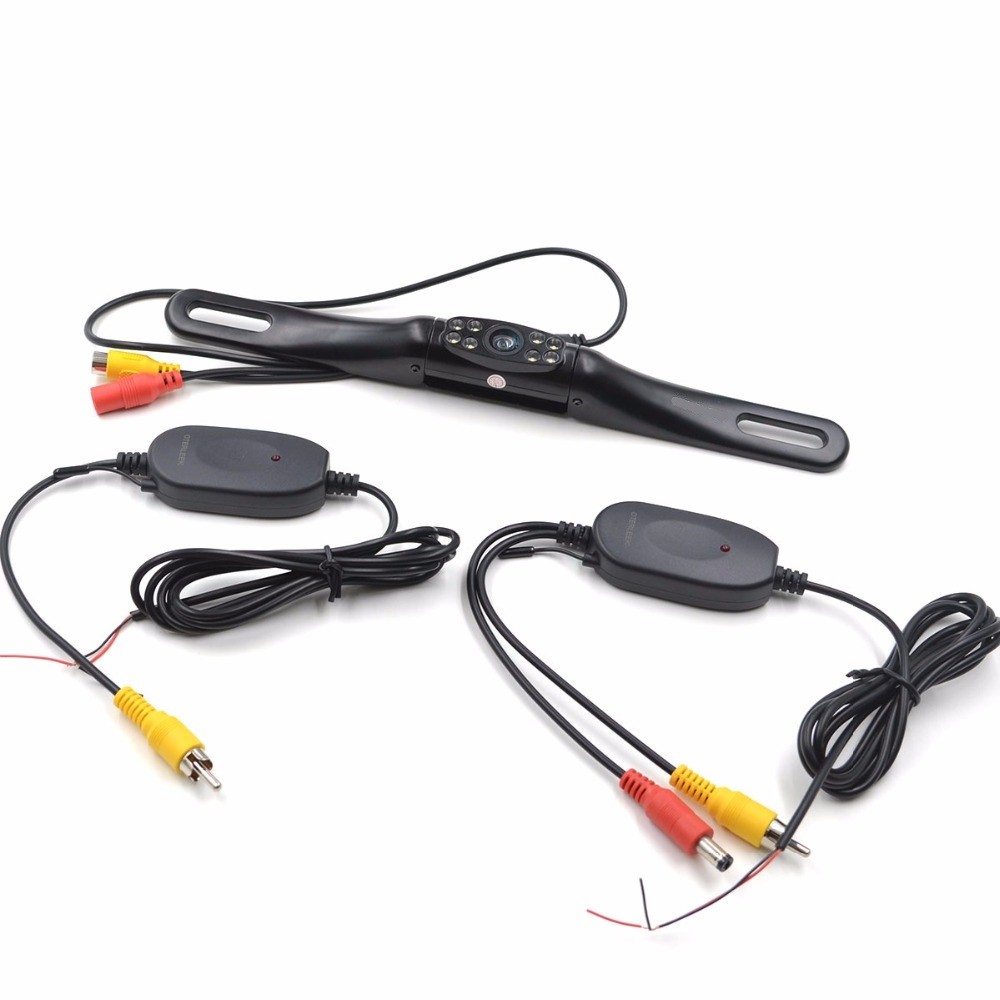

- Package Contents — 1x camera, 1x receiver, 1x transmitter, 1x user manual. Monitors and car radios shown in the photographs are not included in the package.
The wireless parking camera is a practical assistant for anyone who wants to have a better overview of what is happening behind the vehicle while reversing. Wide angle and LED illumination help even in poor visibility when you cannot see much in the mirrors. The wireless image transmission simplifies installation, as there is no need to run a video cable throughout the car. The receiver only needs to be connected to a monitor or car radio with an RCA video input, and you can view the image from behind the vehicle directly on the display.
