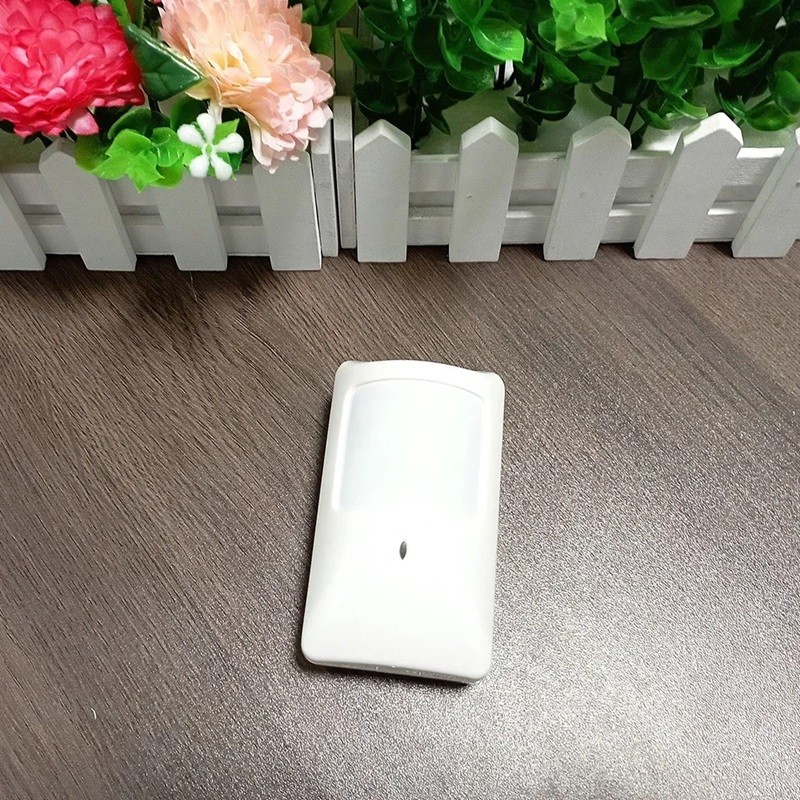

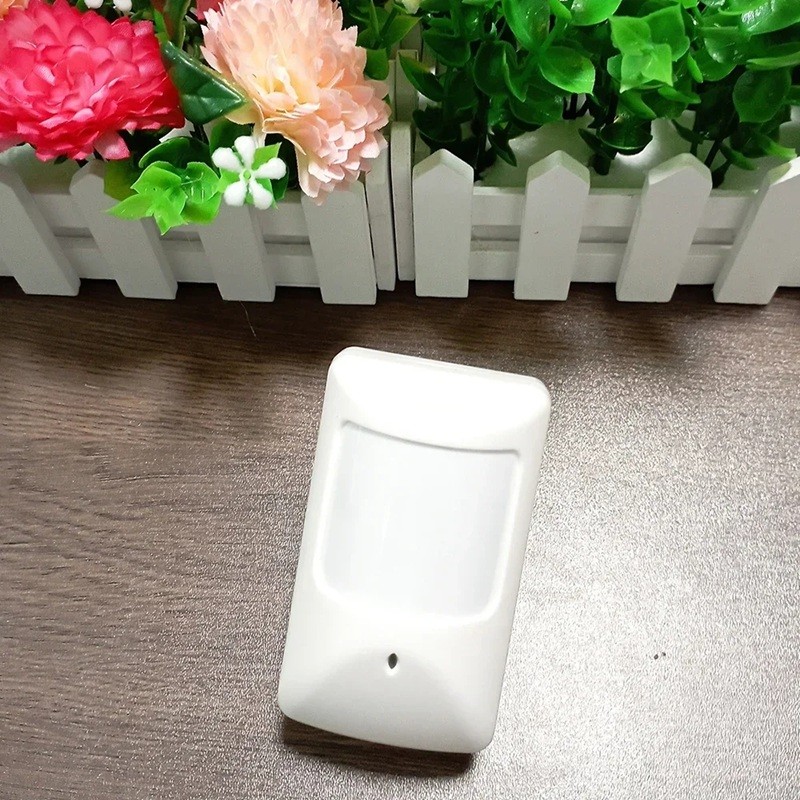

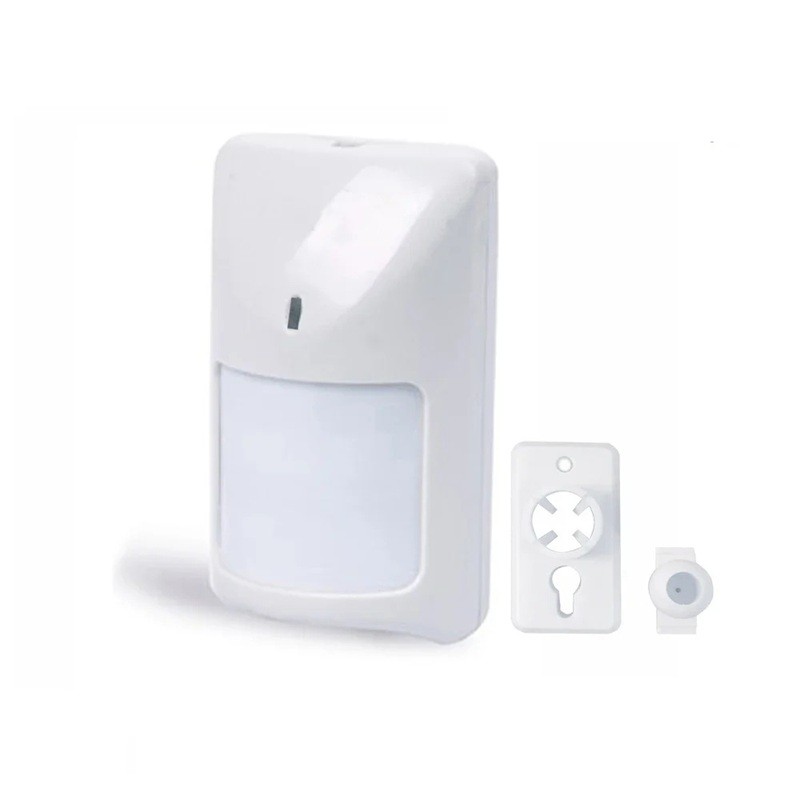

White Wired PIR Motion Sensor for Security Alarm System, Relay Output NO/NC, Power Supply DC 9-12V, Tamper Protection
You already have the maximum available quantity in your cart.
The wired PIR motion sensor is designed for integration into traditional security control panels with wired connections. The dual-element infrared sensor accurately distinguishes human movement from background temperature fluctuations, thereby minimising false alarms. Upon detecting movement, the integrated relay activates at the output - the contact can be configured via a jumper as normally open or normally closed according to the control panel's requirements. The built-in tamper switch alerts the control panel of any forced opening or removal of the sensor's casing.
- Dual-element infrared PIR sensor with high resistance to false alarms
- Relay output with the option to set NO or NC via a jumper
- Tamper switch - alerts the control panel of forced opening of the casing
- Power supply DC 9 to 12V via terminal block, low consumption in standby mode
- Jumpers for setting pulse mode, NO/NC output, and LED activation

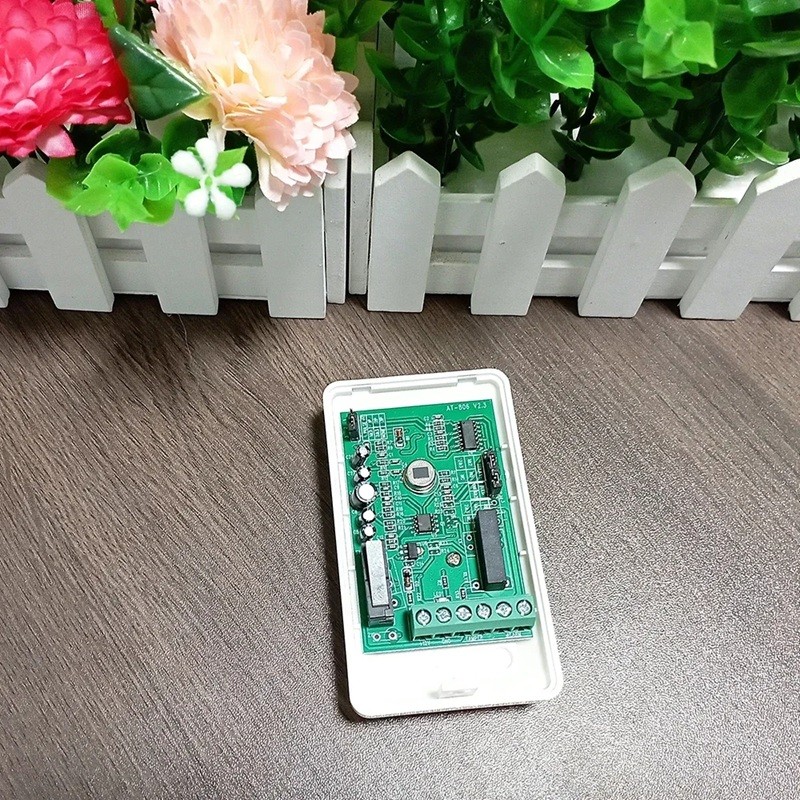

- Terminal block with inputs +12V, GND, tamper contact, and alarm output
- Opening for cable routing behind the sensor
- White matte plastic design suitable for indoor use

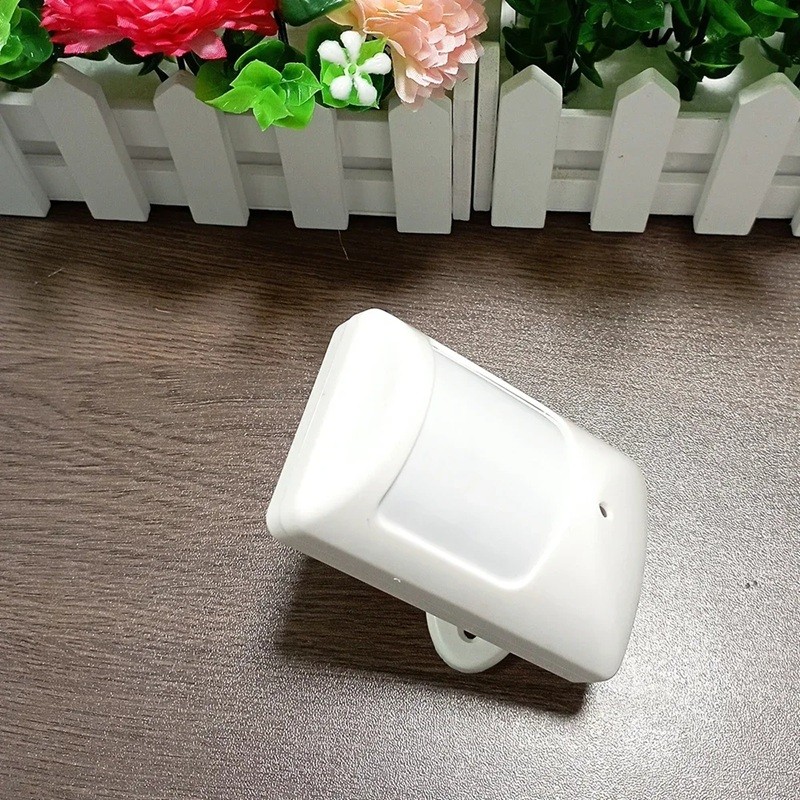

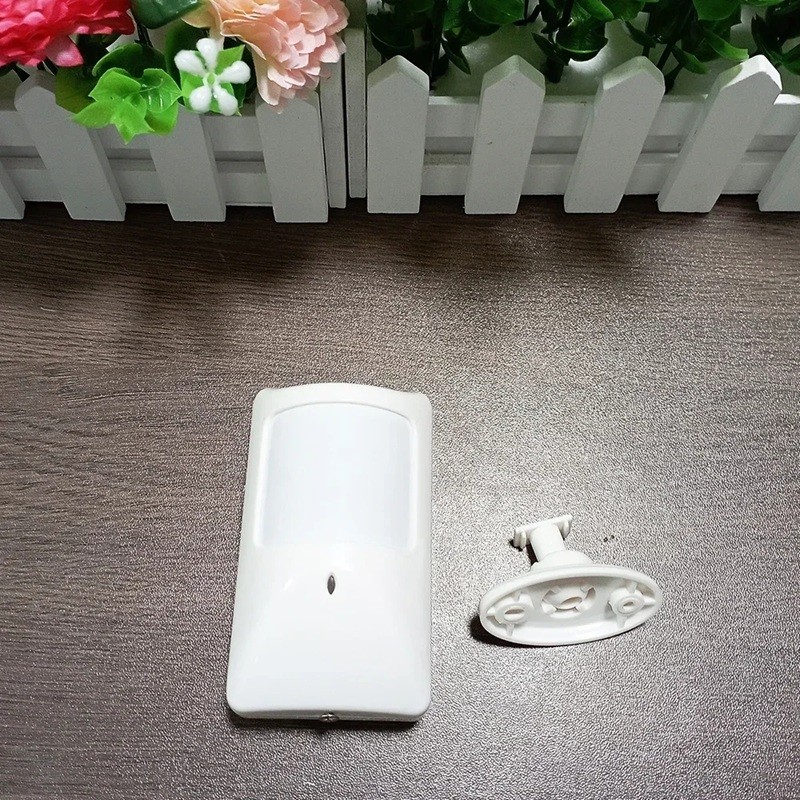

- Mounting with screws in the corner of a room or on a flat wall
- Pulse jumper for adjusting detection sensitivity
- Contents of the package: 1x motion sensor
The wired PIR sensor is a traditional building block of classic alarms with a control panel, which you can install yourself in an apartment, family house, office, shop, warehouse, or workshop. Compared to wireless variants, it offers higher reliability (no interference, no batteries to replace) and a longer lifespan - a properly connected sensor can last 15 years or more without maintenance. Before installation, it is necessary to choose a location with a good view of the monitored area, typically in the corner of a room at a height of around 2 metres, where the control panel can connect with a cable of appropriate cross-section. After connecting the power and signal wires to the terminal block and setting the jumpers (pulse mode, NO/NC output), the sensor is ready for operation and the control panel will begin receiving alarm and tamper signals.
