Waterproof LCD Display for Electric Bicycle and Scooter 6pin Connector USB UART Connection Speed and Battery Status Black with Green Buttons
You already have the maximum available quantity in your cart.
The waterproof LCD display is designed for electric bicycles and electric scooters, providing a clear display of riding data as well as control of the drive. It connects to the control unit via a round 6pin connector with a waterproof cable design. Communication occurs through a USB UART connection, which should be verified with the used controller prior to installation. The display shows speed in km/h, battery status, voltage, PAS assistance level, and total distance travelled ODO. The display body is black, and the control buttons are green.
- Waterproof design – the display is intended for use on electric bicycles and scooters, where it is exposed to typical outdoor conditions.

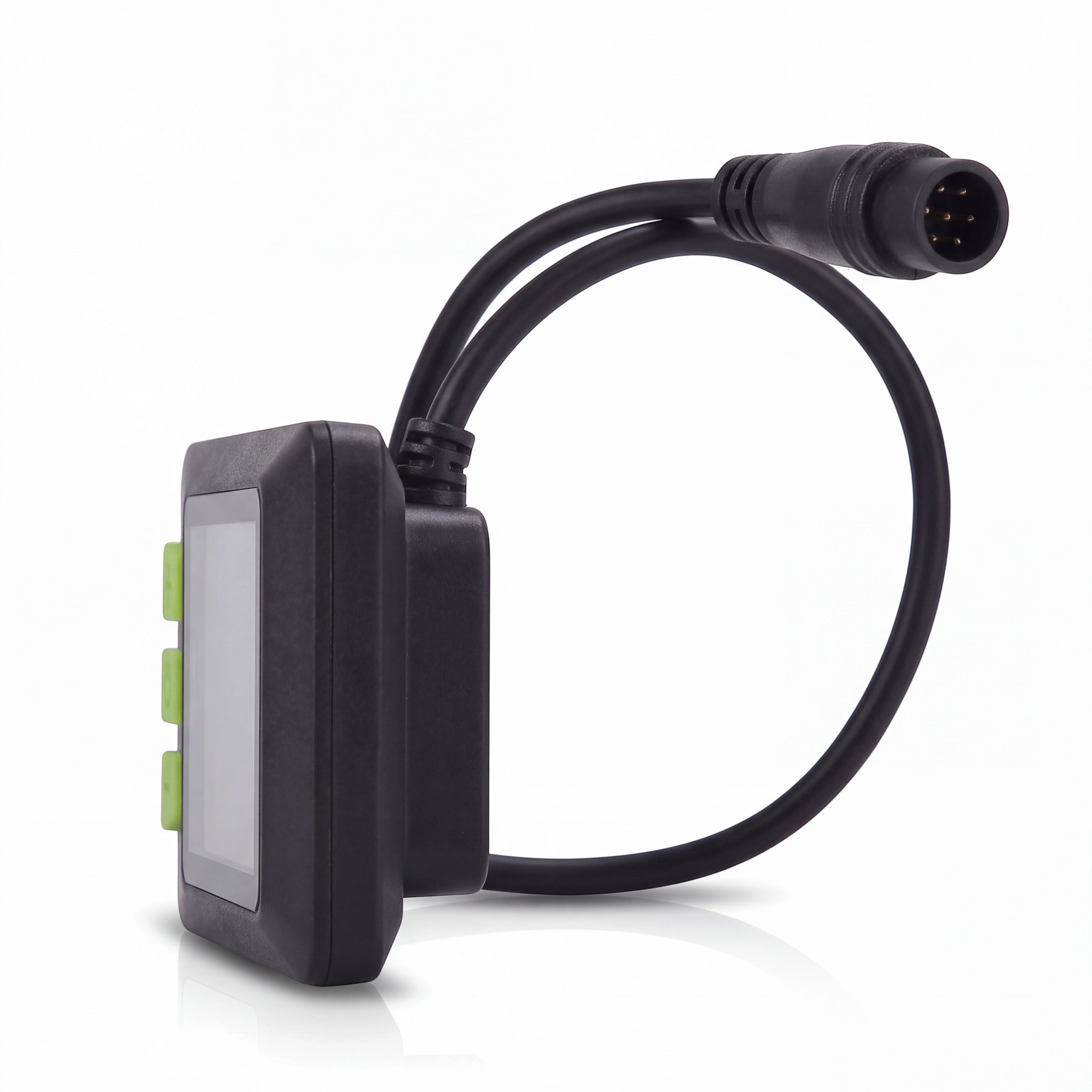

- 6pin connector – round male 6pin connector with a waterproof cable allows connection to the control unit with the corresponding socket.
- Wiring connections – red wire D+, white wire light, black wire GND, green wire RX, yellow wire TX, and blue wire K. This layout should be compared with the wiring of the existing controller.

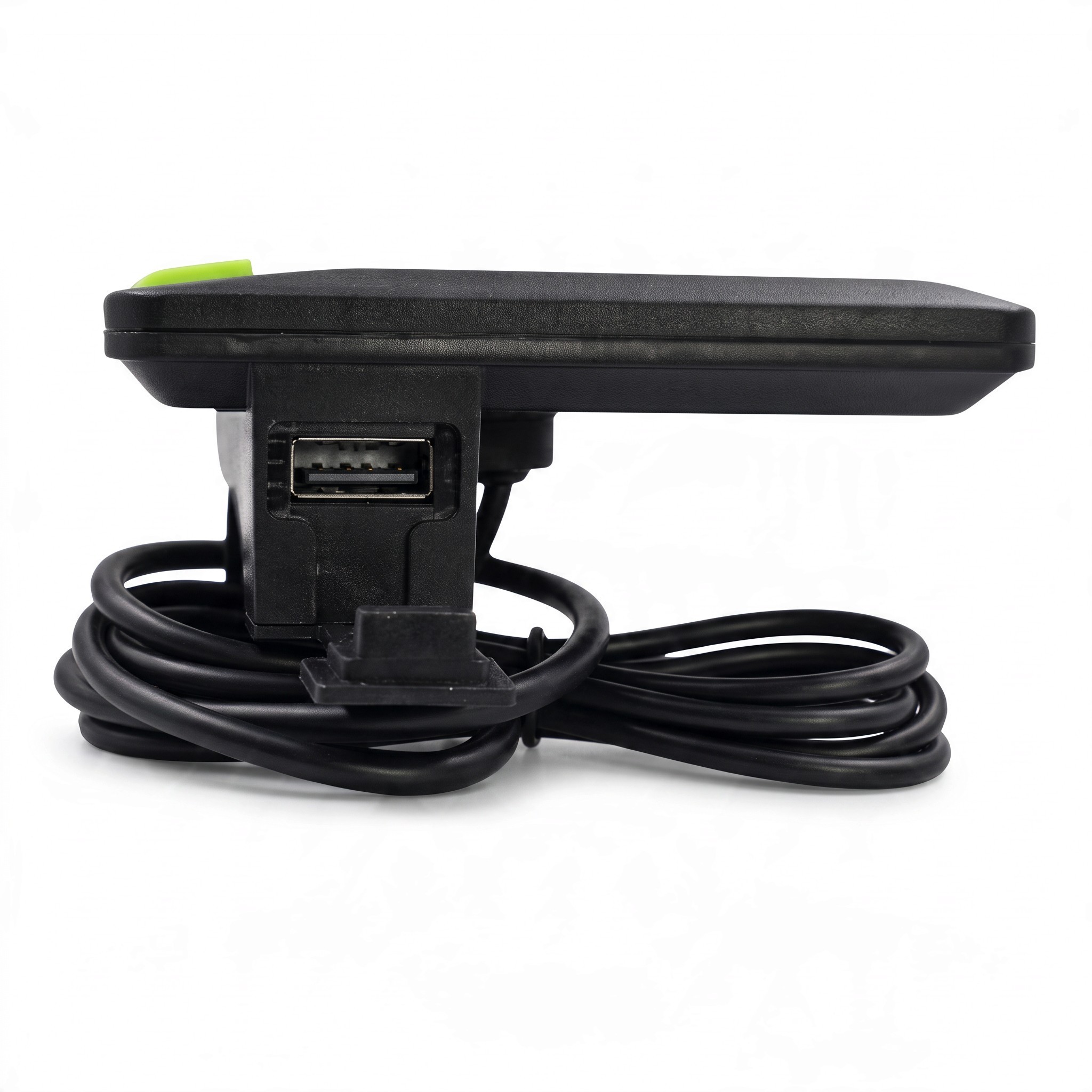

- USB UART connection – communication with the control unit takes place via the UART interface with TX and RX wires. Before purchasing, it is advisable to verify that the controller uses the same protocol.

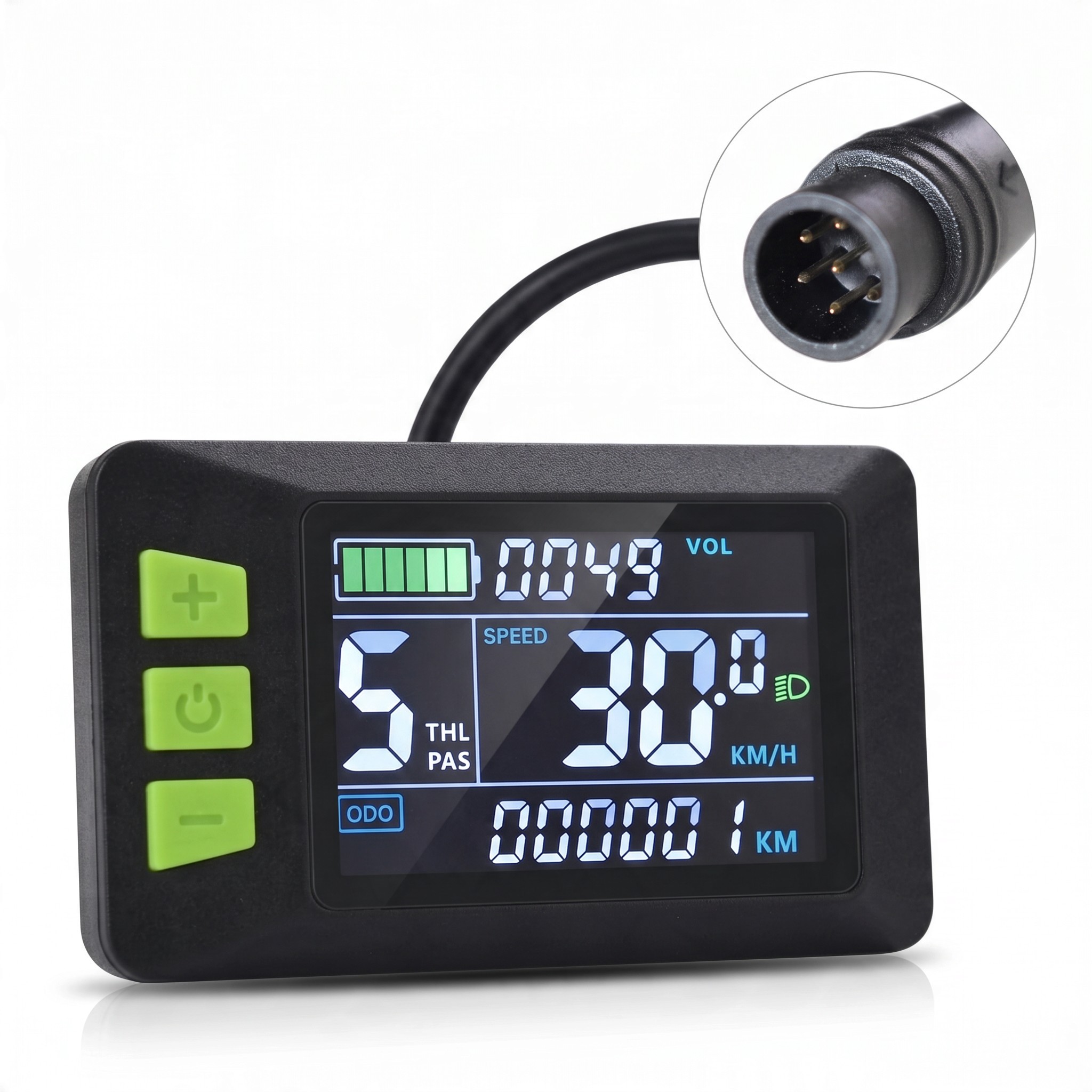

- Speed display – large digits in the centre of the display show current speed in km/h, making it easy to read even while riding without the need to stop.
- Battery status and voltage – the segment battery indicator complements the numerical VOL data for an overview of the battery voltage.
- PAS assistance level – the display shows the selected assistance level and the designations THL and PAS.
- ODO counter – the ODO data shows the total distance travelled in kilometres.
- Light indication – the light symbol on the display signals that the lighting is turned on. A white wire is reserved in the connector for connecting the light, so there is no need to arrange separate wiring.

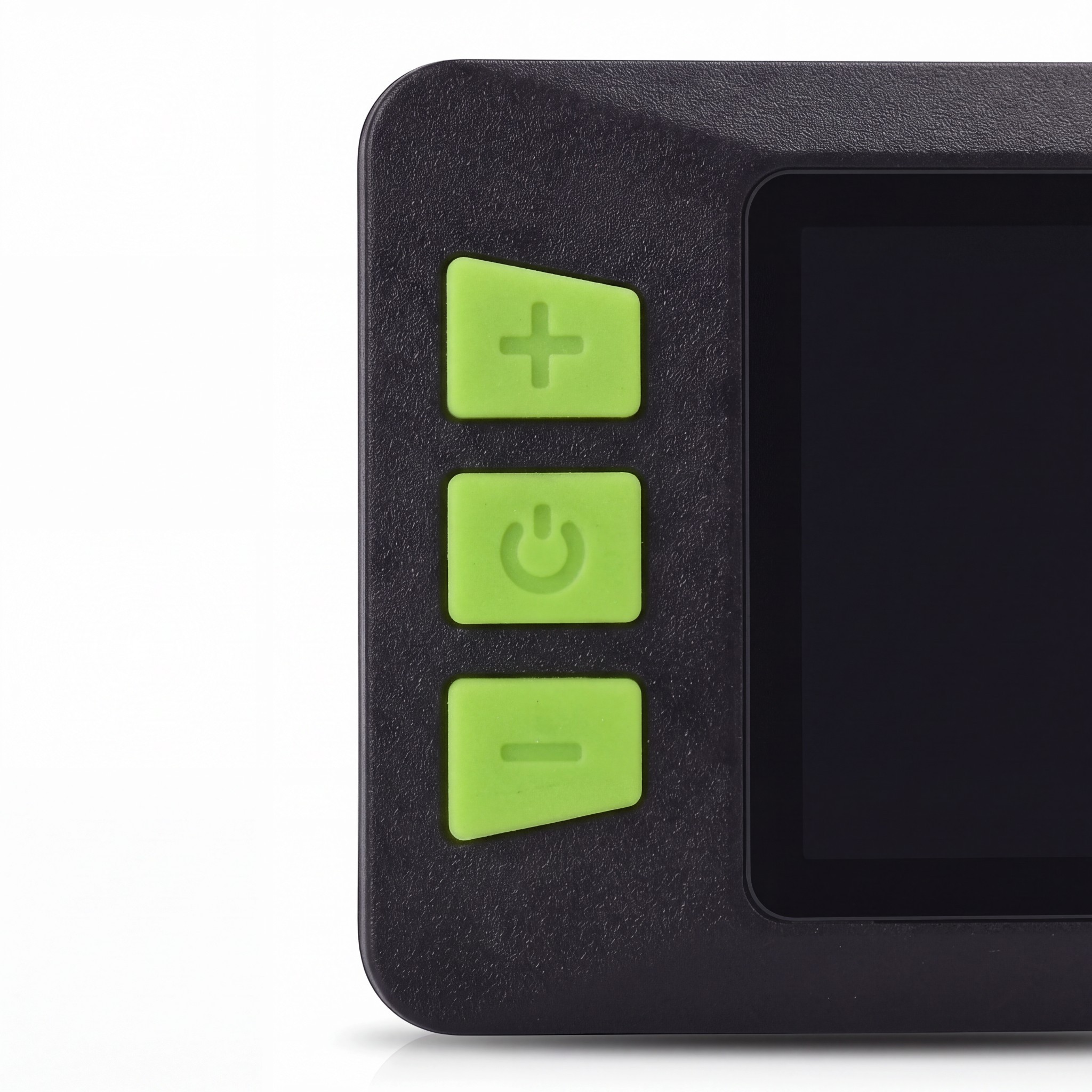

- Button control – on the left side of the display are three green buttons – plus, minus, and power button. They are arranged vertically and can be easily operated with the thumb while riding.
Contents of the package:
- 1x Waterproof LCD display with cable and 6pin connector
Waterproof LCD display with a 6pin connector is suitable as a replacement or new control element for electric bicycles and electric scooters with a compatible control unit. It clearly displays speed, battery status, voltage, PAS assistance level, and total distance travelled. Thanks to the described wiring of D+, Light, GND, RX, TX, and K wires, compatibility with the existing control unit can be easily compared. Before installation, it is recommended to verify that the controller supports USB UART communication and has the corresponding 6pin socket. The black body with green buttons is clear and simple to operate.
