Waterproof Colour LCD Display Connector SM 6pin Cable 1800 mm UART and USB Communication Light Connection Black for Electric Bicycle and Electric
You already have the maximum available quantity in your cart.

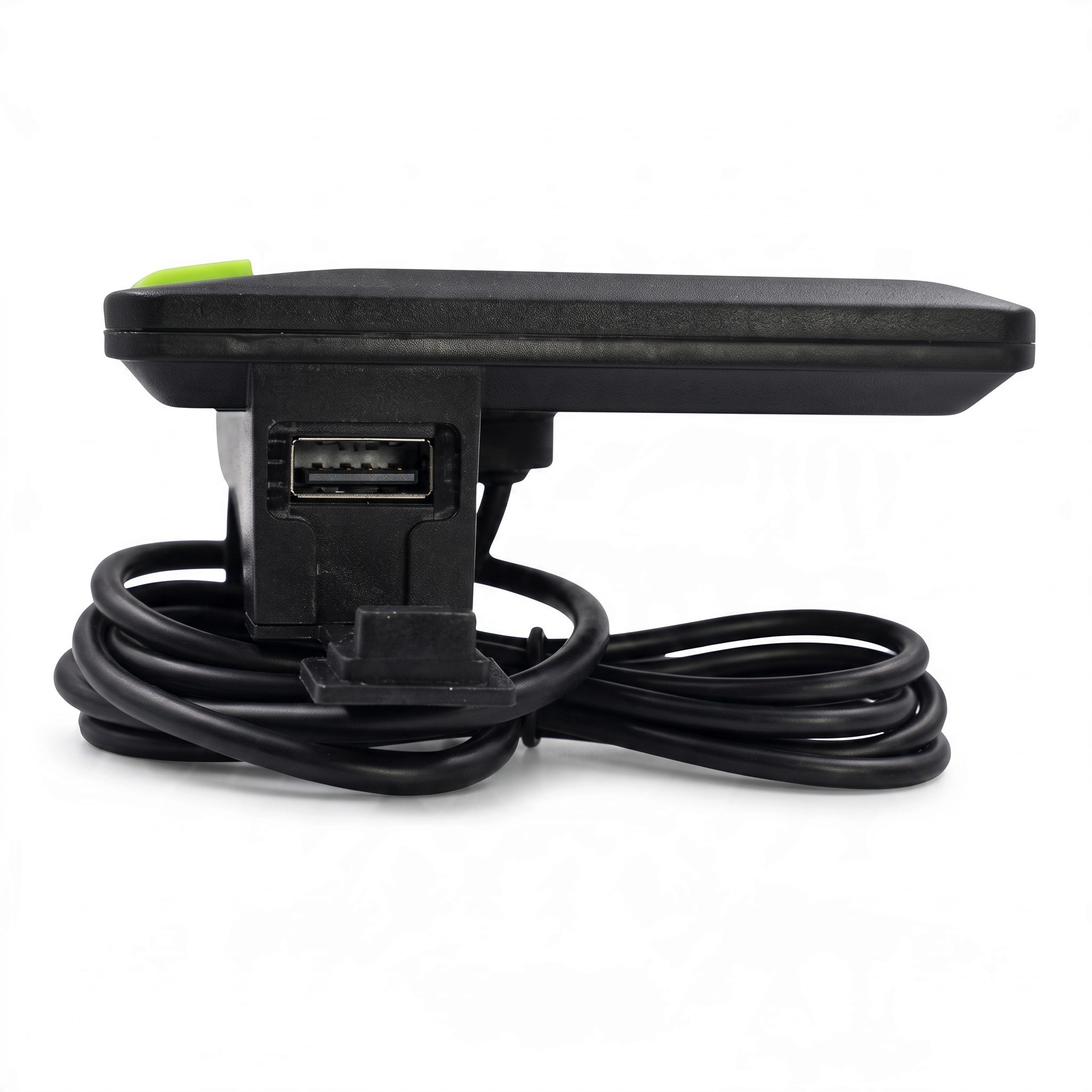

This waterproof colour LCD display is designed for electric bicycles, electric scooters and conversions of traditional bicycles to electric drive. It communicates with the control unit via UART interface and also offers USB connectivity. It connects to the electrical installation using a six-pin SM 6pin connector, with the sixth pin used for the light connection. The clear display shows the current speed in km/h, battery charge status, voltage, assistance level and total distance travelled. The display comes with a cable, allowing it to be mounted on the handlebars with wires leading to the control unit.

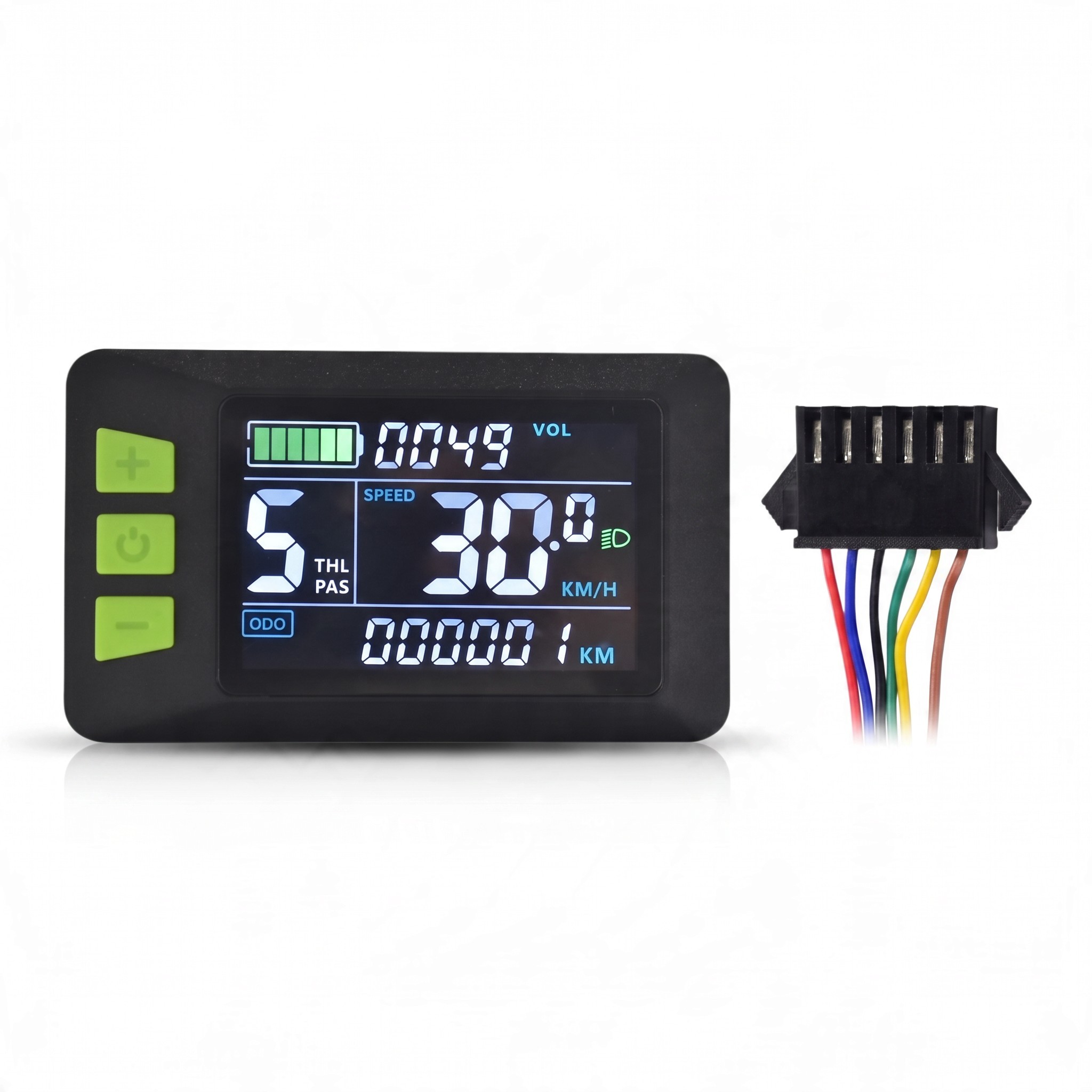

- Colour LCD Display – the screen displays the current speed in km/h with a decimal point, a graphical battery charge indicator, voltage (VOL), total distance travelled (ODO) and a symbol for the light being on. The individual data are divided into clear sections, making it easy to orientate even during a quick glance while riding.
- Assistance Level – on the left side of the screen, the current assistance level is displayed in large digits marked PAS and THL, so you always have the drive settings in view.

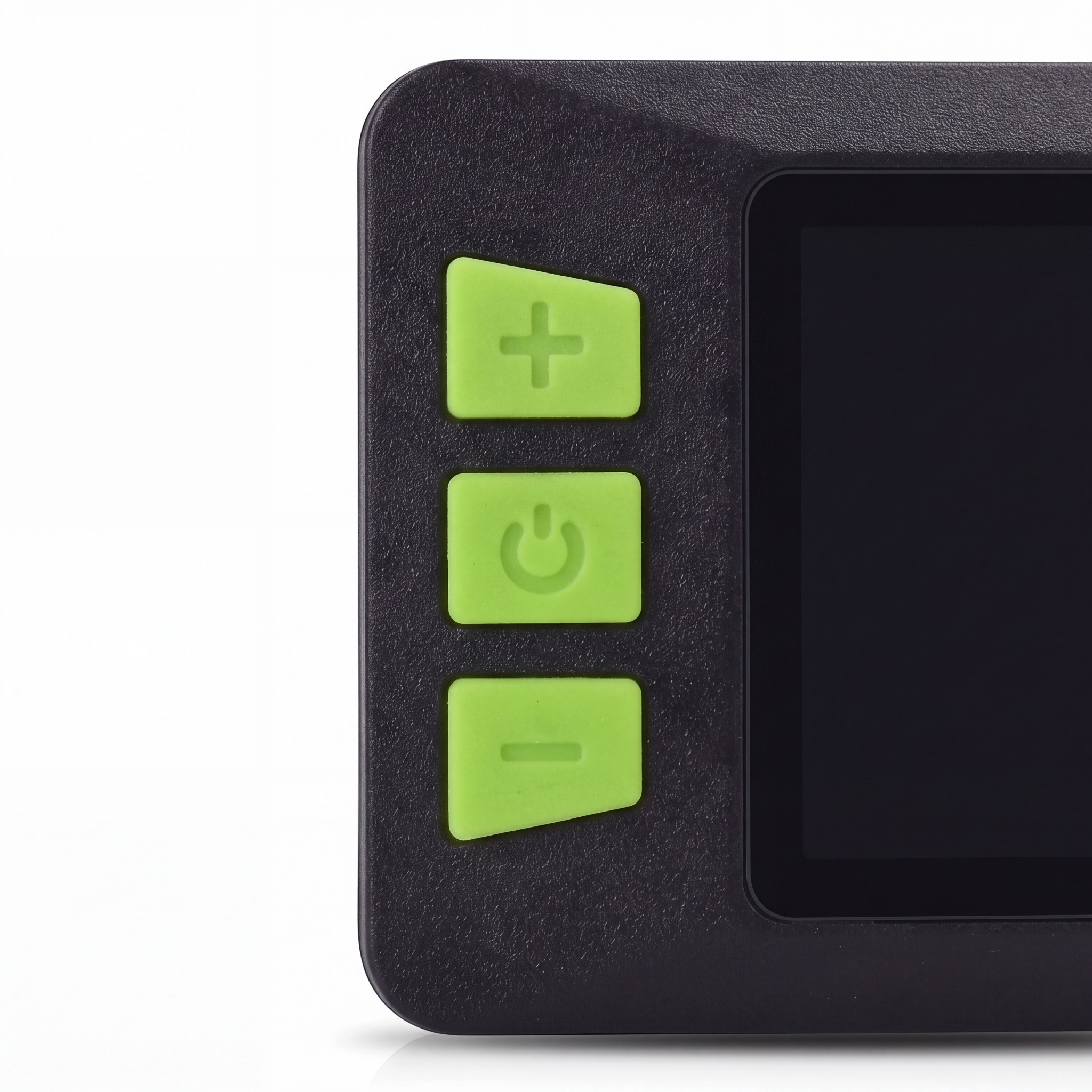

- Three Control Buttons – the plus, minus and power buttons are located to the left of the screen. They are colour-coded differently from the display body and each has a symbol indicating its function.
- UART Communication – data exchange with the control unit occurs over separate TX and RX lines. The display can receive data from the control unit while simultaneously sending settings chosen by the buttons.
- SM 6pin Connector – SM type connector with pin connections: 1 red (D+), 2 blue (K), 3 black (GND), 4 green (RX), 5 yellow (TX) and 6 light. Before connecting, check compatibility with your bicycle or scooter's wiring according to this description.
- Cable Length – the cable from the display measures 1800 mm and at its end, the individual wires are extended to a length of 30 mm leading to the connector. This length facilitates routing the cable from the handlebars to the control unit.
- Light Connection – the sixth pin of the connector is reserved for lighting. The display indicates the light being turned on with a symbol on the screen, so you are aware of its status.
- Cable with Wires – the individual wires are colour-coded according to their function, making it easier to check the connections during installation and any potential repair of the wiring.
- Colour Design – the black body of the display is complemented by green control buttons, which are visually distinct from the screen at first glance.
Package Contents:
- 1x waterproof LCD display with cable and SM 6pin connector
The display is suitable for owners of electric bicycles and electric scooters who need a new or replacement indicator of riding data with an SM type connector. It is also applicable for converting a bicycle to an electric bicycle, serving as the main information and control element of the entire assembly. Before installation, verify that your control unit supports UART communication and that the wiring of its connector matches the pin description provided. The display is mounted on the handlebars and the 1800 mm cable is routed to the control unit, where it connects with the SM 6pin connector including the wire for the light. Thanks to the waterproof design of the display, it can be used even in changing weather conditions.
